on grid resident Dual Axis solar tracker system solar panel 12kw solar tracking system
- Category: >>>
- Supplier: Shandong Jinhong New Energy Co. Ltd.
Share on (1600065468166):
Product Overview
Description
Product Description
Why choose solar tracking system?
Solar Experts: Why sign up for the cost and hassle of Tracking when you could just add more solar panels to match the added production?
1. Land Cost: As solar penetration increases, and transmission costs soar, solar will physically move towards the distribution grid, rather than the transmission grid. The distribution grid is closer to urban areas, with more expensive land and smaller sites, which puts tracking and higher production density at a premium. Adding more panels here will not be economical due to land cost and lower energy production density.
2. Time of day energy production: utilities highly value WHEN energy is produced during the day, not the maximum energy
production. Tracking produces more energy during higher value times with a more constant output curve, which utilities highly value. In contrast, fixed-tilt arrays produce a higher energy peak during the middle of the day. As solar penetration increases, the production curve of tracking arrays is significantly higher value energy, resulting in better LCOE and PPA rates.
3. Higher Cost: Adding more fixed panels increases balance of system (BOS) costs (inverters, wiring, etc.), making the PV system higher cost but lower value. Improving the energy production density by tracking the sun is higher value.
1. Land Cost: As solar penetration increases, and transmission costs soar, solar will physically move towards the distribution grid, rather than the transmission grid. The distribution grid is closer to urban areas, with more expensive land and smaller sites, which puts tracking and higher production density at a premium. Adding more panels here will not be economical due to land cost and lower energy production density.
2. Time of day energy production: utilities highly value WHEN energy is produced during the day, not the maximum energy
production. Tracking produces more energy during higher value times with a more constant output curve, which utilities highly value. In contrast, fixed-tilt arrays produce a higher energy peak during the middle of the day. As solar penetration increases, the production curve of tracking arrays is significantly higher value energy, resulting in better LCOE and PPA rates.
3. Higher Cost: Adding more fixed panels increases balance of system (BOS) costs (inverters, wiring, etc.), making the PV system higher cost but lower value. Improving the energy production density by tracking the sun is higher value.

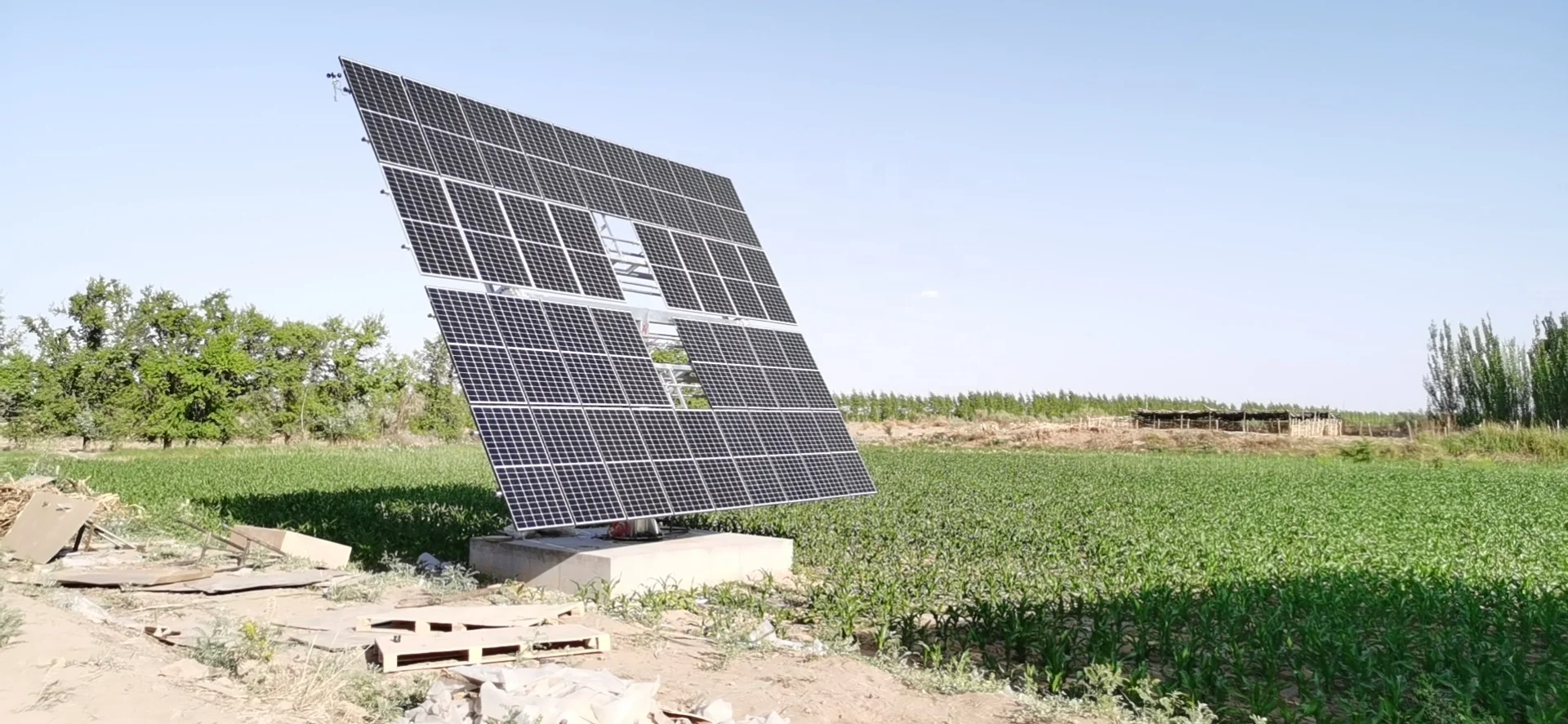

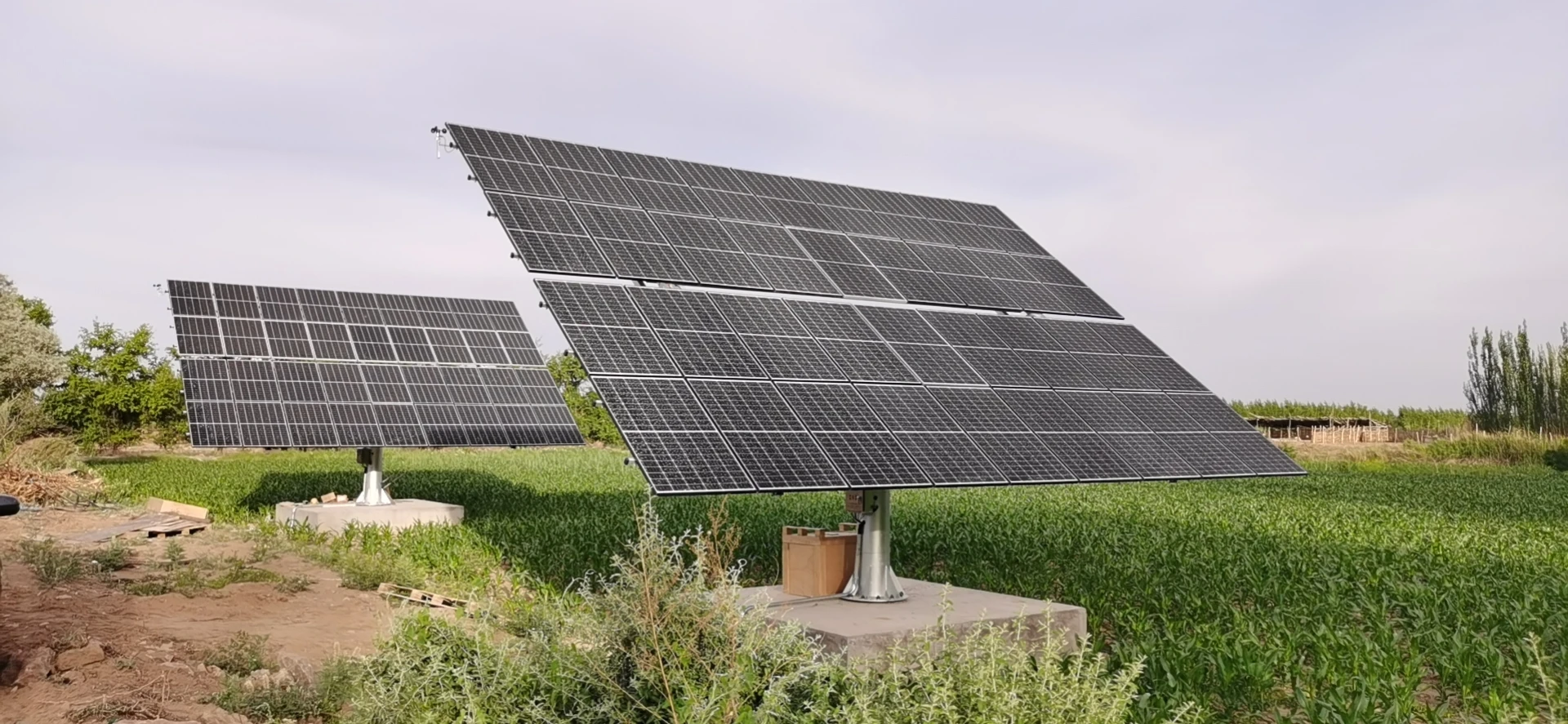

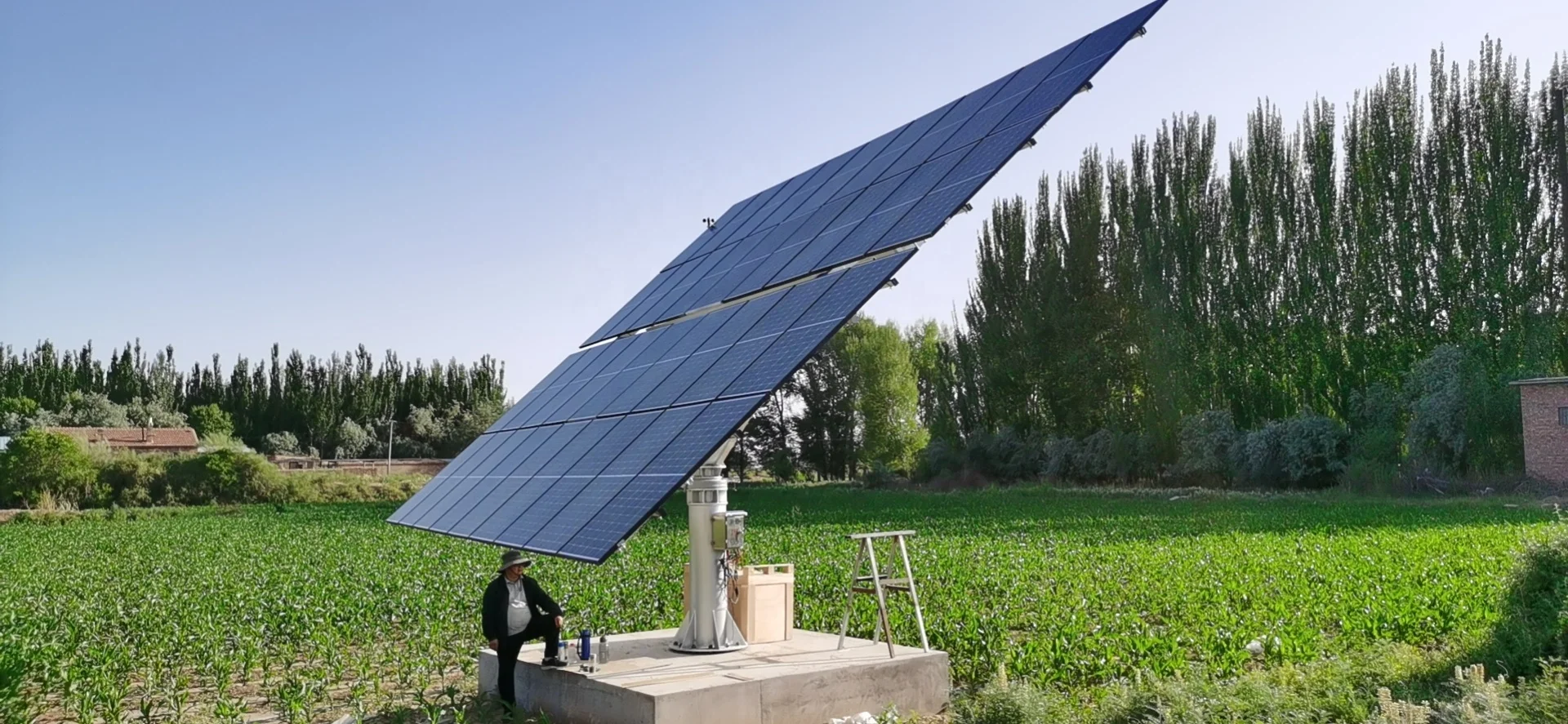

10kw dual axis solar tracking system
The solar tracking system uses high-precision astronomy algorithm to calculate the angle of the sun,combined with high performance microcontroller(DSP core),making the system accurate and realiable,no rainy day interference.Adopt to our self-designed technologies power generation increased by 30%-50% compared with fixed bracket.
Product Paramenters
Project | Value | Project | Value | ||
Control Method | Astronomical algorithm | Ipone APP | Optional | ||
Accuracy | ≤ 1° | Back Tracking | YES | ||
Azimuth tracking | -120°～+120° | Elevation tracking | 30°～90° | ||
Normal Wind protection | 17m/s | Operation under Max wind speed | 35m/s | ||
Power supply | AC:220v/AC380v | Driving Power | 90*2 | ||
Mechanical Lifetime | >25year | Daily power consumption | 0.5kwh | ||
Operating Temp | -25℃～65℃ | Weight | 1800kg | ||
Meterial | hot galvanized steel | Wind protection | Optional | ||
GPS positioning | Optional | Communication | RS485-MODBUS | ||
Protection degree | IP65 | Standards | GBT 29320-2012 | ||
Remote function | Yes | Data protection | Yes | ||
Certification | CE,CQC, ISO9001, ISO14001, OHSAS18001 | ||||
Details Images
Manual adjustment functions
Tracker with aviation plug,easy installation and commissioning,whith manual control mode you can manually adjust the tracking angle,the controller has a power station running,stop,night return status indicator.

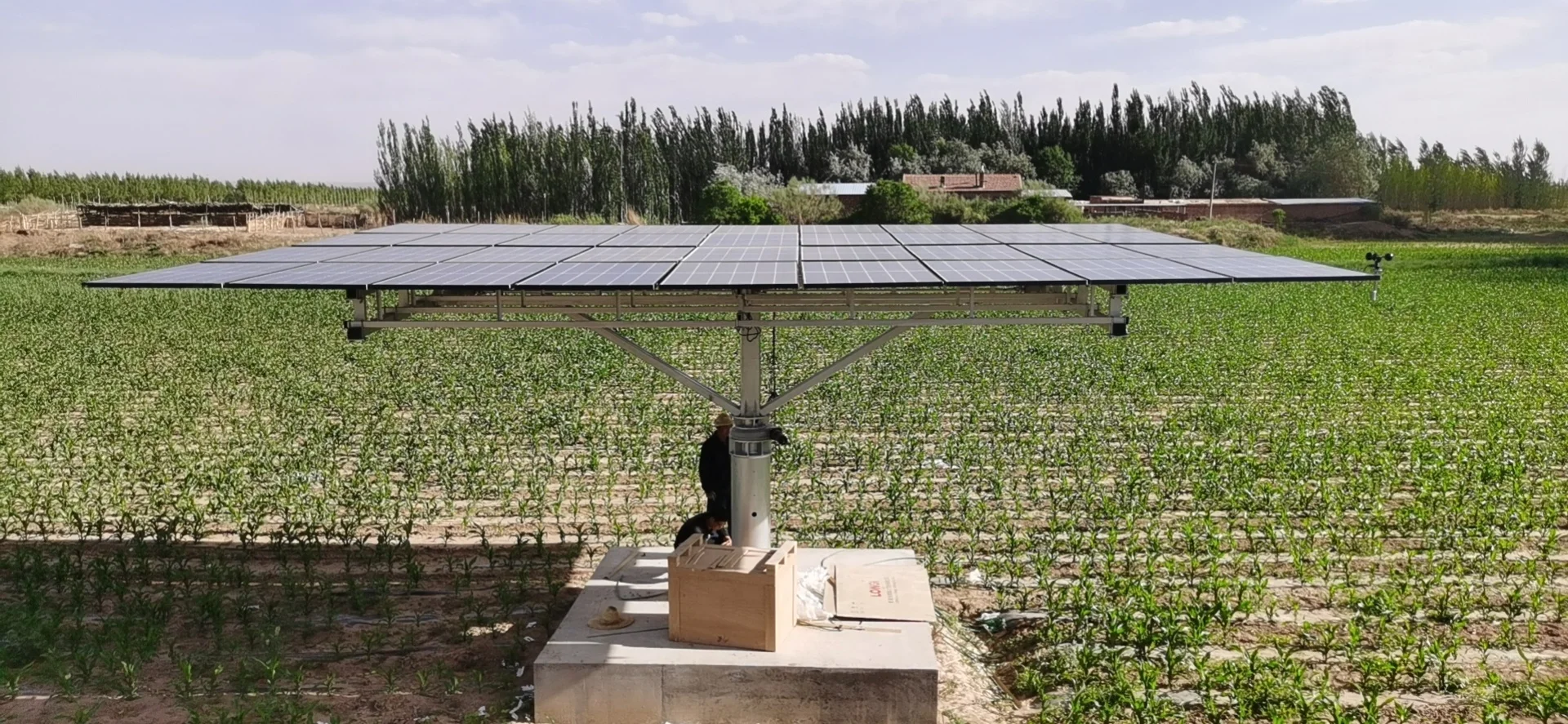

Automatic leveling function
Wind-resistant design automatically flat to the initial position at night,the system has a wind speed protection interface,support for external wind speed sensor,at any time to control the system into the mechanical maximum wind conditions.
Q235B Hot galvanized steel
88um Hot-dipped zinc to ensure 25 years life
Manufacturing Technique
Our company independently develops the cloud platform,which can upload and save the data in real time to the cloud control center.Users can view the tracking data and remote control in real time through the computer and mobile.
Remote control
RS485-MODBUS standard communication interface,the computer software can read the device ata any time the following information:
1.Sun angle,inclination angle,running status.
2.Actuator,inclination,limit,communications fault alarm.
3.Remote start,stop,reset,manual,anti-wind,anti-snow,anti-rain.
Intelligent tracking controller
The control method of solar controller is time control,precise calculation.When lack of illumination in cloudy and rainy days ,the solar tracker can calculate the actual location of the sun accurately and track according to the local longitude ,latitude and time using high accuracy sunlocation algorithm .when the weather turning to sunny from cloudy,the solar tracker can collect all the solar energy immediately,realizing the most efficient solar tracking.

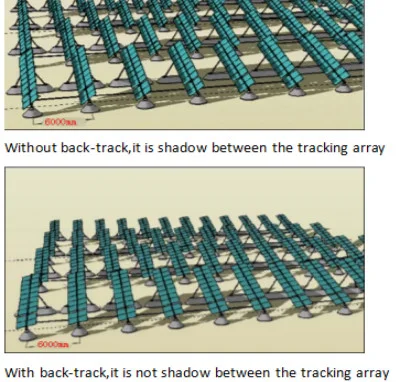

Closed-loop back tracking
Self-developed back tracking algorithm to further improve the efficiency of power generation to ensure that the solar panels has always been working in shadowless state,increase the solar power generation and prolong its service life.
International brand

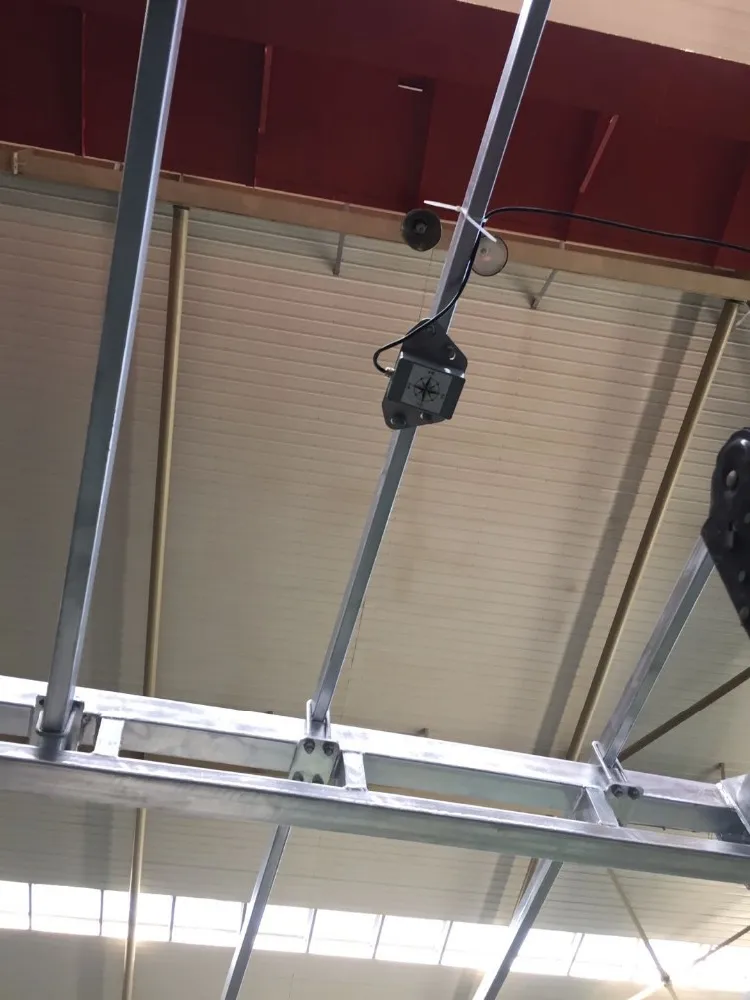

Selection of international brand inclination sensor ,real-time closed-loop back tracking angle,automatic tracking,whithout human intervention.
Company Profile
Shandong Jinhong Energy is a high-tech enterprise.Committed to research and application of new energy products and provide customized complete solution for customers.The company has successively launched solar PV tracking system,solar water pump,solar micro energy storage system etc.
Our Advantages
Our R&D design team has 18 years experience and more than 20 patents in the field of solar tracking system.
Factory
Our factory covers an area of 266400㎡. Total investment reached 120 million us dollars.
Ware house
Company using ERP enterprise resourse planning and OA office automation ,ensure that the entire production process achieve quality control,finished storage and waiting for delivery.
Work shop
With high intelligence and automated production work shop ,the company annual production capacity reach to 800MWp solar system.
Certifications
FAQ
1.What is your terms of payment?
Payment ≤1000USD,100% in advance.Payment ≥1000USD ,50%TT in advance,balance before shippment.
2.Are you a manufacturers?
Yes,we have our own factory.All solar systems are self designed.Welcome to visit our company.
3.How long is your delivery time?
Generally,solar tracker system is 5-10 days shipped if in stock,if not,30 days is required.
