Mitutoyo Accurate Measurement Digital Vernier Caliper 300mm For Sale
- Category: >>>
- Supplier: LIMITED DAIEI CORPORATION
Share on (1600065634458):
Product Overview
Description
ABSOLUTE Digimatic Caliper
500 Series — with exclusive ABSOLUTE Encoder Technology
• An ABSOLUTE electromagnetic induction linear encoder system is incorporated.
• New ergonomic design with finger rest.
• The ZERO/ABS button allows the display to be Zero-Set at any slider position along the scale for comparison measurements. This button will also allow return to the absolute (ABS) mode and display of the true position from the origin (usually jaws closed
point).
• Large and clear LCD readout.
• Smooth slider movement makes for comfortable operation.
• Extended battery life of Approx. 5 years due to low current integrated circuit (except for 0 - 300 mm/0 - 12 inch models).
• Allows step measurement.
• Carbide-tipped jaw calipers are optimal for rough nished parts, castings, grinding stones, etc.
• Allows integration into statistical process control and measurement systems for models with measurement data output connector.
500 Series — with exclusive ABSOLUTE Encoder Technology
• An ABSOLUTE electromagnetic induction linear encoder system is incorporated.
• New ergonomic design with finger rest.
• The ZERO/ABS button allows the display to be Zero-Set at any slider position along the scale for comparison measurements. This button will also allow return to the absolute (ABS) mode and display of the true position from the origin (usually jaws closed
point).
• Large and clear LCD readout.
• Smooth slider movement makes for comfortable operation.
• Extended battery life of Approx. 5 years due to low current integrated circuit (except for 0 - 300 mm/0 - 12 inch models).
• Allows step measurement.
• Carbide-tipped jaw calipers are optimal for rough nished parts, castings, grinding stones, etc.
• Allows integration into statistical process control and measurement systems for models with measurement data output connector.

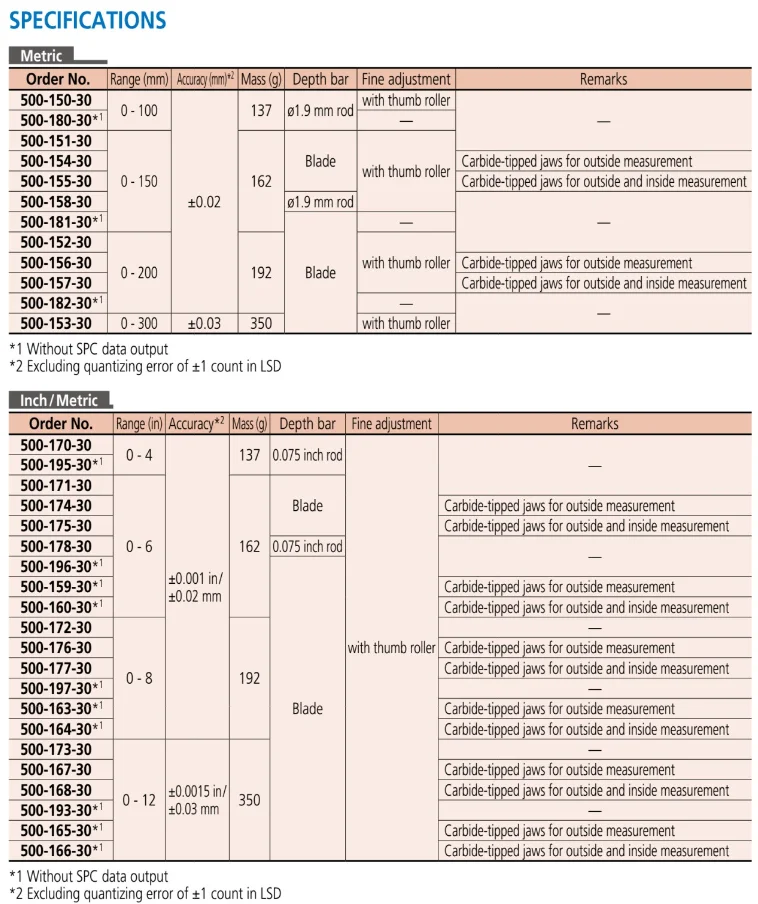

-Technical Data
• Accuracy:±0.02 mm (≤200 mm), ±0.03 mm (≤300 mm) (excluding quantizing error)
• Resolution:0.01 mm or 0.0005 in/0.01 mm
• Repeatabty: 0.01 mm
• Display:LCD
• Scale type:ABSOLUTEelectromagnetic induction linear encoder
• Max. response speed: Unlimited
• Battery: SR44 (1 pc), 938882,
for initial operational checks (standard accessory)
• Batterylife: Approx. 5 years under normal use
-Functions

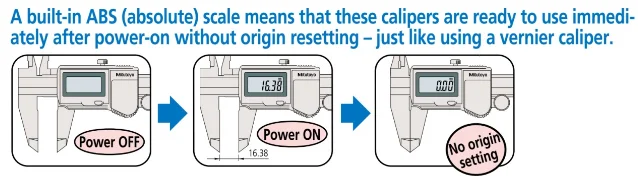

Absolute measurement: After power is turned ON, measurement can be started without zero-setting if origin-setting was previously performed. The Absolute origin position can be changed by the ORIGIN button.
Incremental measurement: Display can be set to zero at any arbitrary position for comparative measurements.
Low-voltage alert: If the battery voltage becomes low, a “B” appears in the display to alert the user before measurement is no longer possible. A battery change advisory alert precedes this alert.
Data output: By using the connecting cable (option), measurement data can be output.
Data hold: By using the data hold unit (option), the displayed value can be held. This cannot be used with the data output function.
• Accuracy:±0.02 mm (≤200 mm), ±0.03 mm (≤300 mm) (excluding quantizing error)
• Resolution:0.01 mm or 0.0005 in/0.01 mm
• Repeatabty: 0.01 mm
• Display:LCD
• Scale type:ABSOLUTEelectromagnetic induction linear encoder
• Max. response speed: Unlimited
• Battery: SR44 (1 pc), 938882,
for initial operational checks (standard accessory)
• Batterylife: Approx. 5 years under normal use
-Functions
Absolute measurement: After power is turned ON, measurement can be started without zero-setting if origin-setting was previously performed. The Absolute origin position can be changed by the ORIGIN button.
Incremental measurement: Display can be set to zero at any arbitrary position for comparative measurements.
Low-voltage alert: If the battery voltage becomes low, a “B” appears in the display to alert the user before measurement is no longer possible. A battery change advisory alert precedes this alert.
Data output: By using the connecting cable (option), measurement data can be output.
Data hold: By using the data hold unit (option), the displayed value can be held. This cannot be used with the data output function.

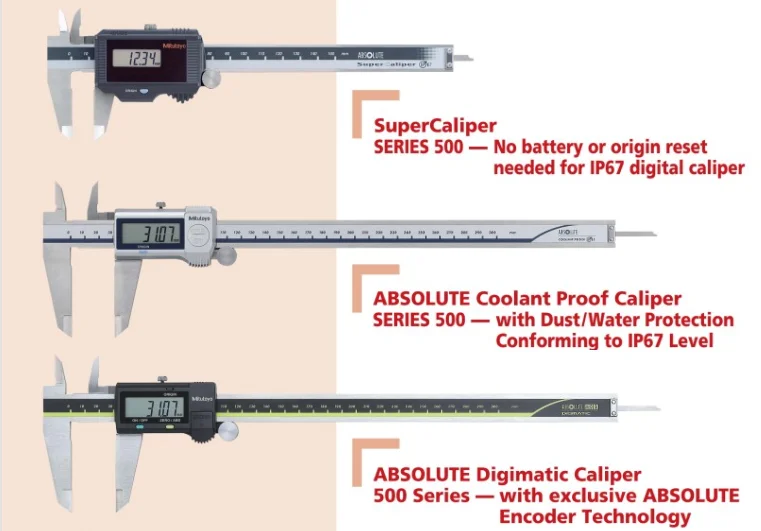

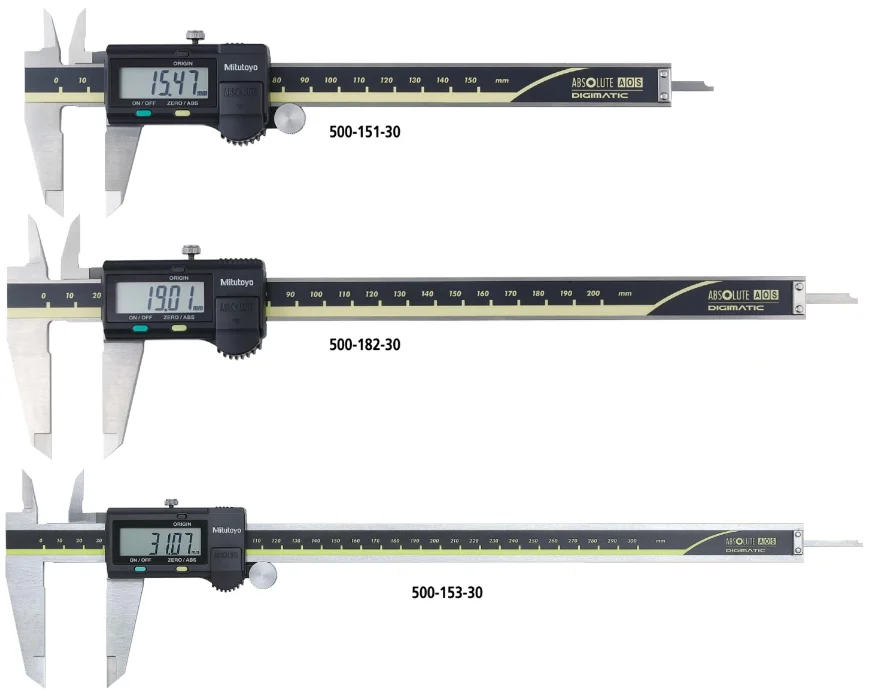

Mitutoyo Calipers Line up
Brand Name | SHOWA TOOL | ||||||
Place of Origin | Japan | ||||||
Model Number | product_10 | ||||||
Top-of-the-line digital caliper made in Japan
Reliable Mitutoyo calipers. The Japanese market share of calipers and micrometer is about 90%.
Absolute measurement
After power is turned ON, measurement can be started without zero-setting if origin-setting was previously performed. The Absolute origin position can be changed by the ORIGIN button.
Easy to use
Advanced ergonomic design uses only 1 button.
Reliable Mitutoyo calipers. The Japanese market share of calipers and micrometer is about 90%.
Absolute measurement
After power is turned ON, measurement can be started without zero-setting if origin-setting was previously performed. The Absolute origin position can be changed by the ORIGIN button.
Easy to use
Advanced ergonomic design uses only 1 button.
