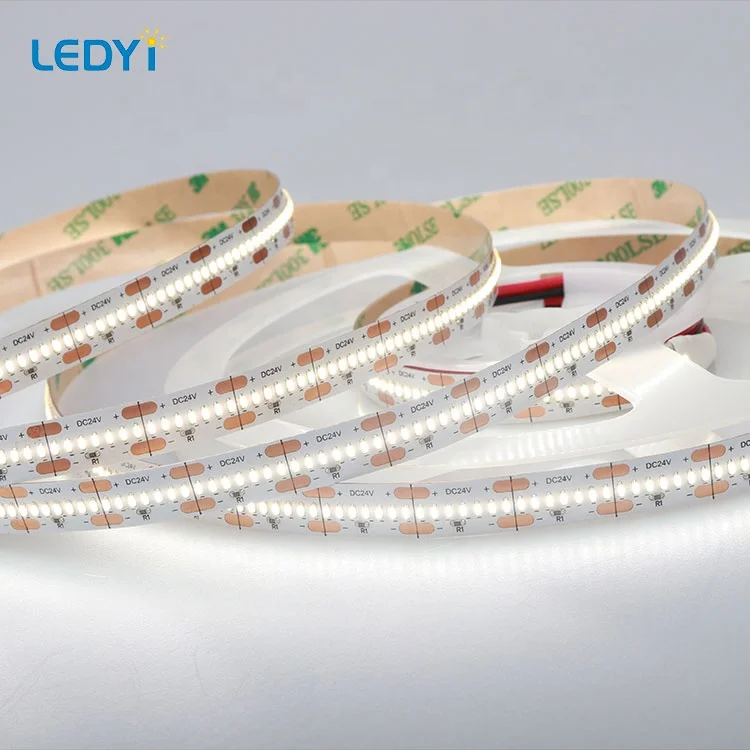

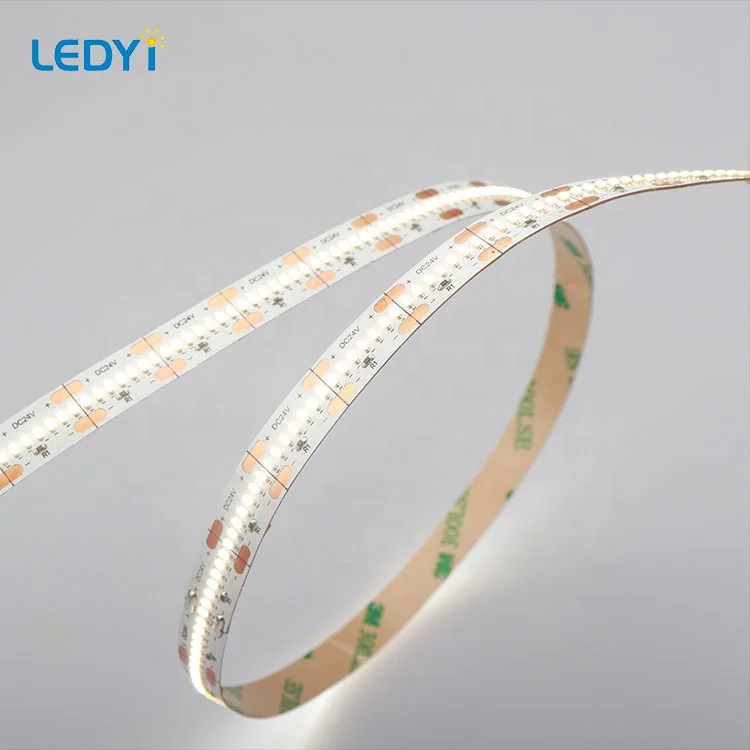

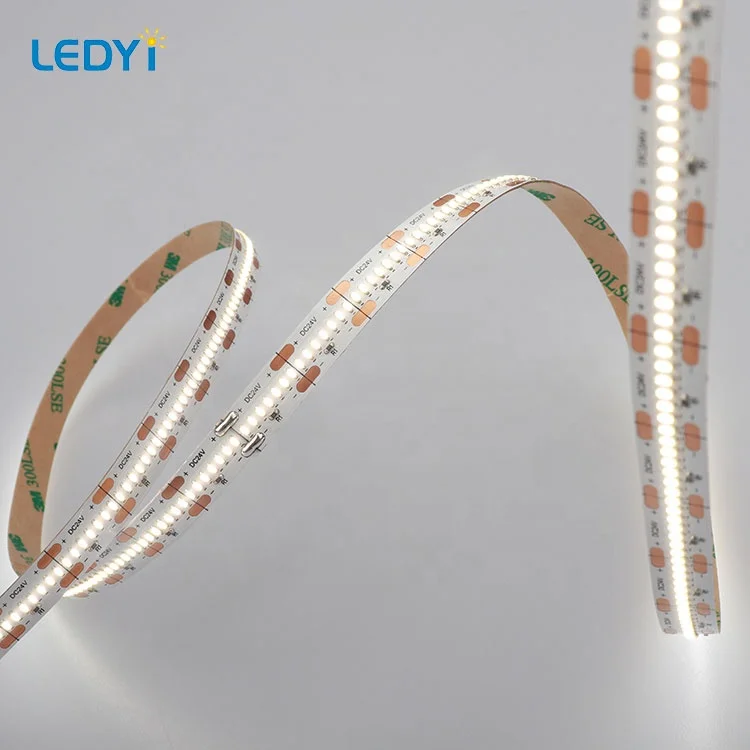

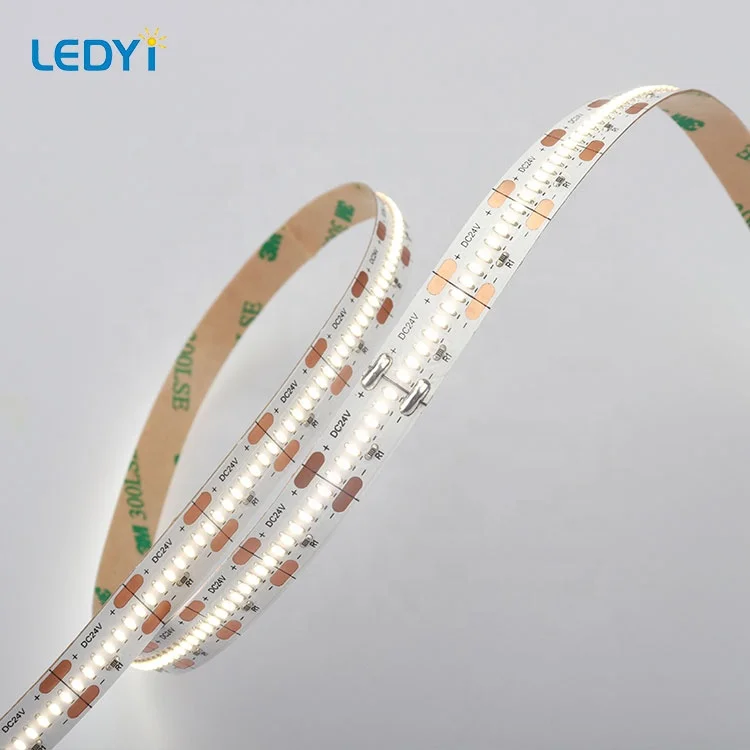

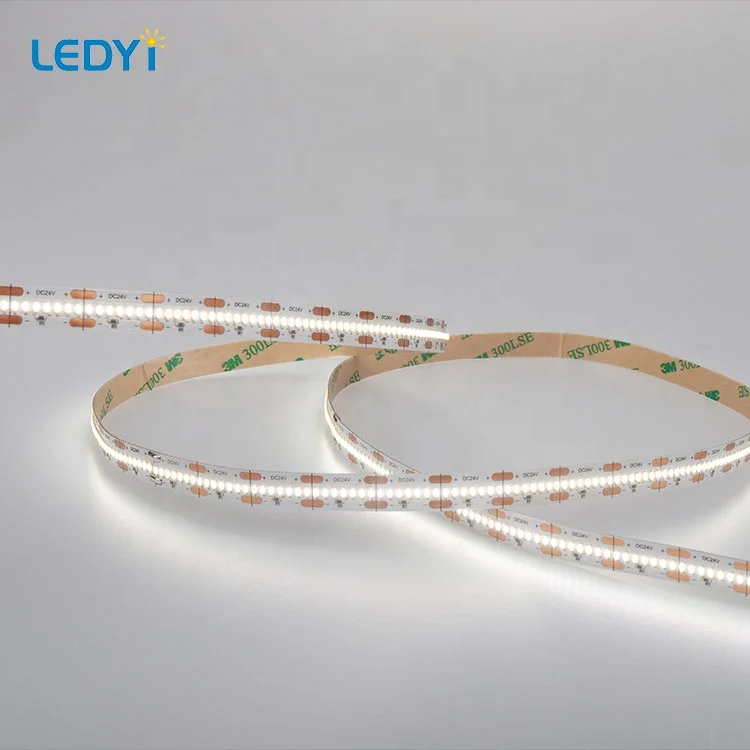

Top selling led strip light SMD1808 super narrow 420leds/m best 24V led flex strip light
- Category: >>>
- Supplier: Shenzhen Ledyi Lighting Co. Ltd.
Share on (1600065664172):
Product Overview
Description
SMD1808 420LEDS 10mm width led strip light
Product Description
10mm width 1808SMD 420LEDs Led strip
Dimension: 5000mm x 10mm x1.4mm
Chip density: 420LED, 2.4mm LED pitch
LED Step: 7LED(24V)
Step length: 16.7mm(24V)
Power(w/m): 20W/M
Efficacy: 116.5lumen/Watt
Voltage(V): DC24V
Current(A/m): 0.84A
Ambient temperature: -20°C~+50°C
Chip density: 420LED, 2.4mm LED pitch
LED Step: 7LED(24V)
Step length: 16.7mm(24V)
Power(w/m): 20W/M
Efficacy: 116.5lumen/Watt
Voltage(V): DC24V
Current(A/m): 0.84A
Ambient temperature: -20°C~+50°C
Product Paramenters
Description:
24V, flexible LED strip (7LED/step =16.7mm) with 3M adhesive tape on the back for easy installed.2330lm/m at 20W/m. 120° beam angle. Very good color reproduction with CRI>95. “One Bin Only” within 3 MacAdam guarantees constant color temperature and high light quality at a lifetime of 54,000 hours (L ).Double-layer FPC(2Oz) for good heat dissipation.

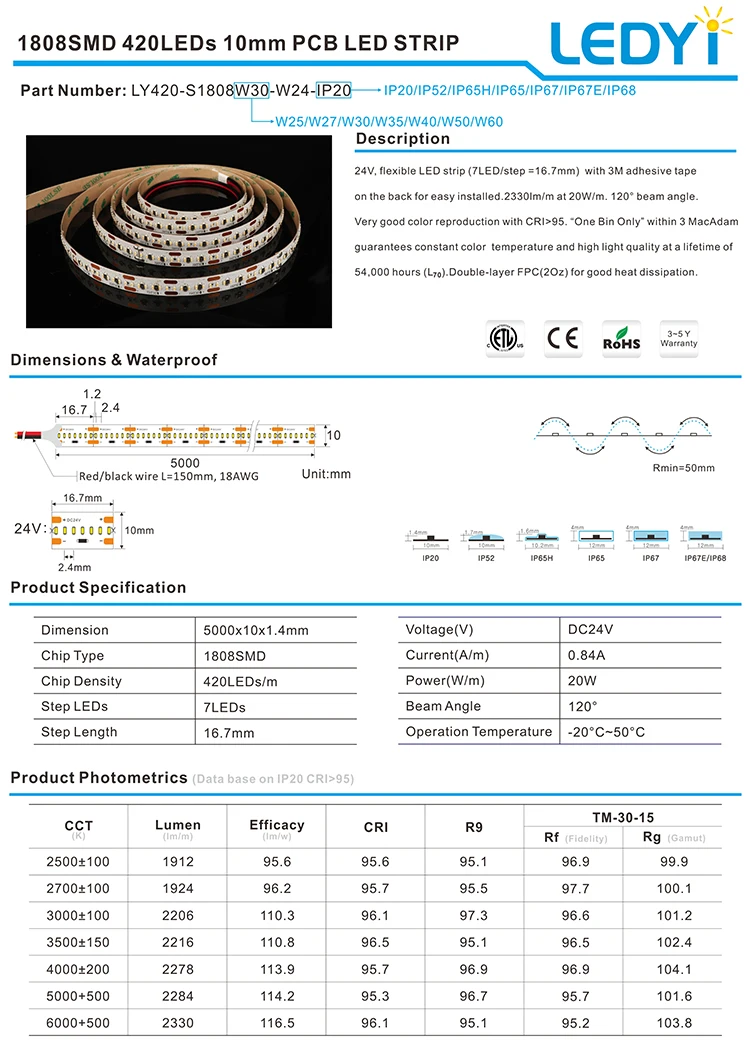

Product Specification | ||
Dimension: | 5000x10x1.4mm | |
Voltage(V): | DC24V | |
LED Type: | SMD1808 | |
Current(A/m): | 0.84A(24V) | |
LEDs/m: | 420pcs | |
Power(W/m): | 20W | |
Step LEDs: | 7pcs | |
Beam Angle: | 120° | |
Step Length: | 16.7mm | |
Operation Temperature: | -20℃-50℃ | |
Product Photometrics (Data base on IP20 CRI>90) | ||||||||||||
CCT | Lumen (lm/m) | Efficacy (lm/w) | CRI | R9 | TM-30-15 | |||||||
Rr | Rg | |||||||||||
2500±100 | 1912 | 95.6 | 95.6 | 95.1 | 96.9 | 99.9 | ||||||
2700±100 | 1924 | 96.2 | 95.7 | 95.5 | 97.7 | 100.1 | ||||||
3000±100 | 2206 | 110.3 | 96.1 | 97.3 | 96.6 | 101.2 | ||||||
3500±150 | 2216 | 110.8 | 96.5 | 95.1 | 96.5 | 102.4 | ||||||
4000±200 | 2278 | 113.9 | 95.7 | 96.9 | 96.9 | 104.1 | ||||||
5000±500 | 2284 | 114.2 | 95.3 | 96.7 | 95.7 | 101.6 | ||||||
6000±500 | 2330 | 116.5 | 96.1 | 95.1 | 95.2 | 103.8 | ||||||
Product Presentation
IP20: bare, max. light output and the best color consistency, indoor use.
IP52: Silicone coating, ~5% less output and 3rd best color consistency, indoor use, for damp environments.
IP65/IP65H: Silicon tube / Heat shrink tube / Extrusion tube / U milky tube + clear cover, ~3% less output and 2nd best color consistency,
IP52: Silicone coating, ~5% less output and 3rd best color consistency, indoor use, for damp environments.
IP65/IP65H: Silicon tube / Heat shrink tube / Extrusion tube / U milky tube + clear cover, ~3% less output and 2nd best color consistency,
Indoor use or semi-outdoor use, for raining environments.
IP67: Silicone tube + silicon filling , ~7% less output and 4th best color consistency, outdoor use, max length is 10 meters.
IP67E: Solid silicone extrusion, ~7% less output and 4th best color consistency, outdoor use, max length up to 50 meters.
IP68: PU(Polyurethane),~7% less output and 4th best color consistency, under the water, within 2 meters deep.

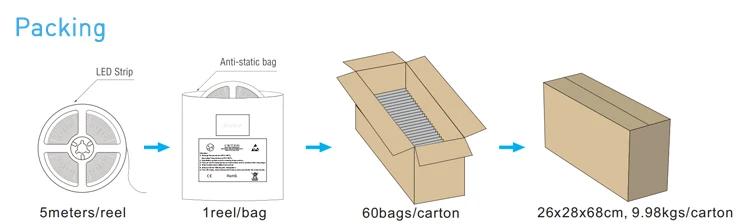

Packing&Shipping
Related Products
Certificate
Our products are approved with ETL, TUV-CE, SGS-ROHS and REACH certifications. Thanks to the strict quality control
processing, on-time delivery and best after-sale service, strictly followed to UL, EU safety standards, our products have
been hot sold to Europe, North and South America, Russia, Southeast Asia, such as Germany, France, Italy, Spain, UK,
Australia, USA, Argentina, Chile, Venezuela, Brazil etc.
processing, on-time delivery and best after-sale service, strictly followed to UL, EU safety standards, our products have
been hot sold to Europe, North and South America, Russia, Southeast Asia, such as Germany, France, Italy, Spain, UK,
Australia, USA, Argentina, Chile, Venezuela, Brazil etc.
Company Introduction
LEDYi Lighting, founded in 2011, a specialized LED Strip manufacturer, with over 5000 square meters of standard workshop and over 150 employees.
We go through QMS certification ISO9001:2015, EMS certification ISO14001, OHS certification OHSAS18001.
Our R&D team have abundant experience in industrial design, electronic driver, heat simulation analysis, optical lens design, light control system. We adopt the high-grade raw materials, from our own led SMD encapsulation, auto soldering , SMT assembly, multiple strict QC, aging testing, to product package, we cater to every detail to make the perfect product for our clients.
Our products are approved with ETL, TUV-CE, SGS-ROHS and REACH certifications.
Our company have LED encapsulation line, auto SMT machines, reflow soldering machine, and professional test equipment, such as IP68 waterproof level test machine, integrating spheres, AOI tester, etc. We also have a professional trained QC team to ensure the quality of all the products.
We go through QMS certification ISO9001:2015, EMS certification ISO14001, OHS certification OHSAS18001.
Our R&D team have abundant experience in industrial design, electronic driver, heat simulation analysis, optical lens design, light control system. We adopt the high-grade raw materials, from our own led SMD encapsulation, auto soldering , SMT assembly, multiple strict QC, aging testing, to product package, we cater to every detail to make the perfect product for our clients.
Our products are approved with ETL, TUV-CE, SGS-ROHS and REACH certifications.
FAQ
1. Do you have certificate for your products ?
R: Yes, our products have CE (EMC+LVD), Rohs(SGS) and ETL certification.
2. Do you have warranty for products?
R: Yes, we have 3 and 5 years waranty for different kinds of products. During the period, if customers have the proof showing product quality issue and certified by LEDYi engineers, we will request customers to ship back the failure
parts and replace new items with free shipping cost.
parts and replace new items with free shipping cost.
3. Do you offer free sample and what's the MOQ?
R: Yes, we offer free sample and no MOQ for standard products, have MOQ for customized products.
4. What is the lead time of Ledyi Lighting?
R: Usually we ship orders in 2 weeks. But it will take a little longer if we have heavy burden of production task. It also takes more time for customized products.
5. Can Ledyi Lighting accept customized assembly or offer OEM products?
R: Yes, Ledyi lighting has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.
6. What is the main market of Ledyi Lighting?
R: We are selling more to EU and North America because the markets have high quality standard for LED products. The rate accounts for 70-80% of our turnover. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.
