12Vdc 24Vdc to 5Vdc Converter 12V 24V to 5V 3A 5A 10A DC Buck Voltage Converter Step Down Power Module for GPS DVR Camera
- Category: >>>
- Supplier: Shenzhen Fulree Electronics Co. Ltd.
Share on (1600065984366):
Product Overview
Description
12Vdc 24Vdc to 5Vdc Converter 12V 24V to 5V 3A 5A 10A DC Buck Voltage Converter Step Down Power Module for GPS DVR Camera
Product Description
Product Name | Fulree DC DC Converter 12V 24V to 5V 3A 5A 8A 10A | |
Brand | Fulree | |
Model No. | F35J5V*A3S | |
Module Properties | non-isolated boost module | |
Rectification | synchronous rectification | |
Input (13-14cm) | ||
Input Voltage | DC 12V 24V | |
Input Voltage Range | DC 8-35V | |
Output (13-14cm) | ||
Output Voltage | DC 5V | |
Output Current | 3A / 5A / 8A / 10A Max | |
Output Power | 15W / 25W / 40W / 50W Max | |
Conversion Efficiency | >95% | |
Voltage regulation | ±3% | |
Load regulation | ± 2% | |
Ripple (Full load test) | < 150mV | |
No-load current | <100mA | |
Working Temperature | -40~80℃ | |
Waterproof Rating | IP68 | |
Protection | Over-current protection | |
Overheat protection | ||
Output Short-circuit protection | ||
Input Reverse Polarity protection | ||
Application | Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts | |
Certification | CE/RoHS | |
Case Material | Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on | |

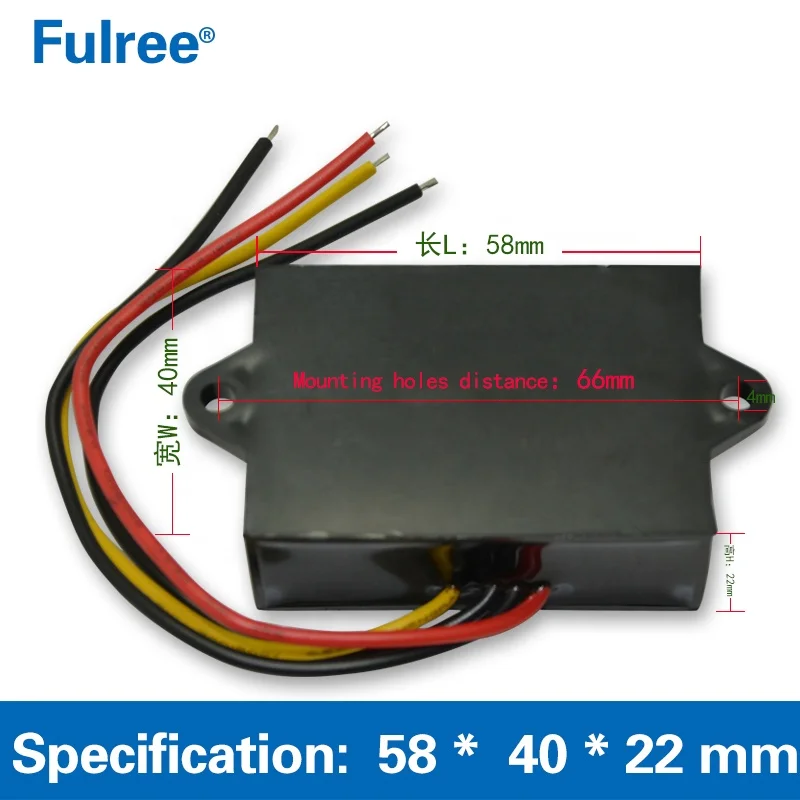

Product Size (L x W x H) | 58*40*22mm | |
Product Weight | 105g | |
Warranty | 12 months, lifetime up to 100,000 hours | |
Cooling Way | Free air convection | |
OEM&ODM Service | Accept | |

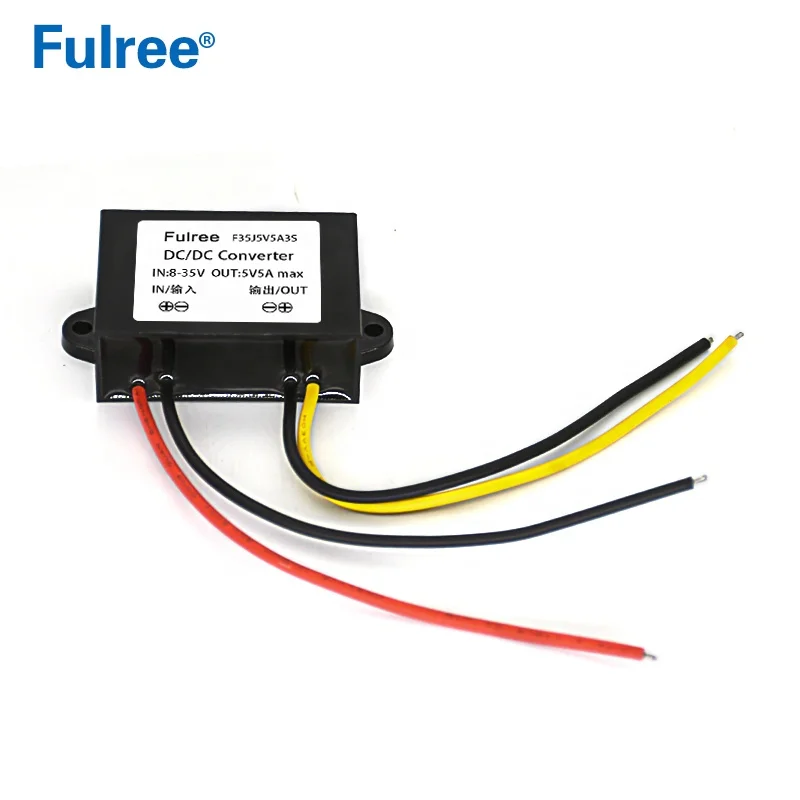

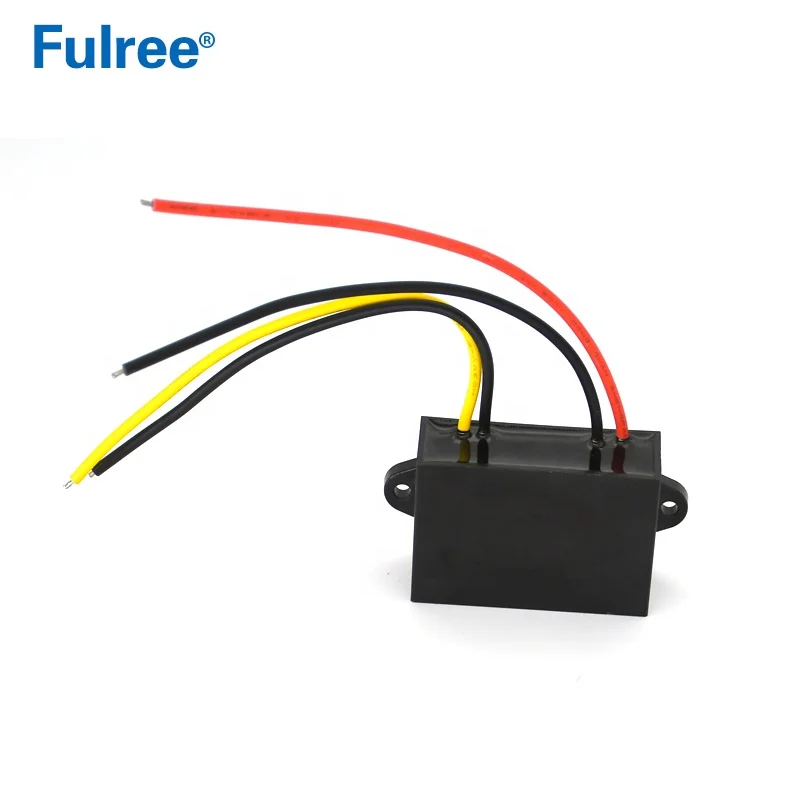

Product Picture
