Wholesale industrial mesh sheet reinforcement adhesive filter fiber

Product Overview

Description

| PRODUCT ADVANTAGE

+ Fiber products instead of metal

  High rigidly but light weight

+ Cost reduction and make production process more simple

  MELSET is easy to adhere to other fibers without chimical resin finishing.

+ Keep quality long terms
  Prevent generating fray/High abrasion resistance/No rust





| PRODUCT INTRODUCTION

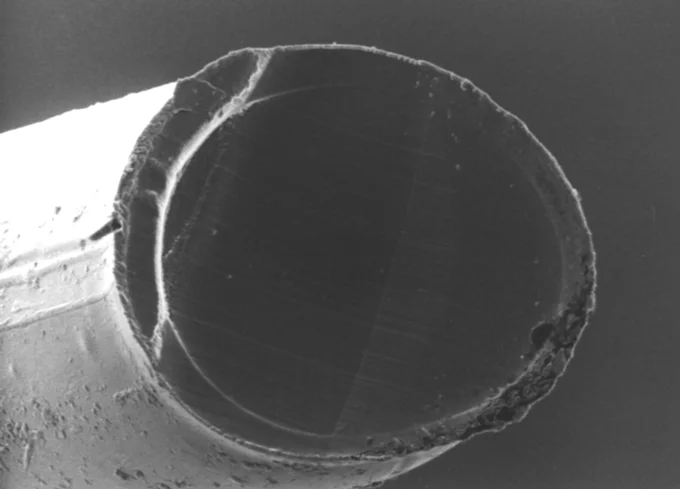

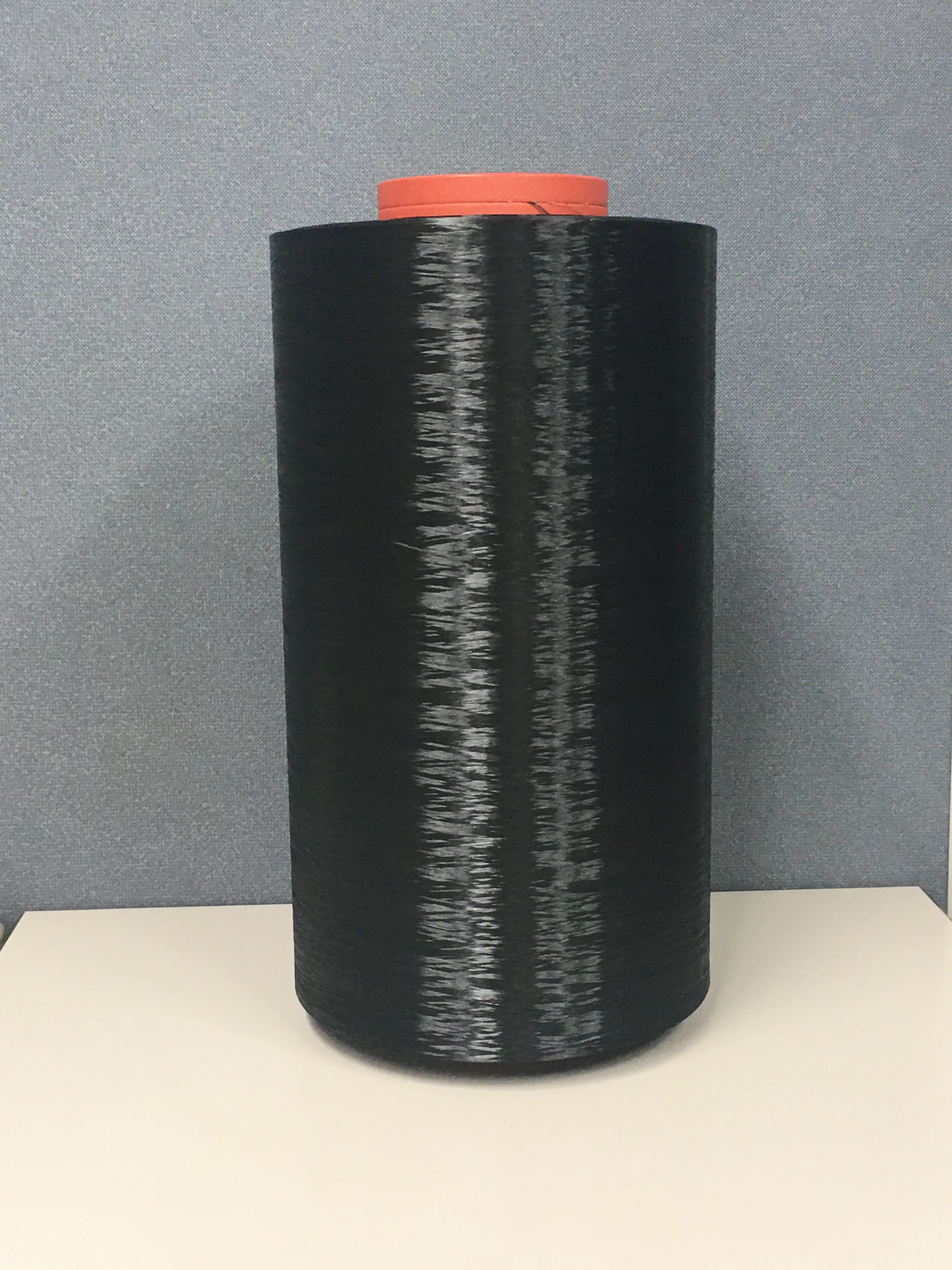

MELSET is sheath-core structure filament  yarn.

The sheath part is made of crystaline co-PET. (Melting point is 160℃)

The core part is made of high viscosity PET.(Melting point is 250℃)





The sheath part melts sharply by heat treatment ( 170℃~190℃), and solidfies after cooling down process.









MELSET can solve various problems about fibers or metal products.



1. MELSET can become an alternative material with metal products.
light weight and high rigidly. → easy to carry and set up.

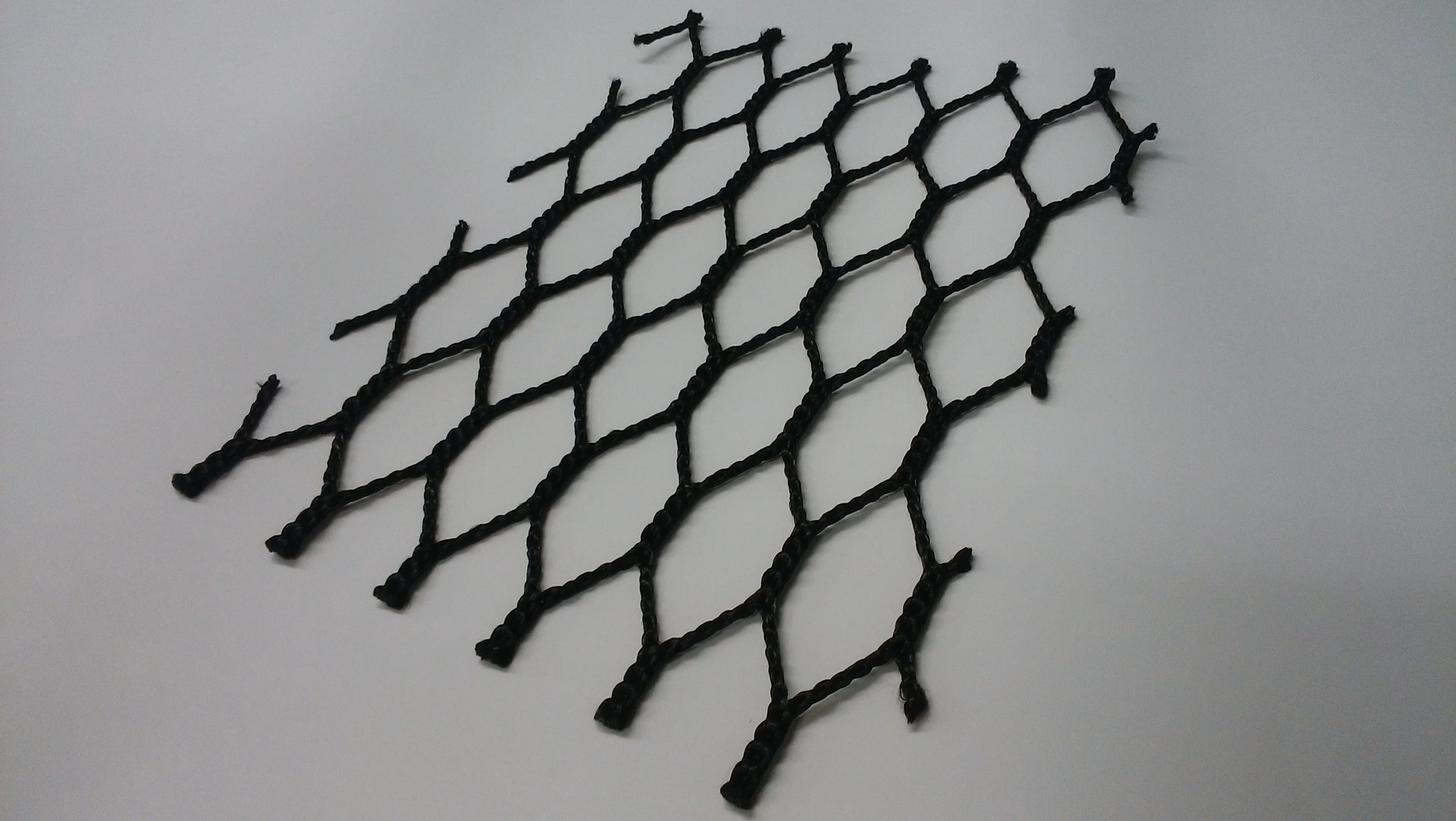

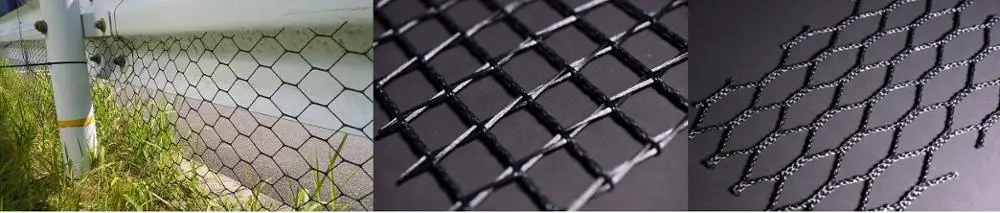

Example. Animal Barrier Net





2. MELSET needs no chemical resin finishing, Just heat treatment.
→It can cost cutting, make production process more simple, and less burden on the environment.

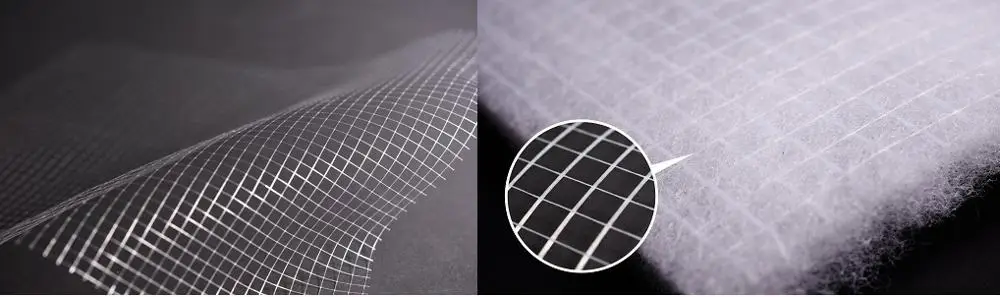

Example. Reinforce of nonwoven air filter





3. MELSET improves appearance quality and keep it long terms.

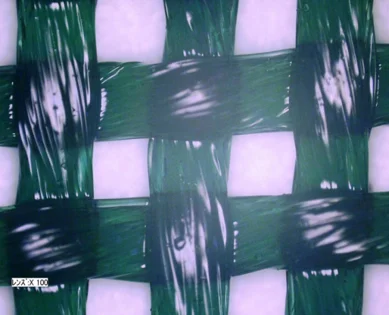

Prevention of fraying yarns at a salvage or a slit in woven fabrics.

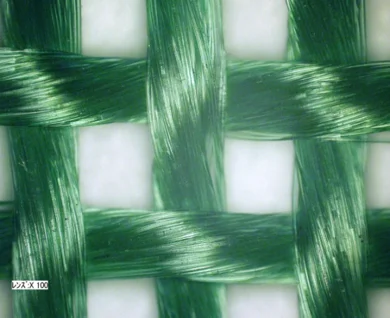

Stop slipping warp in mesh sheets.

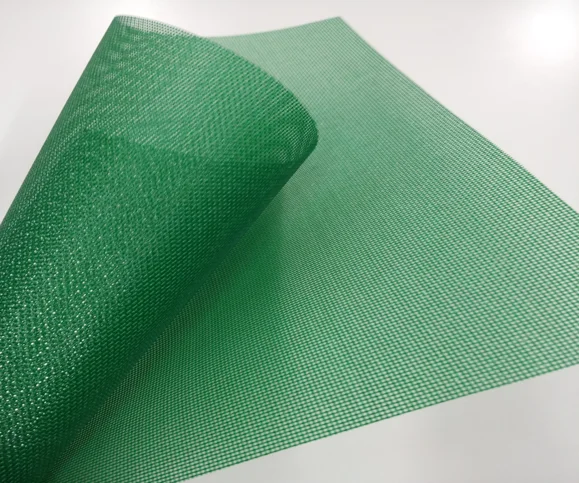

Example. Weed Proofing Sheet

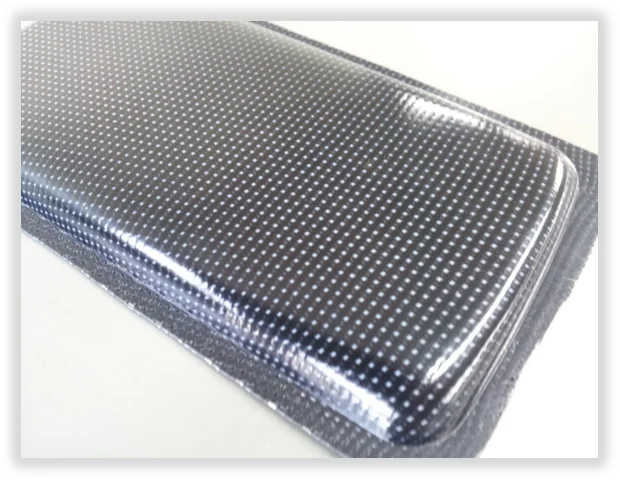

4. MELSET gives ability of shape retention.
After a heat treatment, you can mold MELSET products into any shapes as you like.

Example. Composite



5. MELSET gives abrasion resistance.
After a heat treatment, MELSET melts toghether to be like a monofilament.
In abrasion test, the rope blended with MELSET has higher abrasion resistance

than regular polyester rope.

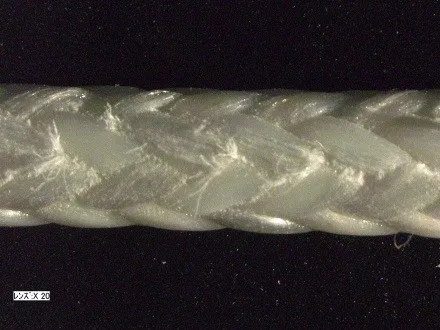

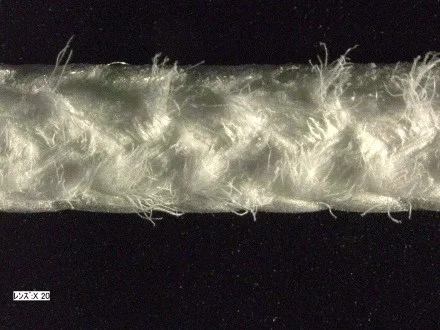

PET rope after sandpaper abrasion test		MELSET:PET = 50:50 rope after sandpaper abrasion test

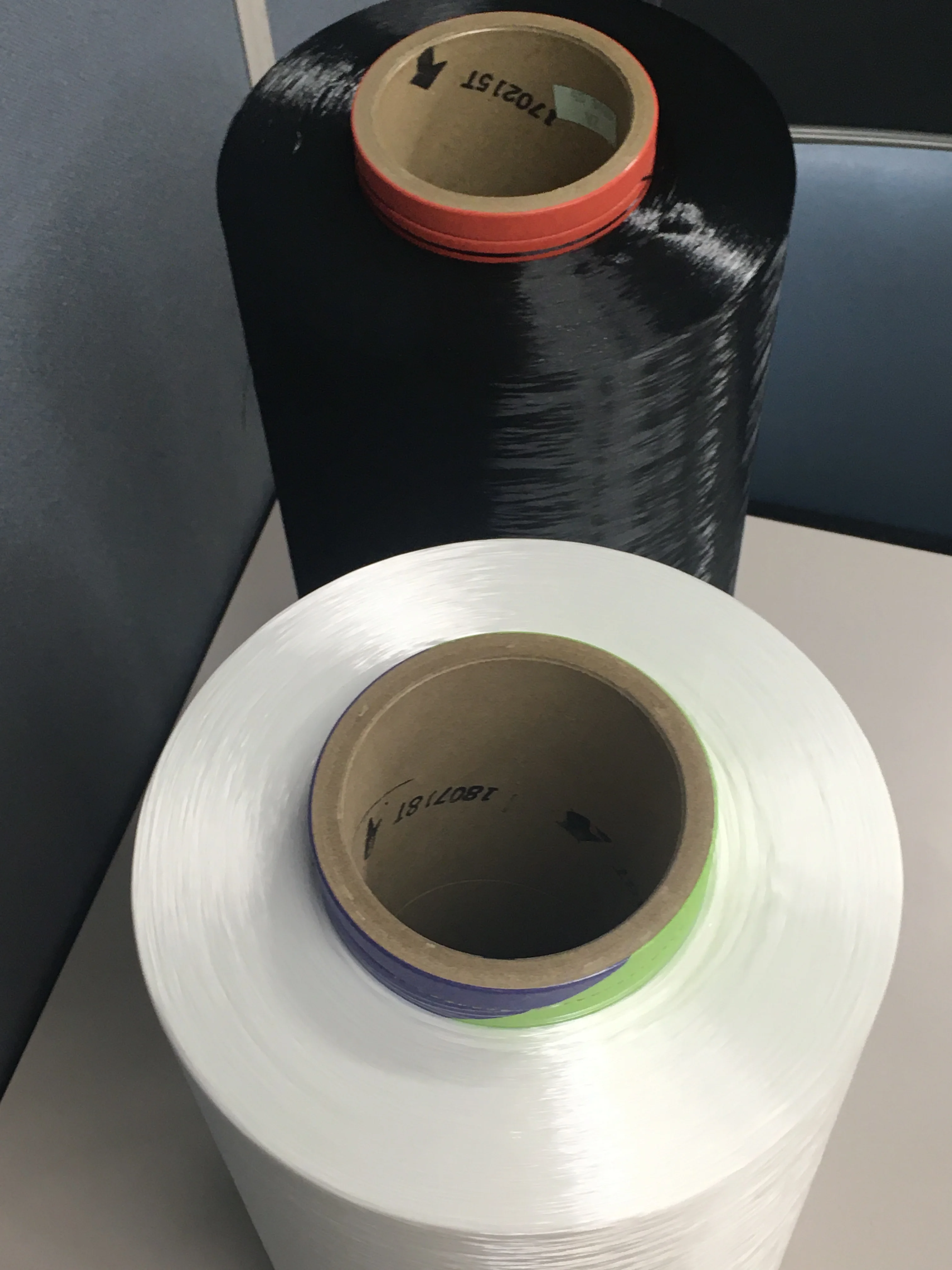

 Yarn

Dtex / Filament	Weight / Carton	Weight / Pallet
280T48	5kg×4	5kg×60
560T48	5kg×4	5kg×60
1100T96	7kg×4	7kg×60
1670T192	7kg×4	7kg×60

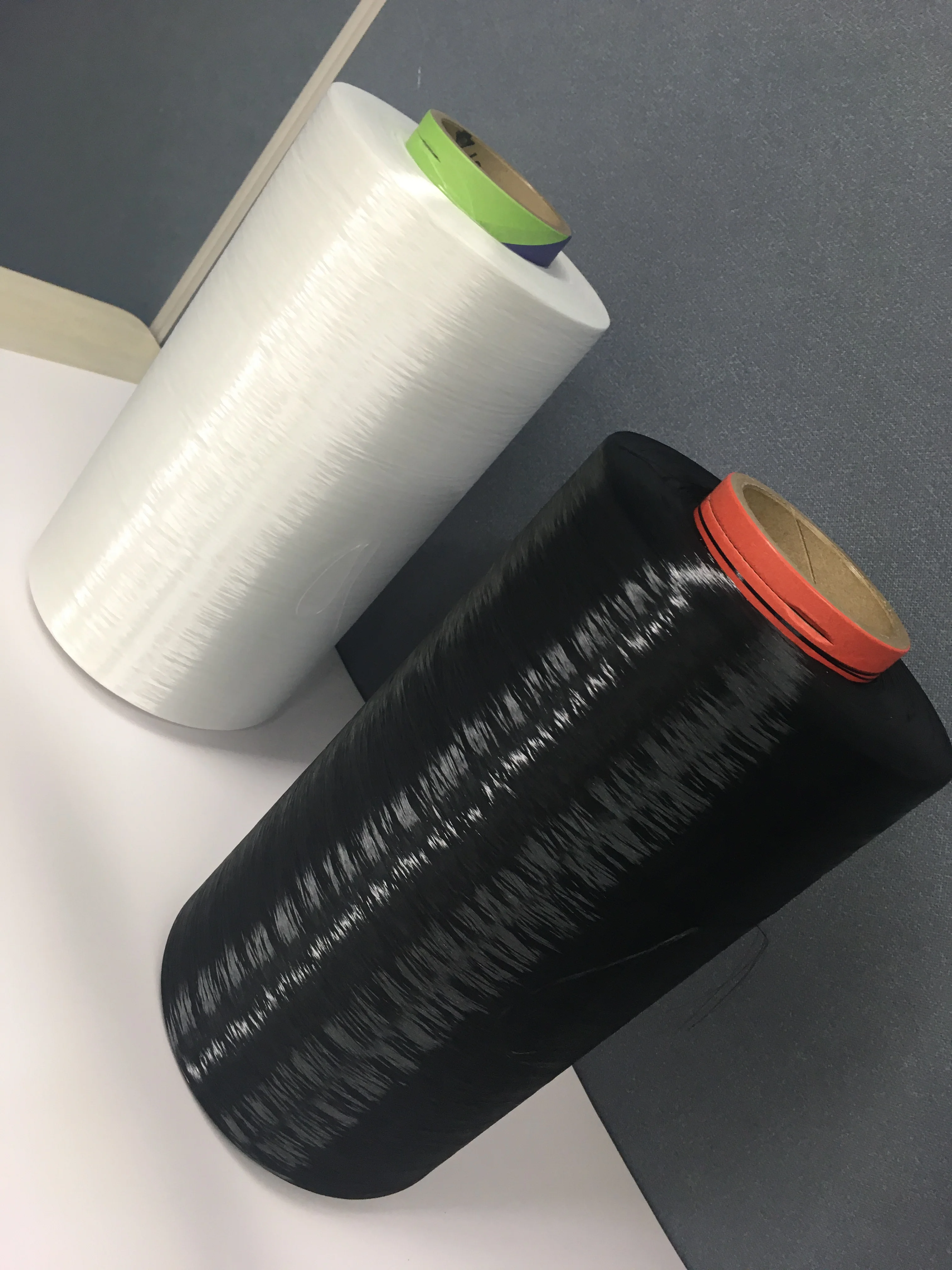

♦ Standard color is Natural White and Black.Other colors are available depending

   on quantity.

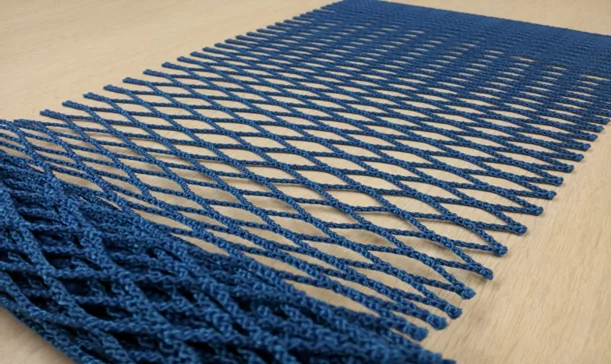

Mesh/Net

• Please informing request quantity, usage, g/m².

  We can propose competent mesh or net.
