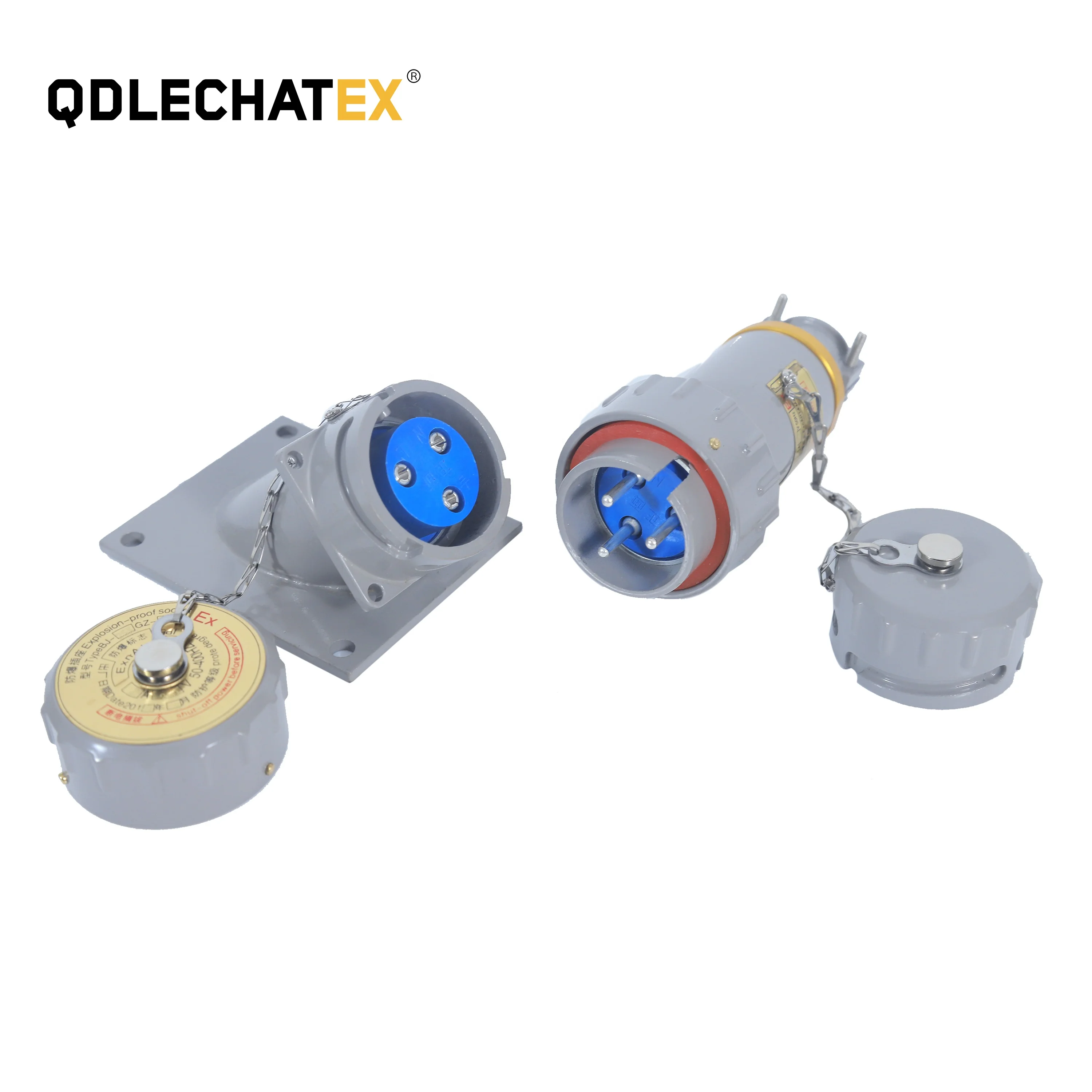

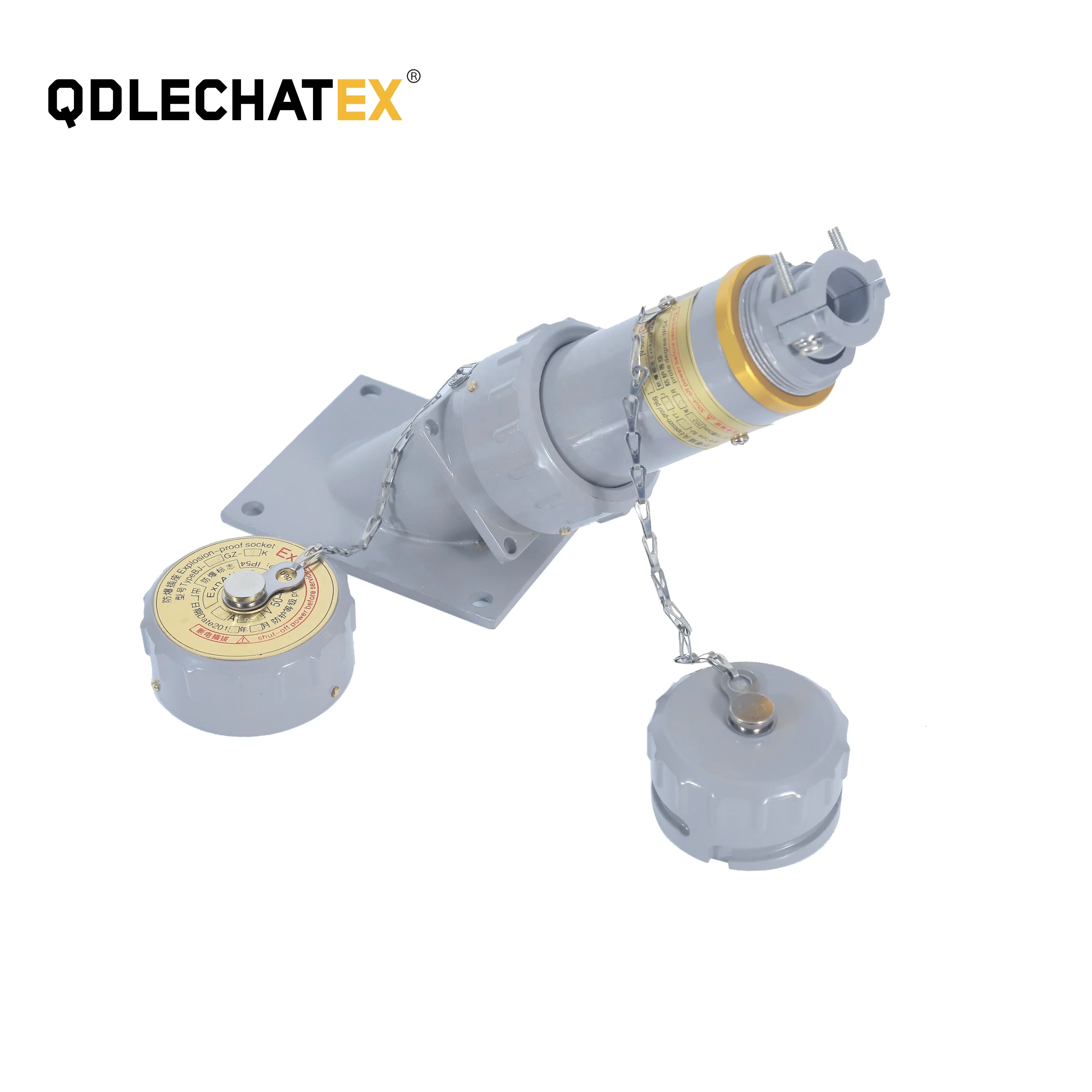

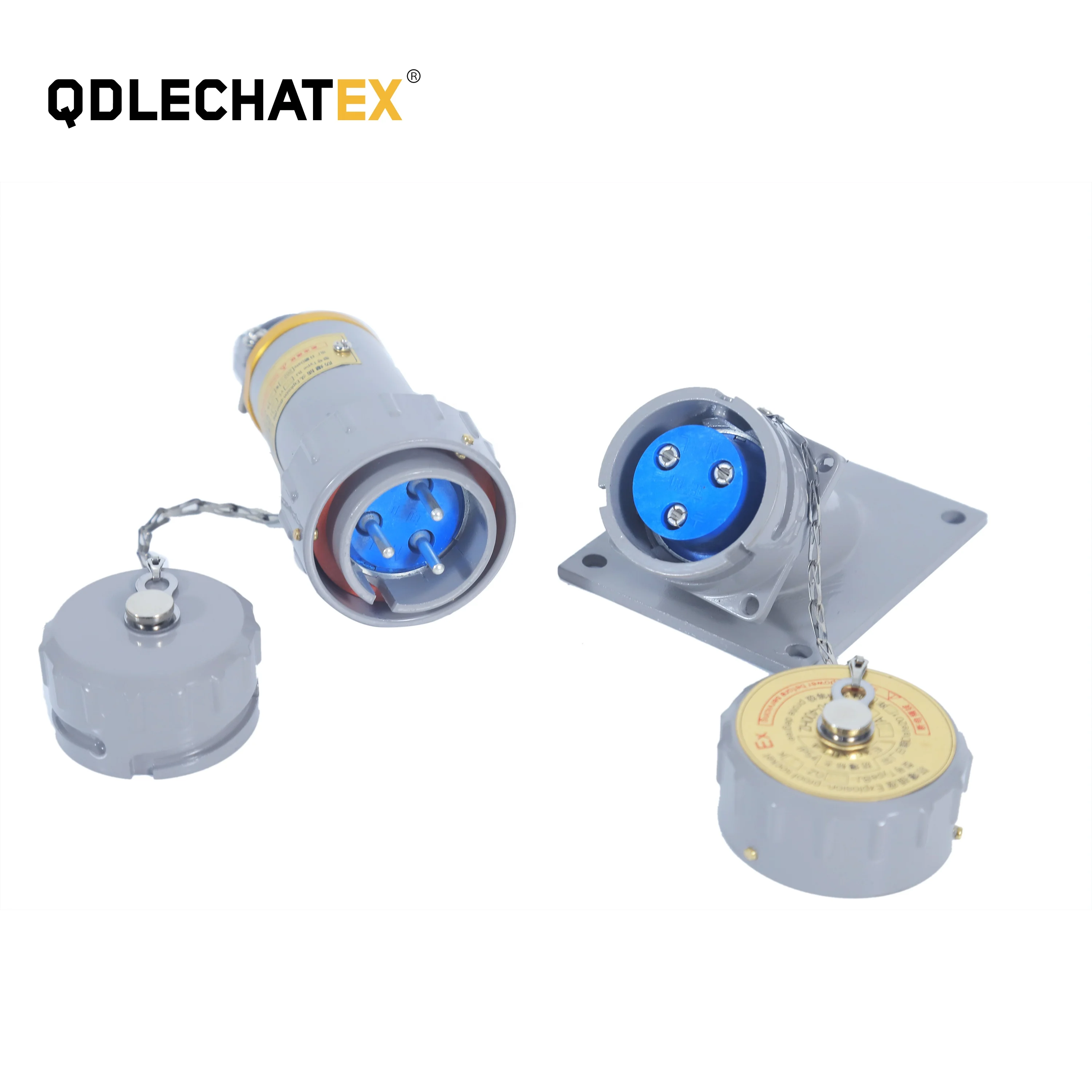

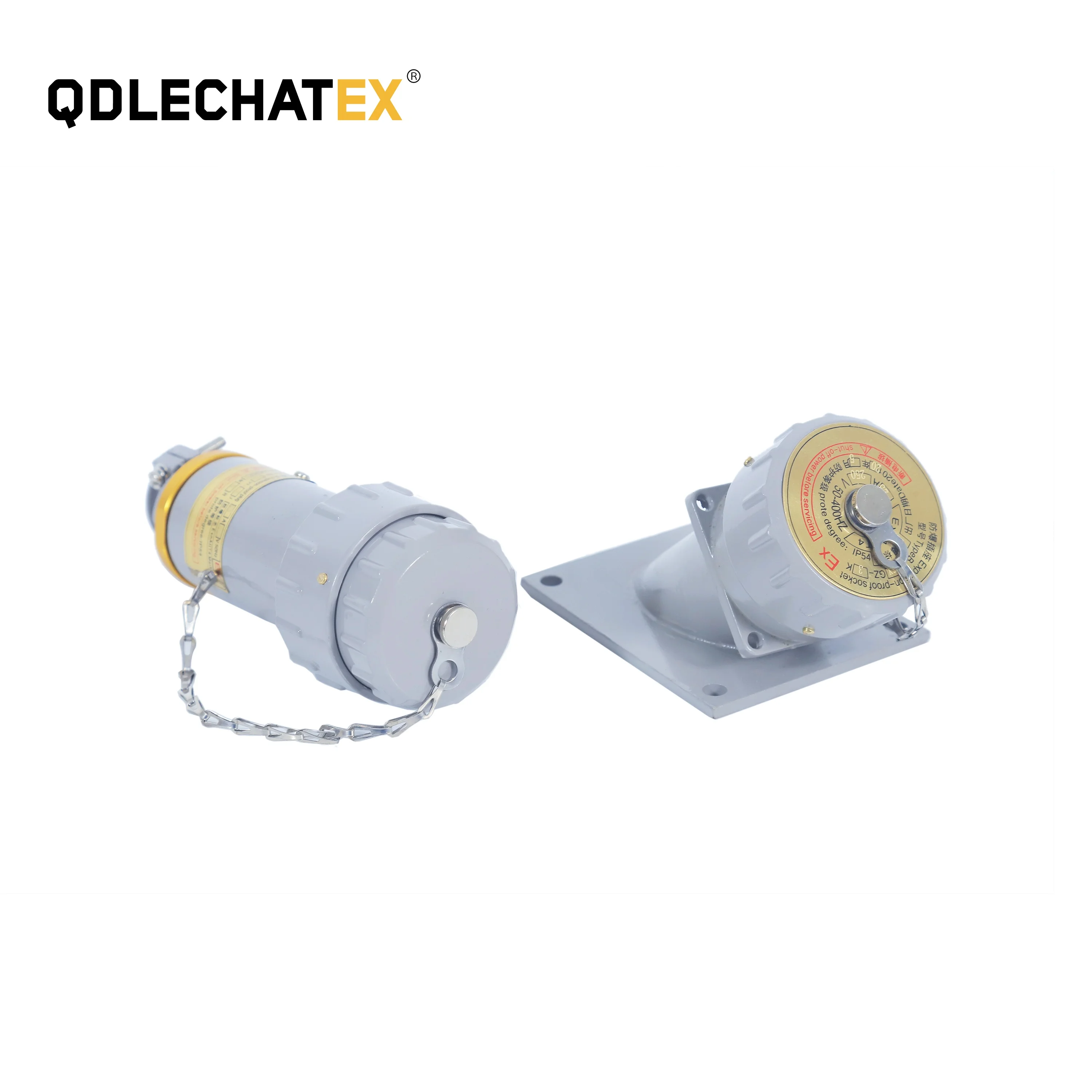

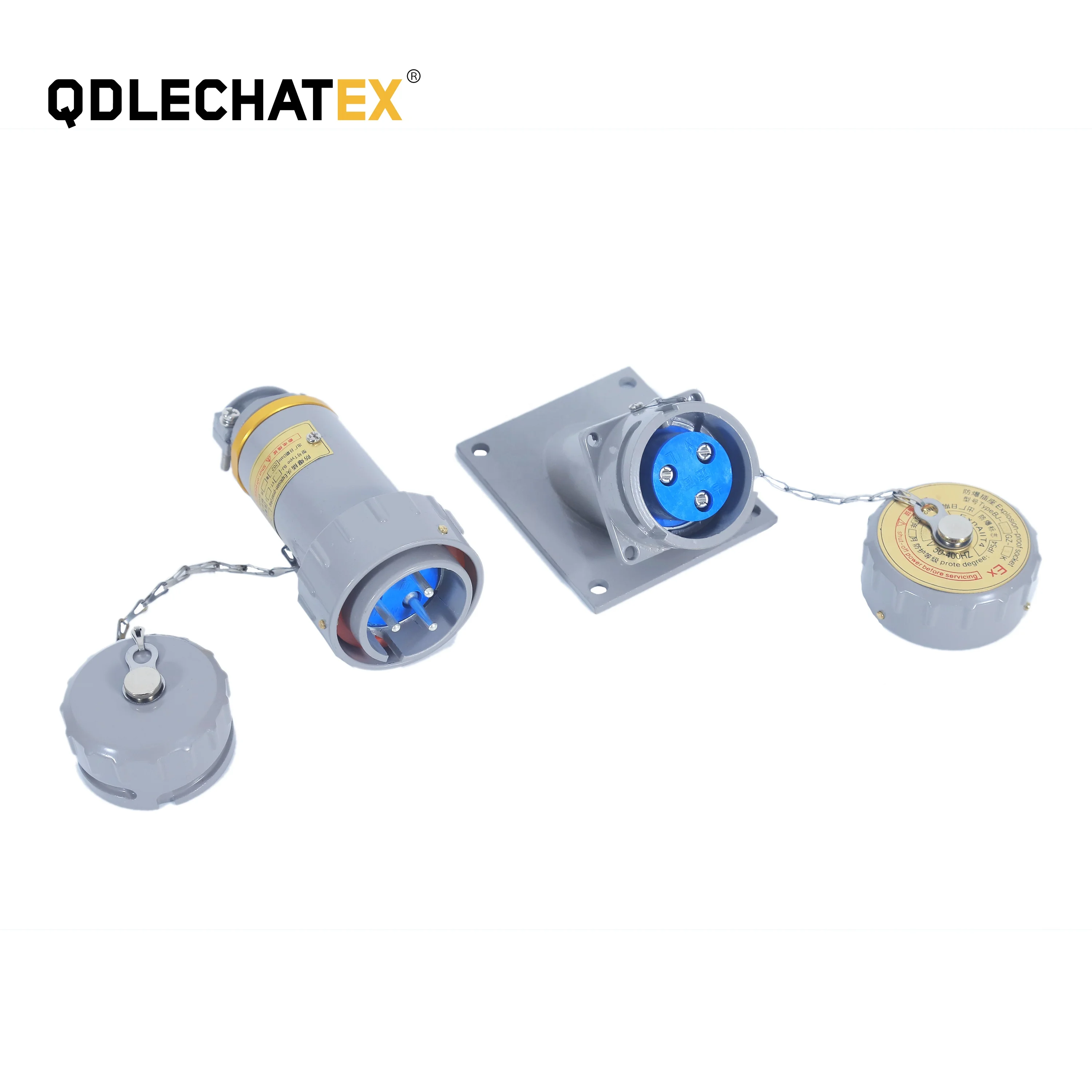

Ex 16A 15A YT GZ 3 No spark 3pin ex proof plug and socket

      Explosion-proof plug and socket, 40-degree slope, more convenient to operate

      QDLECHATEX 15A,25A,60A 100A,150A 200A XGZ 3PIN 4PIN 5PIN non sparking electrical Plug and socket, apply to oil exploration,drilling,lighting circuit,mobilt power distribution room,cable and cable connection with,has reliable contact,easy assembly and disassembly,sealing performance and good insulation,shockproof,dusproof rainproof,etc..

       The connector comprises a plug and socket is composed of two parts,wherein the plug for mobile(YT),socket has three forms: 1.the panel fixed type(GZ), 2.mobile(YZ), 3.oblique type fixed socket (XGZ). Connection plug and socket for the bayonet,fast connection,contact wire terminal crimping,crimping.contact with elastic ring gear support localization,after instalied before the demolition of the structure,the contact sliver plug,shell is made of casting aluminum alloy.
