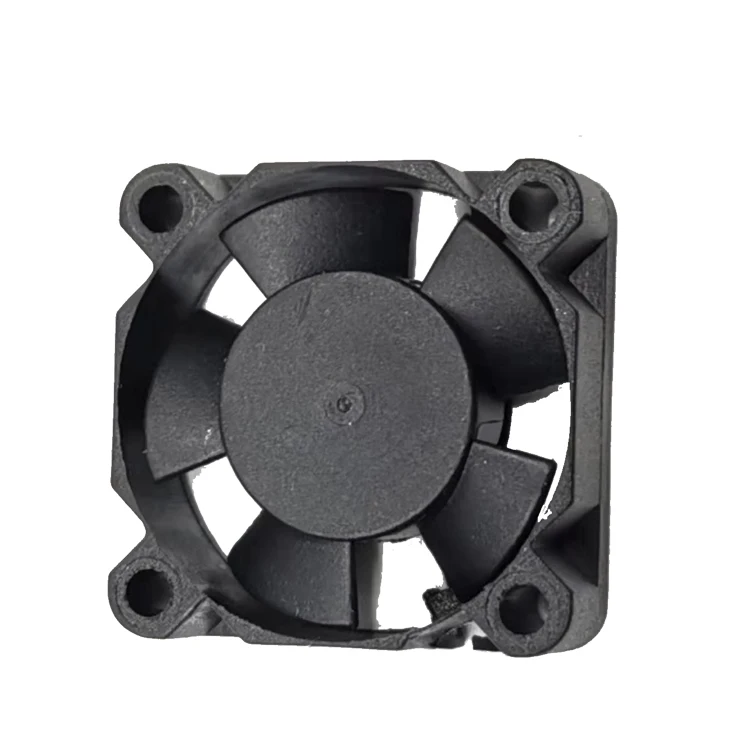

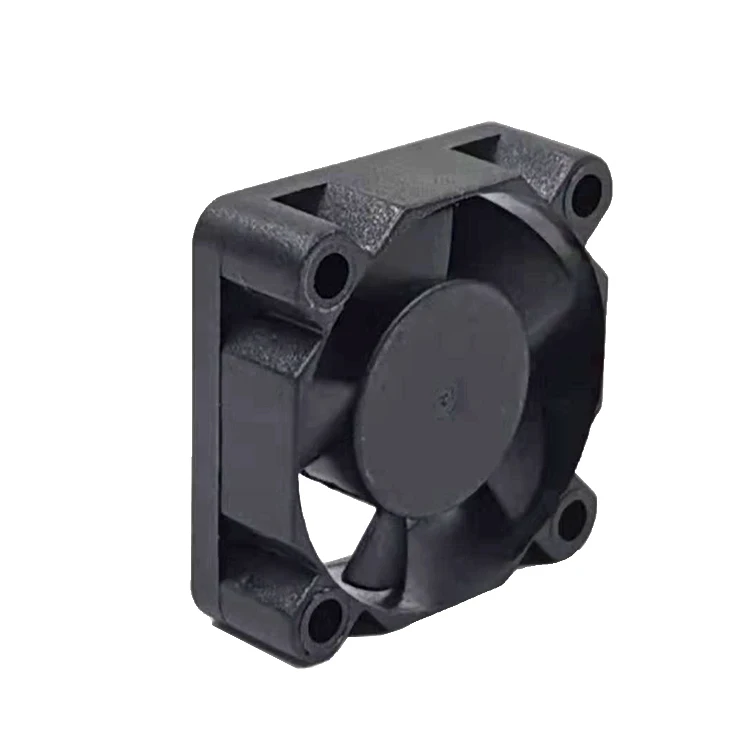

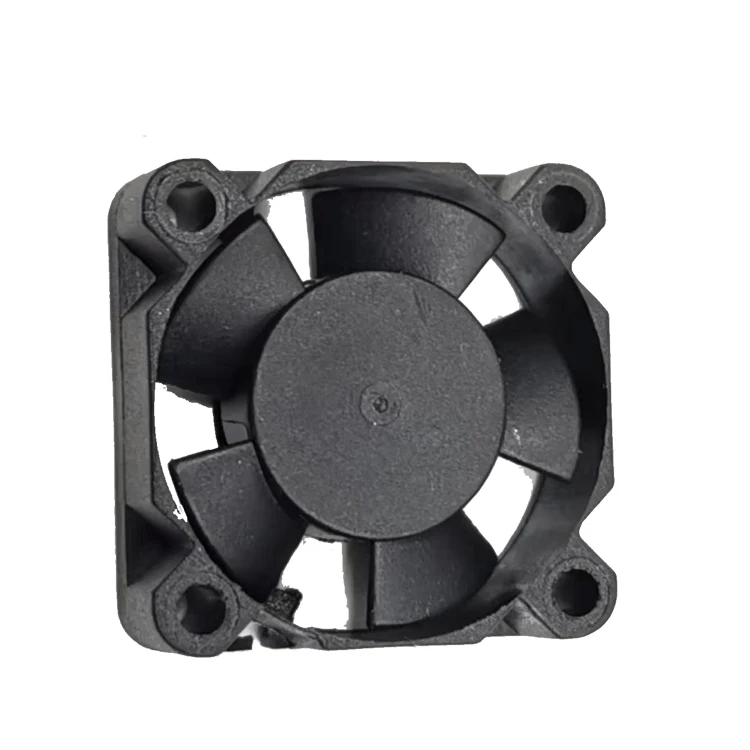

Ce Low Power 0.72w 30mm Axial Flow Cooling Fan Dc 3010 5v~12v Laptop Cpu Dc Cooling Fan 30x30x10
- Category: >>>
- Supplier: Dongguan Xinbinming Cooling Fan Co. Ltd.
Share on (1600067000366):
Product Overview
Description

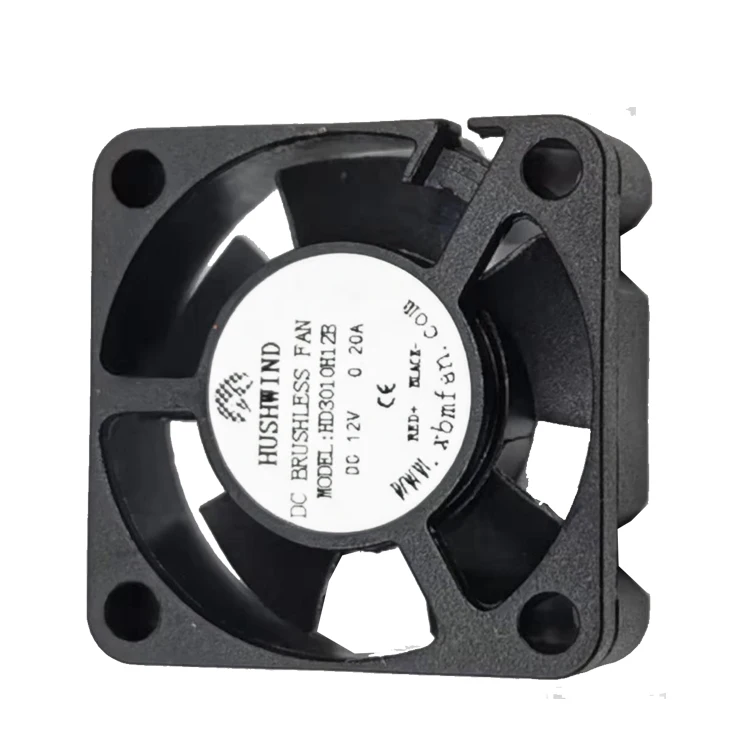

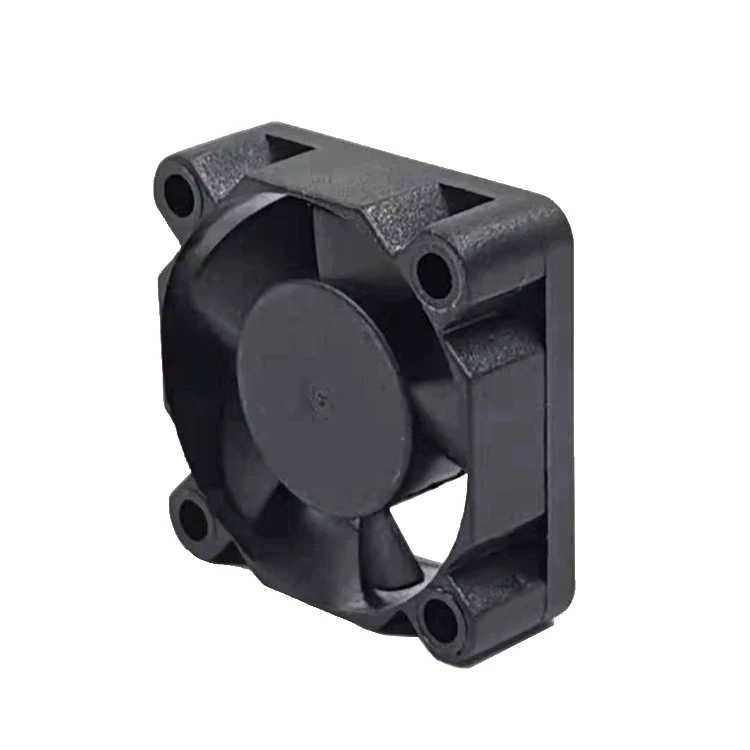

3010 Dc brushless motor fan 30mm industrial machine ventilation fans 30x30x10mm

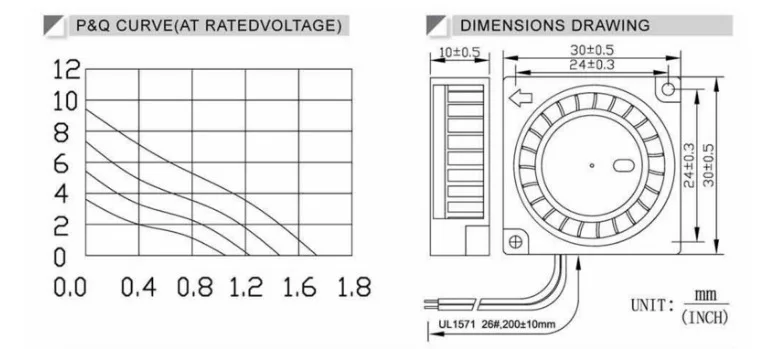

Product Description
| Speed: | 6000-12000 RPM |   |
| Airflow: | 2.42-4.67 CFM | |
| Pressure: | 2.07-8.04 mmAq | |
| Noise: | 20.5-34.0 dBA | |
| Voltage: | 05v -- 12V | |
| Motor : | DC Brushless external rotor motor | |
| Frame: | PBT | |
| Impeller: | PBT | |
| Bearing System: | 2 Ball,Longlife sleeve ,FDB | |
| Insulation: | Class A | |
| Operation Temperture: | -10℃ - 70℃ | |
| Weight: | 10g |
| Available | Listed | Rated | Reated | Reated | Reated | Air | Air | Noise | ||
| Functions | Model | Voltage | Current | Power | Speed | Flow | Pressure | Level | ||
FG RD RDL LD PWM TP VC RC CS RP SS AS CL IPX8 | Part NO: | VDC | A | W | RPM | CFM | M3/MIN | mmAq | InH2O | dBA |
| DF4020B05L | 5 (3.5-5.5) | 0.08 | 0.40 | 6000 | 2.42 | 0.07 | 2.07 | 0.08 | 20.5 | |
| DF4020B05M | 0.11 | 0.55 | 8000 | 3.20 | 0.09 | 3.63 | 0.14 | 25.2 | ||
| DF4020B05H | 0.13 | 0.65 | 10000 | 3.98 | 0.11 | 5.62 | 0.22 | 31.6 | ||
| 0.20 | 1.00 | 12000 | 4.67 | 0.13 | 8.04 | 0.32 | 34.0 | |||
| DF4020B12L | 12 (7-14) | 0.05 | 0.6. | 6000 | 2.42 | 0.07 | 2.07 | 0.08 | 20.5 | |
| DF4020B12M | 0.06 | 0.72 | 8000 | 3.20 | 0.09 | 3.63 | 0.14 | 25.2 | ||
| DF4020B12H | 0.09 | 1.08 | 10000 | 3.98 | 0.11 | 5.62 | 0.22 | 31.6 | ||
| DF4020B12L | 0.13 | 1.56 | 12000 | 4.67 | 0.13 | 8.04 | 0.32 | 34.0 | ||
