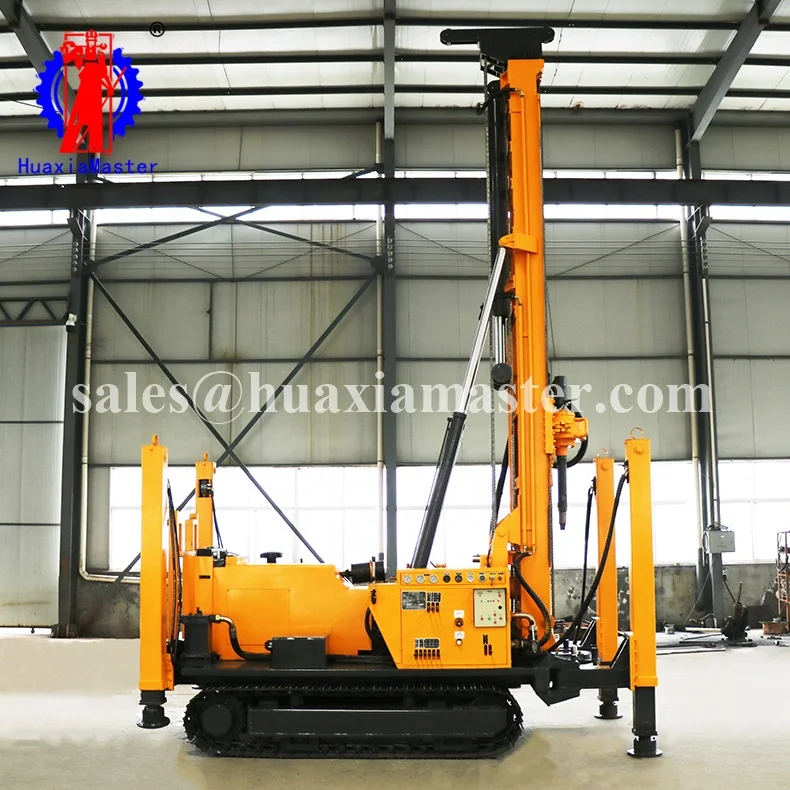

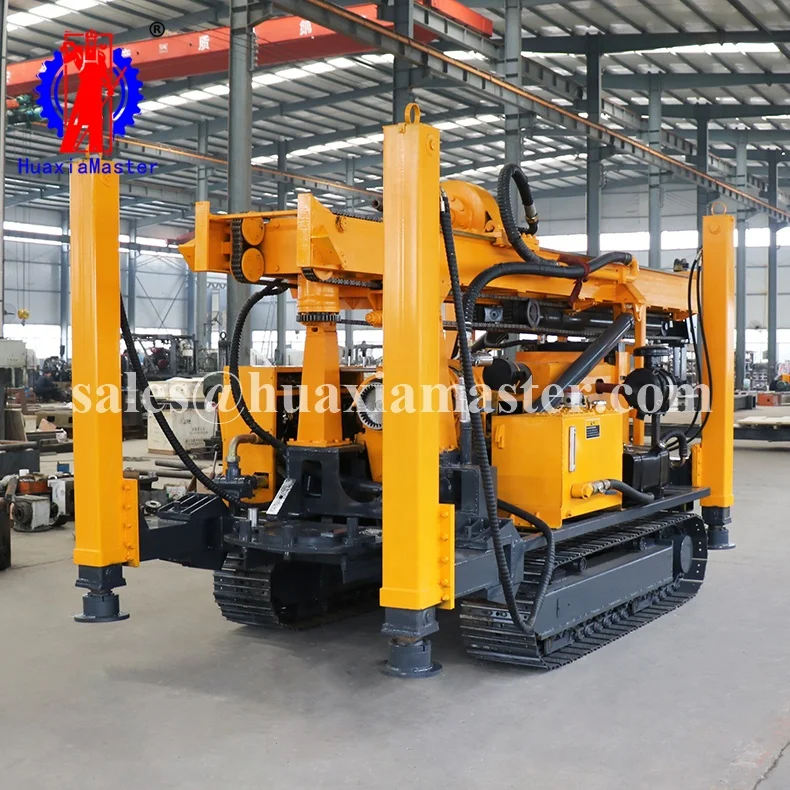

JDL 400 mud and air drilling rig use a mechanical top drive for drilling water well and exploration sale in Uzbekistan
JDL-400 mud and air drilling rig use a mechanical top drive for drilling water well and exploration sale in Uzbekistan
JDL-400 mud and air drilling rig use a mechanical top drive for drilling water well and exploration sale in Uzbekistan
JDL-400 mud and air drilling rig use a mechanical top drive for drilling water well and exploration sale in Uzbekistan
JDL-400 mud and air drilling rig use a mechanical top drive for drilling water well and exploration sale in Uzbekistan
JDL-400 mud and air drilling rig use a mechanical top drive for drilling water well and exploration sale in Uzbekistan
JDL-400 mud and air drilling rig use a mechanical top drive for drilling water well and exploration sale in Uzbekistan

JDL 400 mud and air drilling rig use a mechanical top drive for drilling water well and exploration sale in Uzbekistan

Share on (1600067101335):


Price:$14,000.00 - $15,000.00

Quantity:


Product Overview

Description



Product Description

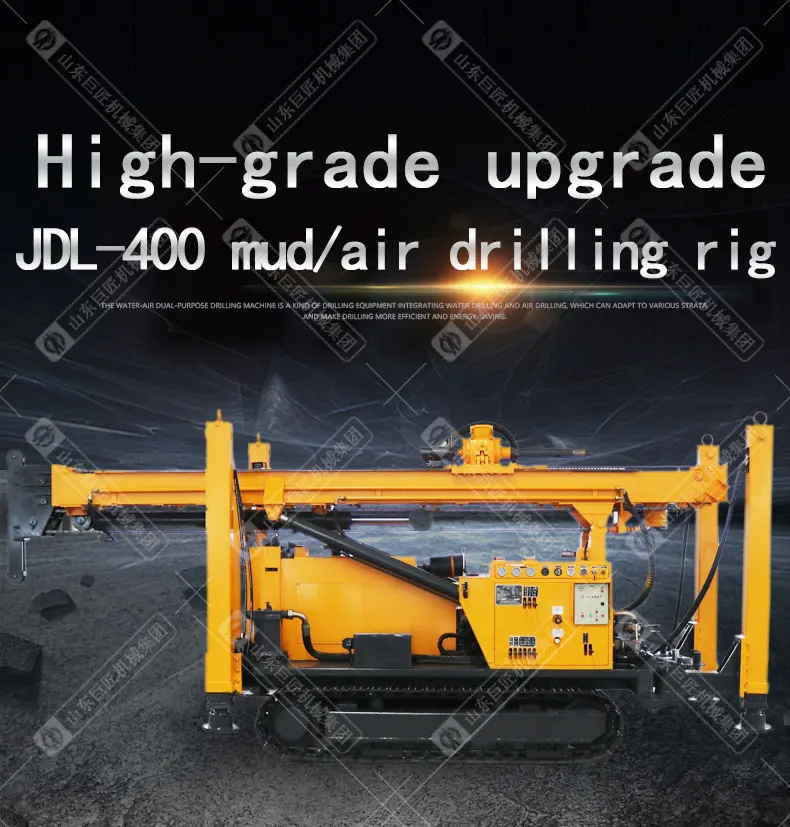

  1. Introduction of JDL-400 mud/air drilling rig


JDL-400 mud/air drilling rig is a water well drilling rig that mix mud drilling rig and air drilling rig in one equipment with mechanical top head. It is a good solution to the difficulty of drilling in the soil layer for DTH rig and the low efficiency of drilling for mud rotary rig in the hard rock, gravel and pebble layer. The mud/air drilling rig adapts to various soil strata. The mud/air drilling rig is efficiency and energy saving to drill water well and geological exploration of core sample.

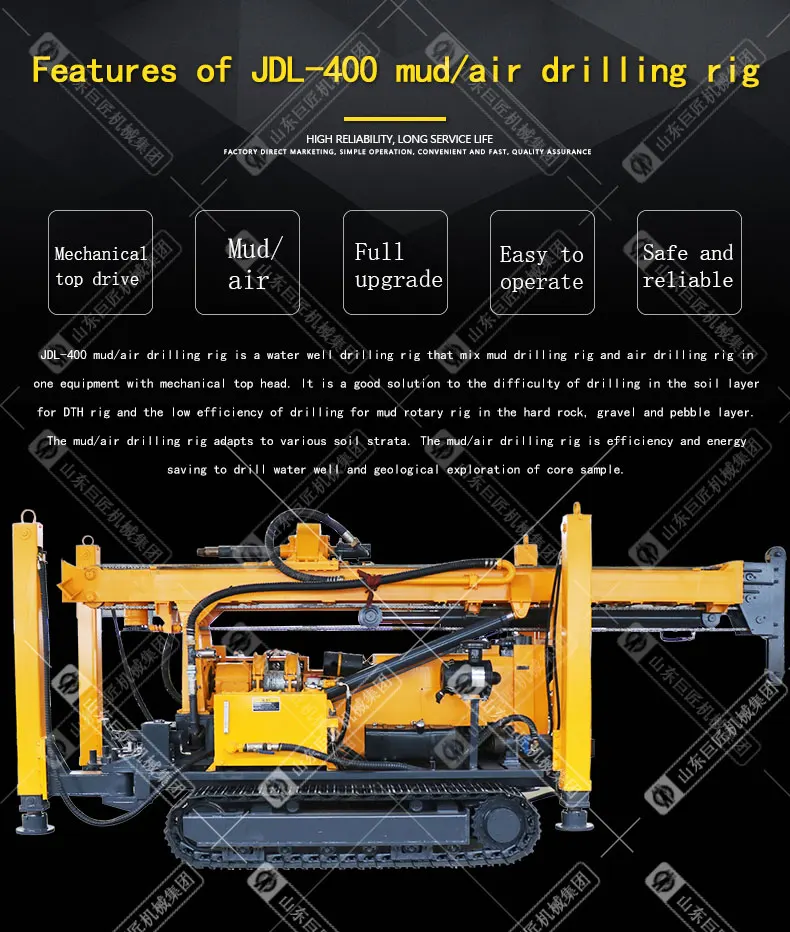

  1. Featuresof JDL-400 mud/air drilling rig
  • Adopt AMT automatic manual transmission gearbox.
  • The rig adopts a long stroke mechanism and a mechanical power head.
  • The drilling rig adopts double oil pump for oil supply, and the hydraulic system uses split flow and convergence technology.
  • The main shaft of the drilling machine adopts mechanical transmission.
  • Some functional interfaces are reserved in the hydraulic control system of the drilling rig.

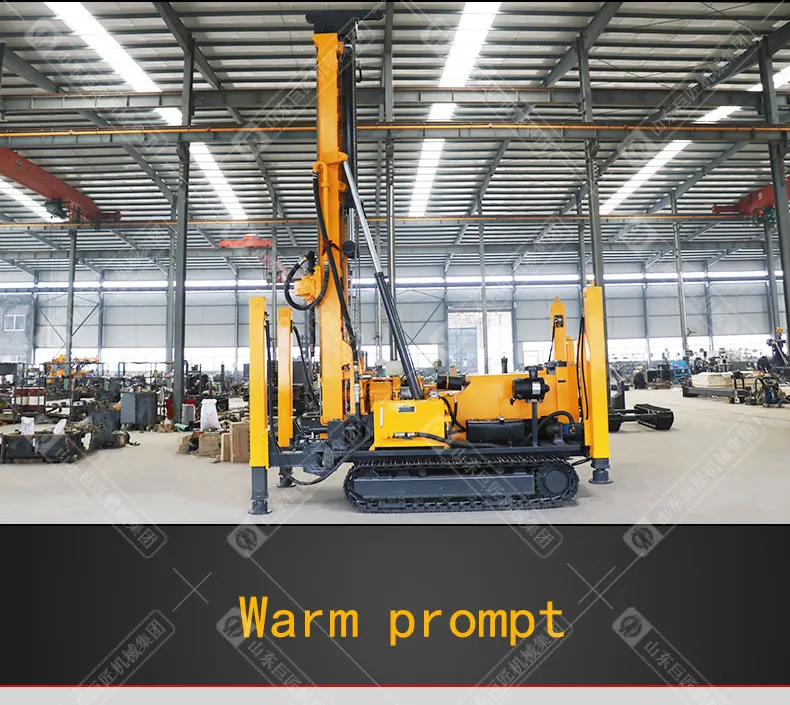

Detailed Images

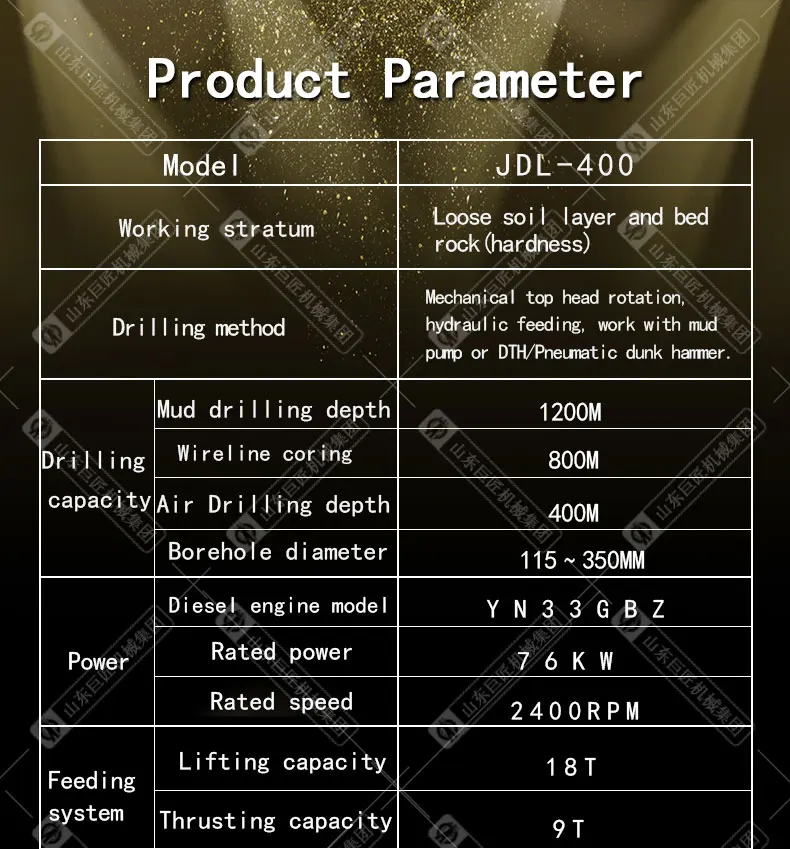

JDL-400 mud/air drilling rig
Working stratum
Loose soil layer and bed rock(hardness:F6~20)
Drilling
method
Mechanical top head rotation, hydraulic feeding,
work with mud pump or DTH.

Drilling
capacity
Φ42 Mud drilling depth
1200m
NQ wireline coring
800m
Φ75 Air Drilling depth
400m
Borehole dia.
≤Φ350

Power
Diesel engine model
YN33GBZ
Rated power
76kw
Rated speed
2400rpm
Drive
head
Rotary speed
14~650r/min
Max. torque
13400N.m
Feeding
system
Lifting capacity
18T
Thrusting capacity
9T

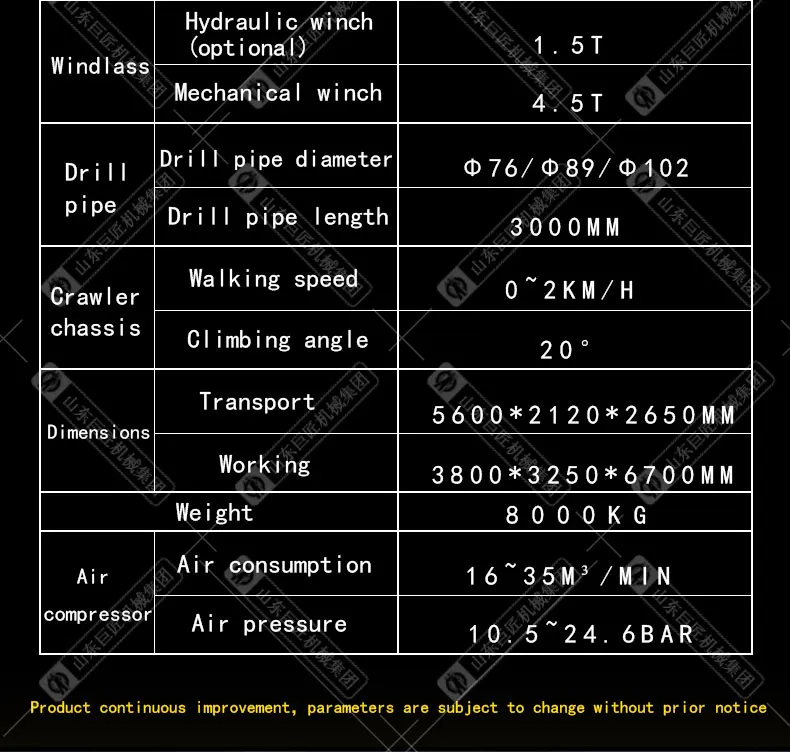

Winch
capacity
Hydraulic tool winch(optional)
1.5T
Mechanical winch
3T
Drill
pipe
Drill pipe dia.
Φ76/Φ89/Φ102
Drill pipe length
3000mm
Crawler
chassis
Walking speed
0~2km/h
Climbing angle
20°
Dimension
Transport
5600*2120*2650mm
Working
3800*3250*6700mm
Weight
8000kg
Air
compressor
Air pressure
10.5~24.6bar
Air consumption
16~35m³/min

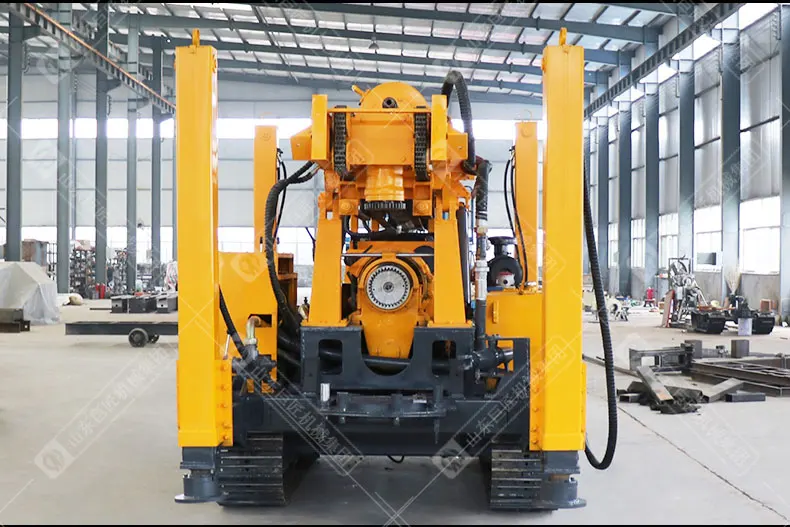

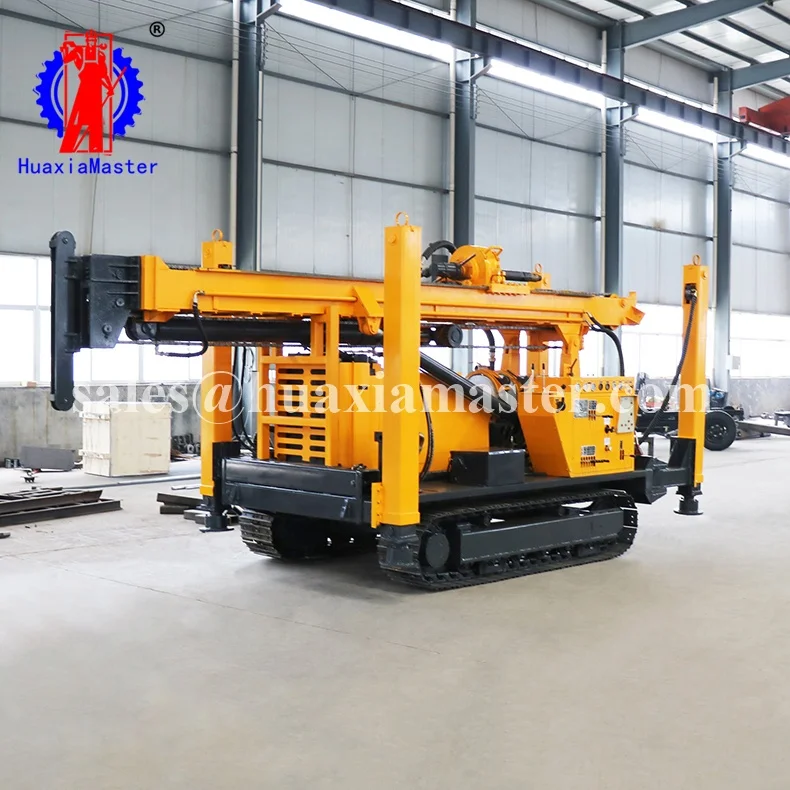

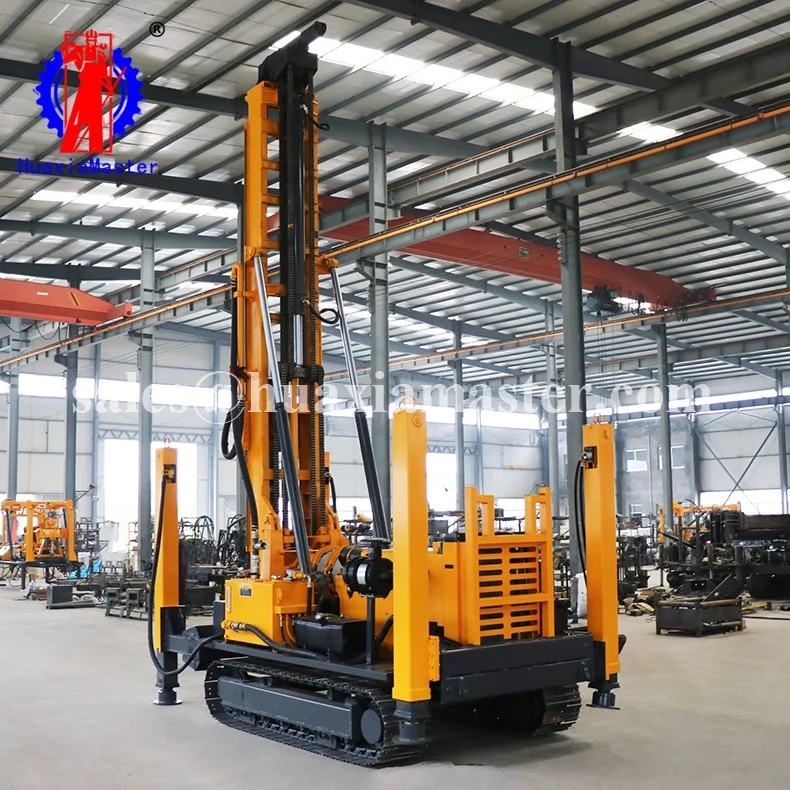

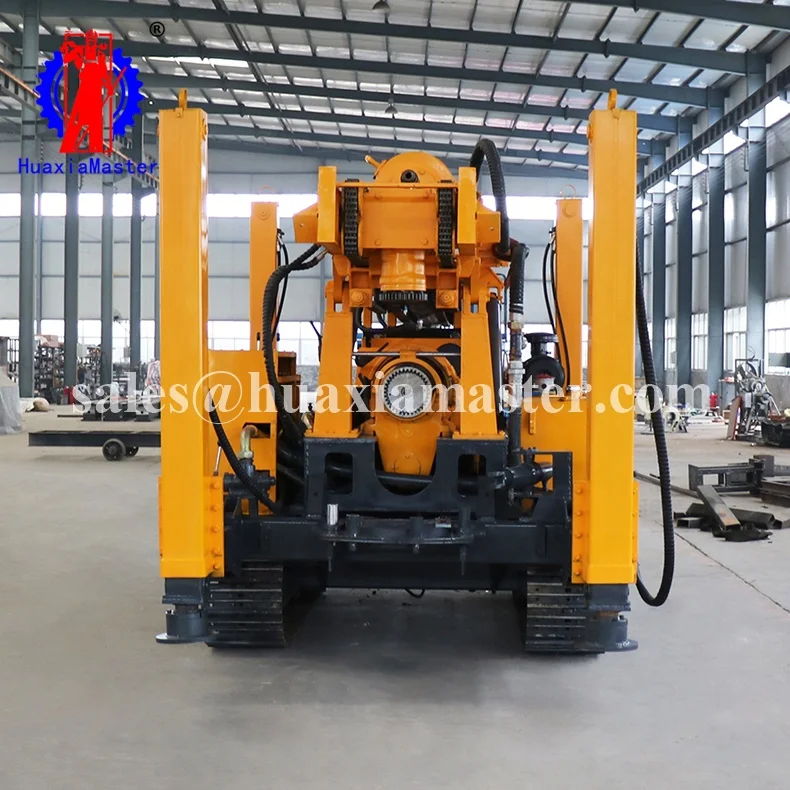

Product display

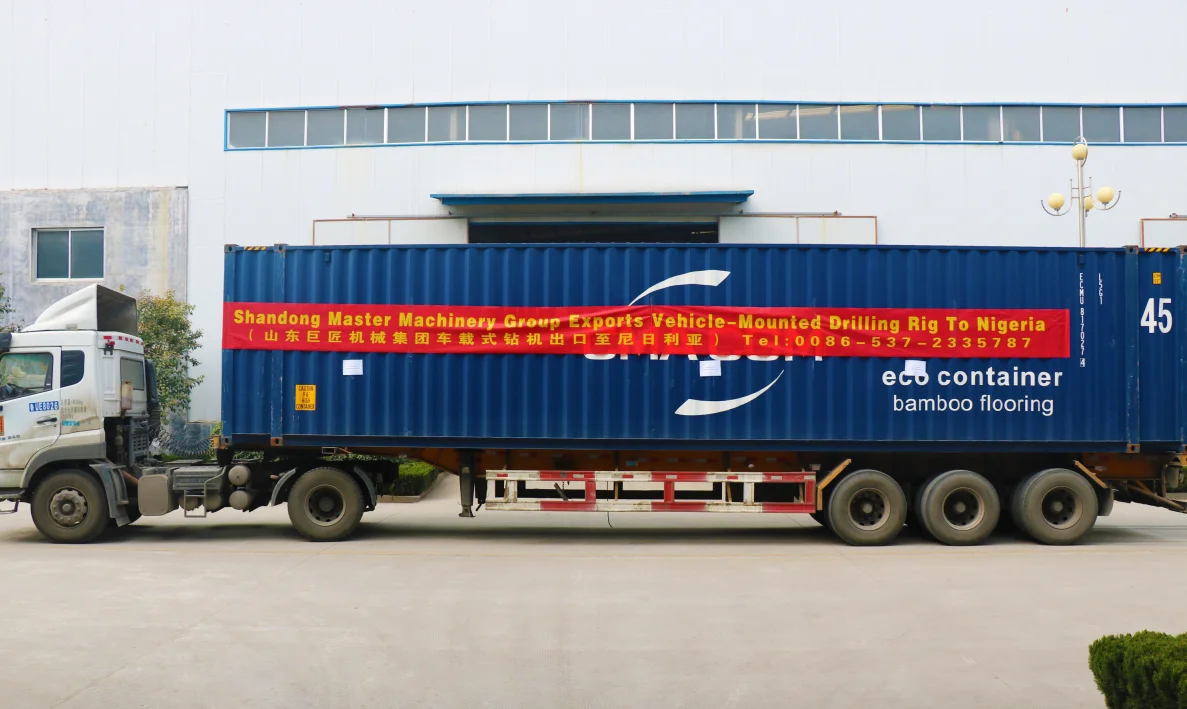

Packing & Delivery




Packing Details : Full Cotainer Load or Export Wooden Box

Delivery Details : 3-15 days after order
