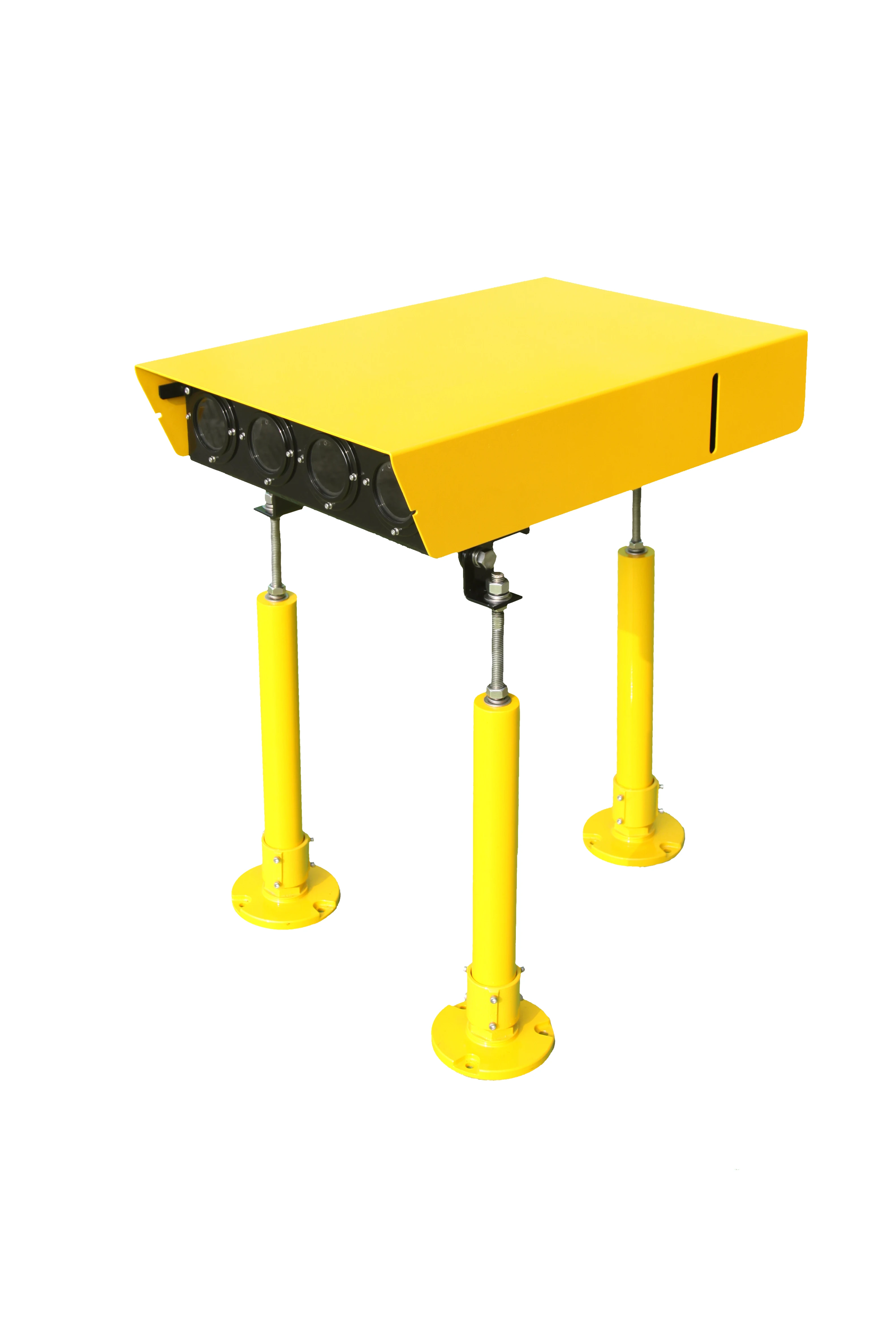

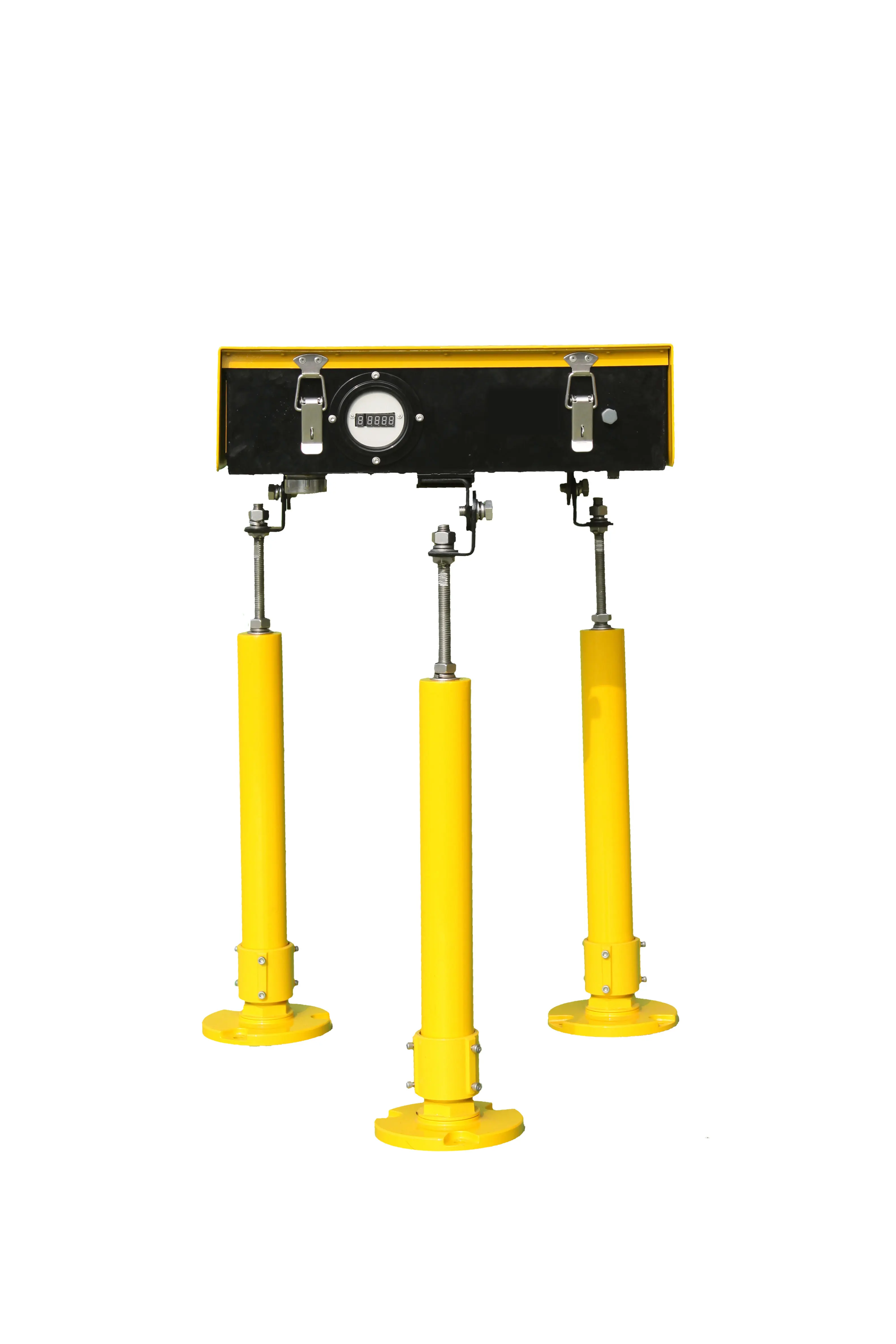

Airfield Lighting System Equipment Red and White Color PAPI Airport lights
- Category: >>>
- Supplier: Hunan Chendong Technology Co. Ltd.
Share on (1600067166807):
Product Overview
Description
Product Description
Standard
2.AC-137-CA-2015-07 Precision approach path indicator
the correct approach (in the vertical plane) to an airport or an aerodrome.
Key Feature
1.Straight red-white boundary, red-white transition zone<3 arc minute, in compliance with ICAO Annex 14;
2. High precision, stable and reliable structure, easy to operate and maintain;
3. Electrical apparatus control system, PAPI system shut down if there is abnormality;
4. Internal electric inclinometer can reach a resolution value of 0.01° and Show the elevation Angle of the lamp
5. Able to store Angle data, elevation Angle over threshold shutdown system.
6. Closed optical system refrains foreign objects from entering on routine maintenance;
3. Electrical apparatus control system, PAPI system shut down if there is abnormality;
4. Internal electric inclinometer can reach a resolution value of 0.01° and Show the elevation Angle of the lamp
5. Able to store Angle data, elevation Angle over threshold shutdown system.
6. Closed optical system refrains foreign objects from entering on routine maintenance;
Signals
If the beams of the PAPI system aim at the near slope in accordance with the prescribed Angle, Pilots see different colors at different heights.
a) If the height is right, two lamps that are close to the runway are red, and the two lamps that are farther from the runway are white.
b) If the height is high, you can see that the nearest light to the runway is red, and the three luminaries furthest from the runway are white. If the height is too high, all the lamps are white;
c) If the height is low, you can see that the three lights closest to the runway are red, and the light from the farthest from the runway is white. When it is Far below to the approaching slope, all lights are red.
APAPI system:
a) If the height is right, the lamp that are close to the runway is red, and the lamp that are
farther from the runway is white.
b) If the height is high, you can see two lamps are white.
c) If the height is low, you can see two lamps are red.
a) If the height is right, two lamps that are close to the runway are red, and the two lamps that are farther from the runway are white.
b) If the height is high, you can see that the nearest light to the runway is red, and the three luminaries furthest from the runway are white. If the height is too high, all the lamps are white;
c) If the height is low, you can see that the three lights closest to the runway are red, and the light from the farthest from the runway is white. When it is Far below to the approaching slope, all lights are red.
APAPI system:
a) If the height is right, the lamp that are close to the runway is red, and the lamp that are
farther from the runway is white.
b) If the height is high, you can see two lamps are white.
c) If the height is low, you can see two lamps are red.
Project Samples
Company Profile
Why Choose Us
Q1. CAN I HAVE A SAMPLE ORDER FOR PAPI?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. WHAT ABOUT THE LEAD TIME?
A: Sample needs 10 days, mass production time needs 3-4 weeks for order quantity more than.
Q3. DO YOU HAVE ANY MOQ LIMIT FOR OBSTRUCTION LIGHT ORDER?
A: Low MOQ, 1pc for sample checking is available.
Q4. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. HOW TO PROCEED AN ORDER FOR OBSTRUCTION LIGHT?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. IS IT OK TO PRINT MY LOGO ON OBSTRUCTION LIGHT PRODUCT?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: DO YOU OFFER GUARANTEE FOR THE PRODUCTS?
A: Yes, we offer 2-5 years warranty to our products.
Q8: HOW TO DEAL WITH THE FAULTY?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, w will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. WHAT ABOUT THE LEAD TIME?
A: Sample needs 10 days, mass production time needs 3-4 weeks for order quantity more than.
Q3. DO YOU HAVE ANY MOQ LIMIT FOR OBSTRUCTION LIGHT ORDER?
A: Low MOQ, 1pc for sample checking is available.
Q4. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. HOW TO PROCEED AN ORDER FOR OBSTRUCTION LIGHT?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. IS IT OK TO PRINT MY LOGO ON OBSTRUCTION LIGHT PRODUCT?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: DO YOU OFFER GUARANTEE FOR THE PRODUCTS?
A: Yes, we offer 2-5 years warranty to our products.
Q8: HOW TO DEAL WITH THE FAULTY?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, w will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
