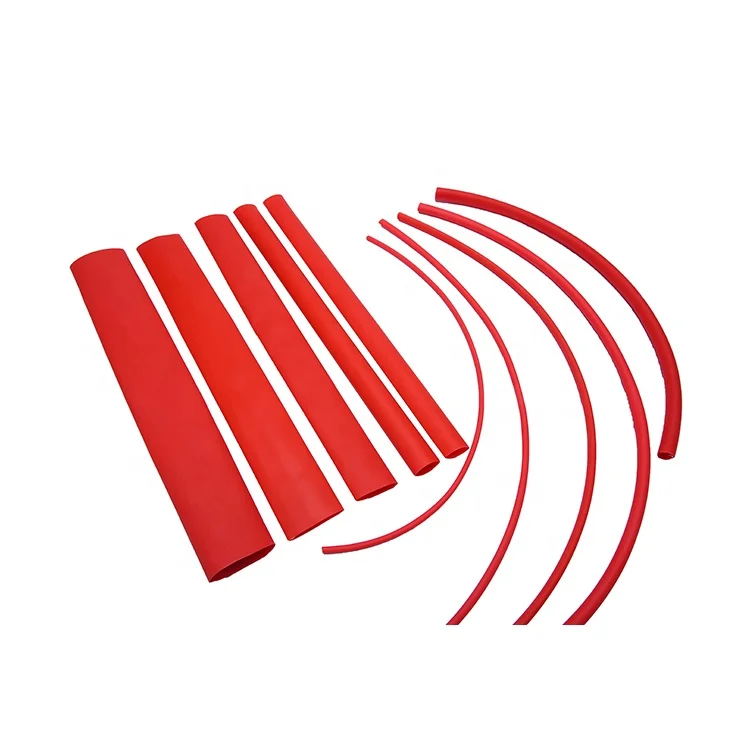

CNYY hot product Flame Retardant Heat Shrinkable Tube Headset Data Cable Heat Shrink Tubing Protective Repair Sleeve
- Category: >>>
- Supplier: Zhejiang Yuanyang Electric Co. Ltd.
Share on (1600067243197):
Product Overview
Description
Product Description
Product Description

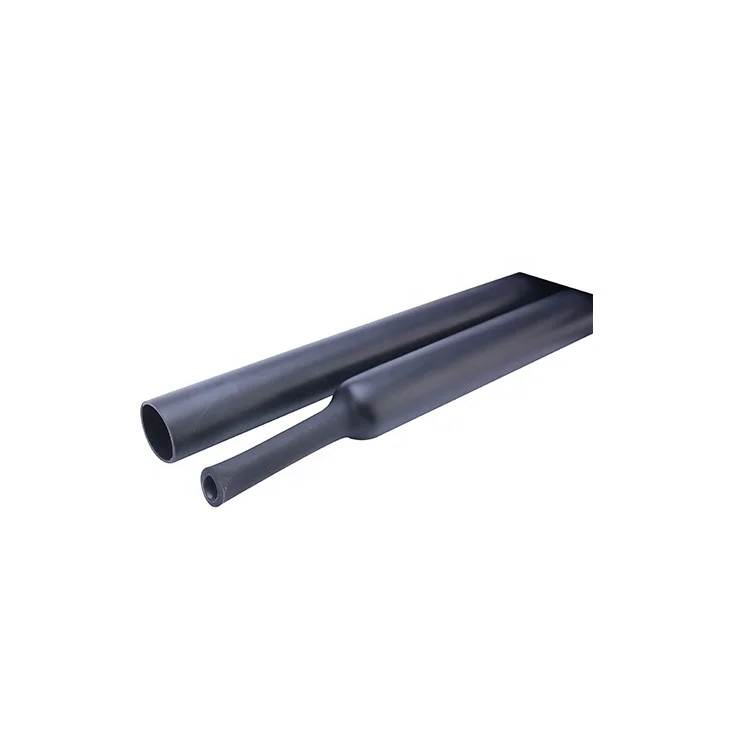

The halogen-free flame-retardant double-walled tube is composed of a double layer of halogen-free flame-retardant polyolefin and hot melt adhesive. The outer layer is insulated, flame retardant, and the inner layer buffers mechanical strain and has a strong seal. The main functions are sealing, waterproof, anti-corrosion and anti-leakage. Mainly used in all kinds of wire harnesses, marine wire and cable and metal pipes need to seal and waterproof, moisture-proof and anti-corrosion occasions such as sealed insulation, trapped and fixed fields.
Product parameters
●UV resistance
●Heat shrinkage ratio: 3:1
●Retraction temperature:≥70℃
●Final shrink temperature:≥125℃
●Operating temperature:-45℃~125℃
●Environmental standards:RoHS
●Color:Black(Other colors can be customized)
●Highly flame retardant, environmentally friendly

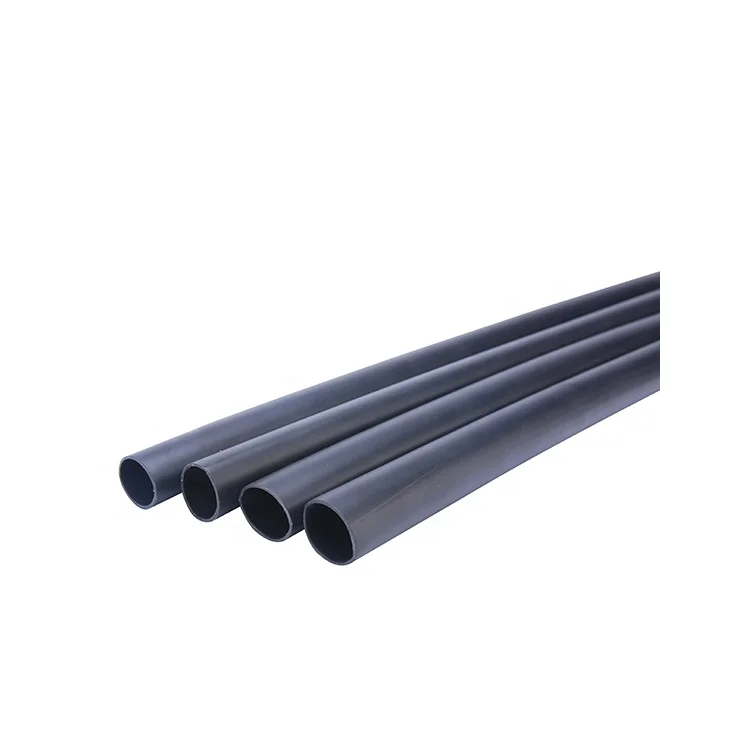

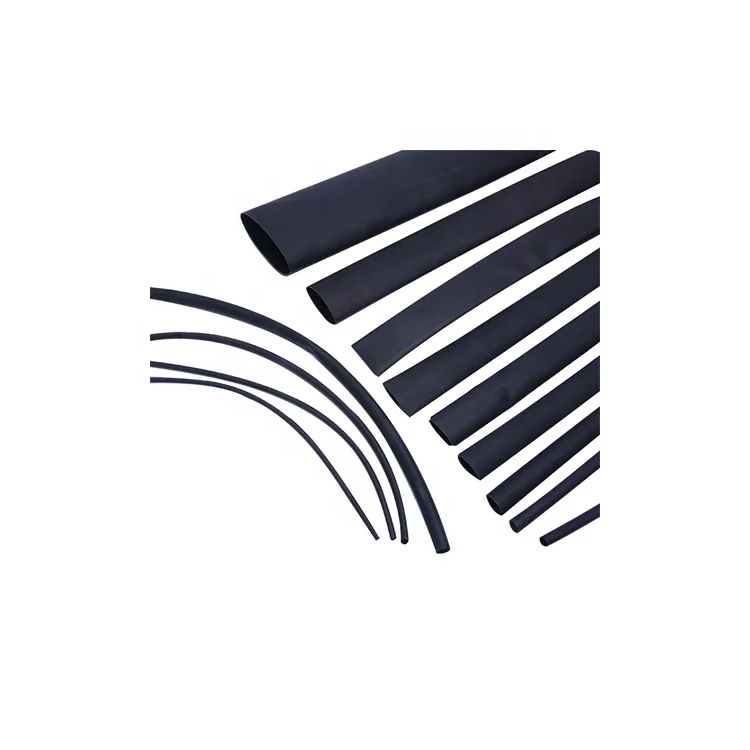

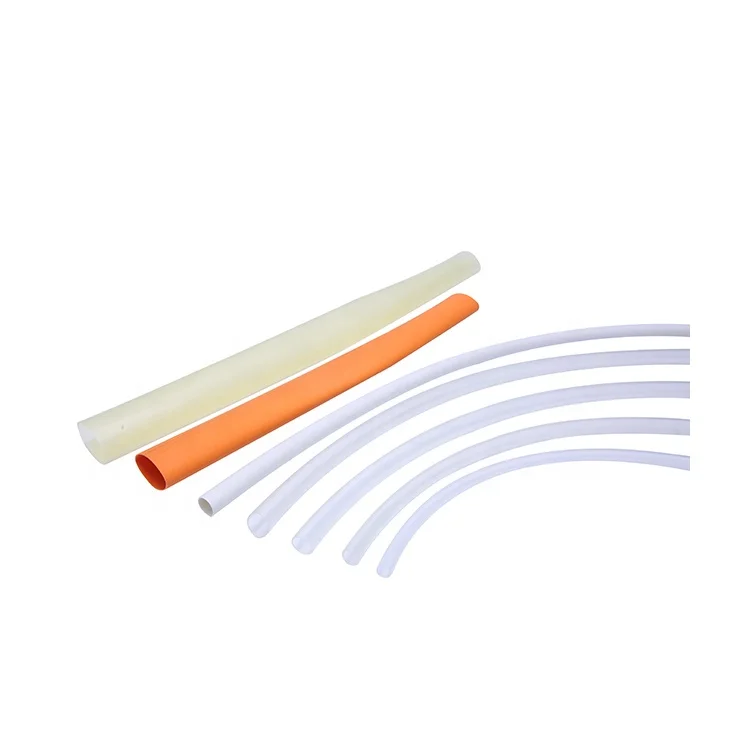

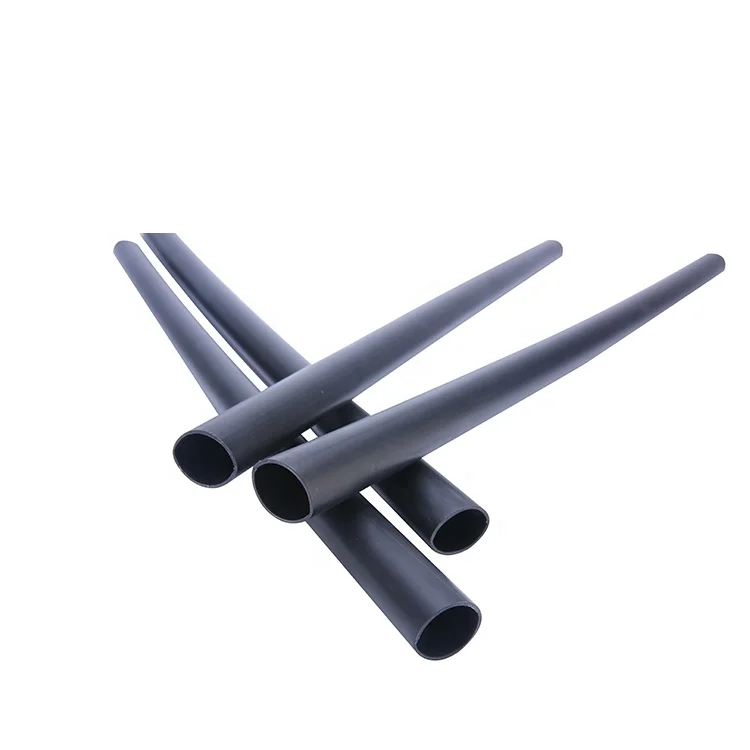

Detailed Images
Size Information
Performance | Index | Test method |
Tensile Strength | ≥10.4MPa | ASTM D 2671 |
Elongation at break | ≥200% | ASTM D 2671 |
Tensile strength after heat aging | ≥7.3MPa | 158℃X168h |
Breaking length after heat aging | ≥100% | 158℃X168h |
Axial rate of change | -8%~+8% | ASTM D 2671 |
Flame retardant | VW-1 | ASTM D 2671 C |
Breakdown strength | ≥15kV/mm | ASTM D 149 |
Volume resistivity | ≥10¹⁴Ω●cm | IEC 60093 |
Specifications(mm) | Inner dimenson before sharinkage(mm) | Inner dimenson after shrinkage(mm) | Total wall thickness(mm) | Thick layer(mm) | Packing(m) |
φ1.6 | ≥1.6 | 0.53 | 200 | ||
φ2.4 | ≥2.4 | 0.8 | 200 | ||
φ3.2 | ≥3.2 | 1.0 | 0.96±0.06 | 0.35±0.08 | 200 |
φ4.8 | ≥4.8 | 1.6 | 1.10±0.08 | 0.40±0.08 | 100 |
φ6.4 | ≥6.4 | 2.2 | 1.20±0.08 | 0.45±0.08 | 100 |
φ7.9 | ≥7.9 | 2.7 | 1.35±0.08 | 0.50±0.08 | 50 |
φ9.5 | ≥9.5 | 3.2 | 1.45±0.08 | 0.50±0.08 | 50 |
φ12.7 | ≥12.7 | 4.2 | 1.70±0.08 | 0.60±0.08 | 1.22 |
φ15 | ≥15 | 5.2 | 1.80±0.10 | 0.55±0.10 | 1.22 |
φ19.1 | ≥19.1 | 6.3 | 2.00±0.10 | 0.55±0.10 | 1.22 |
φ25.4 | ≥25.4 | 8.5 | 2.10±0.10 | 0.55±0.10 | 1.22 |
φ30 | ≥30 | 10.2 | 2.20±0.10 | 0.60±0.10 | 1.22 |
φ35 | ≥35 | 11.6 | 2.20±0.10 | 0.60±0.10 | 1.22 |
φ39 | ≥40 | 13.5 | 2.40±0.10 | 0.60±0.10 | 1.22 |
φ50 | ≥50.0 | 17.0 | 2.70±0.10 | 0.70±0.10 | 1.22 |
φ60 | ≥60 | 21.0 | 3.00±0.15 | 0.70±0.10 | 1.22 |
φ70 | ≥70 | 23.0 | 3.2±0.20 | 0.90±0.10 | 1.22 |
φ80 | ≥80 | 26.5 | 3.5±0.20 | 1.00±0.10 | 1.22 |
φ90 | ≥90 | 30.0 | 3.5±0.20 | 1.10±0.10 | 1.22 |
φ100 | ≥100 | 33.3 | 3.5±0.20 | 1.20±0.10 | 1.22 |
φ120 | ≥120 | 40 | 3.5±0.20 | 1.20±0.20 | 1.22 |

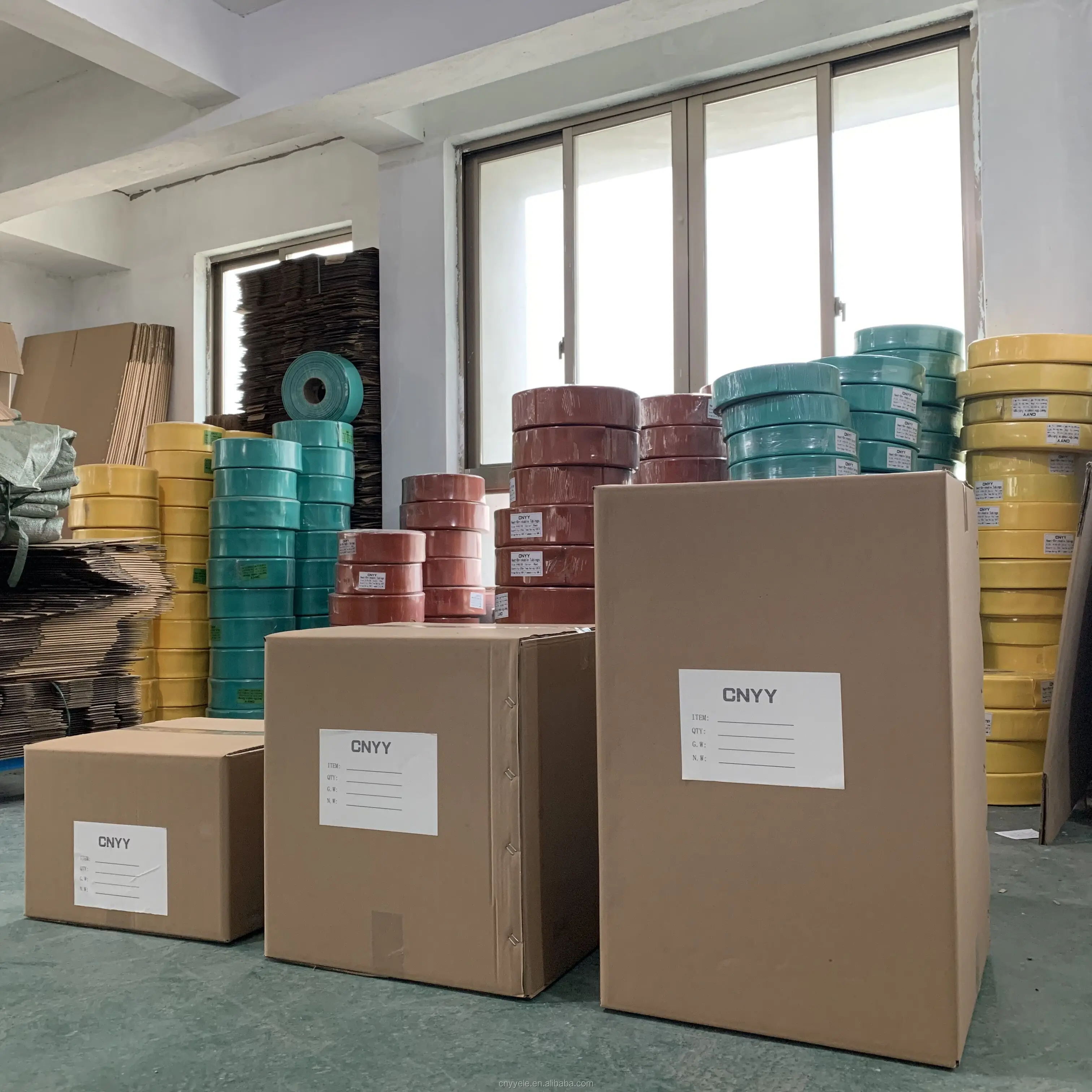

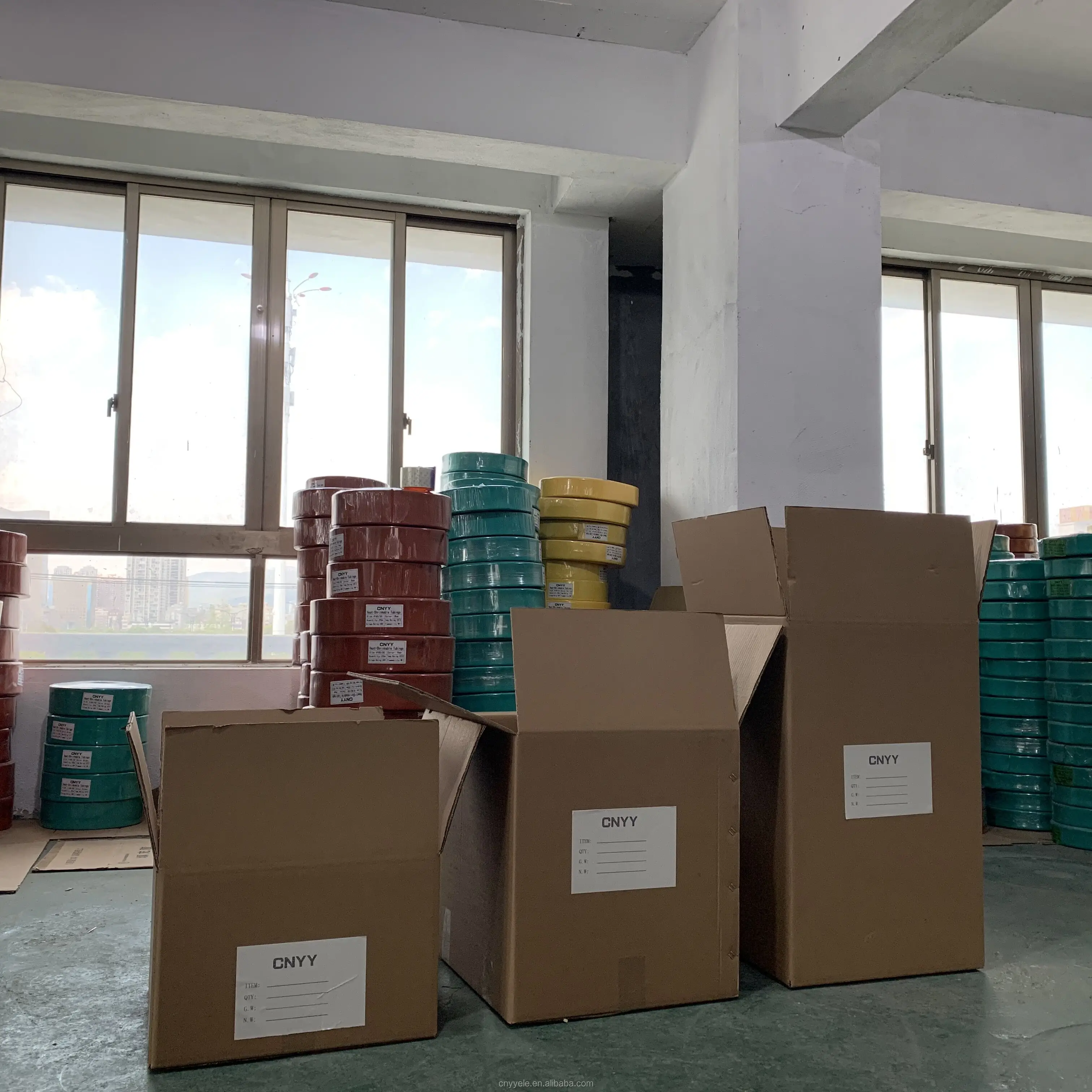

Packing&Shipping
Company Instruction
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.And produce the goods by ourself.A: We are factory.And produce the goods by ourself.
Q: How long is your delivery time?
A: About the production time :
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
And the delivery time : Generally about 30days. It is according to your location.
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
And the delivery time : Generally about 30days. It is according to your location.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
