cattle cow animal hydraulic licking brick making mineral salt block press machine
- Category: >>>
- Supplier: Tengzhou Dingrun Forging Machinery Plant
Share on (1600067274014):
Product Overview
Description

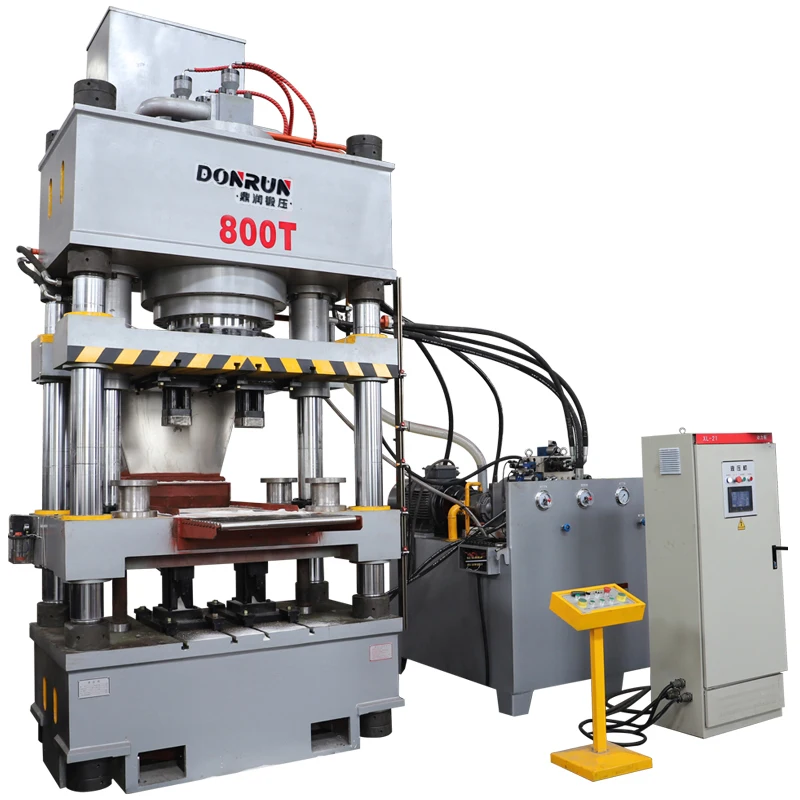

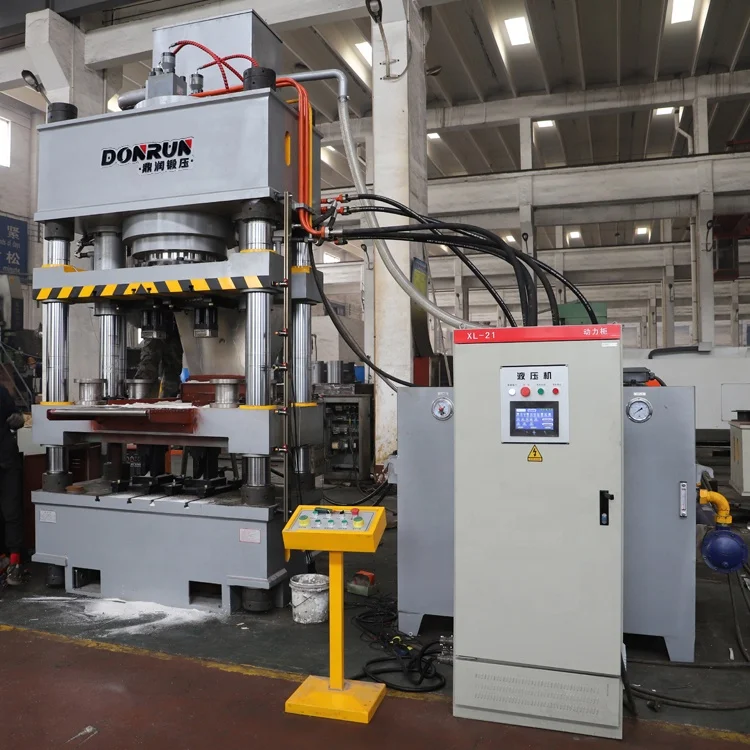

cattle cow animal hydraulic licking brick making mineral salt block press machine
Product Description

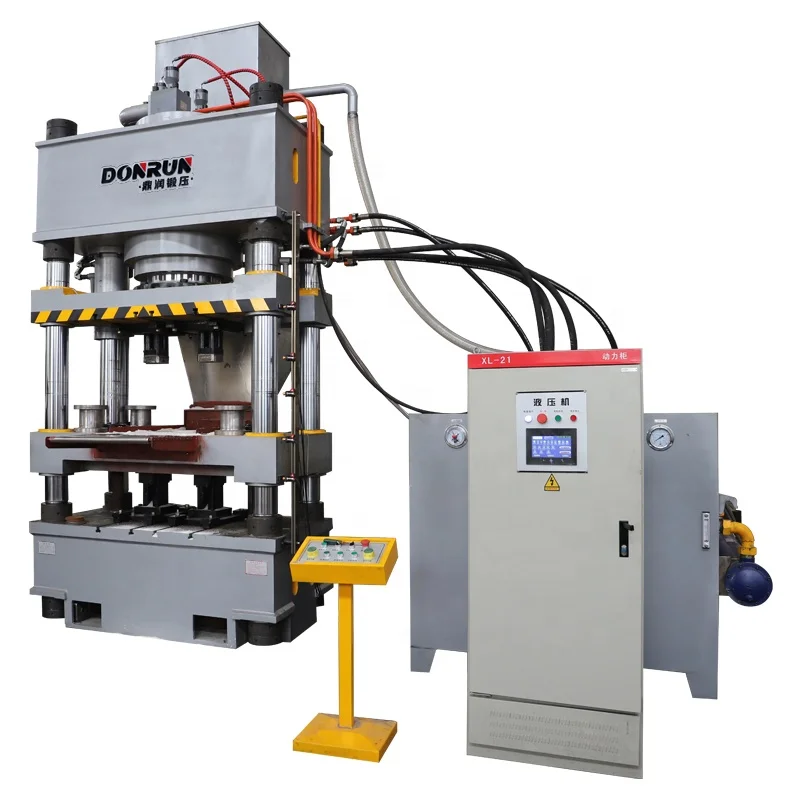

The main performance characteristics: cow sheep hydraulic animal mineral licking 800ton salt block press machine, economical and practical. The hydraulic control adopts a cartridge valve integrated system to reduce leakage points, reliable operation, and long service life. It can realize two forming processes of constant pressure and fixed stroke. It has the function of holding pressure delay and the working pressure stroke can be The adjustment within the prescribed range and the centralized control of buttons can realize three operation modes: manual, semi-automatic and automatic.
Competitive Advantage ：
Customized scope 1. Various types of lower cylinders for hydraulic presses can be customized
2. Punching buffer device 3. PLC touch screen control divert 4. Fast stroke liquid filling device
5. 20T-1000T can be customized according to customer requirements.
Customized scope 1. Various types of lower cylinders for hydraulic presses can be customized
2. Punching buffer device 3. PLC touch screen control divert 4. Fast stroke liquid filling device
5. 20T-1000T can be customized according to customer requirements.
cattle cow animal hydraulic licking brick making mineral salt block press machine
Application field &function
Application :suitable for various stamping processes such as stretching, punching (should be equipped with punching buffer device), bending, flanging, cold extrusion, etc. of metal materials, as well as correction, press-fitting, powder products and abrasives Compression molding of products and compression molding of plastic products and insulating materials Note: Working
pressure, effective stroke, working height and running speed can be determined according to user requirementsThe main function: Correction of deformed workpieces, disassembly and assembly of cylindrical tapered bearings, disassembly and assembly of various tight-fitting parts, the main components are made of 45-unit integral cast steel and quenched and tempered,
and the worktable adopts a movable core structure.
Application :suitable for various stamping processes such as stretching, punching (should be equipped with punching buffer device), bending, flanging, cold extrusion, etc. of metal materials, as well as correction, press-fitting, powder products and abrasives Compression molding of products and compression molding of plastic products and insulating materials Note: Working
pressure, effective stroke, working height and running speed can be determined according to user requirementsThe main function: Correction of deformed workpieces, disassembly and assembly of cylindrical tapered bearings, disassembly and assembly of various tight-fitting parts, the main components are made of 45-unit integral cast steel and quenched and tempered,
and the worktable adopts a movable core structure.
Product main technical specifications:
Specification | Unit | 500T | 630T | 800T | ||
Nominal force | KN | 5000 | 6300 | 8000 | ||
Max. pressure of liquid | MPa | 25 | 25 | 25 | ||
Stroke of slider | mm | 600 | 800 | 900 | ||
Max. opening height | mm | 1500 | 1500 | 1500 | ||
Working table size | mm*mm | 1500*1500 | 1600*1600 | 1500*1500 | ||
Speed of slider | Descent speed | mm/s | 100 | 120 | 120 | |
Working speed | mm/s | 6-15 | 5-12 | 6-15 | ||
Return speed | mm/s | 100 | 100 | 100 | ||
Motor power | KW | 18.5*2 | 22*2 | 37*2 | ||
Ejecting force | KN | 35 | 50 | 50 | ||
Ejecting stoke (mm) | mm | 250 | 300 | 350 | ||
Detailed Images
Hydraulic system

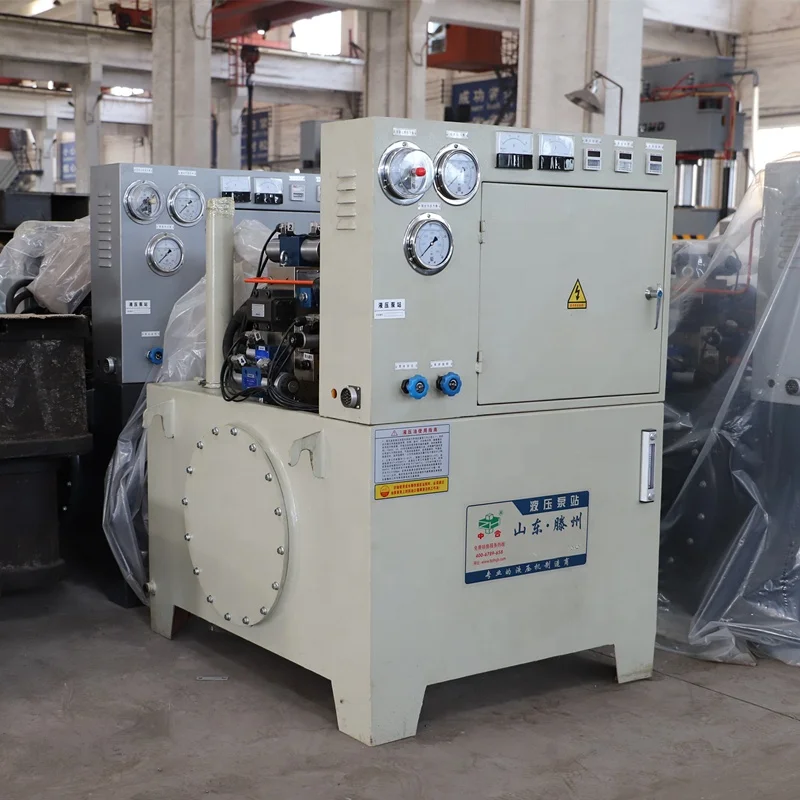

The pumping station is fully enclosed, and there are dredging holes on the sides. There is no sedimentation tank inside the pumping station, and there is an anti-settling counterflow plate. The cleaning of the pumping station is to open the dredging
holes to clear the sediment directly. The pumping station is polished before leaving the factory. Remove internal impurities.
holes to clear the sediment directly. The pumping station is polished before leaving the factory. Remove internal impurities.
Piston Rod
Medium-frequency hardening of 45 steel, deepening the material 2-3 mm, making the surface hardness of the piston rod to 55 ,effective solution to seal ring injury，not easy to scratch.
Cartridge Valve System

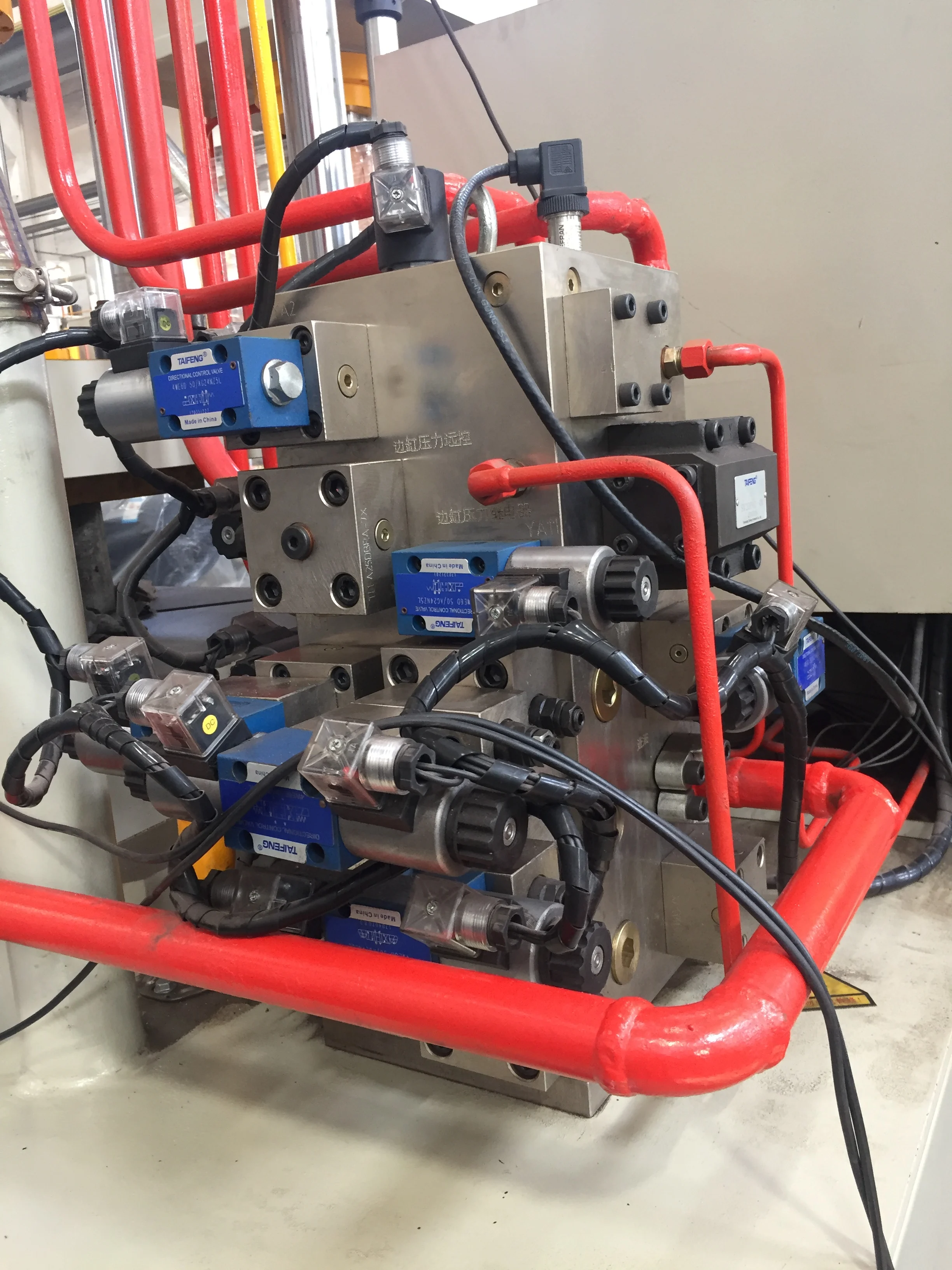

The pipeline connection is clear and orderly, easy to maintain and cartridge valve is inteqrated into the system to reduce leakage points, reliable operation and long service life.
Hydraulic System:
Combination gasket
All oil joints are sealed with a combination of gaskets, internally with rubber, externally with red copper customized by the manufacturer. Compared with the iron used by other manufacturers, the advantages are: 1.The ductility of red copper is strong, making the bond tight;2.In the process of high-pressure washing, red copper can effectively protect the rubber skin from breakage.
Core electrical appliance
It adopts relay control (PLC optional),
and it realizes electro-hydraulic control, jog, manual and semi-automatic
operation modes together with hydraulic valve.
Application:
Hydraulic Station layout

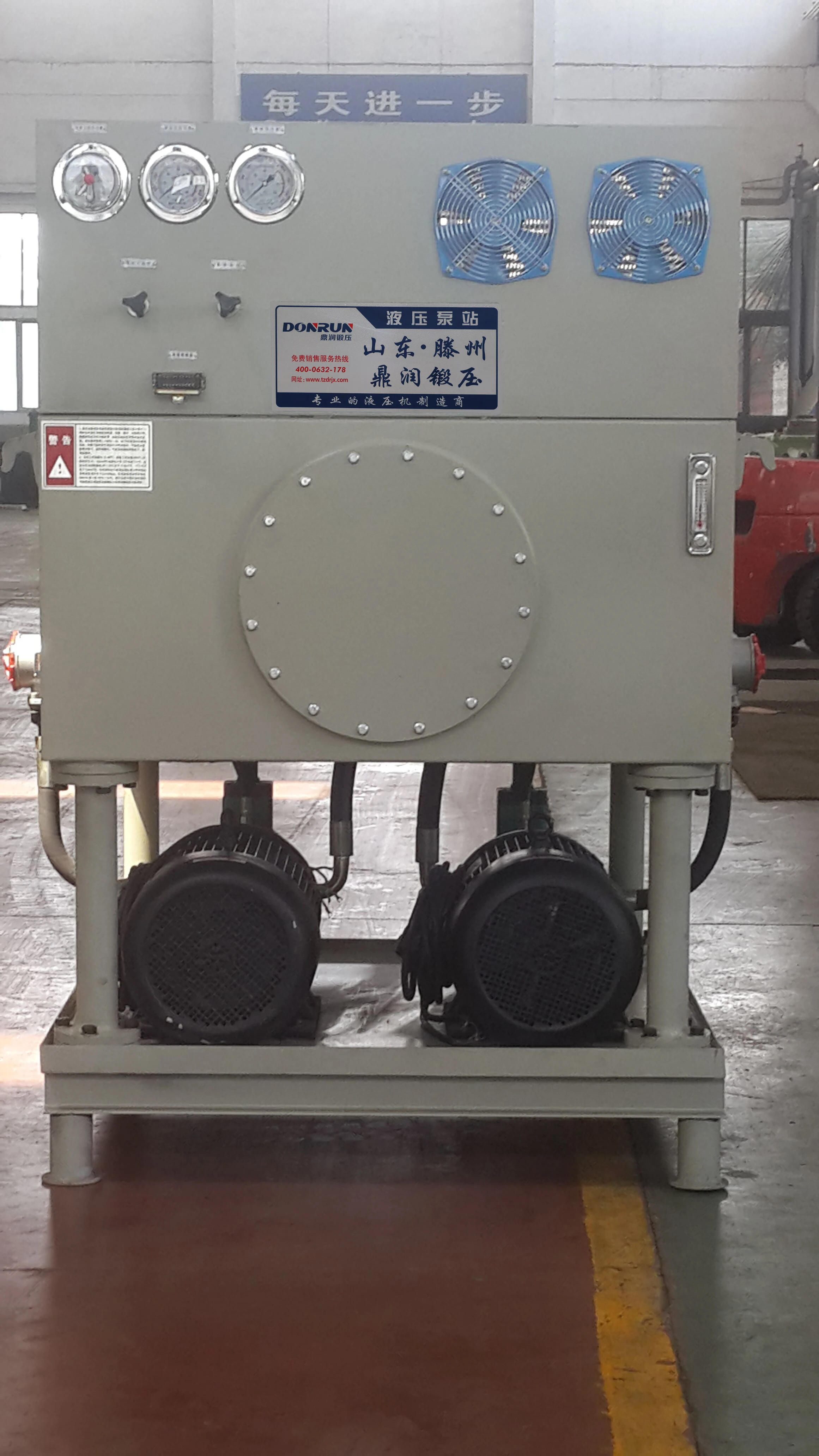

Compared with the plug-in oil pump,We use the external and horizontal position of the oil pump to reduce the heat generated when the oil is pumped out. The oil rises slowly, and the oil temperature is always controlled within a controllable range of about 55 degrees Celsius, so that the hydraulic components can work at a tolerable temperature and prolong the service life of the machine.

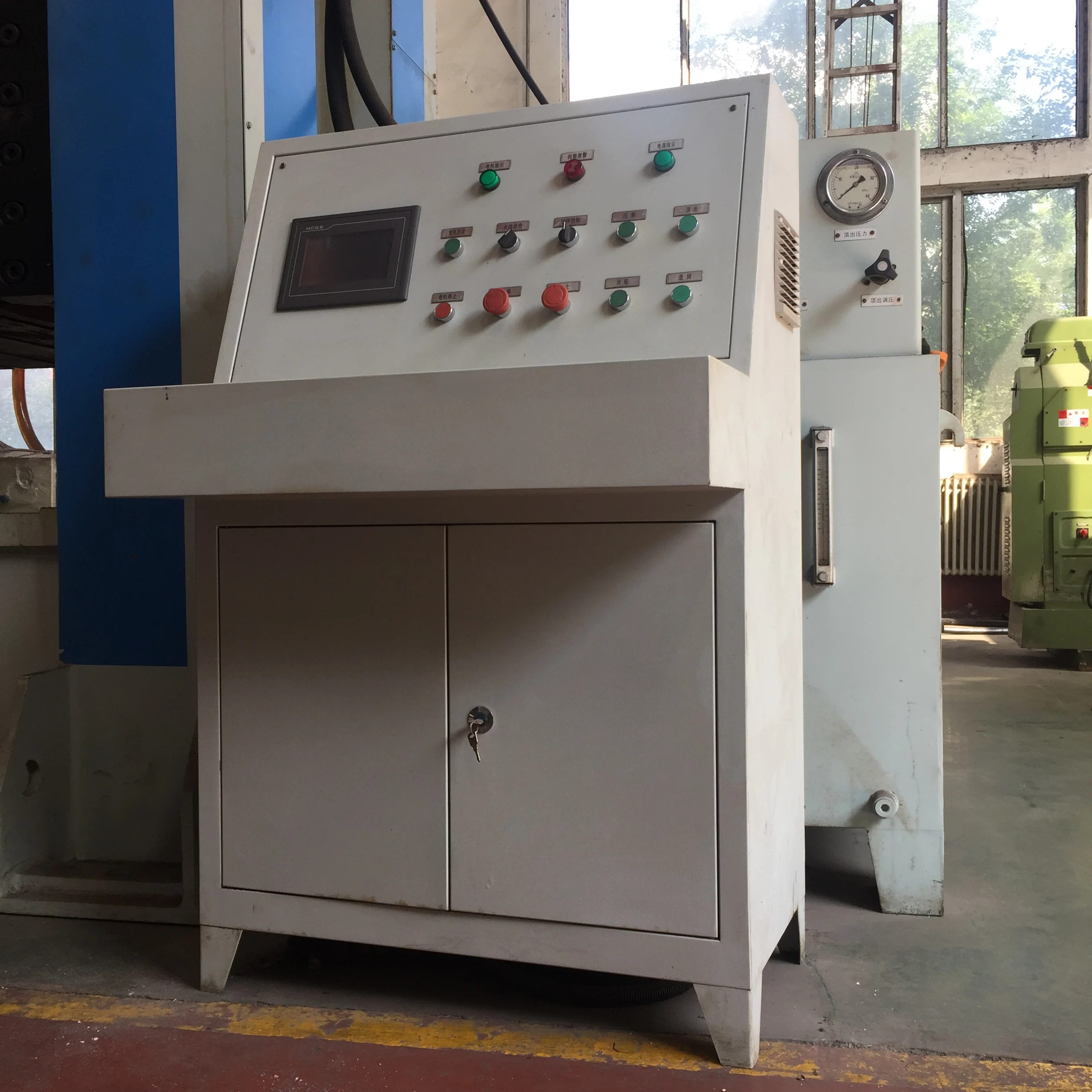

Operating Table
The design of the operation platform is flexible and people-oriented, and the interface is designed as a two-hand down button to ensure the optional man-machine interface of the worker's safety department for easy operation and maintenance.
Competitive Advantage A:

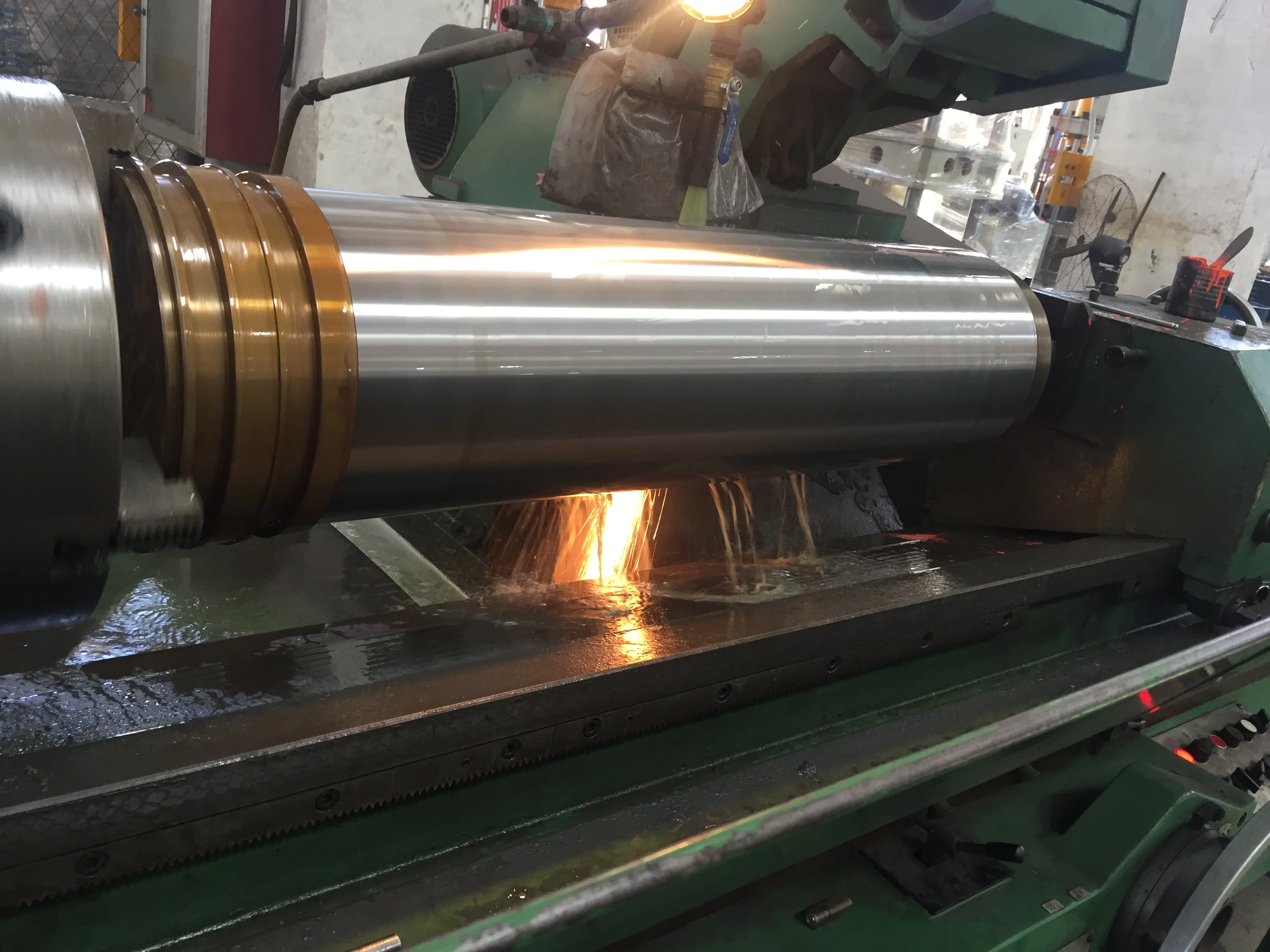

Piston rod of hydraulic cylinder:45 # round steel is used, after precision grinding with external grinder, the surface is plated with hard chrome to ensure the hardness and finish.
Competitive Advantage B.

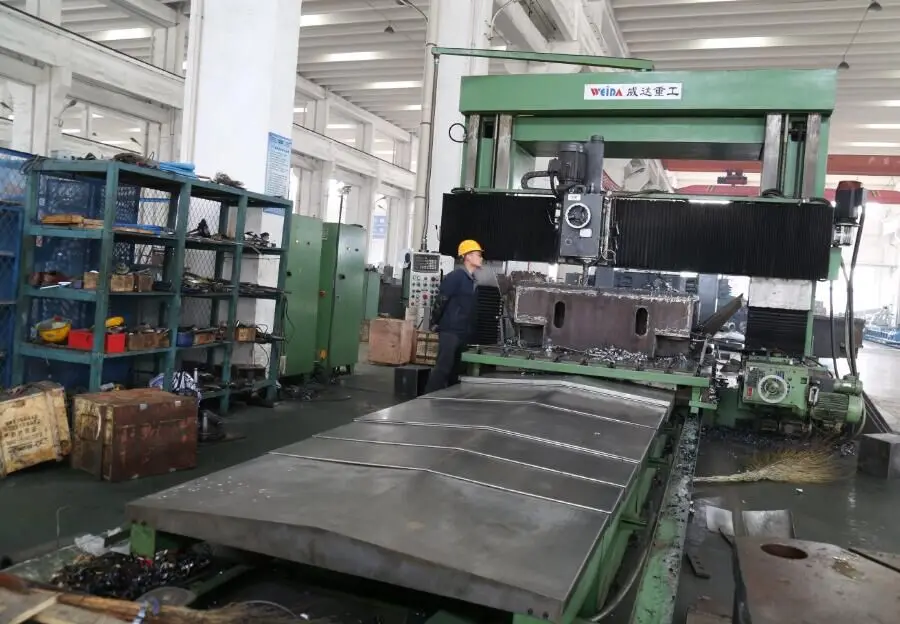

Large gantry milling machine, with multiple milling cutters to process the surface and slot at the same time, the machining accuracy and production efficiency are relatively high.
Finished Products
cattle cow animal hydraulic licking brick making mineral salt block press machine

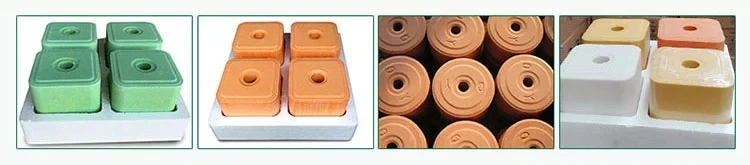

2 ~ 5 kg: 315 ton salt block hydraulic press
5 ~ 10kg: 500 ton salt block hydraulic press
10 ~ 15kg: 630 ton salt block hydraulic press
10 ~ 20kg: 800 ton salt block hydraulic press
2 ~ 5 kg: 315 ton salt block hydraulic press
5 ~ 10kg: 500 ton salt block hydraulic press
10 ~ 15kg: 630 ton salt block hydraulic press
10 ~ 20kg: 800 ton salt block hydraulic press
cattle cow animal hydraulic licking brick making mineral salt block press machine
This machine is suitable for the pressing of powder, and shaping of cattle and sheep salt bricks,molding of mineral salt block .Mainly used in enterprise assembly line.Salt block hydraulic brick making machine with production speed, high density of finished products,forming a good effect and so on.
Company Introduction

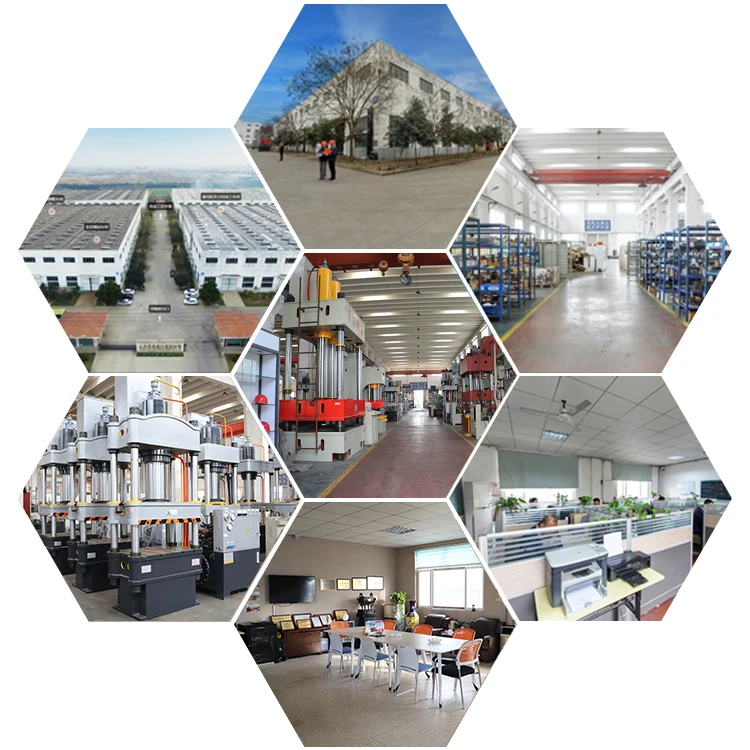

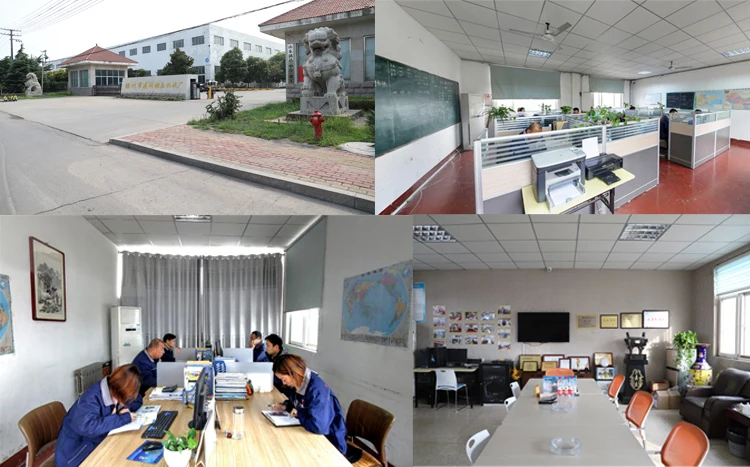

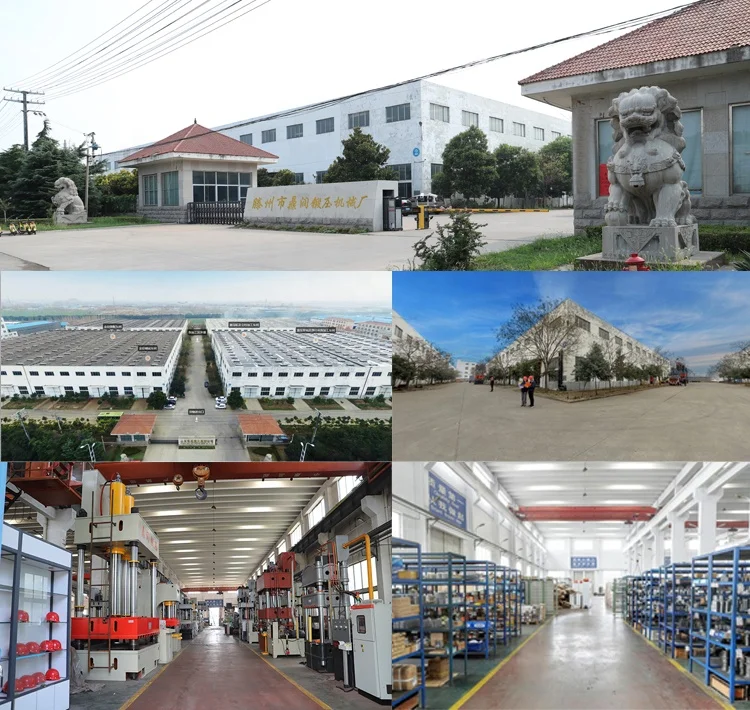

Tengzhou Dingrun Forging Machinery Plant is a company that specializing in the research and development, design,production and after-sales service of large and medium-sized hydraulic machinery equipment. The annual output value is 150 million yuan and the plant is more than 20,000 square meters. Now it has more than 120 employees, including 5 engineers and 2 senior engineers. It has successfully applied for more than ten national patents, and many papers have been included in the United States Engineering Information Corporation, the most famous information company in the world of engineering and applied sciences. EI database.The company's predecessor was a 15-year-old Zhonghe Machinery Factory. Its main products include universal four-post hydraulic presses, single-arm hydraulic presses, gantry frame hydraulic presses and hydraulic punches. Its strength ranks in the forefront of the industry.
Certifications
cattle cow animal hydraulic licking brick making mineral salt block press machine
Our hydraulic presses are all in accordance with export standards, and we have obtained relevant export certificates and CE certificates.
Packing&Shipping
Package:

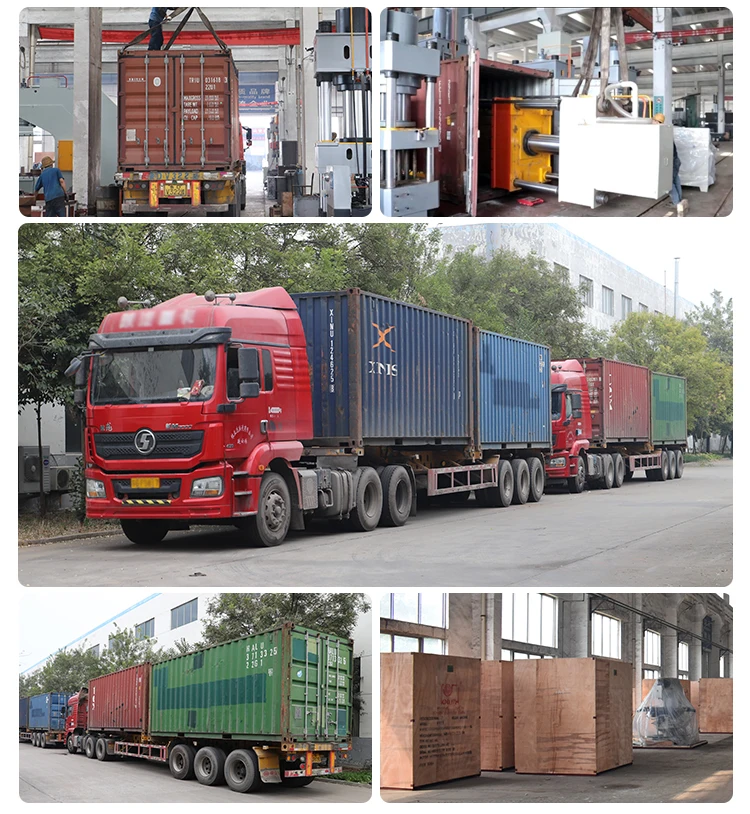

1. four column hydraulic press use standard export packaging, sea transport, to ensure that the goods you purchase the safe arrival of the port of destination.
.2.The four column press machine inner layer of plastic waterproof packaging.
3. salt block press machine outer layer of thick wood or steel frame fixed,And then use a synthetic board package.
Related Products
cattle cow animal hydraulic licking brick making mineral salt block press machine
Our Salt block hydraulic brick making machine with production speed, high density of finished products,
forming a good effect,if you have any interested Please contact us now!!
forming a good effect,if you have any interested Please contact us now!!
FAQ
1.What's the price and specification of hydraulic press machine?
Re: Dingrun always provide high quality machine, as we know,oversea market is more important and difficult than domestic market because of communication time costing after sales.So always,our machines has enough quality standard to make sure the machine can work more than the real warranty period. In this way ,we will save a lot and think advance for the clients. Please let me know the utensil diameter and height, the pictures and drawing will be better, so that we can check and recommend suitable machine for you.
2. How about your machine quality?We are worry about the quality.
Re: Dingrun is a mature brand in China. through our several years research in technology , our design including strcture and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or mor strict standard.Our machines distribute worldwide to about 20 countries where there are metal plate industry.And where there are our machines, there are good reputation and terminal user satisfaction.
3. May I send samples to test? Do you have a test fee or not?

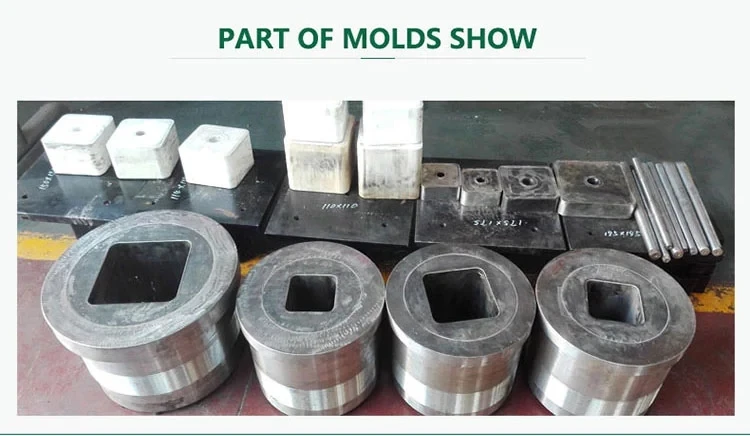

Re: Yes, if you could send us samples, it will be better. For testing, we have to customize the moulds according to your products, so the moulds cost will be on your account, of course the moulds belong to you.
Re: Dingrun always provide high quality machine, as we know,oversea market is more important and difficult than domestic market because of communication time costing after sales.So always,our machines has enough quality standard to make sure the machine can work more than the real warranty period. In this way ,we will save a lot and think advance for the clients. Please let me know the utensil diameter and height, the pictures and drawing will be better, so that we can check and recommend suitable machine for you.
2. How about your machine quality?We are worry about the quality.
Re: Dingrun is a mature brand in China. through our several years research in technology , our design including strcture and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or mor strict standard.Our machines distribute worldwide to about 20 countries where there are metal plate industry.And where there are our machines, there are good reputation and terminal user satisfaction.
3. May I send samples to test? Do you have a test fee or not?
Re: Yes, if you could send us samples, it will be better. For testing, we have to customize the moulds according to your products, so the moulds cost will be on your account, of course the moulds belong to you.
