Fixed Under Vehicle Surveillance System UVSS for Under Bottom Security Check
Under Vehicle Scanning System
The vehicle bottom inspection system adopts the industry-leading ultra-high frame rate intelligent array scanning camera independently developed to monitor all vehicle chassis in real time and effectively prevent such situations as vehicle bottom bomb, stowaway, drug stash, prison escape tool stash, illegal modification and vehicle bottom oil leakage.While providing vehicle bottom inspection, the system can synchronously provide additional functions such as license plate recognition, body image recording, face recognition, automatic comparison of vehicle bottom image when the vehicle is entering and leaving, and all-dimensional seamless inspection records all entering and exiting vehicle details.The real-time video output of the system is compatible with the general IP monitoring system, realizing seamless docking with the video monitoring system.

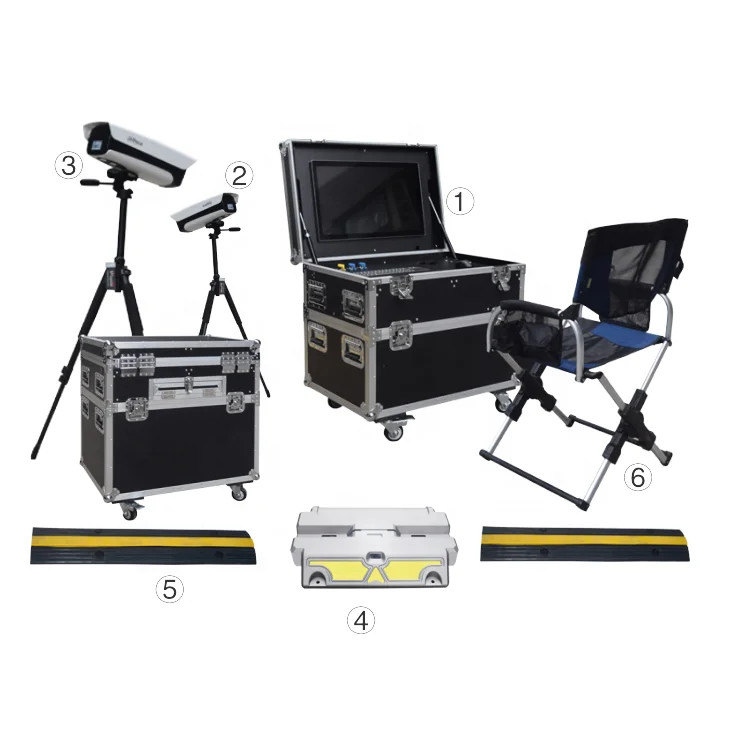

◆ Face Array - Bottom Scan Imaging System
① Vehicle bottom image front control mainframe
② Face recognition camera (optional)
③ License plate recognition camera
④ Vehicle bottom image acquisition mainframe
⑤ Road speed bump
⑥ Special chair for bottom scanning system (optional)
② Face recognition camera (optional)
③ License plate recognition camera
④ Vehicle bottom image acquisition mainframe
⑤ Road speed bump
⑥ Special chair for bottom scanning system (optional)

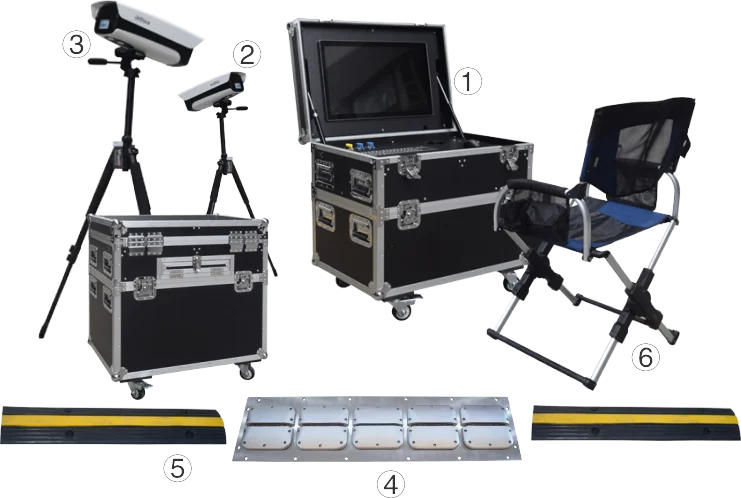

◆ Buried - Under Vehicle Scanning Imaging System
① Vehicle bottom image front control mainframe
② Face recognition camera (optional)
③ License plate recognition camera
④ Fixed vehicle bottom image acquisition host
⑤ Road speed bump
⑥ Special chair for bottom scanning system (optional)
② Face recognition camera (optional)
③ License plate recognition camera
④ Fixed vehicle bottom image acquisition host
⑤ Road speed bump
⑥ Special chair for bottom scanning system (optional)
◆ Range Of Application
The system is widely used in government departments, military, customs, border, high-end hotels, toll station, prisons and important factories, as well as in any vehicle type, such as trucks, cars, sports cars, buses, as well as trains, subways and other ultra-long vehicles scanning inspection.
The system is widely used in government departments, military, customs, border, high-end hotels, toll station, prisons and important factories, as well as in any vehicle type, such as trucks, cars, sports cars, buses, as well as trains, subways and other ultra-long vehicles scanning inspection.

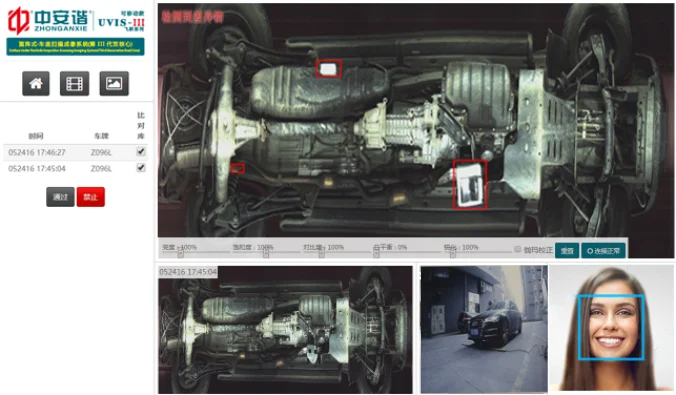

◆ System Management Software
UVSS management software is powerful and easy to operate, can meet the basic and advanced needs, in addition to regular user equipment management, it also has a lot of optional advanced intelligent features, such as landing gear identification, vehicle type identification, face recognition, license plate recognition (NPK) and so on.
UVSS management software is powerful and easy to operate, can meet the basic and advanced needs, in addition to regular user equipment management, it also has a lot of optional advanced intelligent features, such as landing gear identification, vehicle type identification, face recognition, license plate recognition (NPK) and so on.

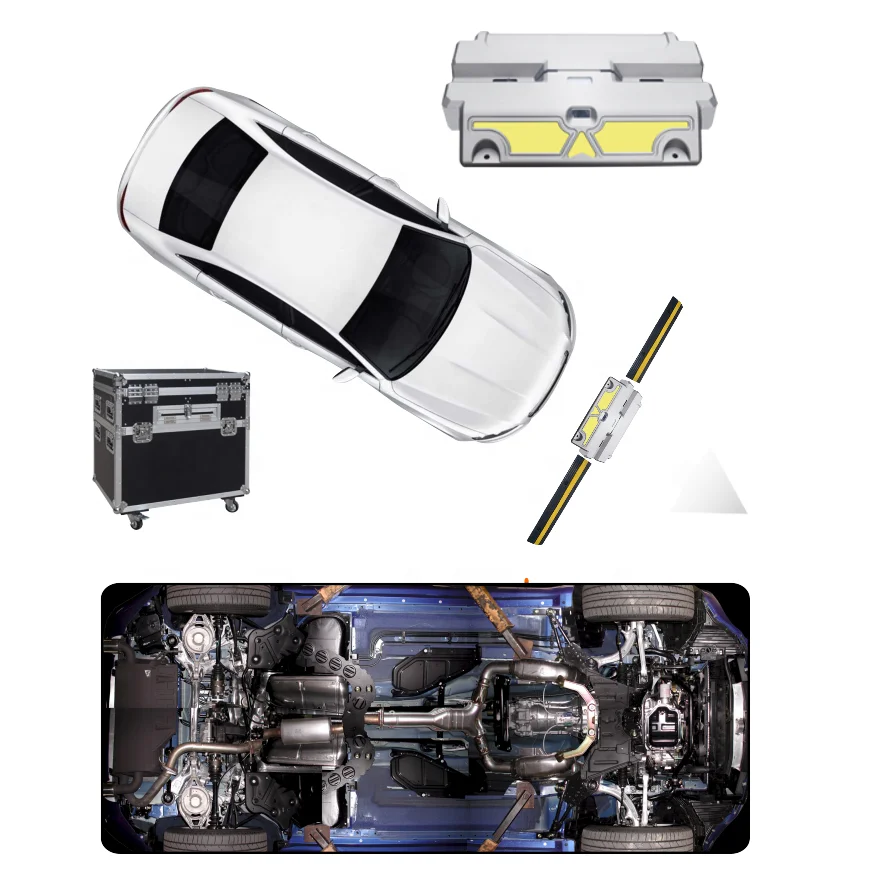

◆ Portable Style
● Lighting components: five sets of double sealed LED surface light source
● Load bearing: 30T
● Scanner size: 560*350*83mm
● Scanner weight: 25kg
● Standby power 10W, working peak 120W
● Load bearing: 30T
● Scanner size: 560*350*83mm
● Scanner weight: 25kg
● Standby power 10W, working peak 120W
◆ Buried Style
● Lighting components: four sets of double sealed LED surface light source
● Load bearing: 50T
● Scanner size: 1236*320*105mm
● Scanner weight: 60kg
● Standby power 10W, working peak 150W
● Load bearing: 50T
● Scanner size: 1236*320*105mm
● Scanner weight: 60kg
● Standby power 10W, working peak 150W
◆ Functions：
● Artificial intelligence technology
● Fast FOD algorithm (≤3S)
● License plate blacklist and white list
● Face recognition
● Face blacklist and white list
● Complete control of the blacklist white list
● Real-time detection
● Can connect more than one device
● No limit for the number of logged in users
● User group management
● Fast FOD algorithm (≤3S)
● License plate blacklist and white list
● Face recognition
● Face blacklist and white list
● Complete control of the blacklist white list
● Real-time detection
● Can connect more than one device
● No limit for the number of logged in users
● User group management
Product Paramenters
Technical Parameters | ||
Scanning speed | 0-60km/h | |
Scanner data line | 10 meters (customizable length) | |
Working voltage | DC24V | |
System power supply | AC110-240V/ 50-60Hz | |
Operating temperature range | -30 ℃ ~ + 65 ℃ | |
Protection grade | IP68 | |
Scene image display | ≥1 channel | |
Induction sensitivity range | 0-100 | |
FOD sensitivity range | 0-8 | |
Image display | Automatic adaptation | |
Number of black/white lists | ≥2000 | |
Exhibition
Company Profile
Certifications
Product packaging

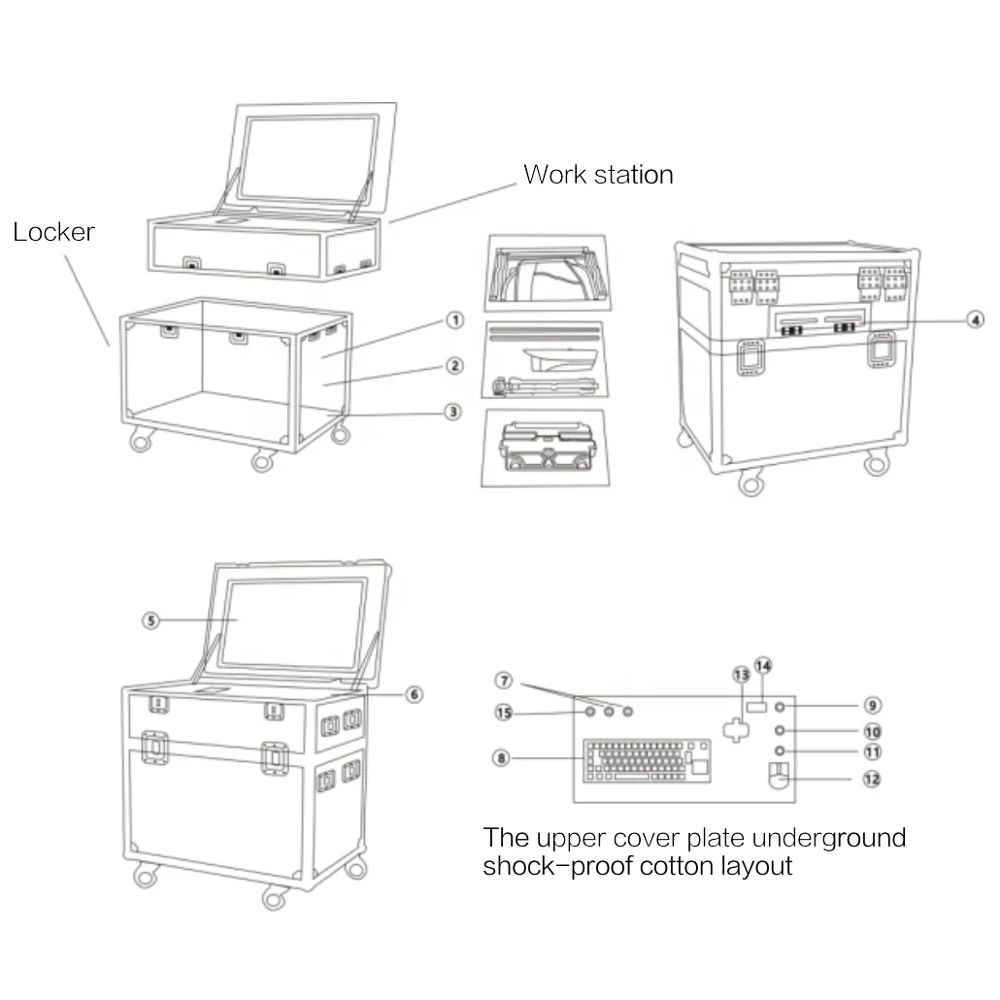

◆ Box Structure And Packing
●Locker:
1. The upper:
Special chair for bottom scanning system (optional)
2. The middle:
License plate recognition cameras, camera rack, speed bumps
3. Below:
Main box for car bottom scanning system
1. The upper:
Special chair for bottom scanning system (optional)
2. The middle:
License plate recognition cameras, camera rack, speed bumps
3. Below:
Main box for car bottom scanning system
●Work station：
4. Connect line storage warehouse 5. The display 6. Operation panel 7. The USB interface
4. Connect line storage warehouse 5. The display 6. Operation panel 7. The USB interface
8. The keyboard
9. Power button10. Power indicator
11. System start button
12. Mouse (in the storage bin)
13. Mouse storage warehouse
14.UPS power supply display
15. Network port
Package siz940x650x690mm
Volume: 0.43 m³
Volume: 0.43 m³
