This serious reactor is a 1L GSHK lab factory direct high pressure polymerization reactor with lift and tilt function on the basis of the GSH reactor. Because of the convenience and portable it brings, this reactor can widely used for various test and reaction in laboratory, under high pressure, high vacuum and high temperature condition. Stainless steel made give a good appearance and durable for laboratory test.
Application: Laboratory research, lab test and reaction under high pressure, high vacuum and high temperature condition.
Volume
1 liters
Pressure
Max.100bar
Temperature
350 ℃
Material
SS304 /SS316
Heating type
Electric Heating
Cooling type
Internal spiral coils
Impeller type
Propeller, Turbine, Anchor type
Size
700*700*1100mm
Product Features
Special alloy available
Titanium, Nickel, Hastelloy, Zirconium Lifting and tilting device
Easy to operate, feed & discharge.
Magnetic couplings
Static seal with no leakage.
Internal Drawings

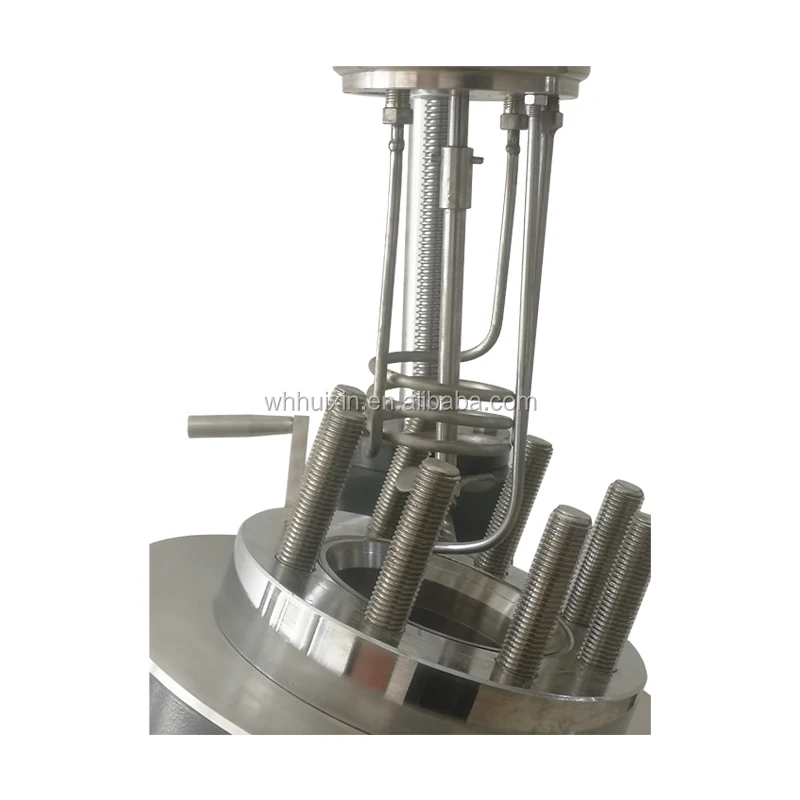

Internal spiral coils
Quick coolings for material
Dip tupe device
Used for up discharging
Various impeller available
Propeller, turbine, anchor, others
Control system
Intelligent digital temperature control
with the temperature, stirring speed display & control and working time display
Related Products
Detailed Images
Size Information
Quick selection
Model No.
GSHK-0.25
GSHK-0.5
GSHK-1
GSHK-2
GSHK-3
GSHK-5
Capacity (L)
0.25
0.5
1
2
3
5
Working Pressure (MPa)
10
10
10
10
10
10
Working Temperature (℃)
350
350
350
350
350
350
Stirring Speed (r/min)
0-1500
0-1500
0-1500
0-1500
0-1500
0-1500
Motor power (kW)
0.15
0.15
0.2
0.2
0.2
0.6
Heating Power (kW)
1
1
2
2
3
4
Material
Standard SS304 OR SS316
Heating Method
General electric heating(water recycling, thermal oil heating available
