10. Temperature control range: Oil inlet temperature +15℃ to +300℃
11. 304/316L stainless steel or carbon steel integrated pipeline to reduce resistance and rust…
12. The thermometer adopts WEST or OMRON microcomputer dual-group P.I.D control, touch-measure internal storage automatic calculation, accurate and reliable, saving more than 35% of power
13. Complete security protections with faults display. Repair and maintenance does not require professionals.
(Optional)
14. Explosion-proof type
15. Air blowing and oil returning
16. Instant cooling shutdown
17. RS485 communication to realize automatic management and remote control.
18. Control system: PLC programmer + HMI

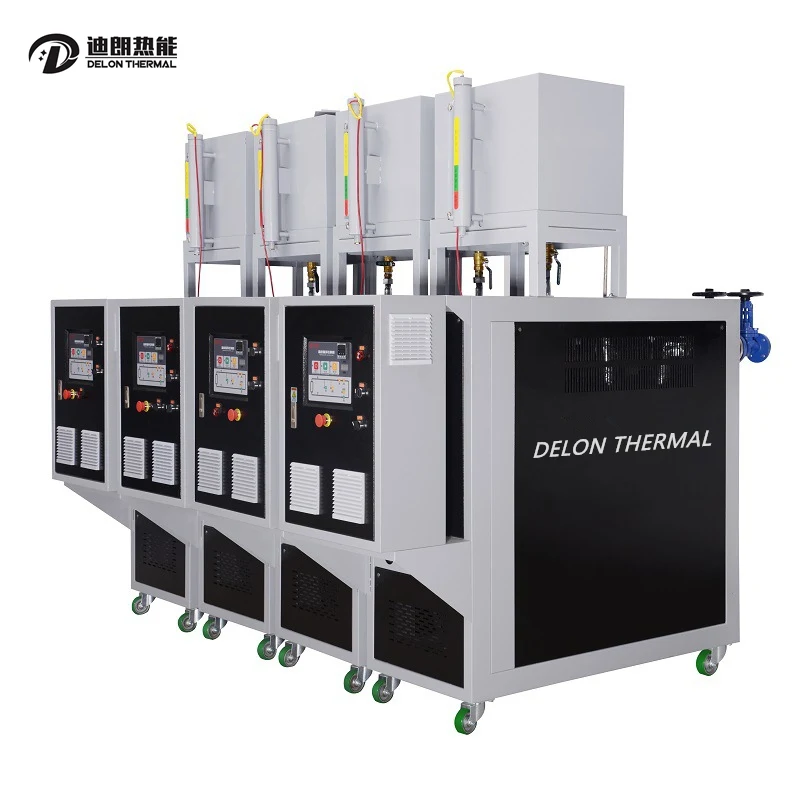

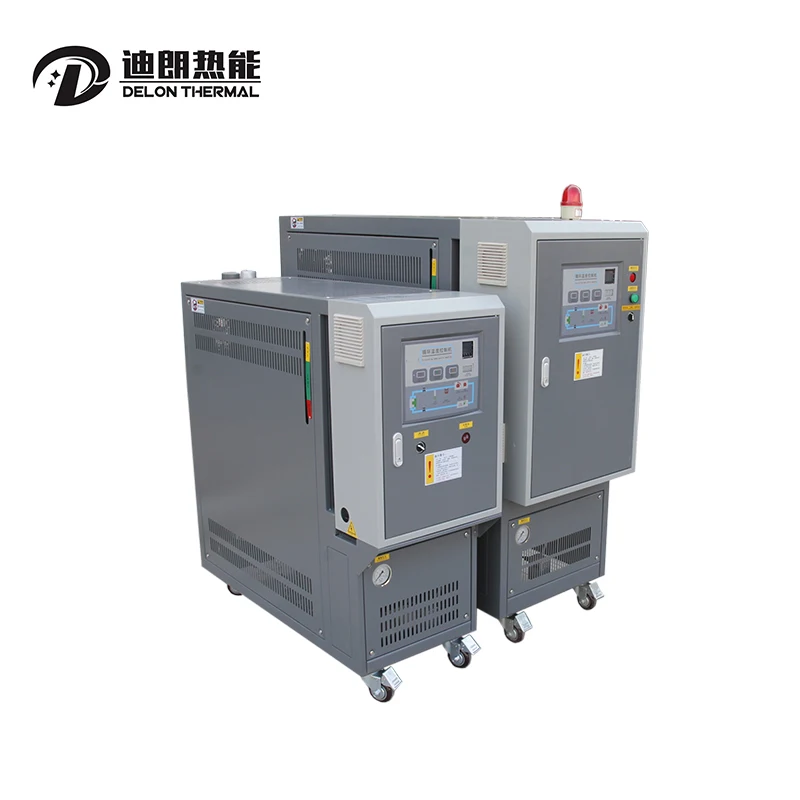

Technical Specifications for Die Casting Mold Temperature Controller:
Model / Series
Unit
DEL-20
DEL-40
DEL-50
DEL-75
DEL-100
DEL-150
Max. outlet oil temp.
°C
300 (Adjustable)
Main power supply
V/HZ
380V±5%/50HZ, 3Ph (3P+N+E) or Customs Made
Heat transfer medium
—
Heat transfer oil
Cooling mode
—
Indirect cooling
Input power
kW
18/24
24/36
30//40/50
50/60/70
60/75/90
90/120/150
Oil pump power
HP
2
4
5
7.5
10
15
Max. flow rate of pump
m3/h
7.2
12
18
25
30
45
Max. system pressure
bar
3
3.5
3.5
4
4.5
5
Oil Inlet diameter
DN
20
20
25
32
40
50
Oil outlet diameter
DN
20
20
25
32
40
50
Expansion tank volume
Liter
35
50
70
100
150
180
System power consumption
kW
20/26
27/39
34/44/54
56/66/76
68/83/98
102/132/162
Cooling water pipe
mm
DN15
DN15
DN15
DN15
DN20
DN20
Overall size
L mm
1140
1300
1600
1600
1600
1900
W mm
420
500
580
580
580
660
H mm
1000
1200
1250
1250
1250
1490
Net weight
Kg
140
200
240
320
370
490
Note:
1. The choice of oil pump is as per customers’ requirements.
2. The diameter of inlet & outlet could be modified as per customers’ requirements.
3. The above specifications are subject to change without notice, special requirements could be designed.
