Product Overview
Description
Product Description
Product characteristics:
Applicable to all kinds of low frequency transformers, relay coils, solenoid valves, ballasts and other coil products with thick lines and many coils : 1. Tai'an Inverter is equipped with AC three-phase asynchronous motor, which is environmentally friendly, stable and has long service life 2. Multifunctional micro-computer design, easy data setting, shutdown can save data, and power-off protection function; 3. Instructional function design, which can assist the setting of winding point and width position, and edit winding data in suspension. 4.0-999 sets of step sequence setting capacity can easily set positive and reverse, cross slots and close winding. 5. Unique motor drive design, the spindle is driven indirectly by the motor to improve the service life of the motor; 6. Dual-axis synchronous operation can improve efficiency.
Model No. | ZDJ-1 |
Nominal diameter of enameled wire | Φ0.1~0.35mm |
Min & Max diameter of winded coils | Φ50~360mm |
Max winding breadth | Φ250mm |
Winding rotation speed range | 1440rpm |
Voltage range of application | 10~35kv |
Machine tool power | 1.5kw |
Input power of machine tool | 220v |
Weight of machine tool | 180kg |
Dimensions of machine tool | 1200*700*1400mm |

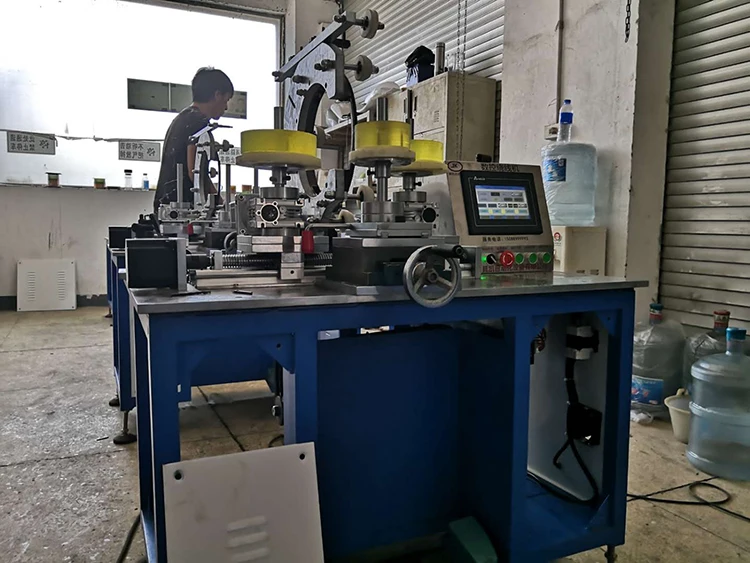

Detailed Images
Related Products
Company Introduction
ABOUT US
Shanghai Wenyou industry co., Ltd. It's located in Fengxian District, Shanghai, China. The company is specialized in manufacturing, research and development, sales of epoxy resin, insulation materials, transformers, transformers and supporting production equipments and molds. They are not only sold in china, but also exported to Europe, Southeast Asia, Middle East region and Russia and the other CIS countries.
The company has passed management system of ISO9001 and ISO14001,the European Union "SGS", and also the United States UL certification. The epoxy products are widely used in indoor and outdoor 10-1100KV high voltage electrical insulation. Insulation part mainly were 12~40.5KV series epoxy resin pressure gel brackets APG molding pressure (SMC/DMC), high and low voltage power electrical equipment supporting insulation parts, grounding switches, components and other products. and production equipments include standard and double or station six sides machine APG clamping machine which were full automatic, servo and PLC touch screen control. The advantage is that the electronic vacuum gauge is more accurate, Triple safety design, oil cycling heating surround pot, heated evenly, thin film de-gassing, excellent vacuumize etc. The Quality of our products is the award-winning in the market, and also established a good reputation for our company.
Wenyou is based on china, serving for global electricity, providing stable products and high quality service to all of the world.
Shanghai Wenyou industry co., Ltd. It's located in Fengxian District, Shanghai, China. The company is specialized in manufacturing, research and development, sales of epoxy resin, insulation materials, transformers, transformers and supporting production equipments and molds. They are not only sold in china, but also exported to Europe, Southeast Asia, Middle East region and Russia and the other CIS countries.
The company has passed management system of ISO9001 and ISO14001,the European Union "SGS", and also the United States UL certification. The epoxy products are widely used in indoor and outdoor 10-1100KV high voltage electrical insulation. Insulation part mainly were 12~40.5KV series epoxy resin pressure gel brackets APG molding pressure (SMC/DMC), high and low voltage power electrical equipment supporting insulation parts, grounding switches, components and other products. and production equipments include standard and double or station six sides machine APG clamping machine which were full automatic, servo and PLC touch screen control. The advantage is that the electronic vacuum gauge is more accurate, Triple safety design, oil cycling heating surround pot, heated evenly, thin film de-gassing, excellent vacuumize etc. The Quality of our products is the award-winning in the market, and also established a good reputation for our company.
Wenyou is based on china, serving for global electricity, providing stable products and high quality service to all of the world.
Packing&Shipping
FAQ
1.Do you think what is your factory's biggest adventage?
A:Technology is our core competitiveness
2.Can your factory supply samples with free if we need?
A: Yes,we can.
A:Technology is our core competitiveness
2.Can your factory supply samples with free if we need?
A: Yes,we can.
