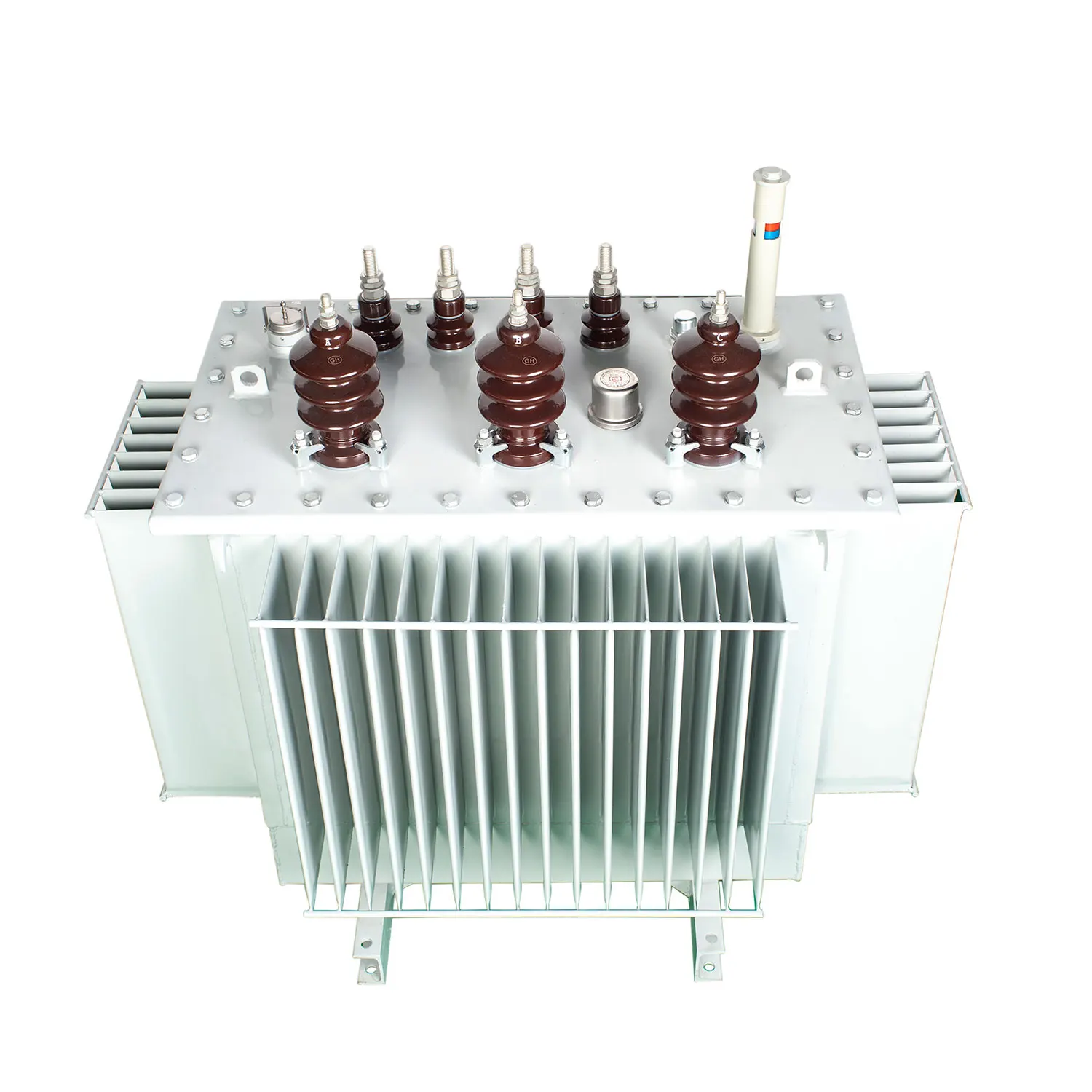

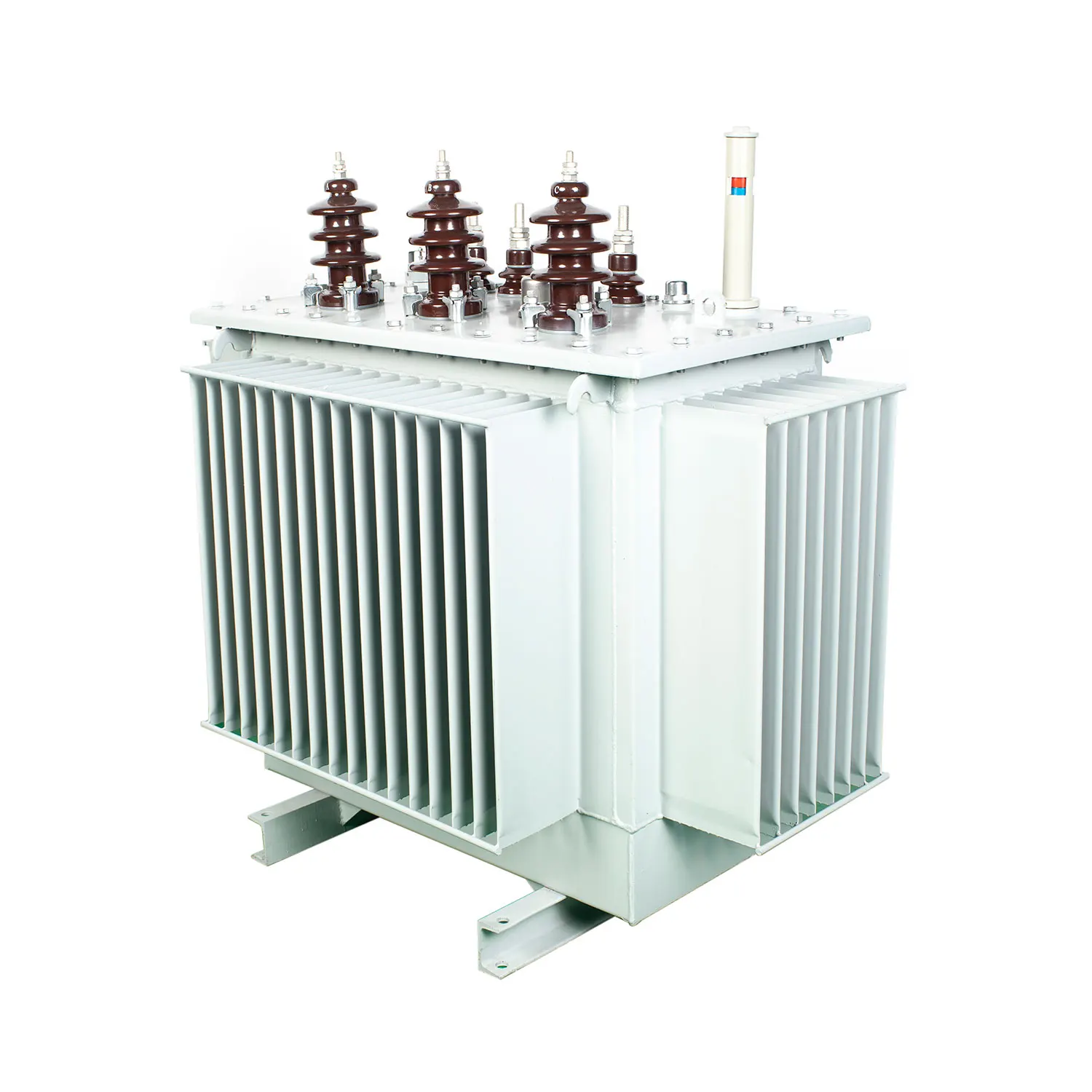

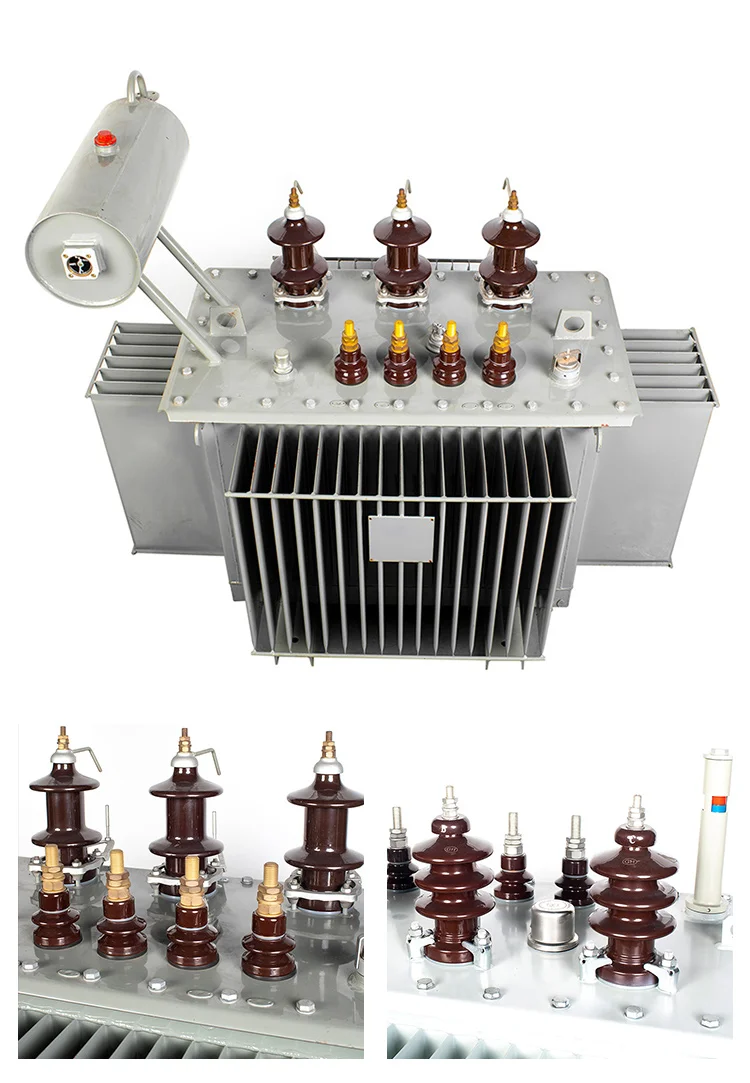

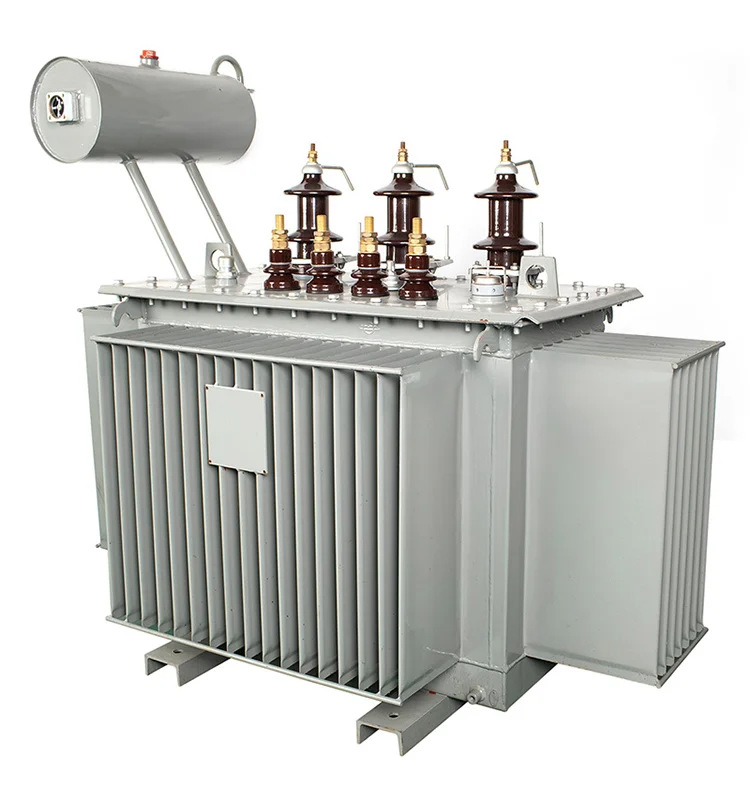

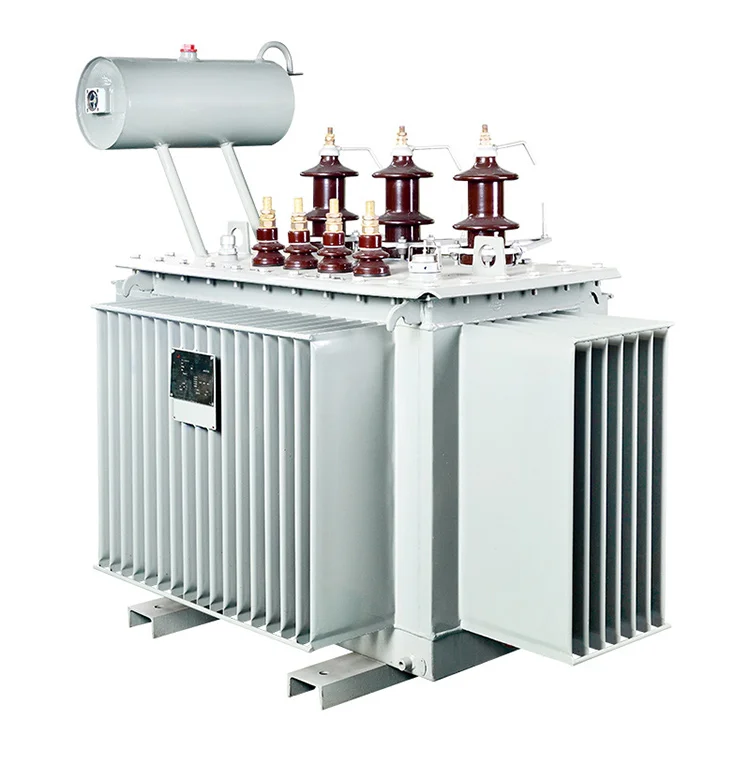

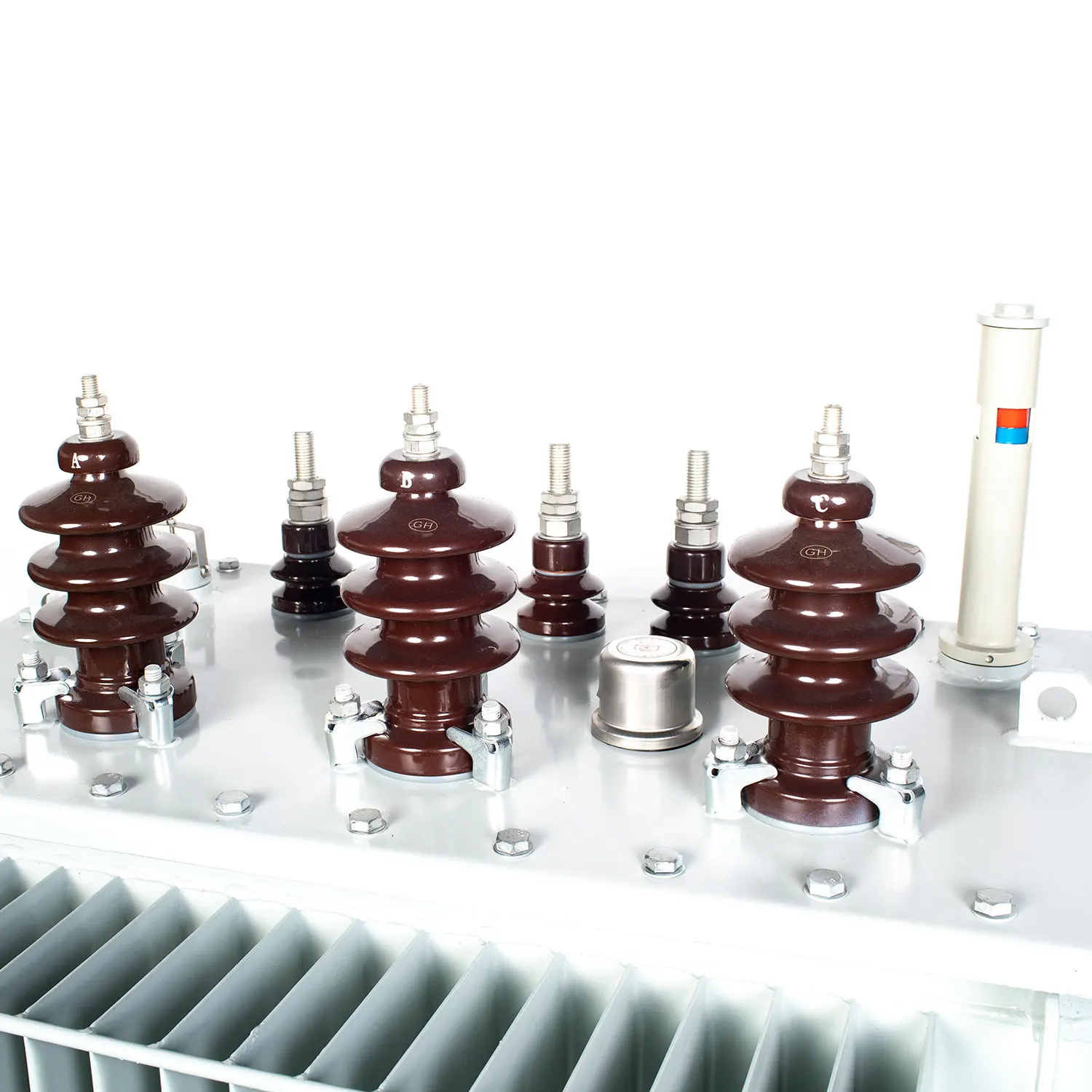

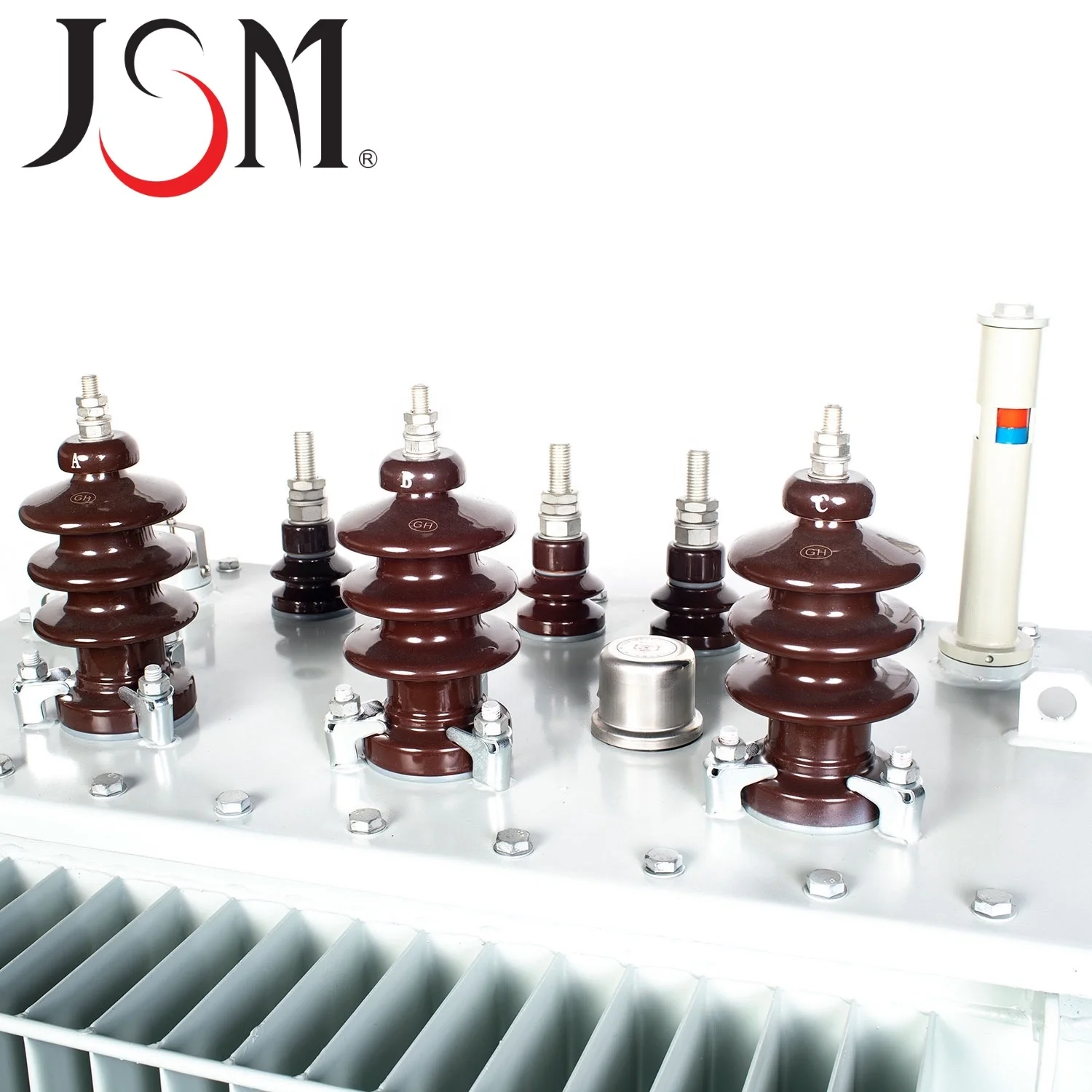

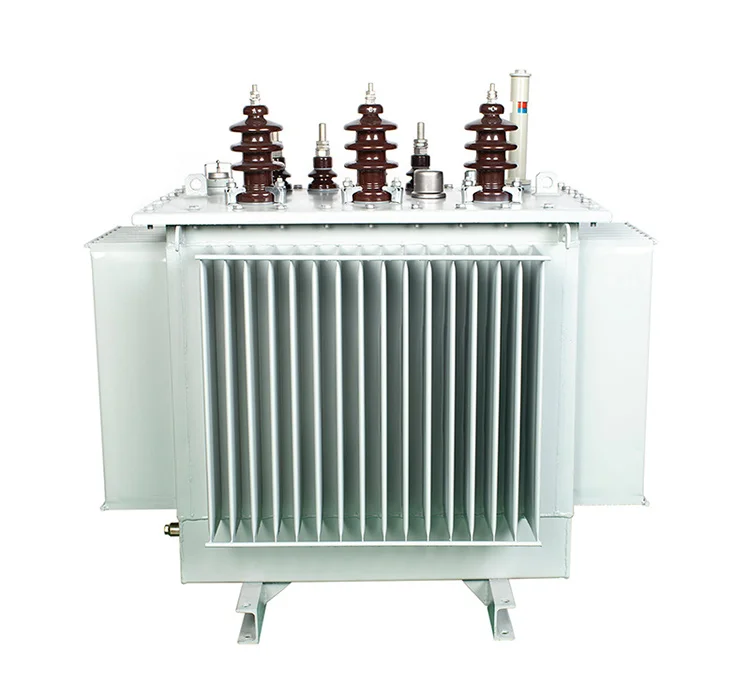

copper wire electric supply JSM S11 1000KVA/11kv 10kv 20kv Oil Immersion Power Transformer
- Category: >>>
- Supplier: Jinshanmen Technology Co. Ltd.
Share on (1600067965604):
Product Overview
Description
Product Description
Oil-Immersed Transformer main characteristics of oil-immersed transformer:
1. High short-circuit resisting ability and fine mechanical performance
2. Low power consumption, low partial-discharge and low noise
3. No leakage, free of core and winding body lifting and no maintenanc.
1. High short-circuit resisting ability and fine mechanical performance
2. Low power consumption, low partial-discharge and low noise
3. No leakage, free of core and winding body lifting and no maintenanc.
Main Tech Date 11KV level S11,S11-M Series Distribbution Transformer
Features:
| Main Tech Date 11KV level S11,S11-M Series Distribbution Transformer | ||||||||||||
| Rated Power (kva) | High Voltage (kv) | Low Voltage (kv) | Connection Symbol | Short Circuit Impendence(%) | Loss | No-load Current(%) | Weight(KG) | (L B H)mm outline dimension | Gaugu Vertical /Horizontal | |||
| No-load | Load | Omachine weight | Oil weight | Gross weight | ||||||||
| 10 | 15 13.8 11 10.5 10 6.3 6 | 0.4 0.69 | Yyno Dyn11 | 4 | 0.065 | 0.4 | 3.5 | 90 | 55 | 220 | 650 4 50 8 80 | 400/350 |
| 20 | 0.08 | 0.52 | 3.0 | 140 | 60 | 270 | 720 4 90 9 50 | 400/350 | ||||
| 30 | 0.1 | 0.63 | 2.3 | 185 | 70 | 330 | 750 4 90 9 70 | 450/340 | ||||
| 50 | 0.13 | 0.91 | 2.0 | 260 | 80 | 430 | 770 5 50 1 030 | 450/380 | ||||
| 63 | 0.15 | 1.09 | 1.9 | 260 | 85 | 440 | 800 6 00 1 040 | 450/380 | ||||
| 80 | 0.18 | 1.31 | 1.9 | 320 | 95 | 520 | 790 6 00 1 070 | 450/430 | ||||
| 100 | 0.2 | 1.58 | 1.8 | 355 | 100 | 570 | 830 6 40 1 050 | 550/450 | ||||
| 125 | 0.24 | 1.89 | 1.7 | 425 | 115 | 675 | 1070 7 00 1 150 | 550/470 | ||||
| 160 | 0.28 | 2.31 | 1.6 | 510 | 130 | 790 | 1120 7 00 1 220 | 550/520 | ||||
| 200 | 0.34 | 2.73 | 1.5 | 550 | 145 | 850 | 1080 6 90 1 160 | 550/520 | ||||
| 250 | 0.4 | 3.2 | 1.4 | 630 | 165 | 985 | 1160 7 40 1 190 | 650/550 | ||||
| 315 | 0.48 | 3.83 | 1.4 | 755 | 190 | 1155 | 1230 8 00 1 240 | 650/550 | ||||
| 400 | 0.57 | 4.52 | 1.3 | 910 | 225 | 1405 | 1310 8 60 1 250 | 650/550 | ||||
| 500 | 0.68 | 5.41 | 1.2 | 1050 | 240 | 1600 | 1370 8 90 1 350 | 750/600 | ||||
| 630 | 4.5 | 0.81 | 6.2 | 1.1 | 1250 | 310 | 1945 | 1580 1 060 1 310 | 850/660 | |||
| 800 | 0.96 | 7.5 | 1.0 | 1540 | 365 | 2350 | 1640 1 060 1 500 | 850/660 | ||||
| 1000 | 1.15 | 10.3 | 1.0 | 1690 | 405 | 2645 | 1720 1 160 1 540 | 850/660 | ||||
| 1250 | 1.36 | 12.0 | 0.9 | 1965 | 560 | 3230 | 1790 1 190 1 740 | 850/660 | ||||
| 1600 | 1.64 | 14.5 | 0.8 | 2355 | 650 | 3805 | 1830 1 210 1 850 | 850/700 | ||||
| 2000 | 1.96 | 19.8 | 0.8 | 2570 | 615 | 4245 | 2190 1 900 1 960 | 820/820 | ||||
| 2500 | 2.31 | 23.0 | 0.7 | 3130 | 810 | 5280 | 2180 1 940 2 250 | 1070/1070 | ||||
Features:New type of S9, S9-M series three phased oil-immersed dis transformer uses new structures of insulation and anti-shortcut etc. Which approach advanced international standards Comparing to S7 series, the no load loss decreases 10.25% in average, no load current decreases 37.9%, load loss decreases 22.4% in average, it is the renew products for saving energy Low losses, energy saving.
Core is in round form, multi-stage, and entire tilted three stages seaming and lapping structure.
High and low voltage coils are winding with oxygen free copper coil. All high voltage coils are made with several layered bucket structure.
Core is in round form, multi-stage, and entire tilted three stages seaming and lapping structure.
High and low voltage coils are winding with oxygen free copper coil. All high voltage coils are made with several layered bucket structure.

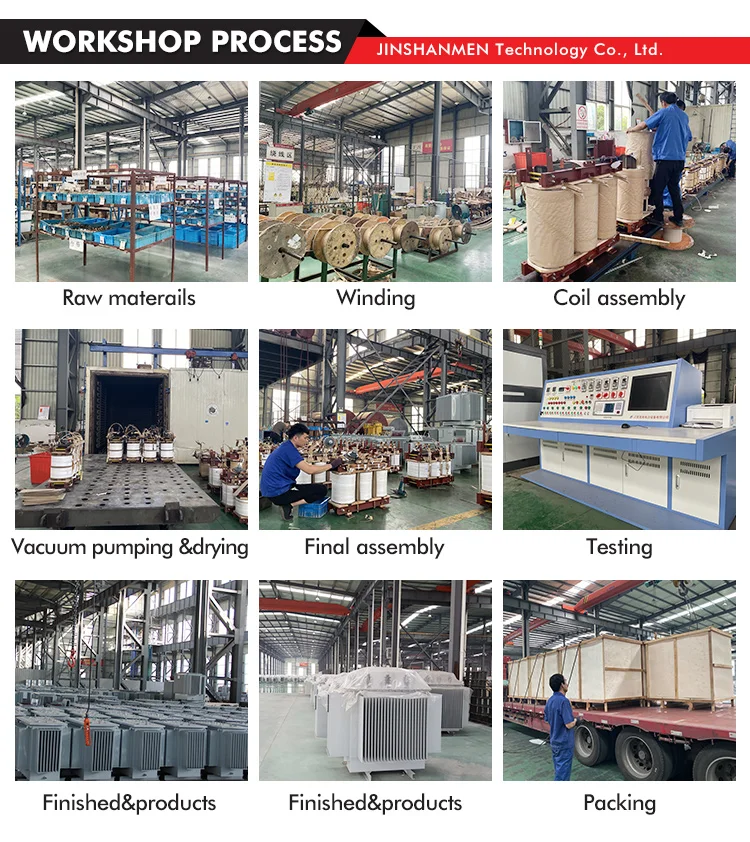

Company Information
Founded in 2011, JINSHANMEN Technology Co., Ltd. (hereinafter referred to as JSM)is located in No. 795, Nanming Road, Shuige Industrial Park, Liandu District, Lishui City, with registered capital of 100millon, covering an area of 208 mu and has more than 500 employees. JSM has more than 20 patents, with a total asset value of more than 500 million yuan. It is a domestic transformer production enterprise which integrates high and new technology at home and abroad. The company has advanced production equipments, strong technical force. Its products have passed ISO9001:2008 international quality system certification and the national electrical product quality supervision and inspection to reach the IEC and national standard, while obtained the product corresponding production license, national safety sign, explosion-proof certificate and other relevant certificates.

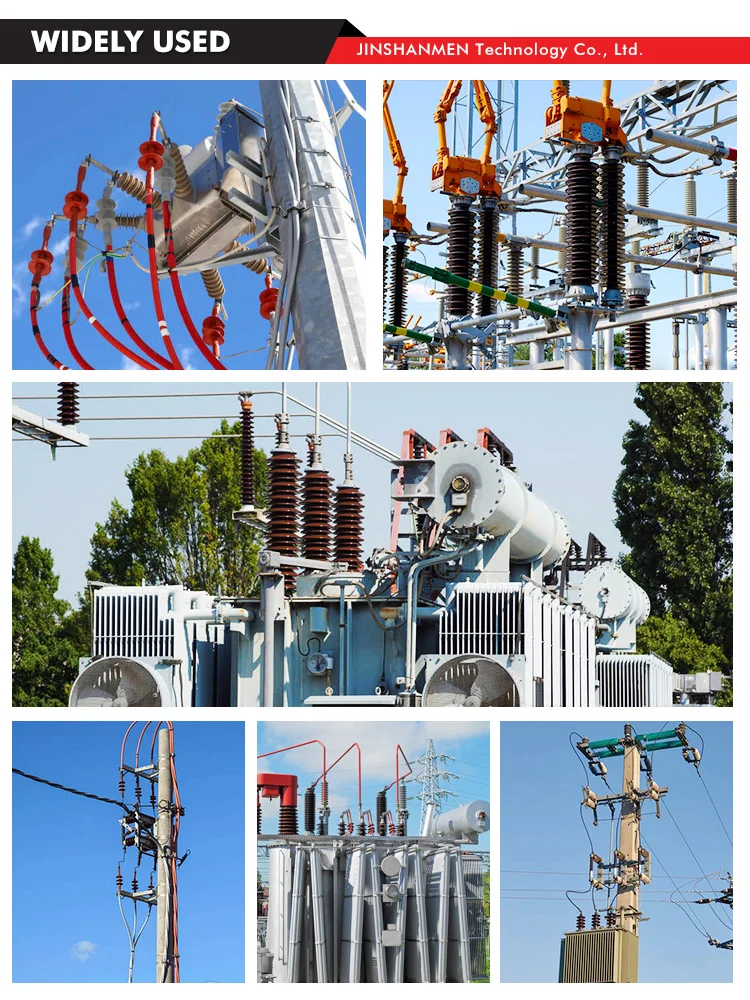

JSM mainly produces oil-immersed power transformer, dry power transformer, flameproof dry type transformer, flameproof mining mobile substation, high and low voltage switchgear and other transmission and distribution equipment. The annual production capacity can reach 6 million KVA, maximum capacity up to 31500 KVA. The products are widely used in electric power, railway, mining and other fields.
