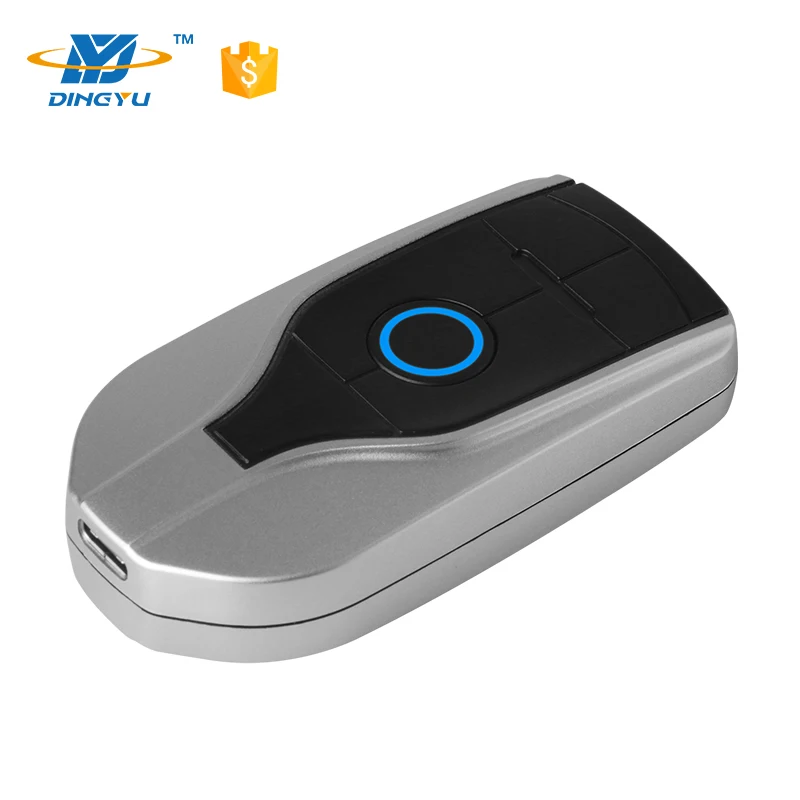

1D 2D BT mini small portable Wireless Barcode Scanner for mobile phone

Scan Type

CMOS

Light Source

Lighting: white LED(Automatically adjust brightness according to distance) Aiming: Red LED，wavelength coverage 525nm

CPU

32-bit

Start time

750ms

Resolution

640*480

Reading precision

1D：≥3mil，2D：≥8.7mil @PCS90%

Decoding speed

25CM/S

Visual angle

Horizontal 40°× Vertical 30°

Depth of field

3mil：55~100mm，13mil：55~350mm

Scan Mode

Trigger mode、Auto sense mode

Scan angle

Test Conditions：CODE39,10mil/0.25mm,PCS90%
Roll：±360°、Pitch：±60°or greater、Yaw：±70°or greater）

Print Contrast Signal

≥25%

Ambient Light

70000lux

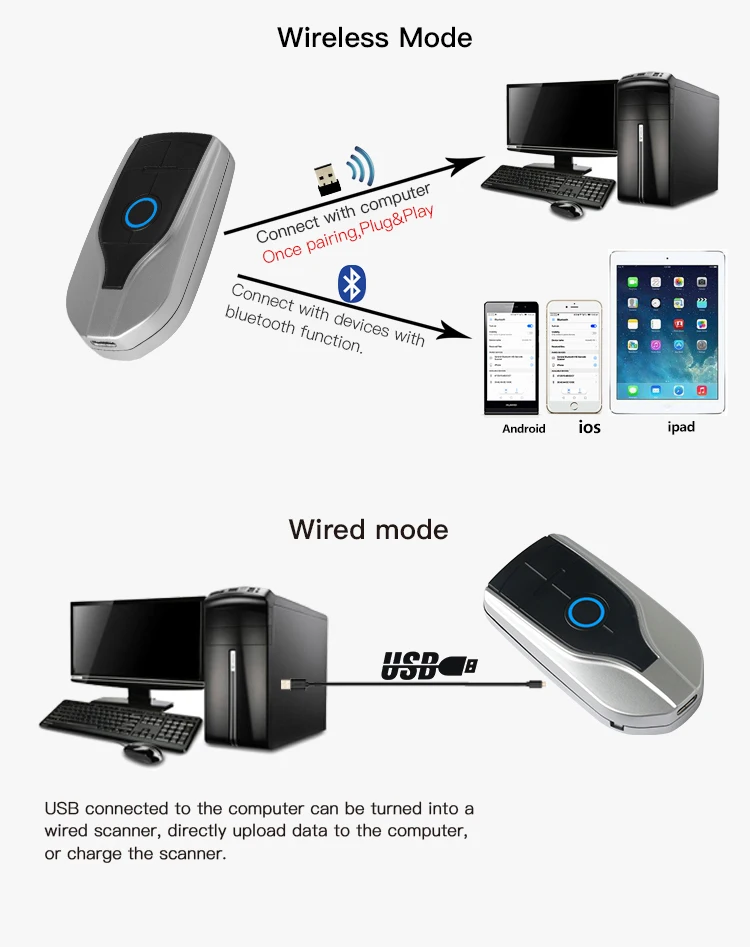

Wireless communication mode

Synchronization , storage

Wireless transmission distance

Bluetooth 30 m, Wireless 2.4G 150m（Open distance)

Storage

16Mb（over 100,000 barcodes）

Battery capacity

360mAh

Battery charging time

About 1.5 h

Continuous working time

≥3h

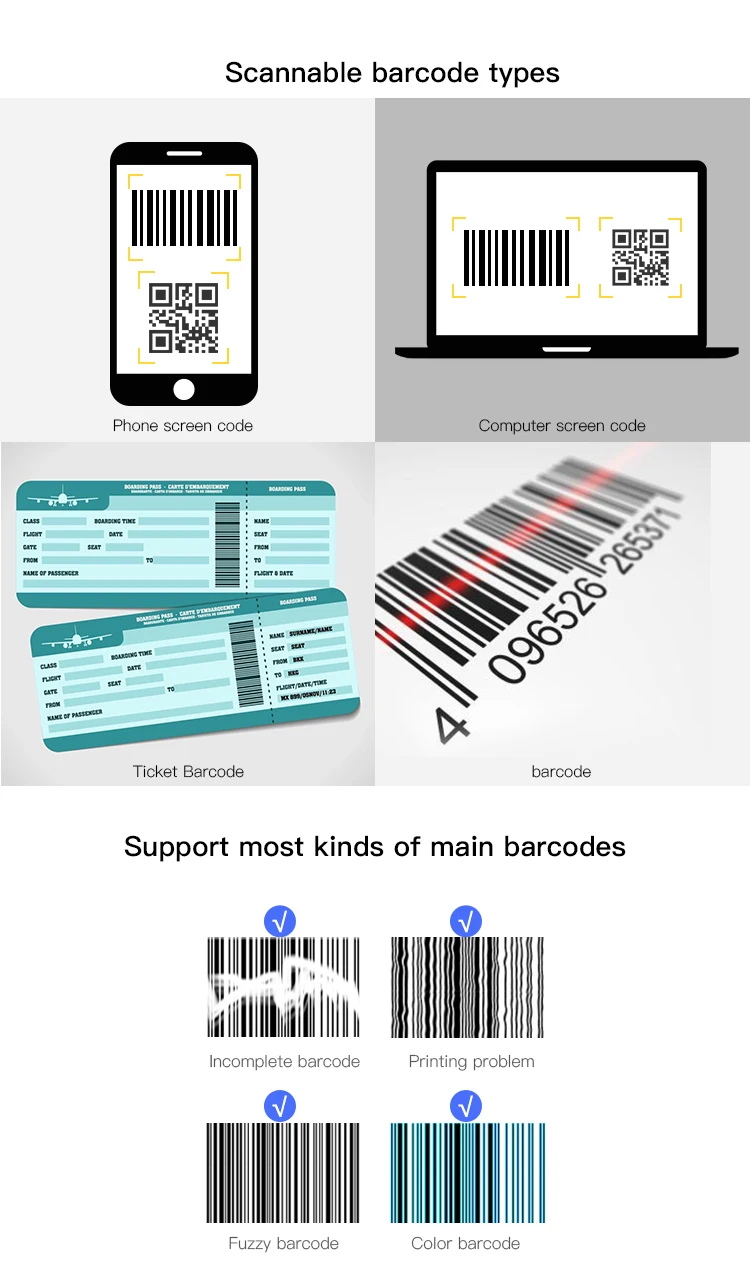

Symbologies

1D：Codabar、Code39、Code32、Interleaved 2 of 5（ITF25）、Industrial 2 of 5 Industrial 25 code、Matrix 2 of
5、Code93、Code11、Code128、Gs1-128、UPC-A、UPC-E、EAN/JAN-8、EAN/JAN-13、ISBN、ISSN、GS1 databar、GS1 databar limited、GS1 databar
expanded、ISBT、MSI、Febraban（Brazil bank code）
2D：PDF417、Micro PDF417、QR Code、Micro QR、Data Matrix、Aztec

Weight

≈70g（without cable）

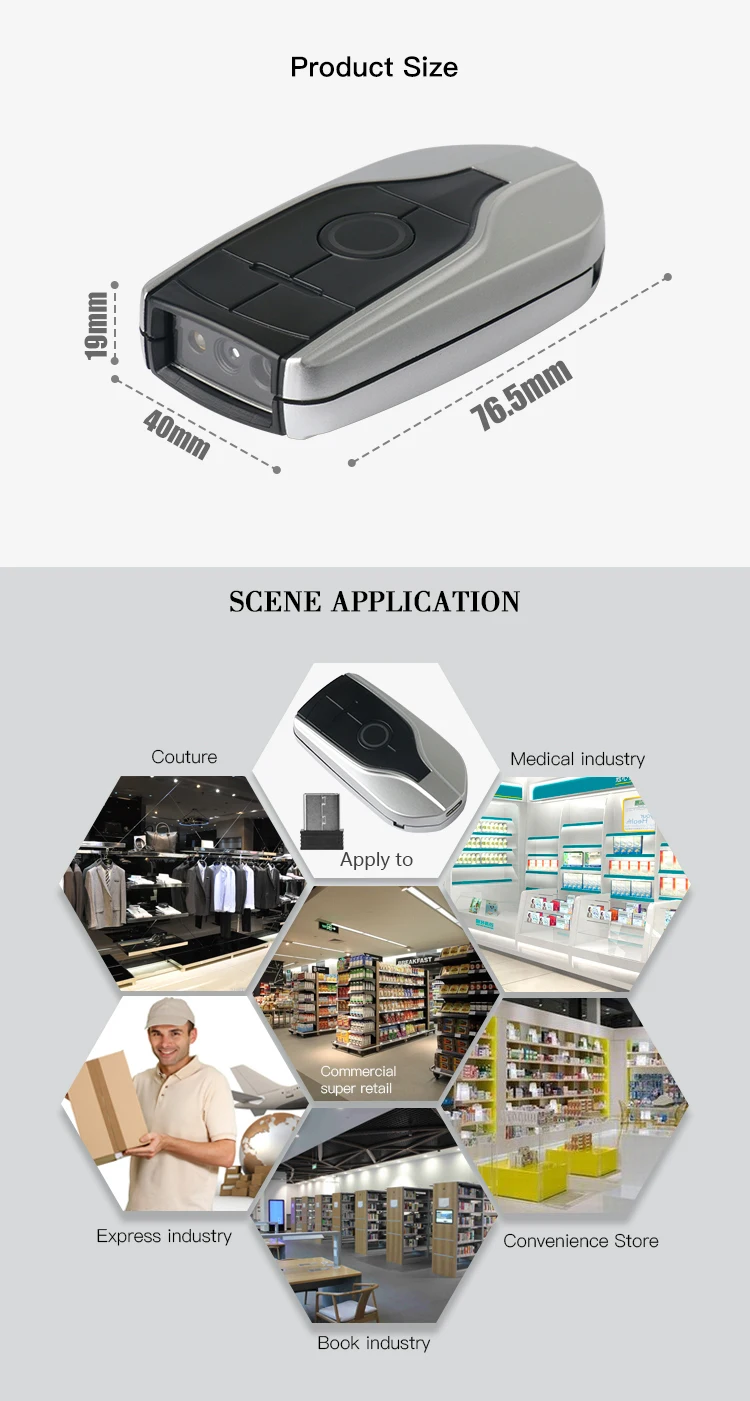

Dimension

73.8mm L * 37mm W *16.3 mm H

Interface Type

Type C

Power Supply

DC5V, Decoded average current：200mA .
