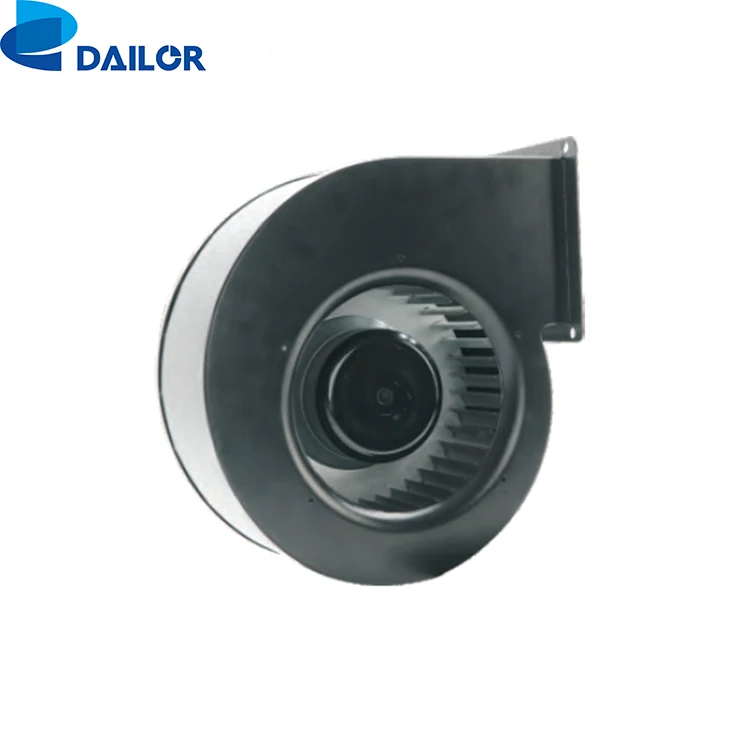

AC 160mm Forward curved centrifugal fan for Coil unit Air purifier

Product Overview

Description

All kinds of Fans

Backward Centrifugal Fan Sizes	133mm ~ 560mm
Forward Centrifugal Fan Sizes	120mm ~ 250mm
Single Inlet Blower Fan Sizes	120mm ~ 200mm
Double Inlet Blower Fan Sizes	120mm ~ 146mm
Axial Fan Sizes	200mm ~ 710mm
Inline Duct Fan Sizes	100mm ~ 315mm
Voltage	AC Input: 115V, 120V, 220V, 230V, 380V, 400V
	DC Input: 12V, 24V, 48V
	EC Input: 220V, 230V, 380V, 400V
Power	Up to 2300W
Speed	Up to 4528RPM
Airflow	Up to 24000m3/h
Speed Control	Speed controller (AC) or 0-10V/PWM Input (DC&EC)
Approvals	CCC, CE, RoHs, UL, CUL

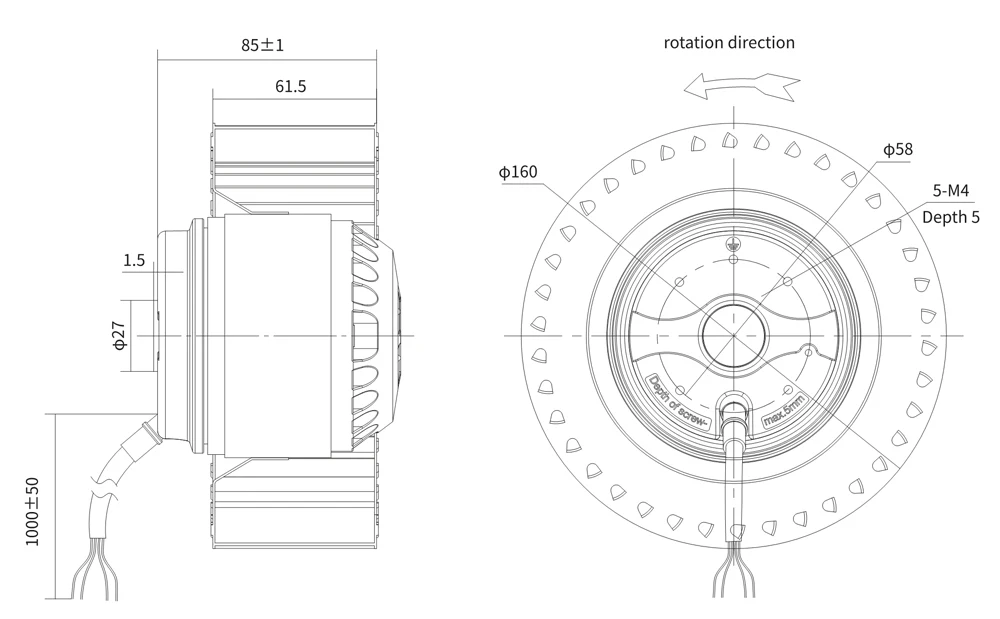

Size of φ160mm

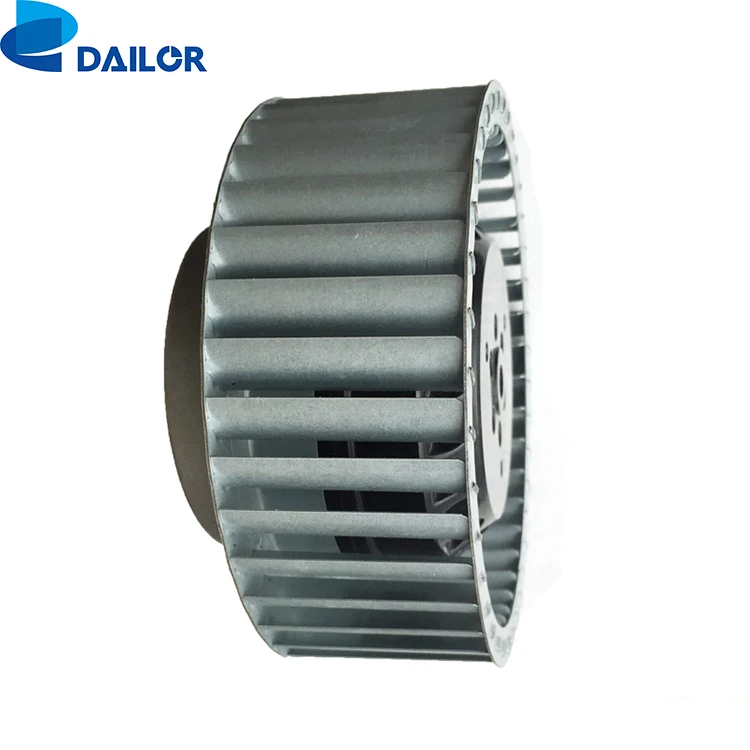

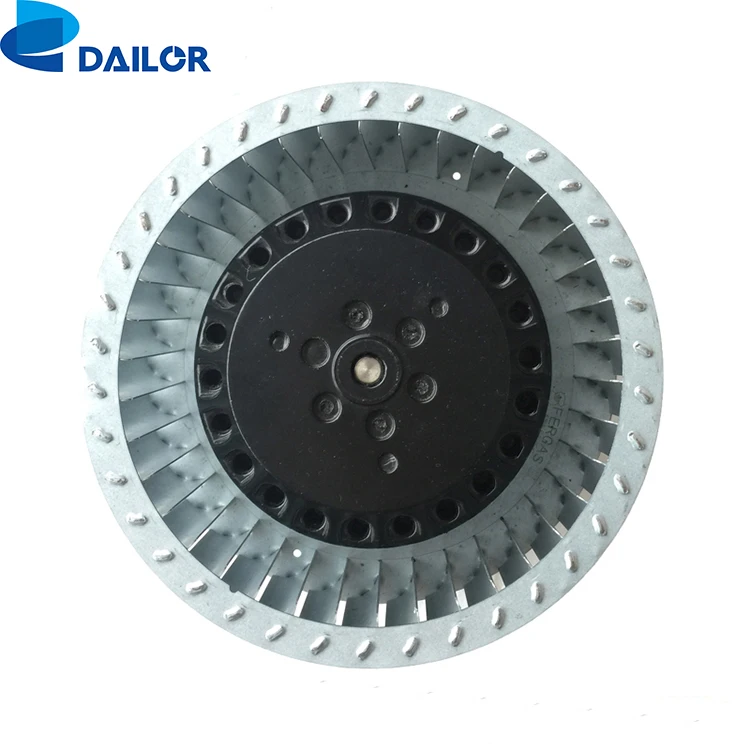

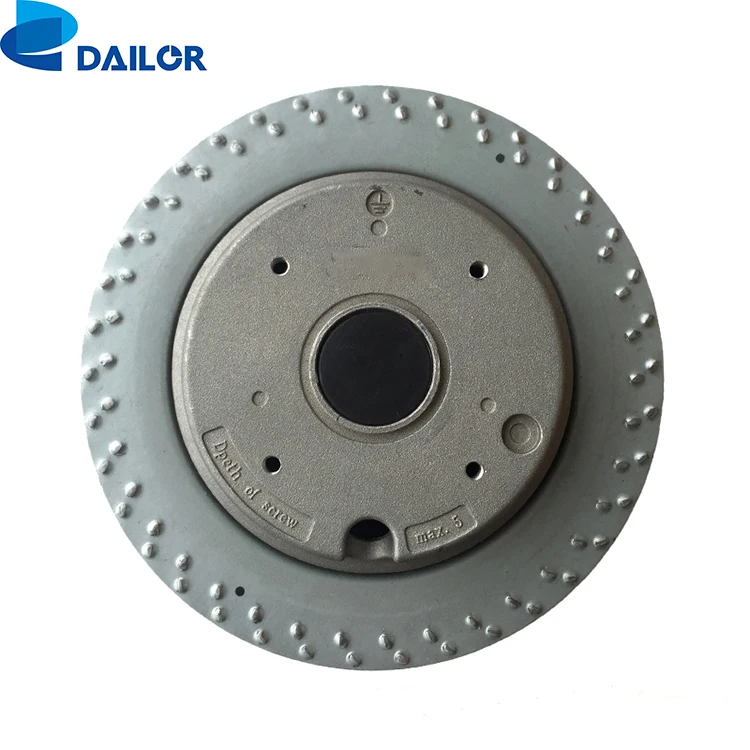

This series of external rotor motor powered AC forward curved centrifugal fans have two types, single and double inlet. The specifications of single inlet cover the diameter range of F120 to F250, with the air volume flow up to 2100m^3/h and the maximum static pressure up to 525Pa. The specifications of double inlet cover the diameter range of F120S to F146S. This series of external rotor fans are characterized by compact structure, reliable operation, energy saving and high efficiency, low operating noise and easy installation.Products are widely used in fresh air purification, household appliances and other industries.

Remarks: This fan can be designed as clockwise and counterclockwise rotation.

Specification

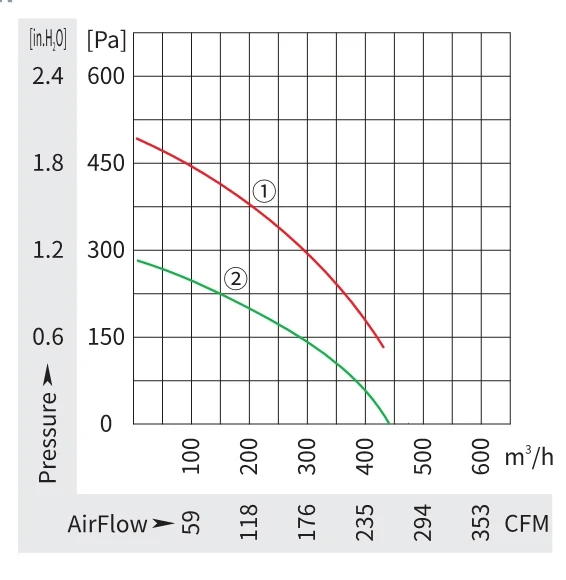

	Volatge	Frequency	Current	Input Power	Speed	Capacitor	Air Flow	Noise	Curve No.	Operating Temp
Model No.	V	Hz	A	W	RPM	μF	m³/h/CFM	dB(A)	#	Min/Max(℃)
YWF.F4S-160-060AX0A	115/120	60	0.58	68	1700	10	440/260	59	(2)	-30/+60
YWF.F2S-160-060AX0A	220/230	50	0.66	140	2670	6	560/325	68	(1)	-30/+60

Model Numbering(For example)

Related Product

• Please kindly click on the model you want for more details:

120mm Forward Centrifugal Fan                   133mm Forward Centrifugal Fan

140mm Forward Centrifugal Fan                   150mm Forward Centrifugal Fan

160mm Forward Centrifugal Fan                   180mm Forward Centrifugal Fan

200mm Forward Centrifugal Fan                   250mm Forward Centrifugal Fan



Application

• Duct fan,


• Range hood,


• Coil unit,


• Air purification,


• Ventilation unit,


• Roof fans,


• Exhaust ventilation


• other related industries.

Quality Control

From selecting raw material, making motor parts, to assembling final product, Pengfei motor values every detail of the motor producing process. Full sets of equipments and skilled staffs also make the quality control more accurate. 100% test and inspection achieve good quality and satisfy our customers greatly.



FAQ

1. Are you a trade company or a manufacturer?
A: We are manufacturer in China. We have ISO, CCC, ROHS, CE certification. OEM & ODM services are available.

2. What is your MOQ?
A: Our minimum order quantity is 30pcs.



3.What is your delivery date?
A: The delivery date is about 25-40 days after receipt of payment.



4. What is your payment terms?
A: T/T, 30% deposit in advance and 70% balance before shipment.



5. Can you send free samples?
A: Yes, free samples are available, you just need to pay the express fee. You can provide your a/c like DHL, UPS or you can call your courier to pick up from our factory.
