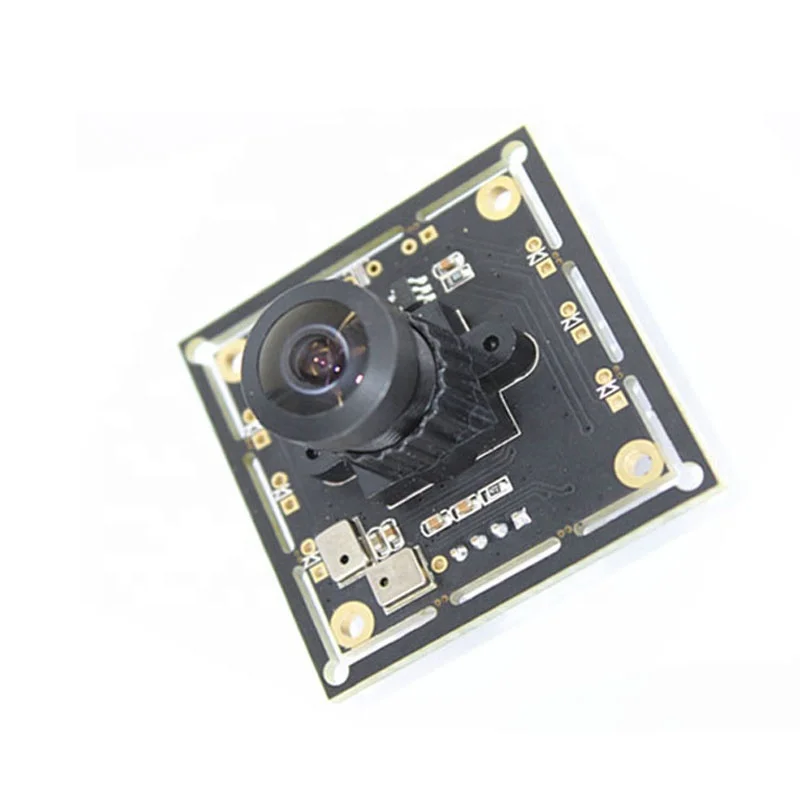

New arrivals wide angle lens usb HD webcam 720P Camera module with Microphone
- Category: >>>
- Supplier: Shenzhen Huiber Vision Technology Co. Ltd.
Share on (1600068375130):
Product Overview
Description
Product Description
Module No. | HBVCAM-1807-720P V11 |
Module Size | 38mm × 38mm × 18.1mm±0.5MM |
Temperature (Operation) | -30°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity |
Resolution | 600LW/PH (Center) |
PCB printing ink | black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 450 mW |
Operating system request | Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
Sensor | OV9732 (1/4” ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 1280*720 |
Sensitivity | 3300mV /（lux-sec） |
Pixel Size | 3µm x 3µm |
Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x360 30FPS / YUY2 640x360 30FPS MJPEG 640x480 30FPS / YUY2 640x480 20FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS |
S/N Ratio | 39db |
Max Dynamic Range | 72db |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPEG |
Microphone | Support |
Lens Construction | 6G |
F/No | 2.35 |
EFL | 3.15 mm |
FOV | 160° |
TV Distortion | <14.3% |
Relative Illumination (Sensor) | 70% |
IR Filter | 650±10nm |

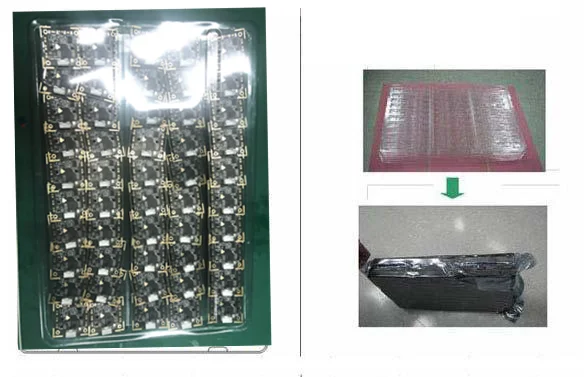

Module Package | Anti-electrostatic tray |
Certifications | FCC/CE/ROSH |
Product performance description
产品性能介绍说明
1.With M12 Lens, the lens is changeable
2.with Microphone for video conference
3.4PIN usb2.0 socket for plug and play
4.38*38MM and 32*32MM size, it is compatibility for many case

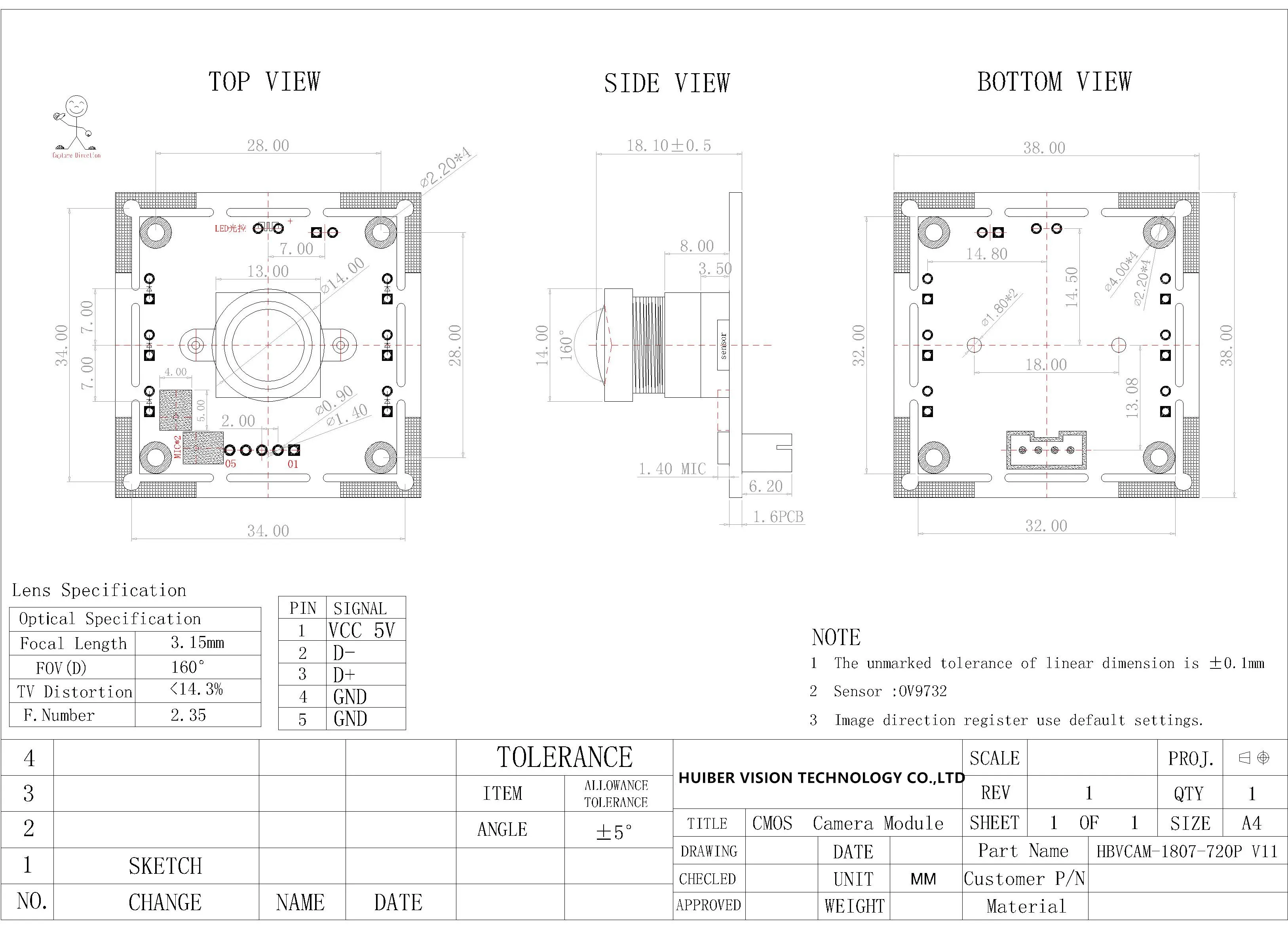

Product Drawing

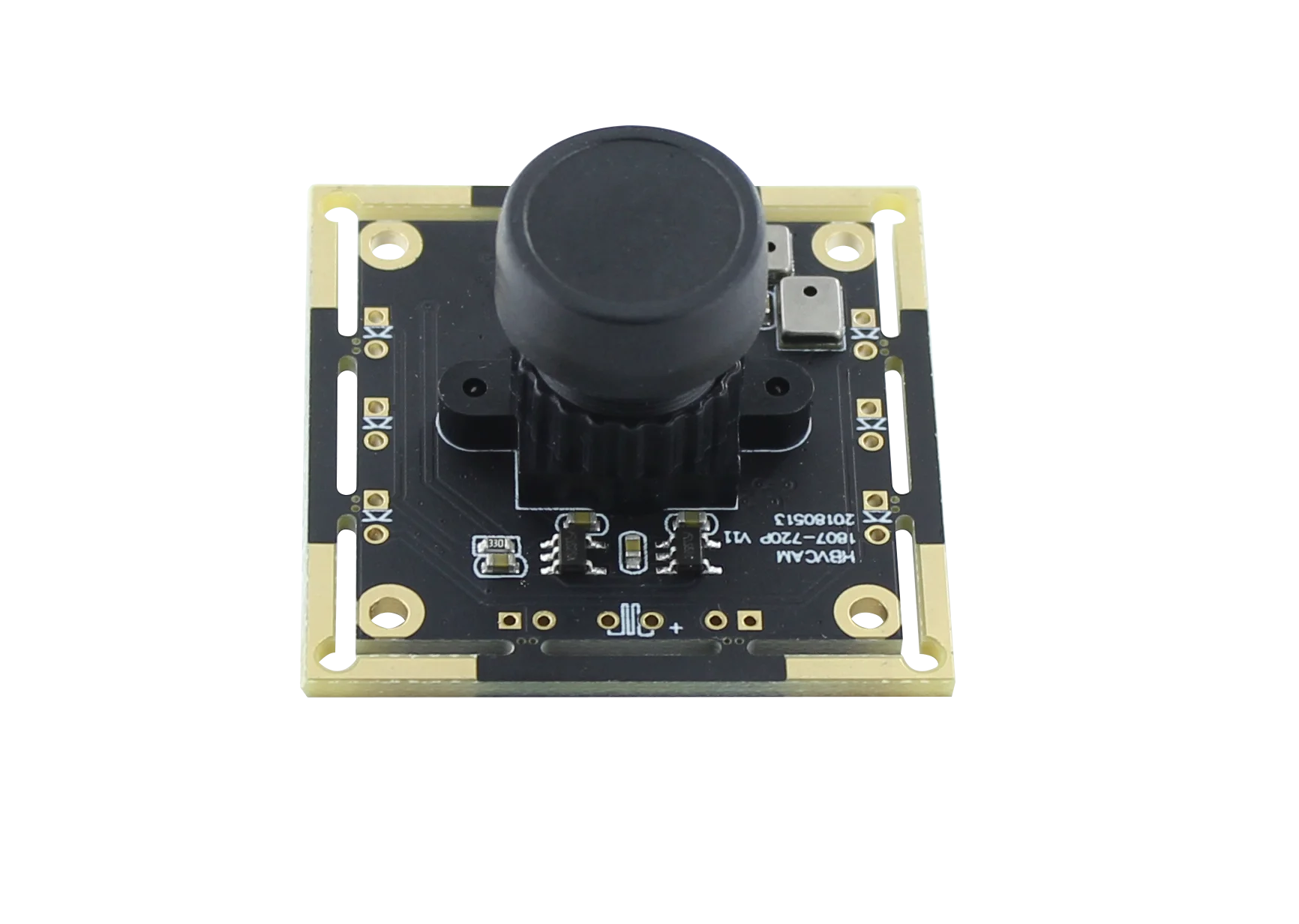

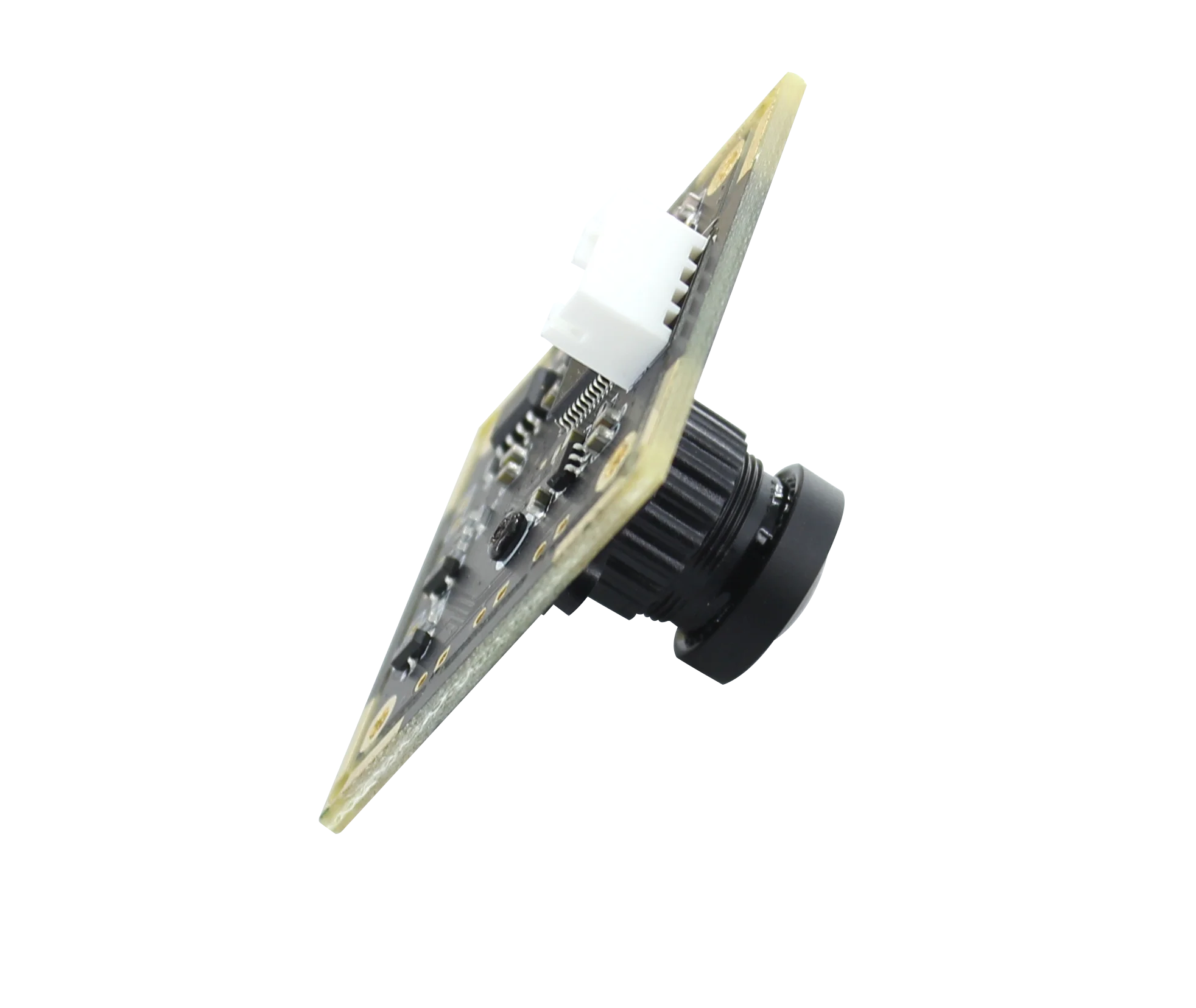

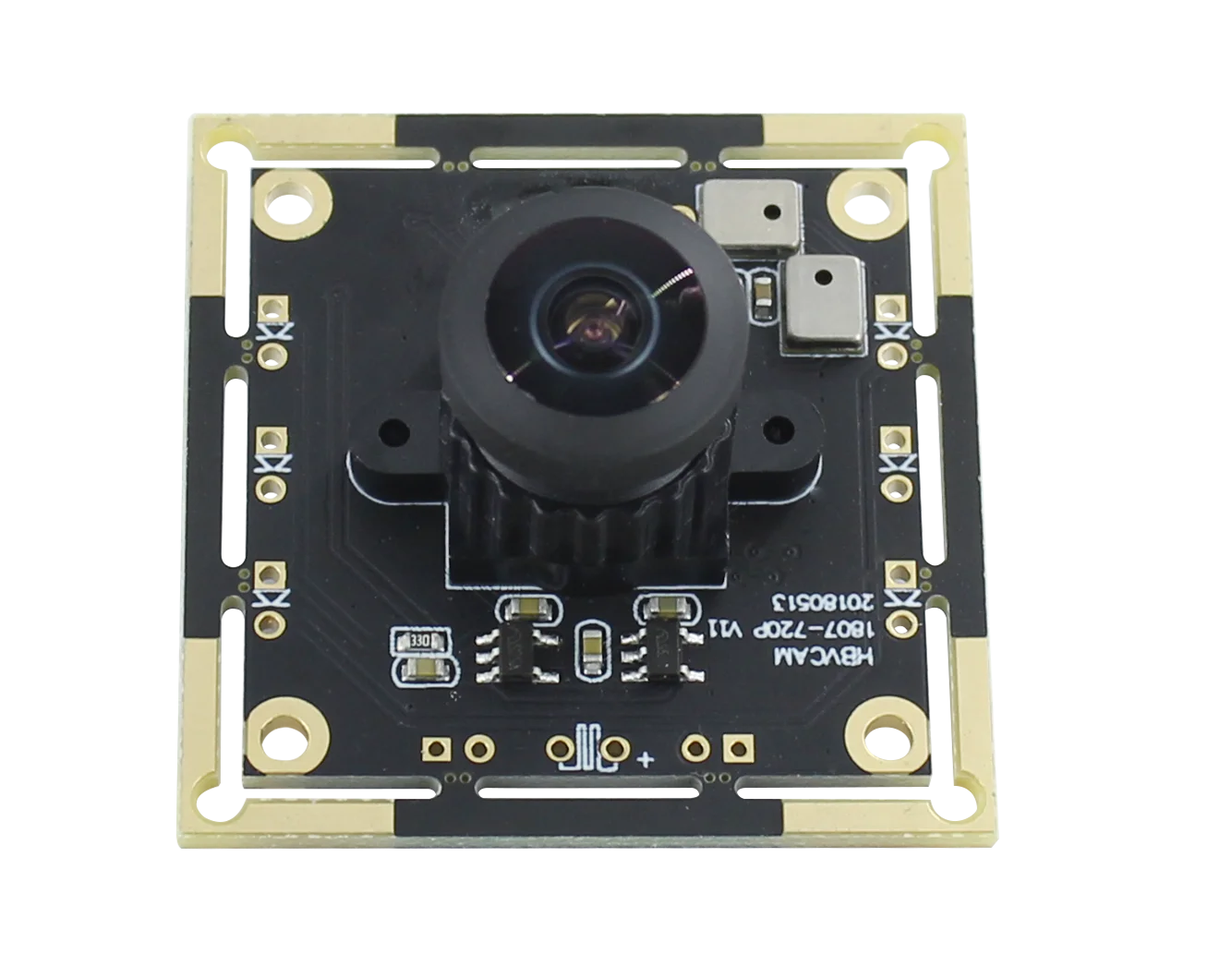

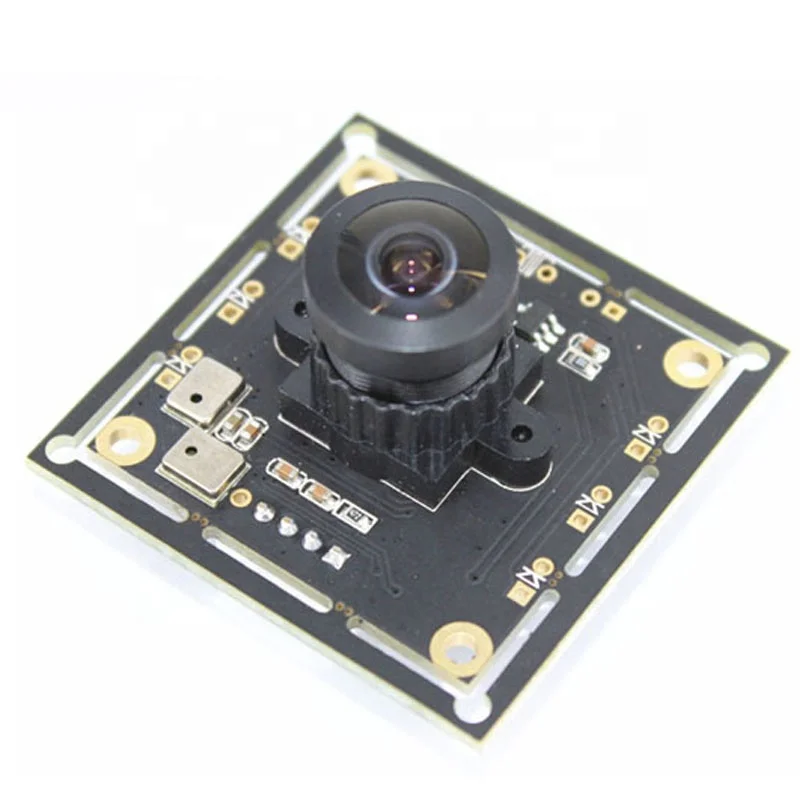

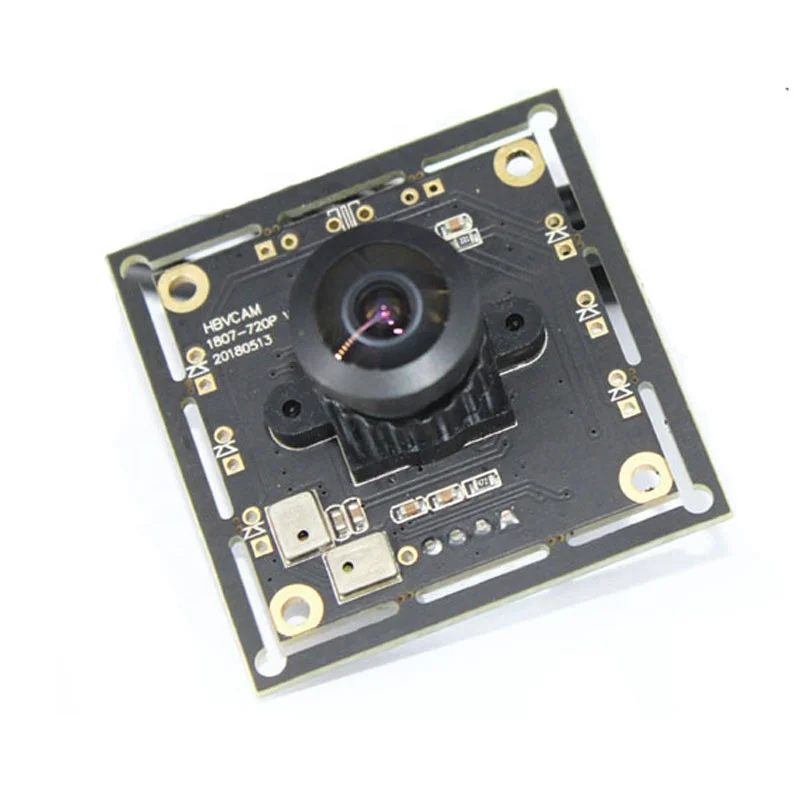

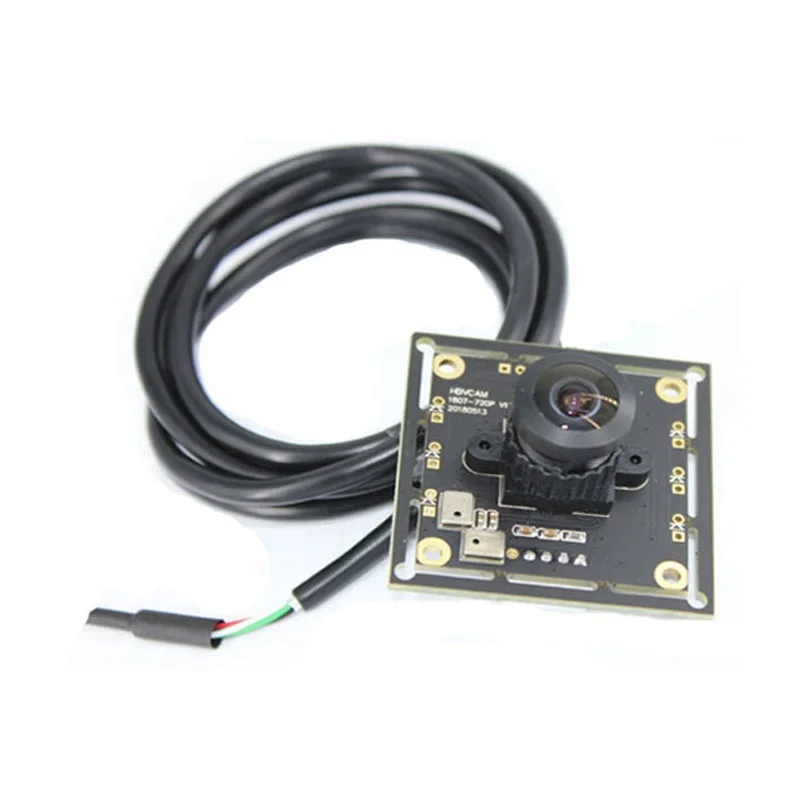

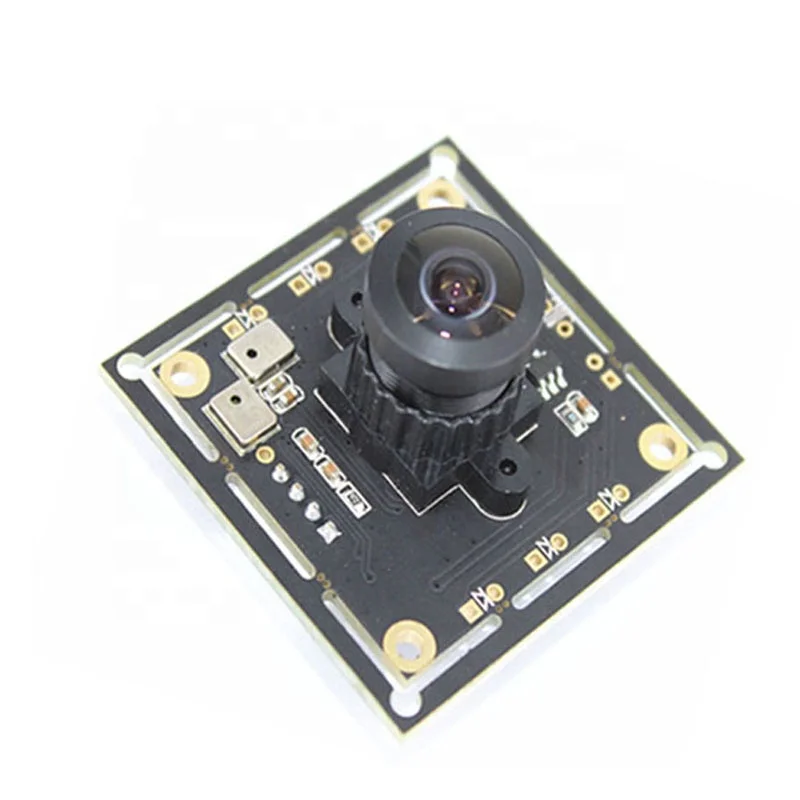

Details Images

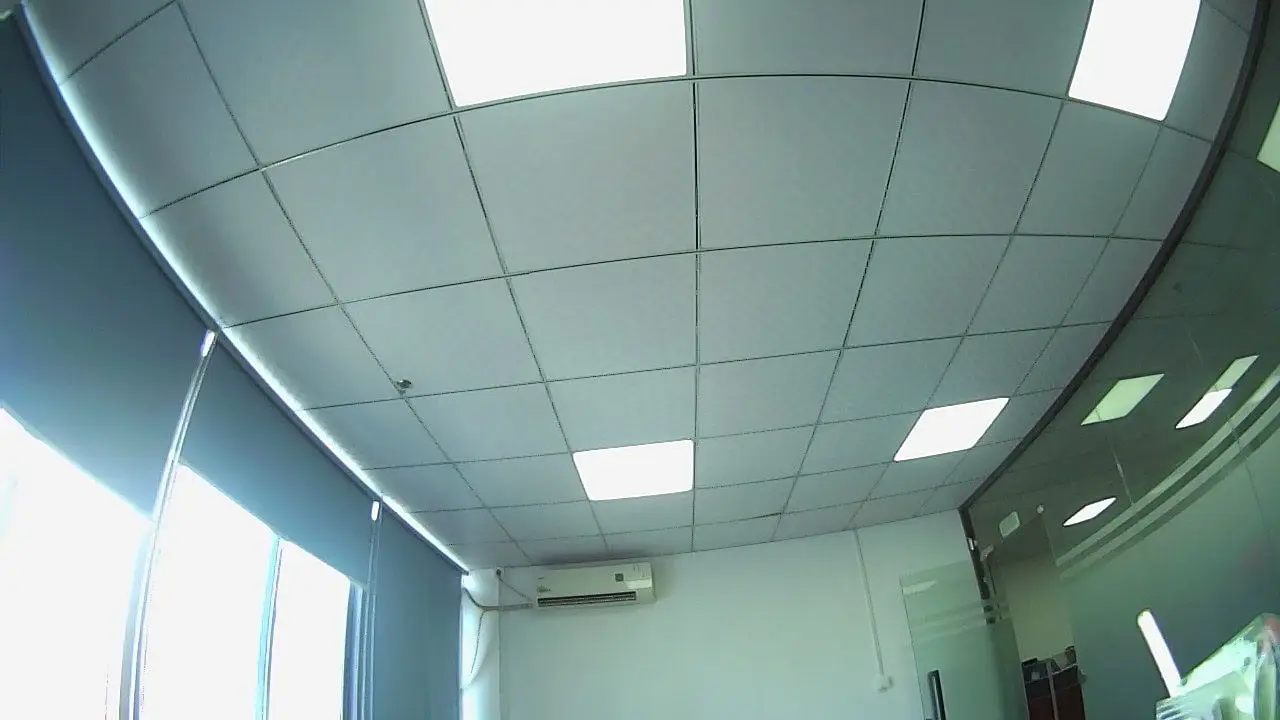

Effect of product (indoor)
Effect of product (Outdoor)
Related Products
Packing&Shipping
Packing List for sample

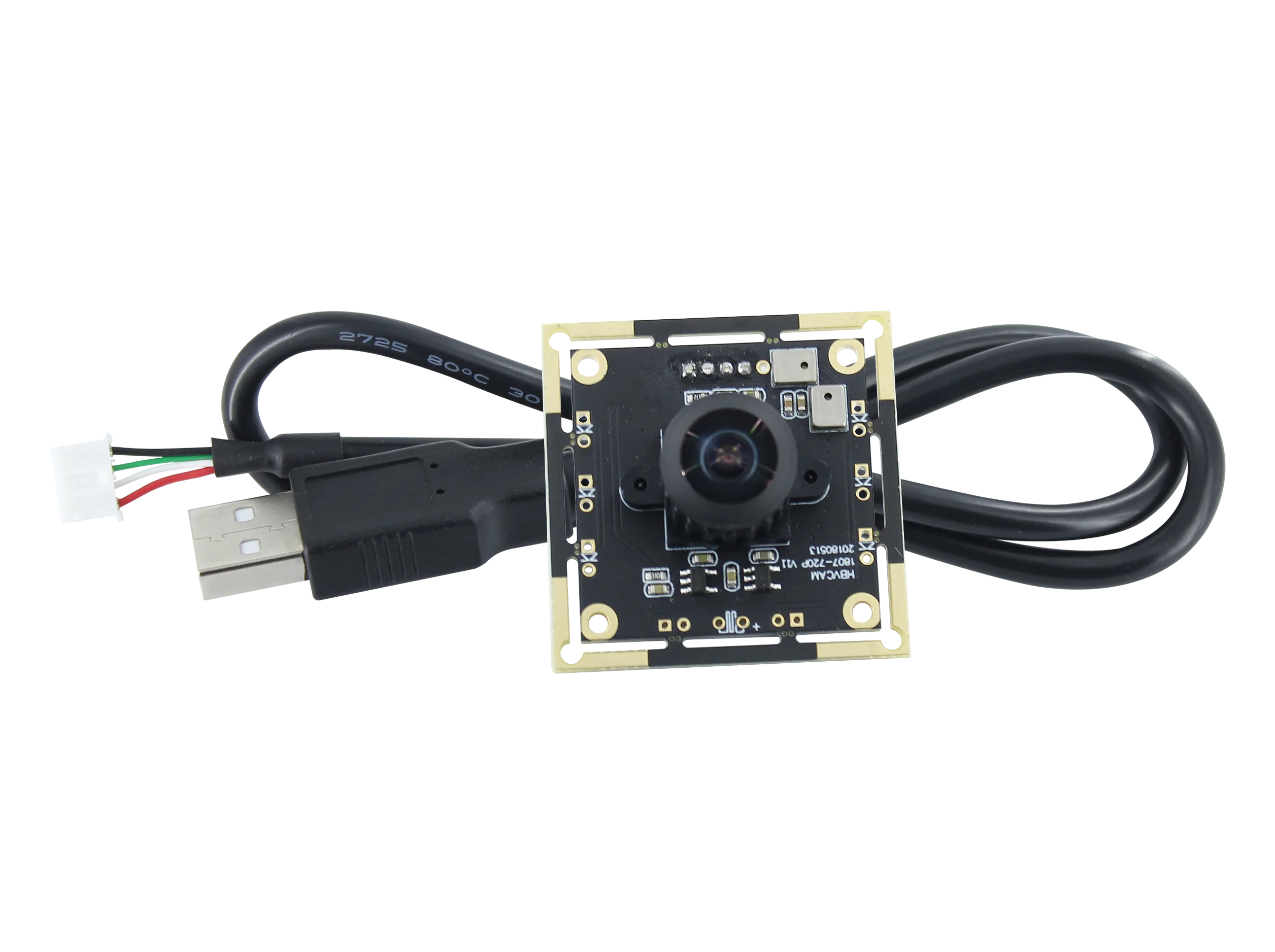

1.camera*1PCS
2.50CM USB Cable*1
Company Introduction
Huiber Vision Technology Co., Ltd. a professional usb camera module manufacturer, was established in 2013, located in Shenzhen,
GuangDong Province.
With our own R&D team as the basic, oriented by dedicated sales team, Huiber Vision Technology Co., Ltd already developed into a
integrate with developing, production, sales and also service all together.
At present, Huiber Vision Technology Co., Ltd already developing its own special USB cameras for industrial vision. Recently , USB
camera module range from 0.3Mega Pixel, 1MP, 2MP,3MP,5MP to 8MP autofocus.
Why Choose Us?

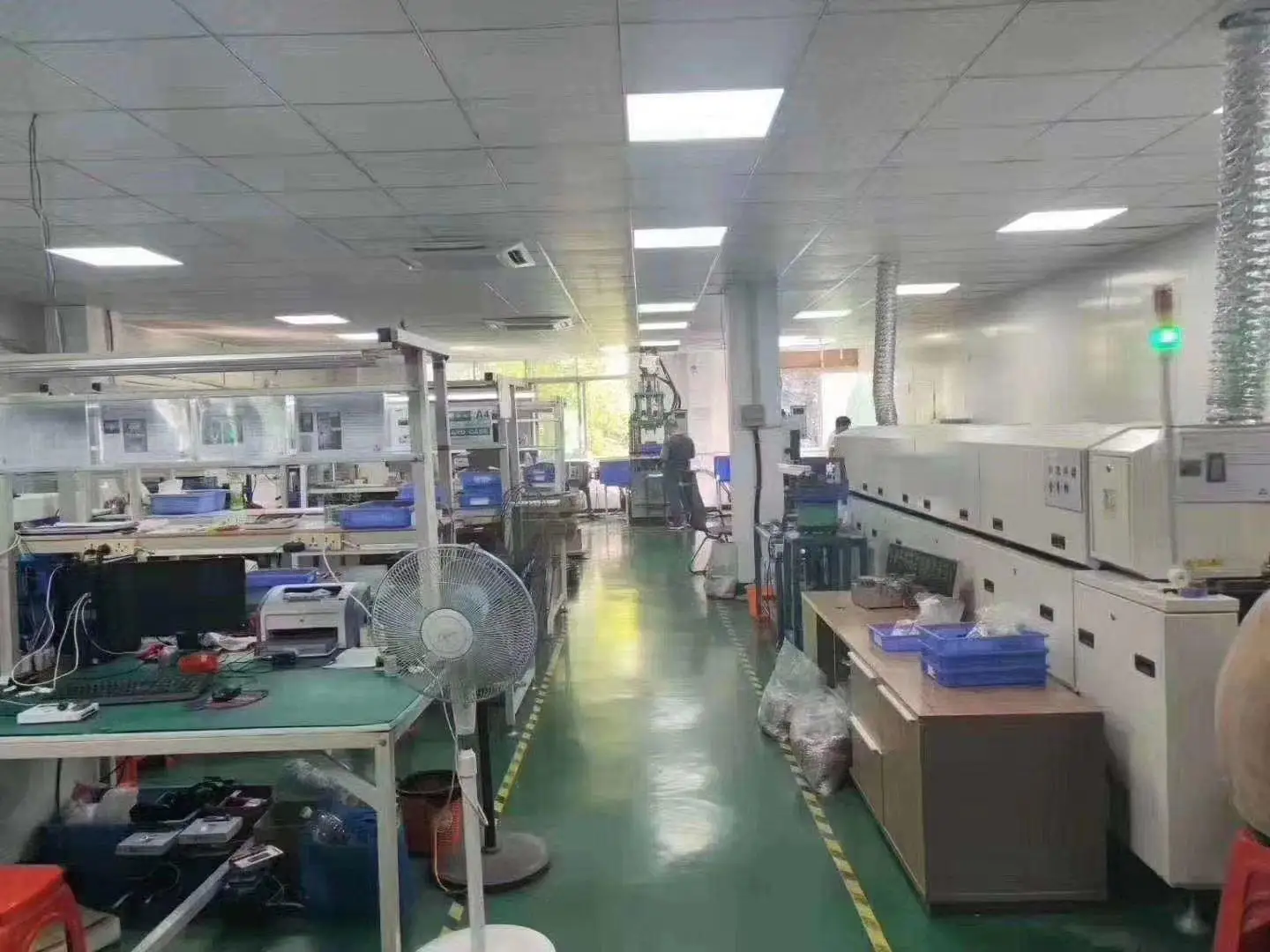

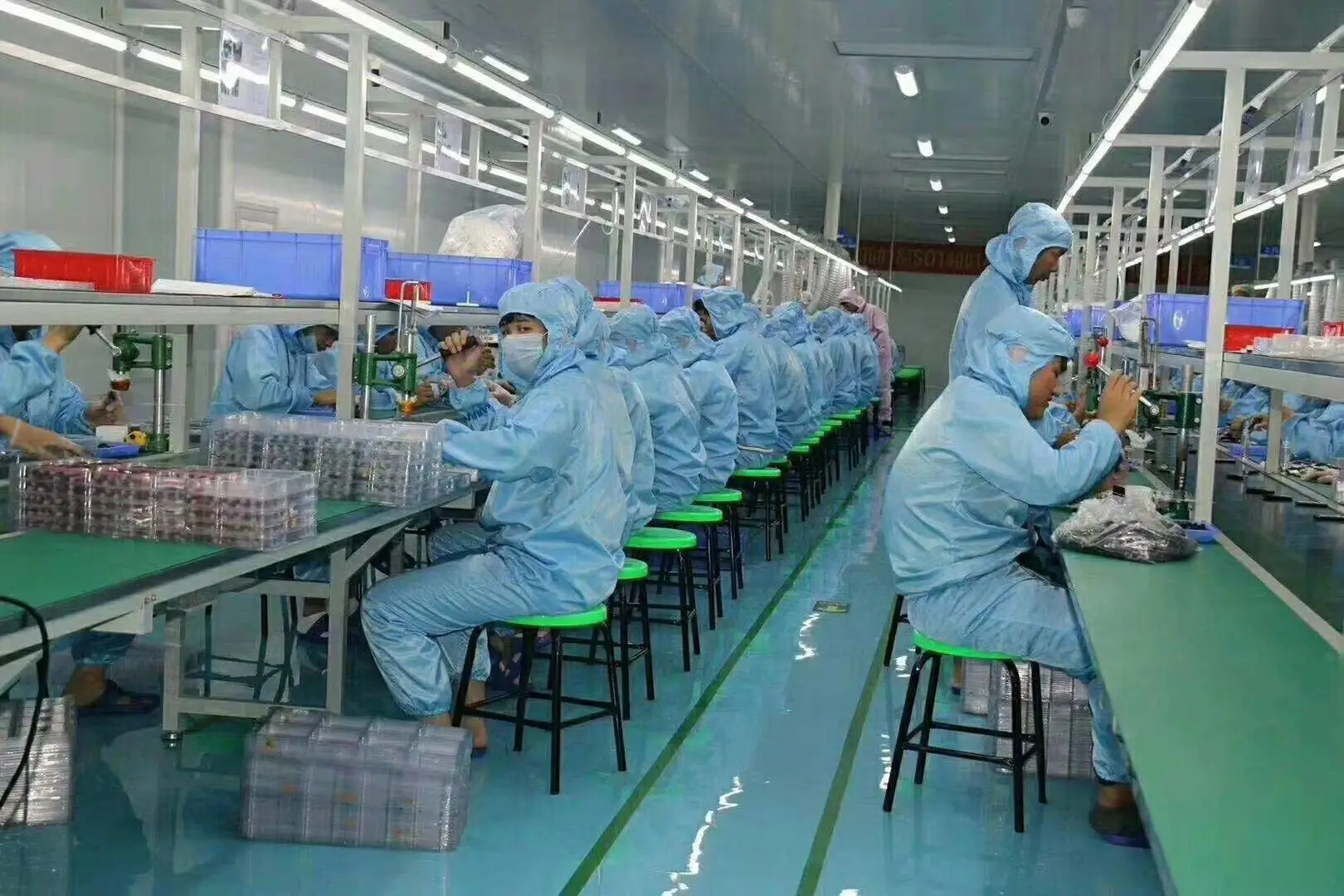

We have over 500 square meter dust-free standard workshop and possess standardized production assembly line,production equipments,
testing equipment and the product quality is highly guaranteed.
Over 1000 square meter dust-free standard SMT workshop and standardized production assembly line, the prodution efficiency is
highly guaranteed.
GuangDong Province.
With our own R&D team as the basic, oriented by dedicated sales team, Huiber Vision Technology Co., Ltd already developed into a
integrate with developing, production, sales and also service all together.
At present, Huiber Vision Technology Co., Ltd already developing its own special USB cameras for industrial vision. Recently , USB
camera module range from 0.3Mega Pixel, 1MP, 2MP,3MP,5MP to 8MP autofocus.
Why Choose Us?
We have over 500 square meter dust-free standard workshop and possess standardized production assembly line,production equipments,
testing equipment and the product quality is highly guaranteed.
Over 1000 square meter dust-free standard SMT workshop and standardized production assembly line, the prodution efficiency is
highly guaranteed.
Our Services & Strength
* Have our own factory, we can offer the best price and quality to our customer.
* Customized ,design and short development cycle time.
* Proven sales records by worldwide famous customers.
We adhere to the development concept of “ Quality First Client Supreme”, welcome to contact us!
* Customized ,design and short development cycle time.
* Proven sales records by worldwide famous customers.
We adhere to the development concept of “ Quality First Client Supreme”, welcome to contact us!
FAQ
♦Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module for more than 6 years
♦Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens.
♦What operating system your cameras support?
Android, Windows and Linux System
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi,
VLC Player
♦Can you supply the USB cable together with camera?
Yes, we supply 40cm/1M usb cable for sample testing. if you need longer usb cable, we can customize it for you. welcome to contact
us in advance.
Yes, we are designer and manufacturer for usb camera module for more than 6 years
♦Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens.
♦What operating system your cameras support?
Android, Windows and Linux System
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi,
VLC Player
♦Can you supply the USB cable together with camera?
Yes, we supply 40cm/1M usb cable for sample testing. if you need longer usb cable, we can customize it for you. welcome to contact
us in advance.
