0,5 мм или 2 мм толщиной, термостойкий, гибкий, самоклеящийся, открытый элемент, резиновый, силиконовый пенопласт
- Category: Rubber Sheets >>>
- Supplier: Shenzhen,LS,Tape,Products,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
0.5MM or 2MM Thick Heat Resistance Flexible Self Adhesive Open Cell Rubber Silicone Foam Sheet
Silicone foam products are manufactured from platinum cured, liquid silicone rubber. The raw compound is expanded and dispensed on a continuous casting line, then heat cured. The expansion process is controlled to create a range of products having different densities, softness/firmness and cell structures.
Silicone foam materials typically have a smooth skin on one or both sides due to the casting process. It has open cell and closed cell type.
Open cell silicone foam are widely used for cushioning, dust sealing or light water sealing.
Closed cell silicone foam materials are used for outdoor gaskets, wash-down gaskets and resilient cushioning pads.
Expanded silicone foam products have a firmness range from Ultra Soft to Extra Firm, allowing engineers to select the best product for their application.
Silicone foam materials typically have a smooth skin on one or both sides due to the casting process. It has open cell and closed cell type.
Open cell silicone foam are widely used for cushioning, dust sealing or light water sealing.
Closed cell silicone foam materials are used for outdoor gaskets, wash-down gaskets and resilient cushioning pads.
Expanded silicone foam products have a firmness range from Ultra Soft to Extra Firm, allowing engineers to select the best product for their application.
Rogers BISCO Cellular Silicone Foam Series & Substitutes
0.5MM or 2MM Thick Heat Resistance Flexible Self Adhesive Open Cell Rubber Silicone Foam Sheet
Contact [email protected] for an inquiry
LS company can provide you Rogers BISCO cellular silicone foam and the cheaper and economical BISCO substitutes.
BF-1000 extra soft silicone foam
Substitutes of BF-1000

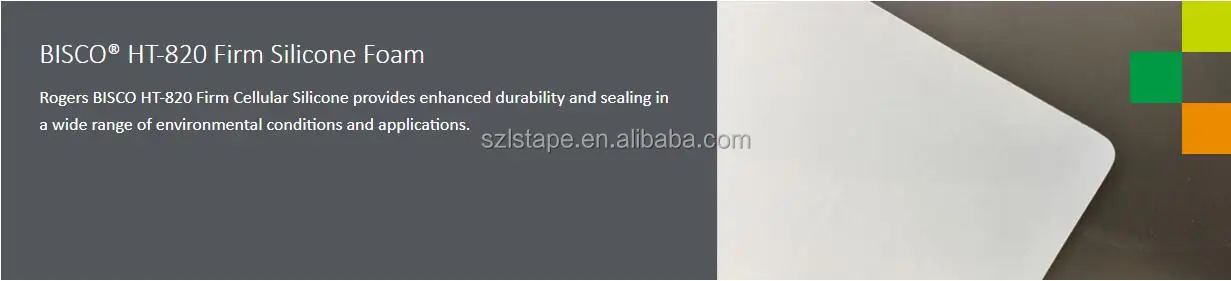

HT-820 firm silicone foam
Substitutes of HT-820
HT-800 medium silicone foam
Substitutes of HT-800

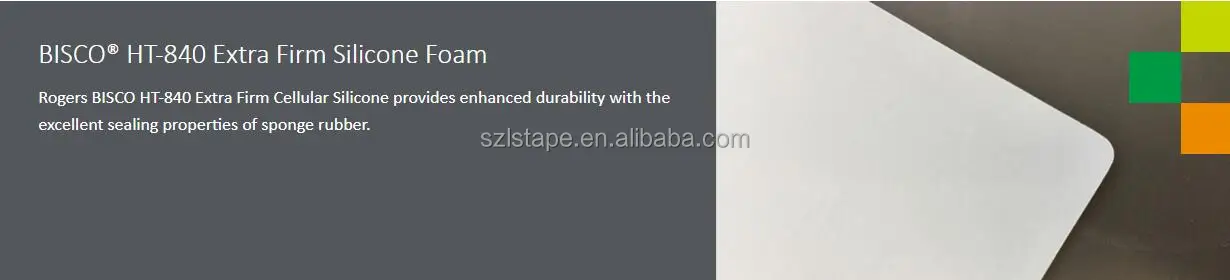

HT840 extra firm silicone foam
Substitutes of HT-840

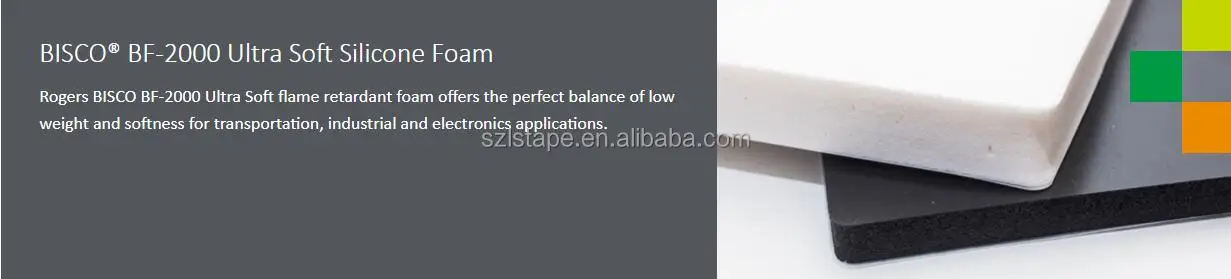

BF-2000 ultra soft silicone foam
Substitutes of BF-2000

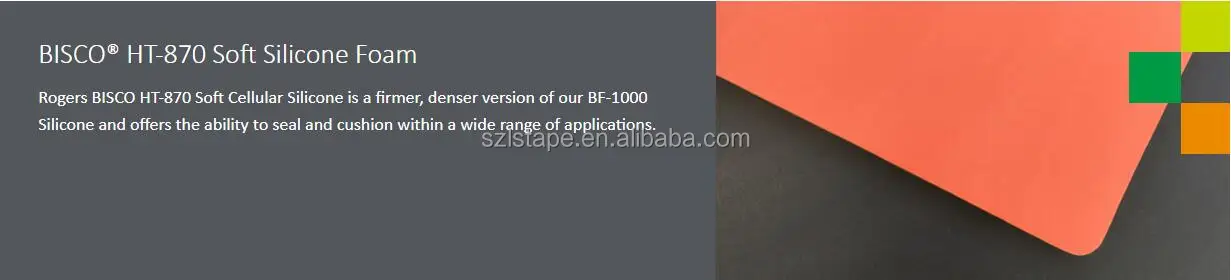

HT-870 soft silicone foam
Substitutes of HT-870
Features
0.5MM or 2MM Thick Heat Resistance Flexible Self Adhesive Open Cell Rubber Silicone Foam Sheet
* Wide operating temperature – silicone foam has a temperature range of -67°F to 392°F (-55°C to 200°C).
* Water sealing – the closed cell products offer good water sealing with relatively low compressive forces.
* Dust sealing – open cell and closed cell products can be used for sealing out dust with low compressive forces.
* Compression set resistance – silicone foam offers excellent compression set resistance (ability to rebound to original
thickness).
* UV and ozone resistance – silicone products have excellent UV and ozone resistance due in part to their inorganic backbone. This provides long term performance.
* UL gasketing – most silicone foam products are UL 94 flame rated for gasketing.
* Water sealing – the closed cell products offer good water sealing with relatively low compressive forces.
* Dust sealing – open cell and closed cell products can be used for sealing out dust with low compressive forces.
* Compression set resistance – silicone foam offers excellent compression set resistance (ability to rebound to original
thickness).
* UV and ozone resistance – silicone products have excellent UV and ozone resistance due in part to their inorganic backbone. This provides long term performance.
* UL gasketing – most silicone foam products are UL 94 flame rated for gasketing.
Performance | LS-FS2400 | LS-FS2400 | Test Method | |||
Colo(u)r | White/Black/Grey/Red | White/Black/Grey/Red | Visual | |||
Density (kg/m³) | 420±50 | 950±50 | GB/T 6363-2009 | |||
Water Absorption (%) | 1.2 | 1.5 | QBT 2669-2004 | |||
Low Temperature (℃) | -50 | -55 | QBT 2669-2004 | |||
Continuous Max Temperature (℃) | 200 | 240 | QBT 2669-2004 | |||
Max Temperature For Intermittent Use (℃) | 250 | 280 | Internal | |||
Amount Of Permanent Compression Deformation (%) | ＜1 (22hrs, 70℃ 50% compression) | ＜2 (24hrs, 23℃ 25% compression) | GBT 6669-2008 | |||
＜2 (22hrs, 100℃ 50% compression) | ＜5 (24hrs, 50℃ 25% compression) | |||||
Tensile Strength (Kpa) | ≥350 | ≥350 | GB/T6344-2008 | |||
Elongation (%) | 80 | 50 | GB/T6344-2008 | |||
Flame Retardant (UL94) | V0 | V1 | GBT 2408 | |||
TDS of LS Substitutes of BISCO | ||||||
Property | Density | Compressive Deformation Stress | Compression Deformation | Tensile Strength | Elongation Rate | Water Absorption | Flame retardant grade | |||||||||
Unit | lb/ft³ (kg/m³) | psi(KPa) | % | psi(KPa) | % | % | - | - | ||||||||
Test Method | - | ASTMD 1056 | ASTMD 1056 | ASTMD 412 | ASTMD 412 | Rogers Inside | UL94 | |||||||||
Details | - | At 25% deformation | In 100 ℃ (212 ℉) | - | - | 24 hours at RT | V-O | HF-1 | ||||||||
BF-2000 | 10(160) | 1.5(10.3) | ＜5 | 25(172) | 85 | 5 | √ | √ | ||||||||
BF-1000 | 12(192) | 3(20.7) | ＜5 | 35(241) | 90 | 5 | √ | √ | ||||||||
HT-870 | 15(240) | 4(27.6) | ＜5 | 30(207) | 90 | 5 | √ | √ | ||||||||
HT-800 | 22(352) | 9(62.0) | ＜5 | 45(310) | 80 | 5 | √ | √ | ||||||||
HT-820 | 23(384) | 16(110.3) | ＜5 | 50(345) | 55 | 5 | √ | √ | ||||||||
HT-840 | 27(449) | 22(151.7) | ＜5 | 60(414) | 60 | 5 | √ | √ | ||||||||
TDS of BISCO Cellular Silicone Foam | ||||||||||||||||
Contact Info

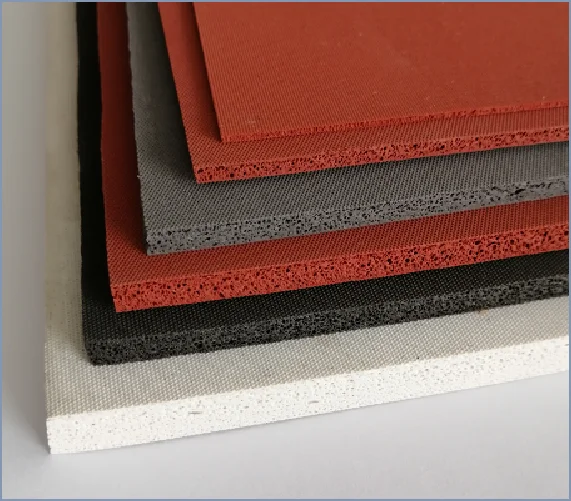

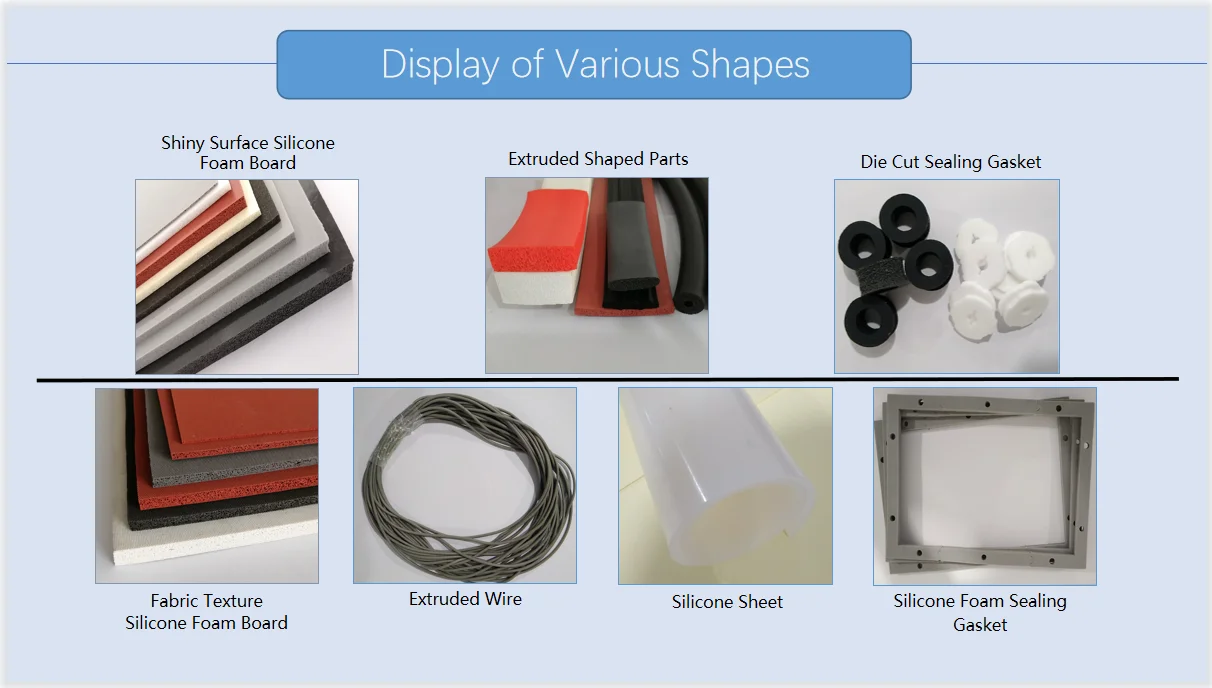

Detailed Images
0.5MM or 2MM Thick Heat Resistance Flexible Self Adhesive Open Cell Rubber Silicone Foam Sheet

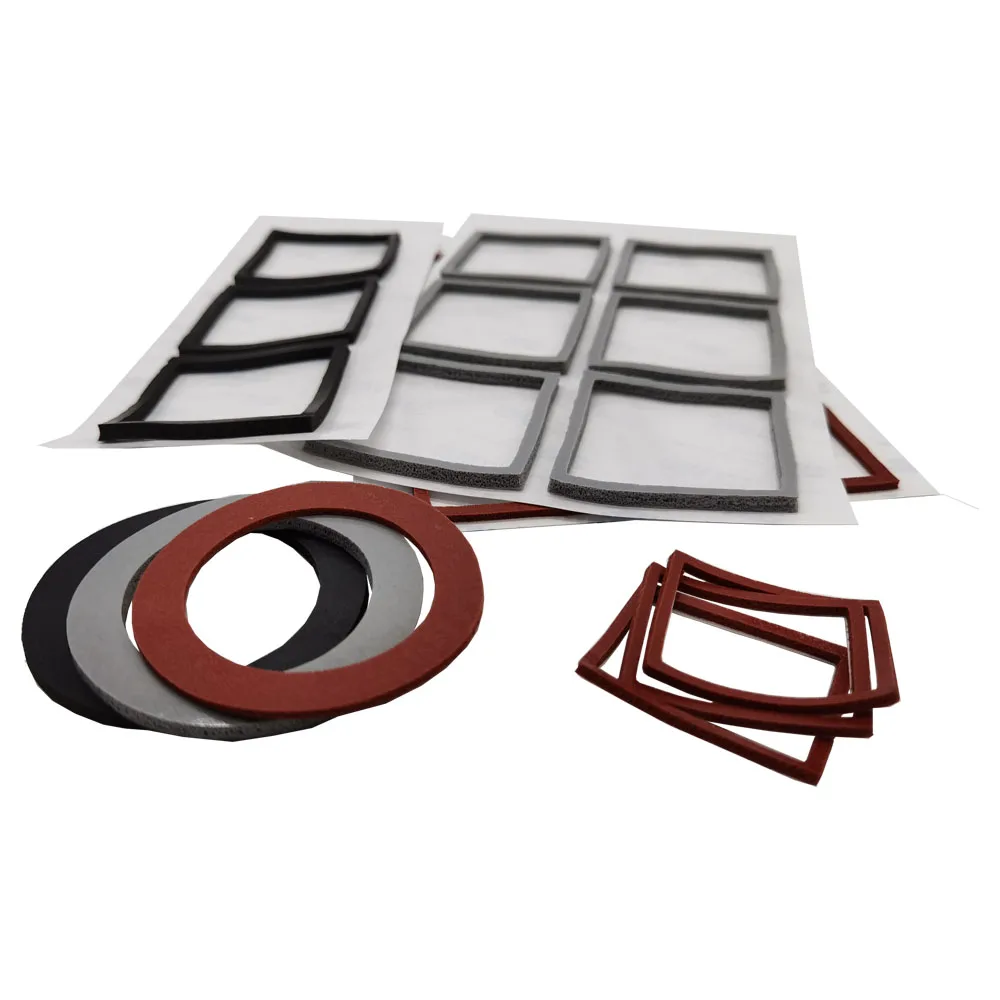

Foam Gaskets Series
1) Silicone Foam Gasket
1）EVA Foam Gasket
2）EPDM Foam Gasket
3）Neoprene Foam Gasket
4）PE Foam Gasket
5）PU Foam Gasket
6）Poron Foam Gasket
7）SBR Foam Gasket
8）NBR/PVC Foam Gasket
Applications
0.5MM or 2MM Thick Heat Resistance Flexible Self Adhesive Open Cell Rubber Silicone Foam Sheet

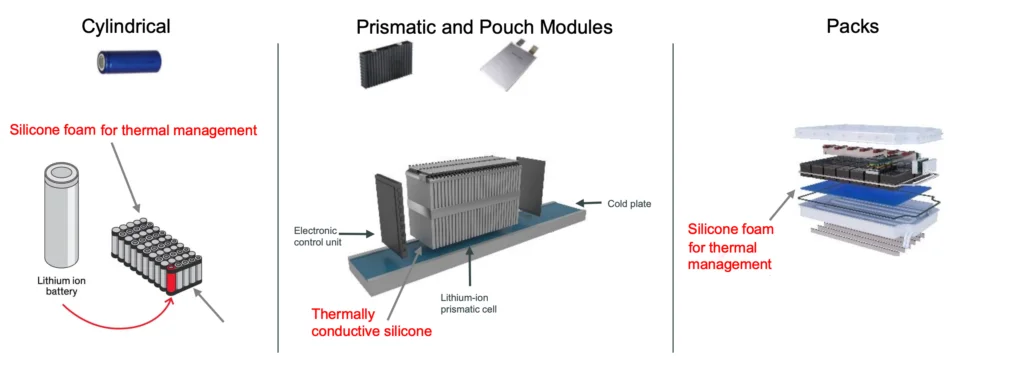

New Energy Battery
PDU

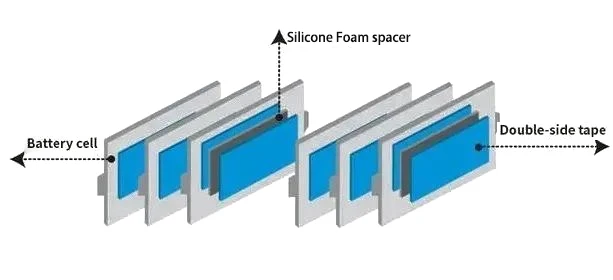

Soft Pack Battery Cells
Cold Supply Chain
Gap Filling
Gasketing & Sealing
LCD Gaskets
Shock Absorption
Vibration Management
