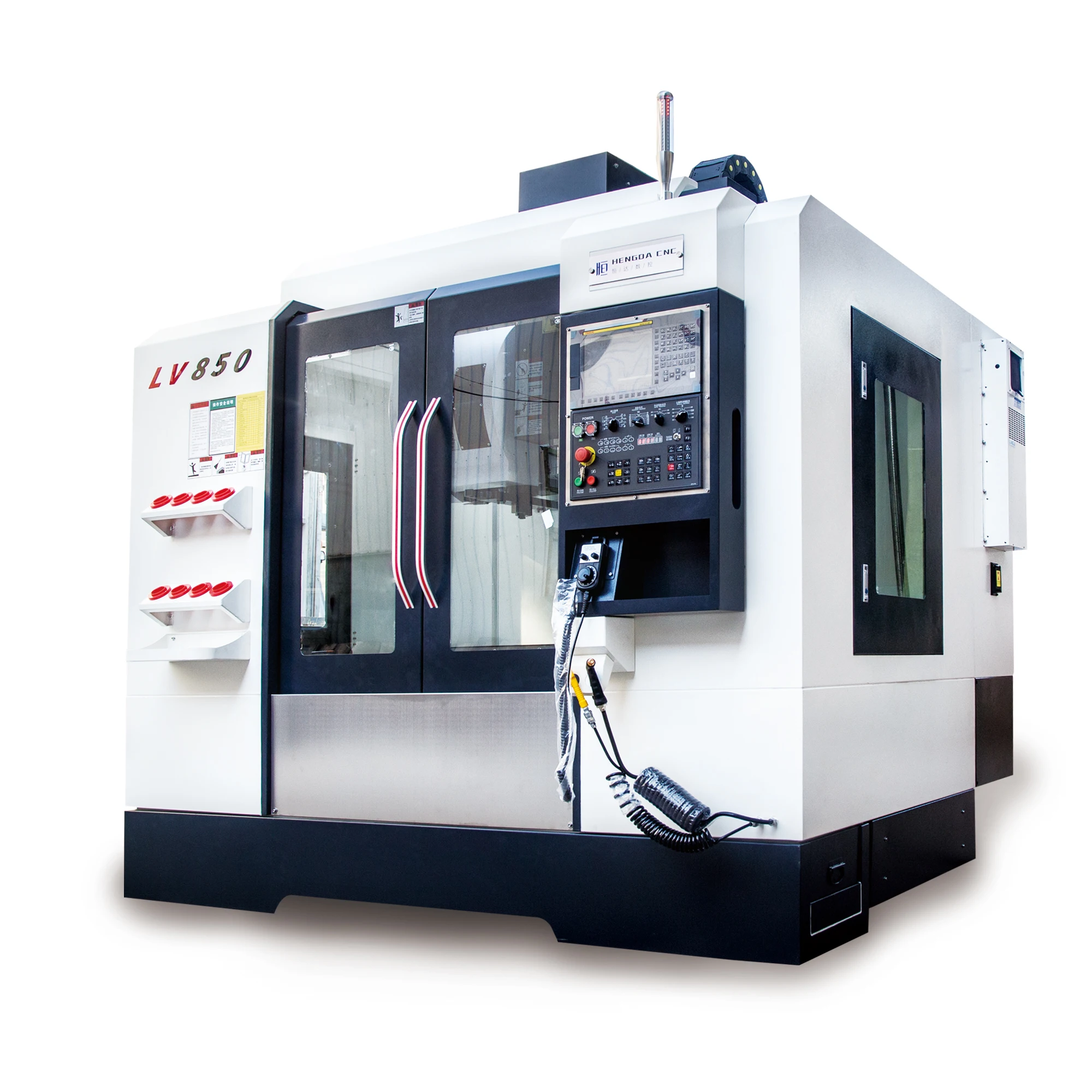

Hengda CNC Milling Machine VMC850 LV850 V850 Fanuc Mitsubishi Siemens Syntec GSK CNC Controller 3 Axis 4 Axis 5 Axis Machine
Hengda CNC is a professional manufacturer engaged in design and producing CNC Machining Centers CNC Milling Machine with 15 years’ experience. Our
main product is vertical CNC Machining Center (VMC), we have a wide range production line from Mini CNC Machining Center Hengda CNC M440 to biggest CNC Machining Center LV1580. Our product have CE certificate and have sold to over 25 countries all over the world.
main product is vertical CNC Machining Center (VMC), we have a wide range production line from Mini CNC Machining Center Hengda CNC M440 to biggest CNC Machining Center LV1580. Our product have CE certificate and have sold to over 25 countries all over the world.
X/Y/Z-Axis Travel | mm | 800/500/500 |
Distance From Spindle Nose To Working Table | mm | 120-620 |
Distance From Spindle Center To Colum Guideway | mm | 550 |
Spindle Motor Power | kw | 7.5/11 |
Spindle Speed | rpm | 8000 - 12000 |
Spindle Taper | BT40 | |
Positioning Accuracy | mm | ±0.005 |
Repeatability Accuracy | mm | ±0.003 |
Working Table Size | mm | 1000×500 |
Max. Working Table Load Capacity | kg | 600 |
T-Slot Qty-Width-Distance | mm | 5-18-100 |
X/Y/Z-Axis Rapid Feed Speed | m/min | 36/36/36 |
Cutting Feed Speed | mm/min | 1-10000 |
Dia. Of X/Y/Z-Axis Ball Screw | mm | Φ40 |
X/Y/Z-Axis Servo Motor Power | kw | 2.0/2.0/2.0 |
Linear Guideway Width/Type/Qty/Block Qty | X-Axis | 35 Roller/2/4 |
Y-Axis | 35 Roller/2/4 | |
Z-Axis | 35 Roller/2/4 | |
Control System | GSK/Fanuc/Mitsubishi/Siemens | |
Max. Power Consumption | kw | 15 |
Air Pressure | Mpa | 0.5-0.7 |
Voltage | 3P380V | |
Net Weight | Ton | 4.5 |

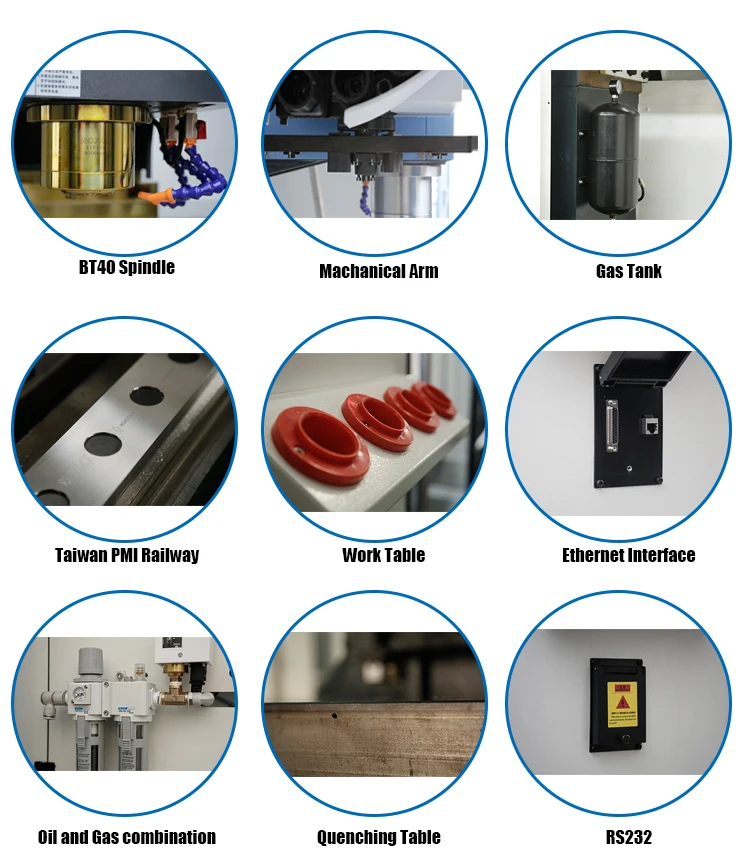

A.The overall framework is made of high toughness and high grade casting iron. High efficient annealing treatments relieves internal stress to ensure the lasting best rigidity and high precision.
B.The long span Y type column design leads high rigidity and high stability. Assembled with solid and stable large casting bed base can guarantee the workpiece’s accuracy.
C. Using P3 class precision ball screw on 3 axes with double nuts and washers pre-loading to pre-eliminate back lash achieves position accuracy and repeatability accuracy with high stability
D.3 axes assembled with high precision linear ball guide ways shaft ensure high machining precision and rapid feeding speed.
E.The ball screw connected with AC servo motor directly on 3 axes feed driving system. Running smoothly without back lash. Also having good rigidity and shock absorption performance to improve the e dynamic rigidity of driving system greatly.
F.The high speed precision spindle connected with AC servo motor by synchronous belt. Low noise, low vibration and low heat. The machine can be used for milling, drilling, reaming, boring, reaming and tapping and other machining processing. and tapping and other machining processing. processing.
B.The long span Y type column design leads high rigidity and high stability. Assembled with solid and stable large casting bed base can guarantee the workpiece’s accuracy.
C. Using P3 class precision ball screw on 3 axes with double nuts and washers pre-loading to pre-eliminate back lash achieves position accuracy and repeatability accuracy with high stability
D.3 axes assembled with high precision linear ball guide ways shaft ensure high machining precision and rapid feeding speed.
E.The ball screw connected with AC servo motor directly on 3 axes feed driving system. Running smoothly without back lash. Also having good rigidity and shock absorption performance to improve the e dynamic rigidity of driving system greatly.
F.The high speed precision spindle connected with AC servo motor by synchronous belt. Low noise, low vibration and low heat. The machine can be used for milling, drilling, reaming, boring, reaming and tapping and other machining processing. and tapping and other machining processing. processing.

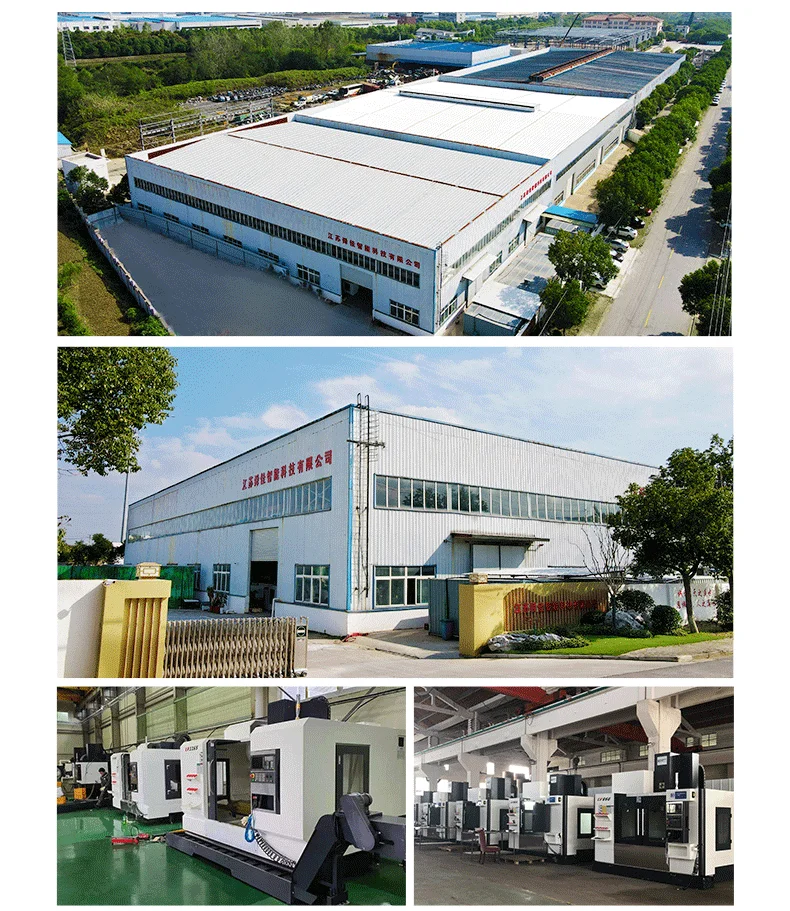

We have own factory
Because we have our own factory, we can guarantee the product quality and the best price for our customers
Skilled experienced workers
All of our workers have an average of ten years of work experience, most of which come from Taiwan factories
Customer inspection
Domestic and foreign customers came to China to inspect the factory and won the trust of customers
Domestic and international exhibitions
We participate in famous domestic and international industrial exhibitions to let customers know more about our products and trust our products
Certificates
In foreign trade, we can provide all kinds of certification materials required by customers
Q:Are you trading company or manufacturer ?
A:We are the leading manufacturer engaged in CNC machining center, CNC lathe and other machine tools with 15 year's experience inChina.

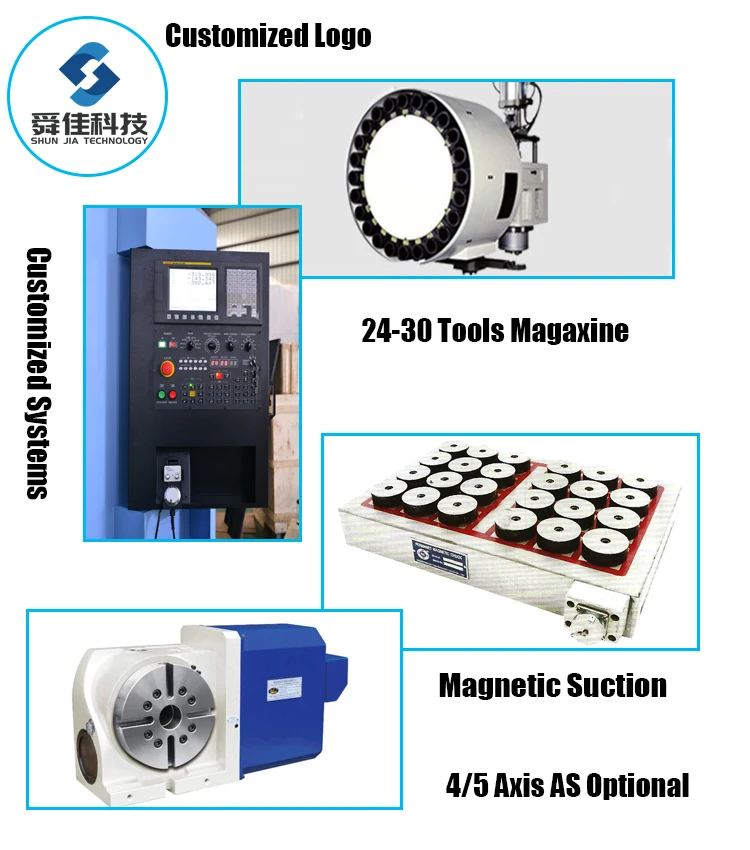

Q: Can you do customized orders?
A:YES, ODM/OEM are available according to your design and requirements.
Q: What is the MOQ?
A:Only one set for CNC machining center.
Q: How long is the warranty?
A:We provide one year's warranty and we also provide free lifelong remote support.
Q: How long is your delivery time?
A:Normally 45 days after order confirmed. If we have stock, we can deliver within 7 days.
A:We are the leading manufacturer engaged in CNC machining center, CNC lathe and other machine tools with 15 year's experience inChina.
Q: Can you do customized orders?
A:YES, ODM/OEM are available according to your design and requirements.
Q: What is the MOQ?
A:Only one set for CNC machining center.
Q: How long is the warranty?
A:We provide one year's warranty and we also provide free lifelong remote support.
Q: How long is your delivery time?
A:Normally 45 days after order confirmed. If we have stock, we can deliver within 7 days.
