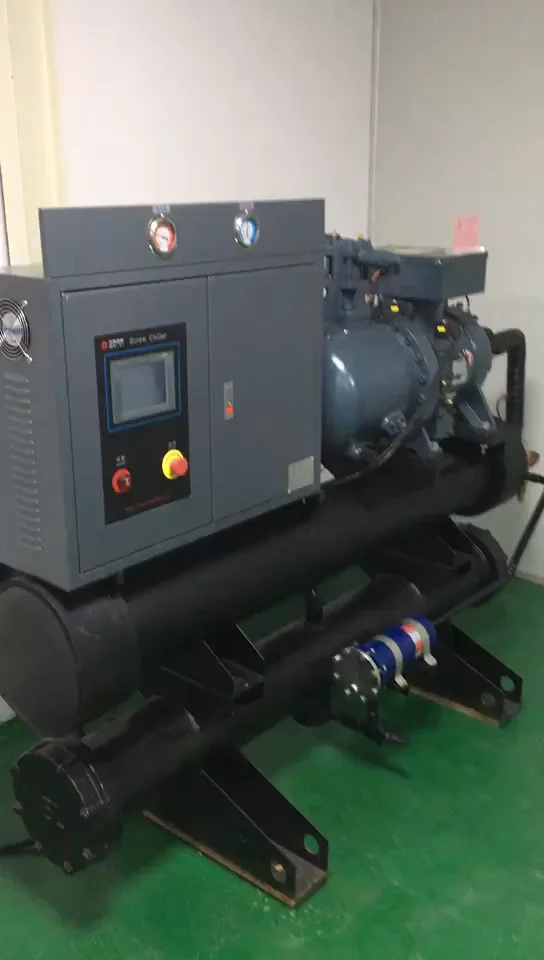

120WSCS Industrial water cooling screw chiller water chiller with coil pipe evaporator chiller digital temperature control
- Category: >>>
- Supplier: Dongguan Baiyi Tongyong Machinery Co. Ltd.
Share on (1600068786362):
Product Overview
Description
water Screw chiller
| Type | Single compressor series | ||
| Modle | BY-120WSCS | ||
| Cooling capacity | Btu/h | 1290833 | |
| Kcal/h | 325166 | ||
| KW | 378.1 | ||
| USRT | 107 | ||
| Input current | A | 137.3 | |
| Machine power | 50HZ | 380V/3PHASE/50HZ/R | |
| Input power | KW | 81.7 | |
| Refrigerant circuit | A | 1 | |
| Refrigerant flow control | Thermostatic expansion valve/electronic expansion valve | ||
| Refrigerant | R22/134a/407c | ||
| Compressor | Style | Semi-hermetic screw | |
| Number | 1 | ||
| Starting | Y-Start | ||
| Capacity control | % | 100-75-50-25 | |
| Condensor | Style | Kobe Japan, efficient copper shell and tube outer thread | |
| Cooling water flow | m³/h | 83.6 | |
| Cooling water pressure loss | Kpa | 50 | |
| Evaporator | Style | Kobe, Japan, efficient internal thread copper tube shell and tube. | |
| Quantity | 1 | ||
| Cooling water pressure loss | Kpa | 72 | |
| Chilled water flow | m³/h | 70 | |
| securuty and protection | Frozen intelligent microcomputer systems dedicated CAREL; high/ low pressure switch, exhaust overheating protection, thermal sintering tenperature control, compressor thermal protction, overcurrent relays, phase sequence/phase loss protection, oil pressure protection. | ||
| Cooling water out of caliber | Inch | 4 | |
| Cooling water into the Bore | Inch | 4 | |
| Measure | Length | mm | 2950 |
| Width | mm | 760 | |
| Height | mm | 1750 | |
| Machine weight | KG | 1800 | |
Screw parts
| Number | Parts | Brand | From | Quantity | Warranty(year) |
| 1 | Compressor | HanBell/Refcomp | Taiwan/Italy | 1 | 1 |
| 2 | Electronic Components | Schneider | Germany | 1 | 1 |
| 3 | Microcomputer Control System | Pump | Japan | 1 | 1 |
| 4 | Evaporator(shell) | Kobe | Japan | 1 | 1 |
| 5 | Condensor(shell) | Kobe | Japan | 1 | 1 |
| 6 | Pressure Controller(606XMM) | Saginomyia | Japan | 1 | 1 |
| 7 | Thermoexpansion Valve | Emerson | America | 1 | 1 |
| 8 | Oil-type Pressure Gage | Fuguo | Italy | 2 | 1 |
| 9 | Temperature Controller | Pump | Germany | 1 | 1 |
| 10 | Angle Valve | Saginomyia | Japan | 2 | 2 |
| 11 | Filter | ALCO | America | 1 | 2 |
| 12 | Temperature Sensor | Saginomyia | Japan | 1 | 2 |
| 13 | Refrigerant | R22/134a/407c | 1 | 5 | |
| 14 | Electronic Cabinet | BaiYi | China | 1 | 1 |
Product Case
Package&Shipment
Our Advantage
BaiYi General
BaiYi General Machinery
As a professional cooled chiller manufacturer, BaiYi General Machinery company was established in2010, DongGuan and engages in design, manufacture, sales and after-sales services.
BaiYi’s head office, BaiYI Group, is located in Hong Kong, China. It has more than 30 years history as it was built in 1990. Within this long-time experience, we have gained a popular reputation and a large customer base from all over the word.
The product line of BaiYi ranges from industrial chiller, water or oil-type mould temperature, plastic feed mill, mixer machine and drying machine to cooling tower. Industrial chiller, as the main product of BaiYi, has two modes: water-cooled chiller and air-cooled chiller, which are widely used in plastics, electronics, optics, DVD discs, textile, coating, magnesium alloy die-casting,rubber, tires, extrusion, civil construction, etc.
company concept
The goal of all workers in BaiYi is to provide high-quality products, prompt delivery and high-level services for our clients. With these customer-oriented ideas, we have succeeded in doing business with our clients from India, Malaysia, Vietnam, Singapore, Thailand, Europe, the United States and other countries.
