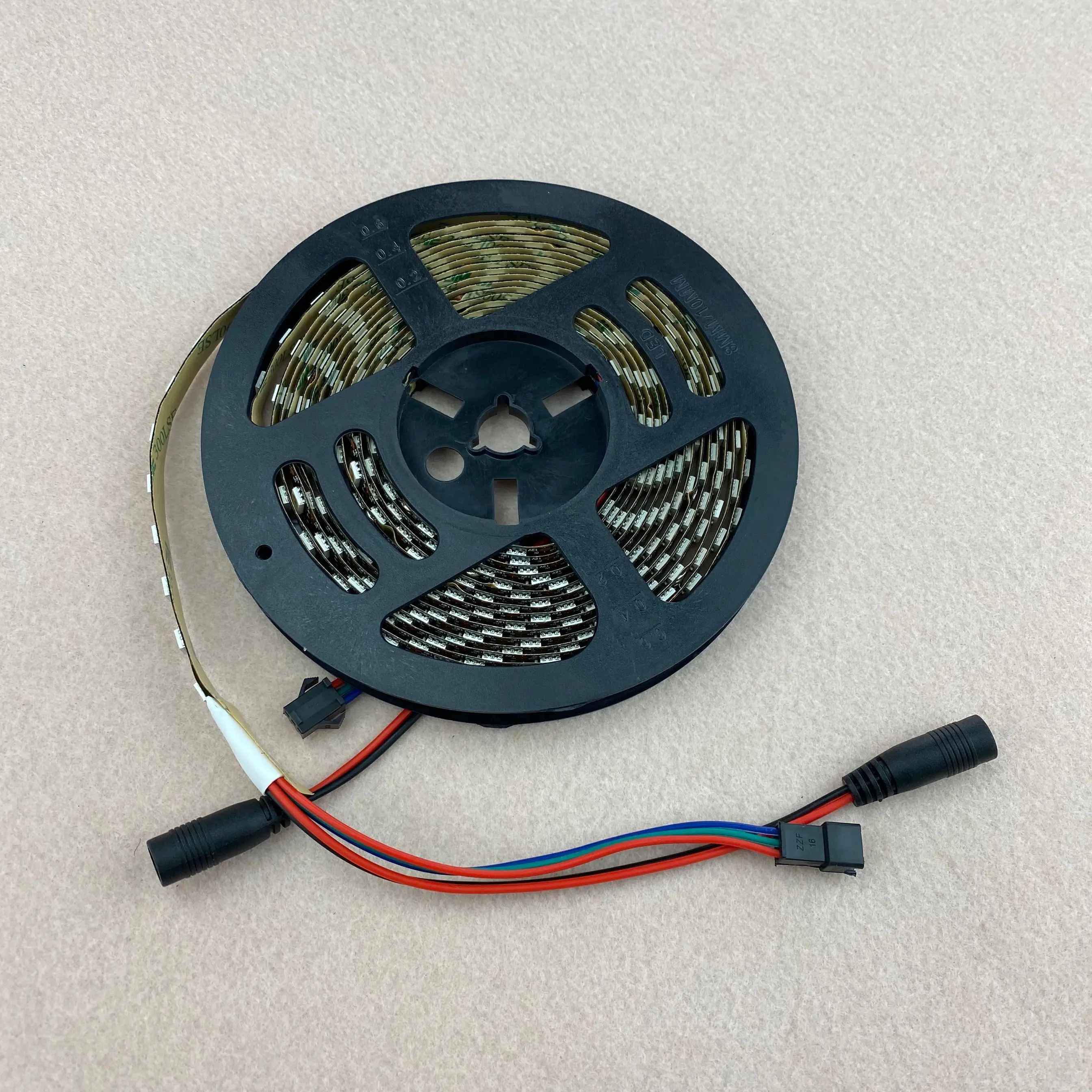

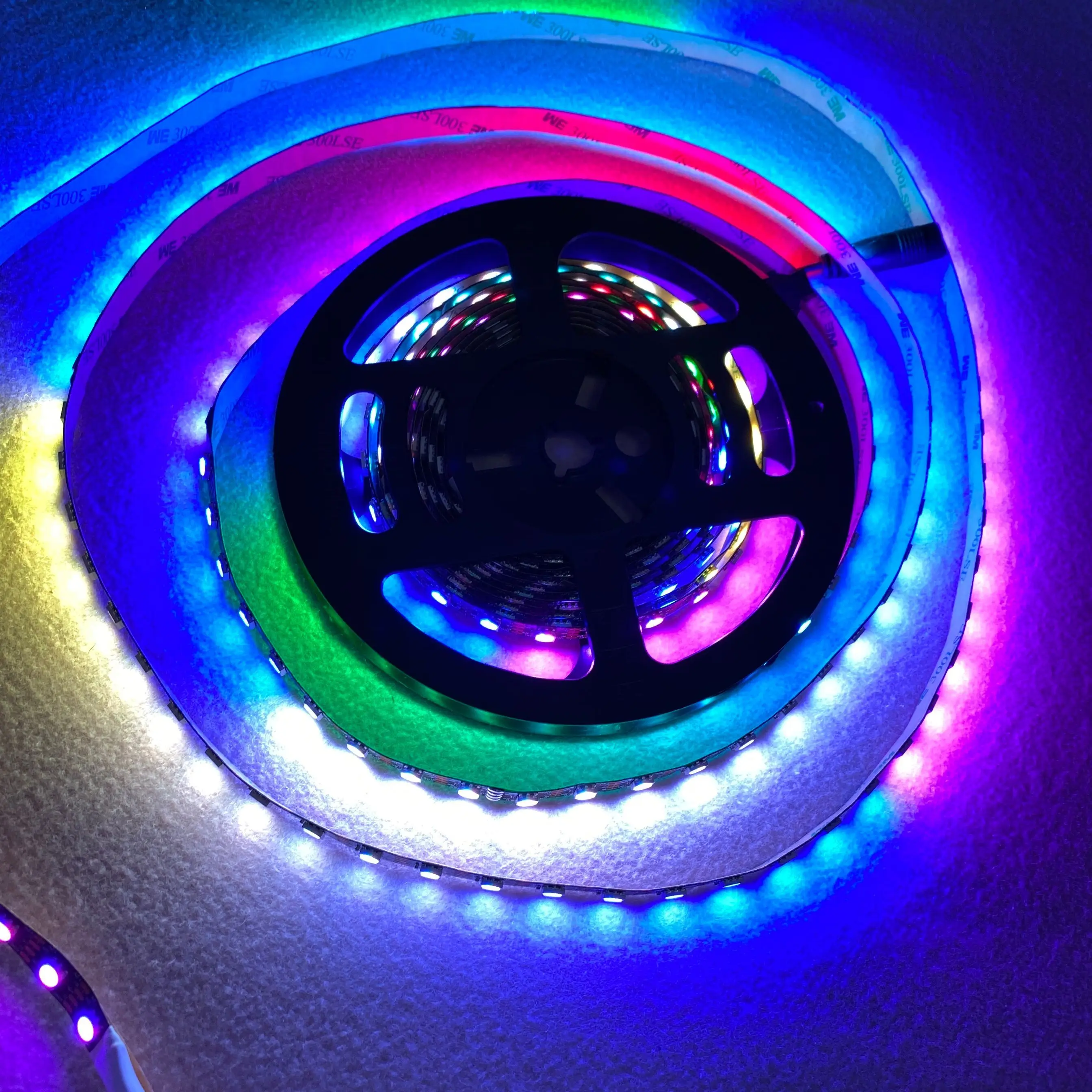

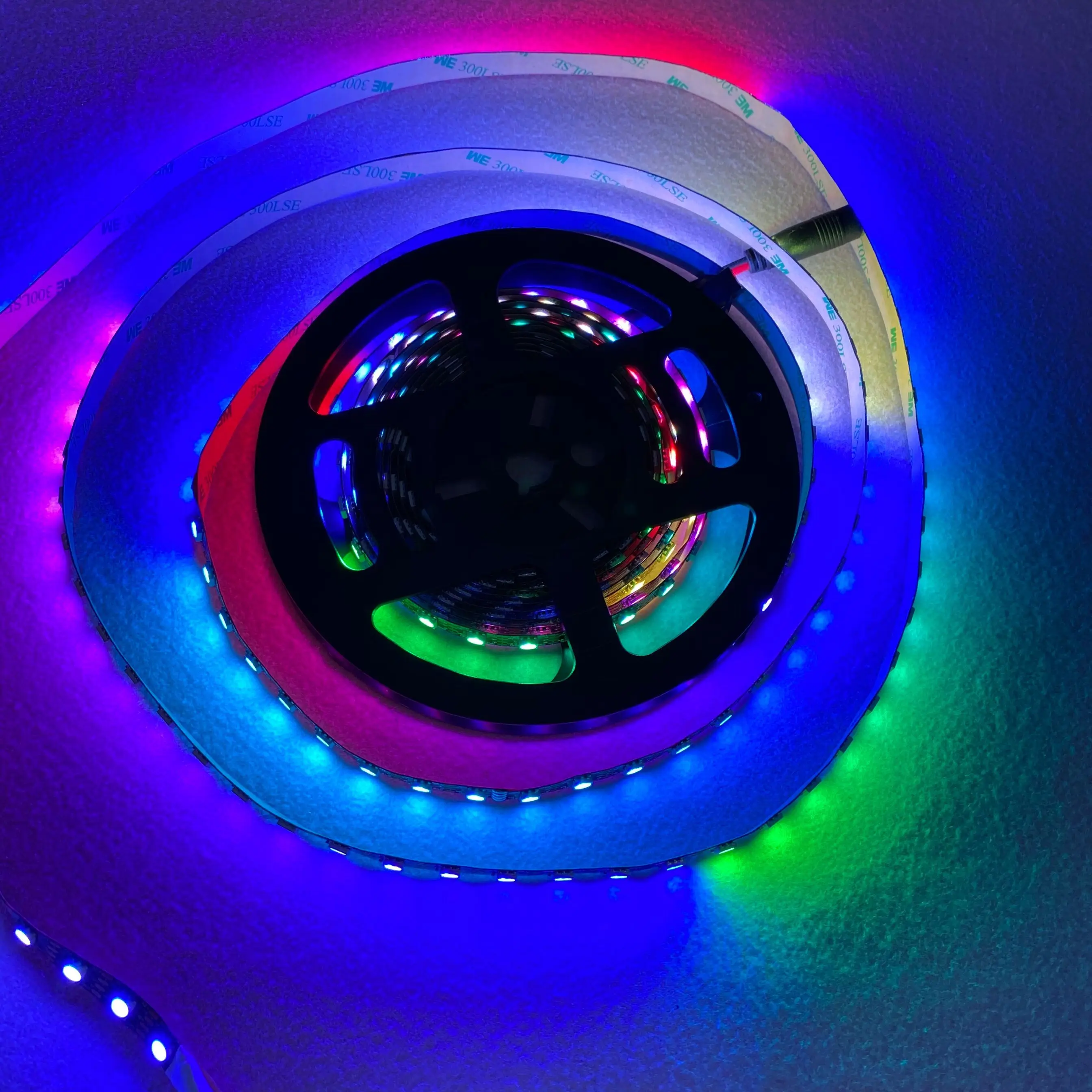

BLACK PCB 72leds/m WS2815 DC12V addressable full color RGB 5050 LED strip;5m/reel;non waterproof;IP33

Product Overview

Description

Input voltage:..............DC12V;

Power:.........................0.24W/LED(when at full white color)

LED resource:.............WS2815

https://www.aliexpress.com/store/product/WS2815-LED-beads-DC12V-input-signal-break-point-continuous-transmission-RGB-full-color-addressable/312912_32871610873.html?spm=2114.12010612.8148356.1.34bb7c27puYeAl



Q'ty of LED: ................72LEDs/m

IC Type: ......................WS2815 IC(IC built inside the 5050 smd rgb led)

Q'ty of IC: ....................72pcs(1 IC drives 1 led chip);

Pixels:..........................72 pcs/m

Grey scale: ..................256;

Bits/color: ....................8-bits/color;24bit for 3colors

FPC size: ....................Width: 10mm, High: 2.5mm;

FPC color: ...................BLACK PCB

 Protection rate.............non-waterproof;IP33/waterproof in silicon tube;IP67;waterproof in silicon coating:IP65

Colors: .........................Full color RGB, dream color changing;

Cuttable:.......................every LED is cuttable

Package: ......................5 meters/reel in anti-static bag



Recommended controllers:

https://www.aliexpress.com/store/group/LedEdit-software-pixel-controllers/312912_507514700.html?spm=2114.12010108.0.0.17cd43e4nPZvVb
