Mango pulp processing machinery Mango Jam making machine Mango Puree Production Line
- Category: >>>
- Supplier: Shanghai Beyond Machinery Co. Ltd.
Share on (1600069075765):
Product Overview
Description
Mango pulp processing machinery Mango Jam making machine Mango Puree Production Line
Product Description
Description of mango juice plant
Mango and pineapple are famous tropical fruit because of its delicate flesh, unique flavor, they are very popular and well known as the "king of tropical fruit". Complete plant of mango and pineapple processing equipment including following procedures: washing the fresh mango and pineapple, peeling, pulping, crushing, squeezing, enzymolysis, membrane filtrating, concentrating, sterilizing, filling etc. The fresh mango and pineapple can be processed into the transparent juice or cloudy juice, then packed into different package forms, such as gable top box, aseptic bags, sterile vats, other containers, achieving the purpose to sell in cold chain or normal temperature.
Characteristics of mango juice plant
1. The processing capacity is varied.
2. The line can deal with similar characteristic of fruits.
3. Using the high efficient of mango destoner to improve the mango output percentage effectively.
4. Using efficient belt juice extractor to improve the juice efficiency and the output percentage of pineapple.
5. The production process fully automatic PLC control to save labor and facilitate production management.
6. Low-temperature vacuum evaporation, maximize reserve the flavor substances and nutrients also save energy.
7. Tubular UHT sterilizer and aseptic filling machine, produce high-quality aseptic juice products.
8. Automatic CIP cleaning, ensure the entire line equipment of food hygiene and safety requirements.
Technical parameter of mango juice plant

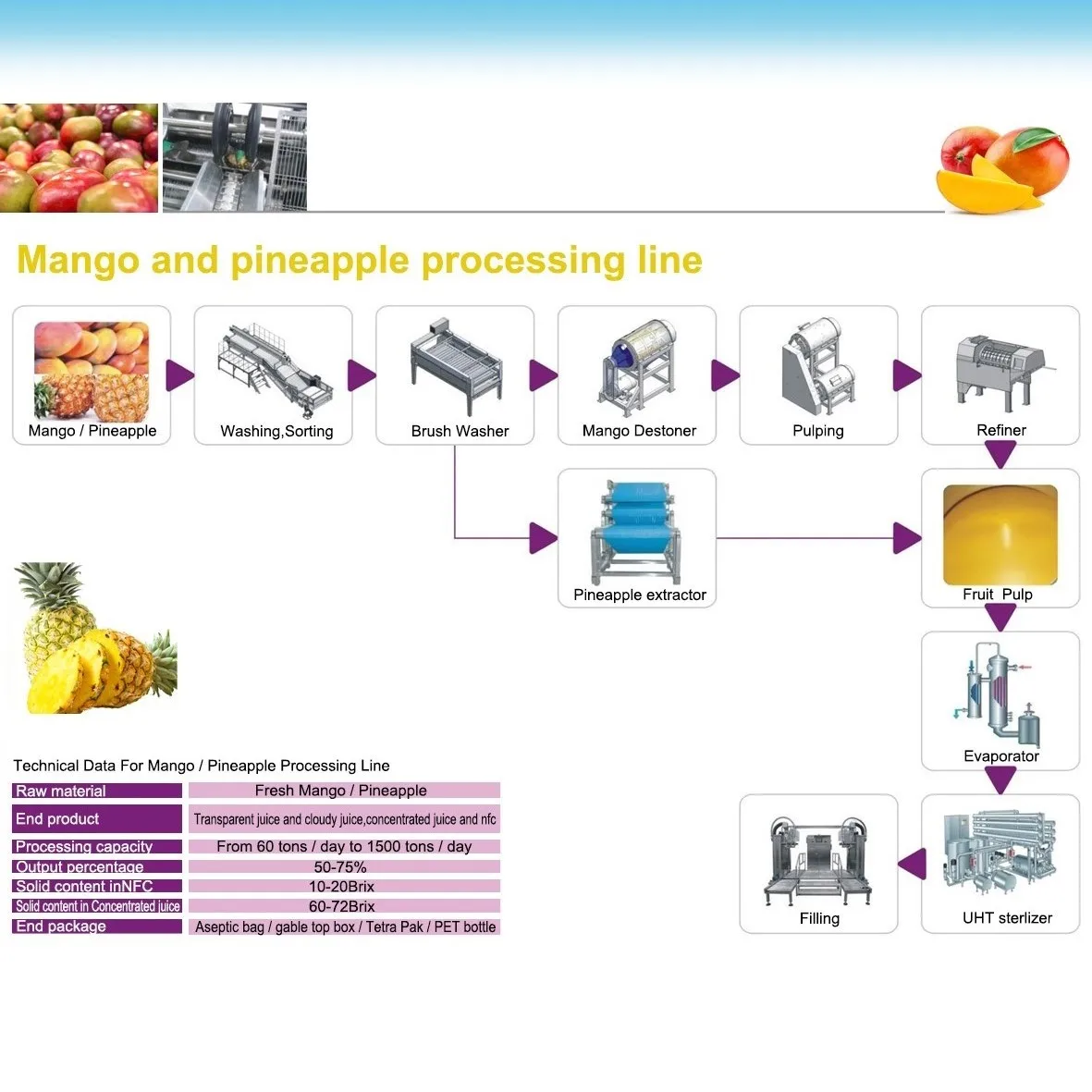

The processing flowchart of the mango processing line
Concentrated mango pulp/puree flowchart
Fresh mango after washing,sorting,destoning and peeling,pulping filtering,evaporating,sterilizing then filled into 220kg aseptic bags in drums.
The end products of concentrated mango juice technical parameter is Brix 28-30% or 30-32%,PH value is 3.0-4.0.
Non-concentrated mango pulp/puree flowchart
Fresh mango after washing,sorting,destoning and peeling,pulping filtering,homogenizing,vacuum degassing,sterilizing then filled into 220kg aseptic bags in
drums.The end products of non-concentrated mango pulp/puree technical parameter is that Brix value is 14-22%,Total acidity:0.3-1.1%,PH:3.2-4.0,Pulp content:>40%.
Blended mango nectar/juice flowchart
Concentrated mango puree/juice are as raw materials,after blending with water and sugar and other additives,homogenizing and degassing,sterilizing,the end mango juice are filled into PET/glass bottles,small tin cans,aseptic cartons.
NFC mango nectar flowchart
The mango is washed,peeled,sliced and dried to make dried mango slices.It takes 20-30 hours to complete drying for each batch of fresh mangoes.The moisture of fresh mango slices is between 80%-85%.After being dried by a heat pump dryer,the moisture of dried mango slices is about 10%-12%.The heat pump drying is
completed in 5 stages:the first stage is 55℃,which is the heating stage,the second stage is 60℃,the dehumidification stage,the third stage is 62℃,the continuous dehumidification stage,the fourth stage is 58℃,cooling and dehumidifying,and the last stage 55℃,consolidate and dehumidify.
Concentrated mango pulp/puree filling machine
We have one head or double heads aseptic filler to fill the concentrated mango puree into 220kg aseptic bags in drums,the capacity is 1 ton per hour to 5 tons per hour.And the concentrated mango puree in aseptic bags has a long shelf life about 2 years in a cold environment.The aseptic bag filling machine is complete sanitation with CIP cleaning function,the mango puree filling is controlled by flowmeter with high precision,the filling chamber is sterilized by steam to ensure the aseptic conditions.
Workflow diagram
Company Information
Our Services
Trade Shows
Certificate
Related products
Packaging & Shipping
FAQ
1 ) Q: How can we visit your factory?
A: If you come from abroad, air to shanghai airport, then we can pick you up at airport.
2) Q: How do you ensure the quality of your products?
A: Our Company is a state owned enterprise with more than 16 years experience , strict operation policy is performed, advanced processing machines guarangtee the precision of all components, workers with operation license, parts get multiprocessing, transmission& electrical parts are of international famous brand. Series of test and inspection are done in the whole producing state.
3) Q: What payment methods your company accept?
A: We accept most of the payment methods , but mainly accept T/T, L/C at sight .
4) Q: How long is the warranty time for your products?
A: Our officially promised warranty time is 12 months after commissioning .
5) Q: I am new in this field,can you supply us turnkey services?
A: YES.We can supply all the system including Market Analysis/Product Analysis/Location Choice/Processing Flow Design/Equipment Layout Design/Building Design direction/Equipment mode selection/Equipment Manufacturing/Equipment Mounting/Equipment Debugging/Worker Training.
6) Q: I haven't done business with you company before, how can I trust your company ?
A: Our company has been in Alibaba.com for 14 years, which is longer than most of our fellow suppliers, we have been golden suppliers for years. What ' s more, we have got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate.
7) Q: What ' s the shipment terms and delivery time of your company?
A: Well, the delivery time depend on the quantity of your order. Usually is 20 days . For some customized machine 30 days is necessary.
8) Q: Can you supply OEM services?
A: Yes,we have our R&D team,and we have more than 400 workers with workshop area 75000 square meters.
9) Q: Do you give any Discount?
A: I will surely try my best to help you get those by the best price and good service at the same time.
