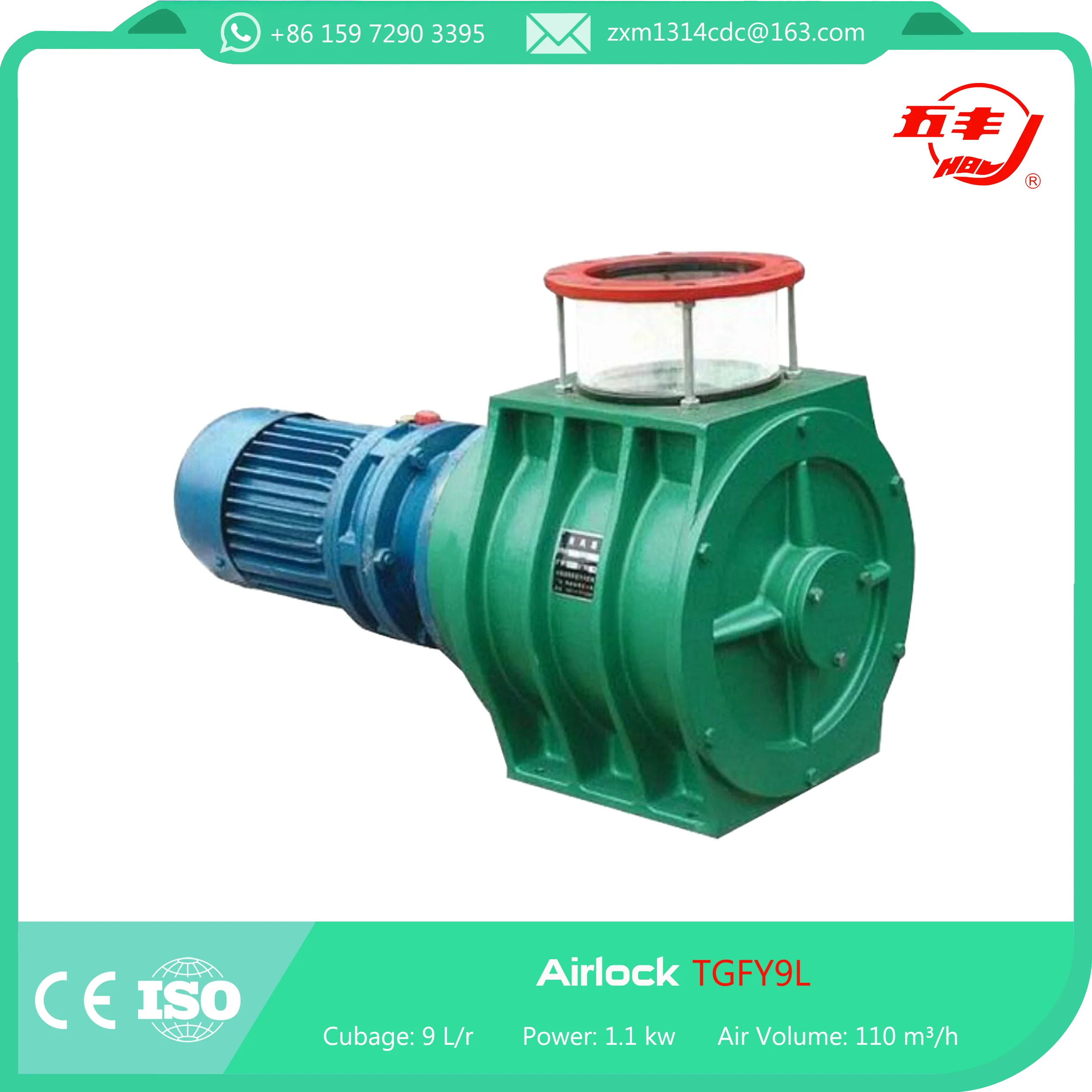

TGFY-9 Airlock,rotary airlock valve,rotary airlock configuration star discharger
Product Description
This To be used under negative pressure conveying cyclone, flow-through rotary airlock valve adopts detached foundry, of which all components have been precisely processed before assembling. It has exquisite configuration and anti-blocking design, which can solve material stuck problem without dismantling. The hole at the end of bearing is for observing sealing efficiency at any time, and the observation window on the top is for following up the process of discharging. This type of valve offers series connection solution, using single power to drive multi-valves. Ultimately, it can save energy and reduce purchasing cost.
Material: Cast Iron casing and impeller, 100% copper wire motor.
Votage: 220V/50Hz, single phase; 380V/50Hz, three phase.
Features
> Thin plate forming and light weight
> Hollow shaft design, double bearing symmetrical layout
> VD type seal can bear a certain pressure;
> Integrated frequency conversion design, compact structure, minimize deformation.
Technical Parameters:
| TGFY Air Locker | |||
| Model | TGFY9L | TGFY12L | TGFY16L |
| Cubage(L/R) | 9 | 12 | 16 |
Rotating Speed(RPM) | 45 | 45 | 45 |
| Air Volume (m3/h) | 110 | 140 | 160 |
| Power(kw) | 1.1 | 1.1 | 1.5 |
| Net weight(kg) | 100 | 127 | 137 |
