automatic rebar tying machine tools for construction
automatic rebar tying machine tools for construction
automatic rebar tying machine tools for construction
automatic rebar tying machine tools for construction
automatic rebar tying machine tools for construction
automatic rebar tying machine tools for construction
automatic rebar tying machine tools for construction

automatic rebar tying machine tools for construction

Share on (1600069643138):


Price:

Quantity:


Product Overview

Description


Product Description

Product Application

our rebar tying tools are extensively used in Concrete floors, Concrete foundations,Concrete walls, Precast Products, Swimming pool walls, Retaining walls, Underfloor heating.

Main Features

1) One hand operation-easy to handle

2) 5 times faster than hand tying

3) Li-ion higher capacity battery

4) Brushless twisting motor-long service life

5) Light weight & compact body



\t

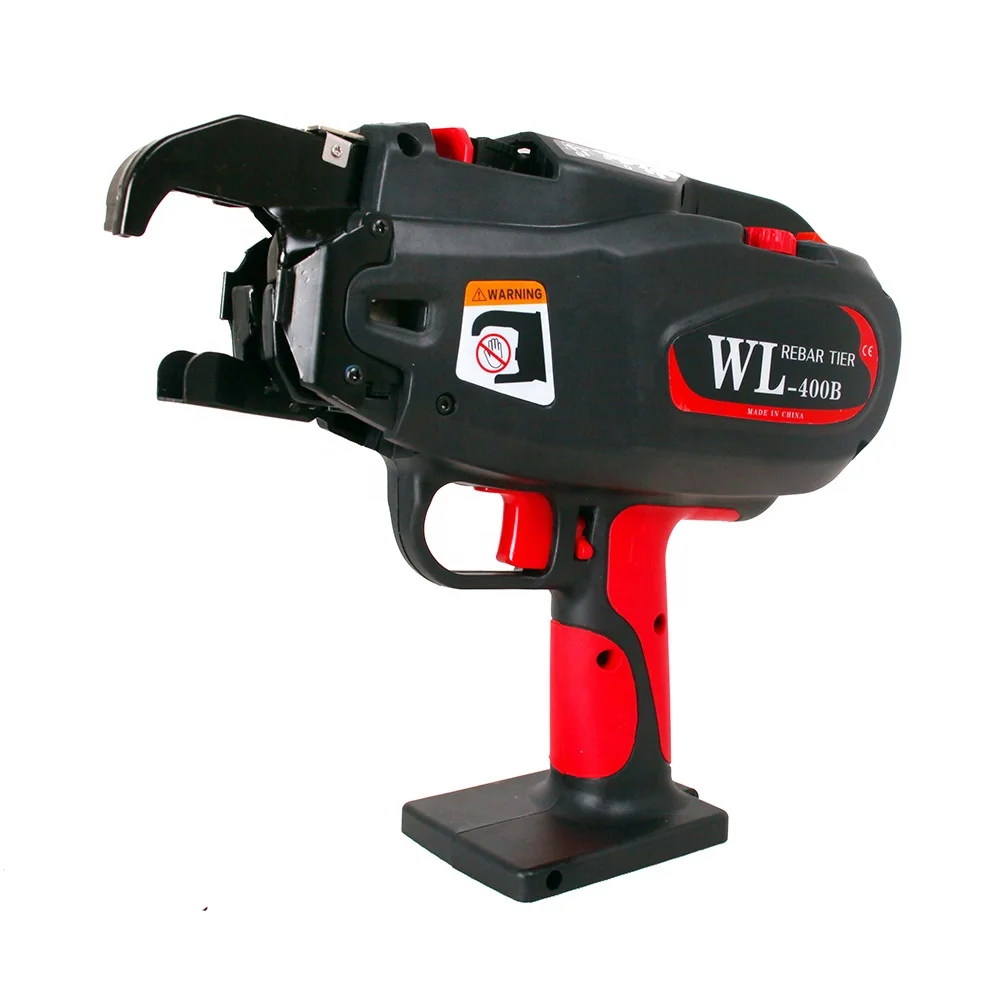

Automatic rebar tying machine
\t
Model No.
\t
wL-210B(Li-ino)
\t
wL-400B(Li-ino)
\t
Max Tying Diameter
\t
21mm
\t
40mm
\t
Voltage & Capacity
\t
DC14.4V(4.4AH)
\t
DC14.4V(4.4AH)
\t
Charge Time
\t
Approx.70mins
\t
Approx.70mins
\t
Tying speed per knot
\t
0.7 seconds
\t
0.75 seconds
\t
Ties per Charge
\t
Over 3200ties
\t
Over 3200 ties
\t
Ties per Coil
\t
Approx. 195ties(3turns)
\t
Approx.130ties(3turns)
\t
Turns per Tie
\t
2turns/3turns
\t
2turns/3turns
\t
Length of Wire for Tying
\t
            380mm/2 turns
550mm/3 turns
\t
650mm/2 turns
750mm/3 turns
\t
Wire Type
\t
Black annealed wire or Galvanized wire
\t
Black annealed wire or Galvanized wire
\t
Net Weight
\t
1.8kgs
\t
1.9kgs
\t
Dimension(L)X(W)X(H)
\t
275mmX120mmX275mm
\t
295mmX120mmX275mm

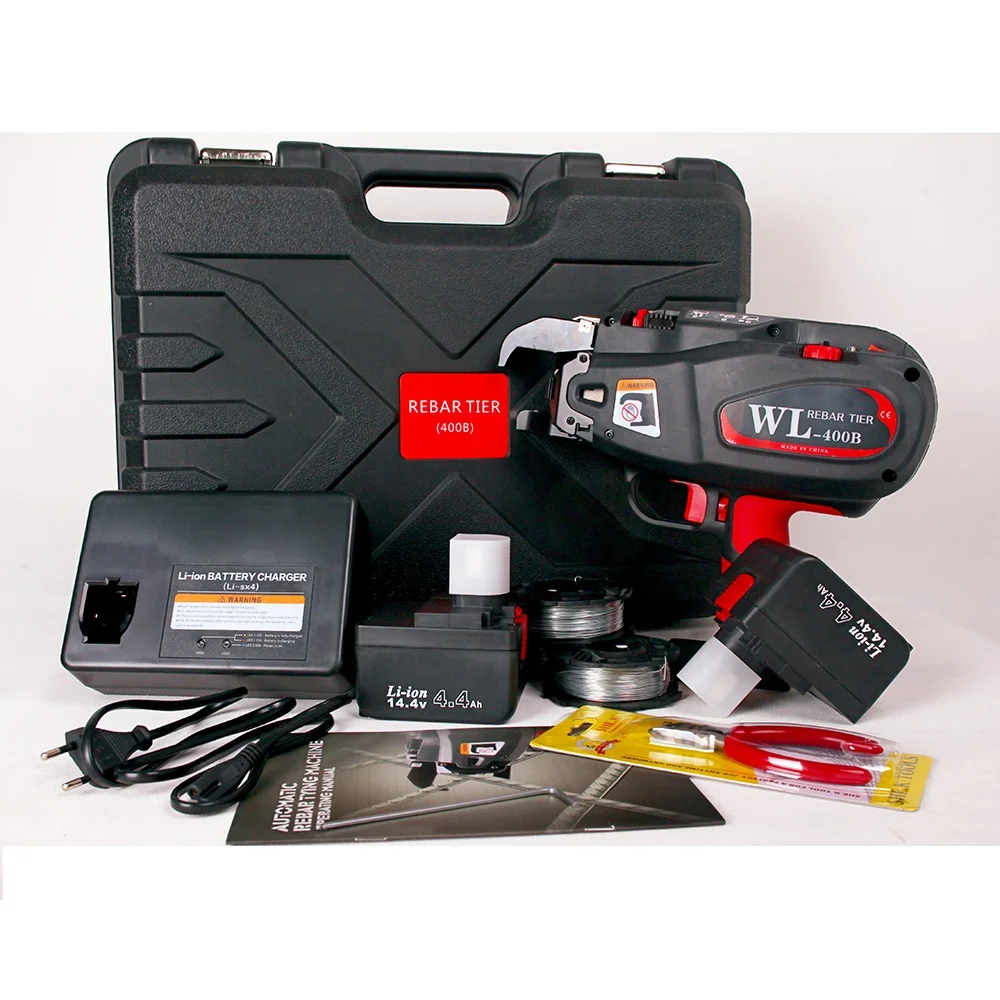

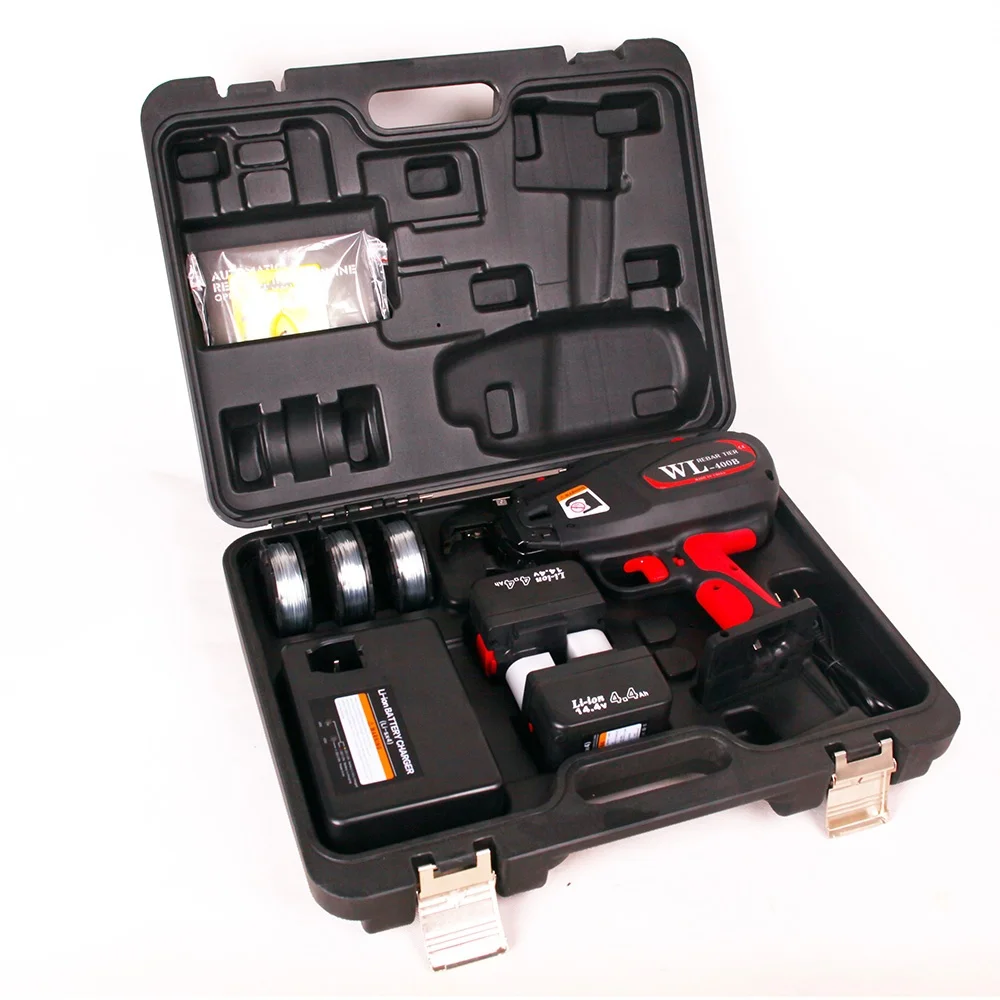

One set including

1pc Rebar tier machine.

2pc Battery pack.

1pc Quick charger.

  3pc Steel wire rolls.

GW of one set:7kgs

1pc Specification


1pc Inner hexagon spanner


1pc Sharp nose pliers


Packing size:45*34*13cm



Detailed Images





Name:Magnetic brake

Features:strong durability ,fast speed








Name:Brushless twisting motor

Features:Long service life,fast speed





Name:Fastner
Features:Made of copper or aluminum,quality assured
Our Company



Fuzhou ZhuoYuan Machine Co. Ltd is located in Jiangxi province,which is a professional manufacturer and supplier of automatic rebar tying machine.Our company was founded in 2014,have a complete and scientific quality management system.

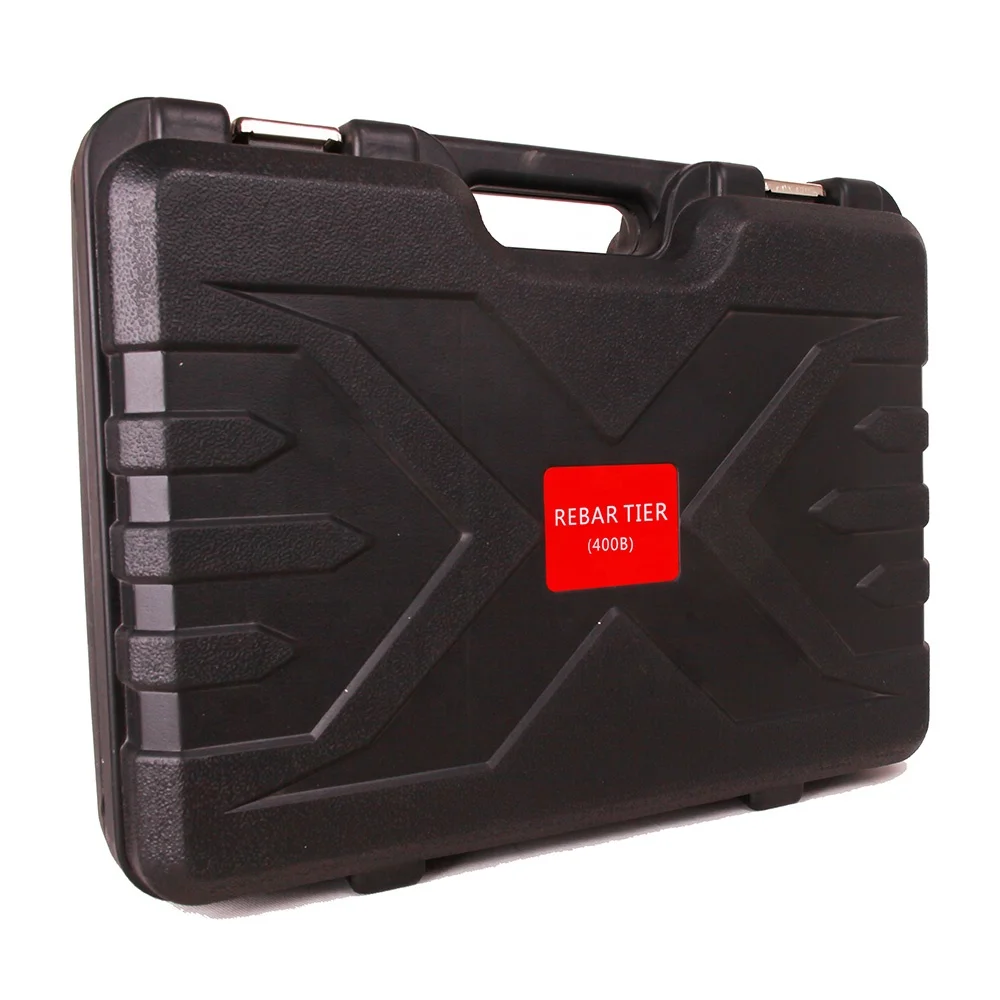

Packing
\t
Packaging
\t
Size
\t
295mm(L)*120mm(W)*275mm(H)
\t
Weight
\t
7.2kgs
\t
Packaging Details
\t
The normal package is plastic box(inner packing),carton box(outer packing).
3sets/cartons.
FAQ

1.Q: Are you a trading company or factory?
A: We are a factory

2.Q: Can you provide samples ?

A:Yes,We offer paid samples and we will return the sample fee to you when we receive the payment for your large order.

3.Q:How should I pay the freight?

A:After you place the order,we will make a proforma invoice to you and list the detailed cost.

4.Q:What is the terms of payment?

A:Pay 100% in advance for any order,other special circumstances excepted.

5.Q:Do you have after-sale service?

A:Yes,most parts have maintenance period,free of charge within warranty.
