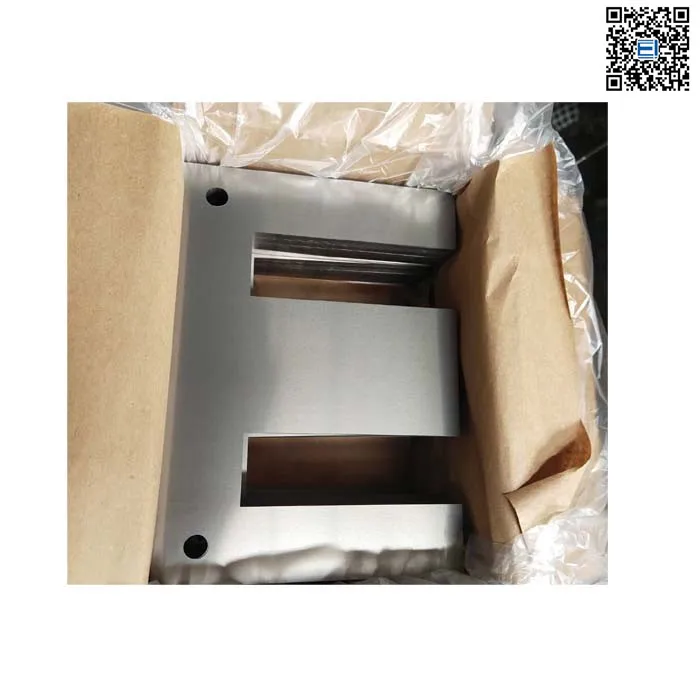

Factory Manufacture CRGO silicon steel lamination M6 EI lamination 180mm
- Category: >>>
- Supplier: Jiangyin Chuangjia Electrical Co. Ltd.
Share on (1600069646196):
Product Overview
Description

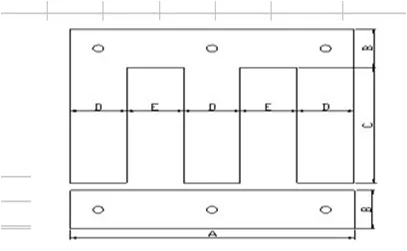

| Date sheet (Single phase series Unite:mm) | |||||||||||||||||||||||||
| Type | A | B | C | D | E | F | G | H | I | J | K | Hole(Φ) | |||||||||||||
| EI-28 | 28 | 25 | 8 | 4 | 6 | 17 | 21 | ||||||||||||||||||
| EI-30 | 30 | 25 | 10 | 5 | 5 | 15 | 20 | 25 | |||||||||||||||||
| EI-35 | 35 | 29.5 | 9.6 | 5 | 7.7 | 19.5 | 24.5 | 5 | |||||||||||||||||
| EI-41 | 41 | 33 | 13 | 6 | 8 | 21 | 27 | ||||||||||||||||||
| EI-42 | 42 | 35 | 14 | 7 | 7 | 21 | 28 | 7 | 35 | 3.5 | |||||||||||||||
| EI-48 | 48 | 40 | 16 | 8 | 8 | 24 | 32 | 40 | |||||||||||||||||
| EI-50 | 50 | 42 | 14 | 9 | 9 | 25 | 34 | ||||||||||||||||||
| EI-54 | 54 | 45 | 18 | 9 | 9 | 27 | 36 | 9 | |||||||||||||||||
| EI-57 | 57 | 47.5 | 19 | 9.5 | 9.5 | 28.5 | 38 | 9.5 | |||||||||||||||||
| EI-60 | 60 | 50 | 20 | 10 | 10 | 30 | 40 | 40 | |||||||||||||||||
| EI-66 | 66 | 55 | 22 | 11 | 11 | 33 | 44 | 44 | 55 | ||||||||||||||||
| EI-68 | 68 | 58 | 22 | 11 | 12 | 34 | 46 | 11 | 57 | 5.5 | |||||||||||||||
| EI-75 | 75 | 62.5 | 25 | 12.5 | 12.5 | 37.5 | 50 | 50 | 62.5 | 5 | |||||||||||||||
| EI-76.2 | 76.2 | 63.5 | 25.4 | 12.7 | 12.7 | 38.1 | 50.8 | 50.8 | 63.5 | 5/5.5 | |||||||||||||||
| EI-78 | 78 | 65 | 26 | 13 | 13 | 39 | 52 | 52 | 65 | 5 | |||||||||||||||
| EI-78 | 78 | 67 | 22 | 14 | 14 | 39 | 53 | 14 | 64 | 5 | |||||||||||||||
| EI-84 | 84 | 70 | 28 | 14 | 14 | 42 | 56 | 51 | 70 | 5 | |||||||||||||||
| EI-85.8 | 85.8 | 71.5 | 28.6 | 14.3 | 14.3 | 42.9 | 57.2 | 14.3 | |||||||||||||||||
| EI-96 | 96 | 80 | 32 | 16 | 16 | 48 | 64 | 44 | 80 | 64 | 8 | 6 | |||||||||||||
| EI-105 | 105 | 87.5 | 35 | 17.5 | 17.5 | 52.5 | 70 | 17.5 | 70 | 87.5 | 8.75 | 6 | |||||||||||||
| EI-108 | 108 | 90 | 36 | 18 | 18 | 54 | 72 | 18 | |||||||||||||||||
| EI-114 | 114 | 95 | 38 | 19 | 19 | 57 | 76 | 76 | 95 | 7 | |||||||||||||||
| EI-120 | 120 | 100 | 40 | 20 | 20 | 60 | 80 | 80 | 100 | 7 | |||||||||||||||
| EI126 | 126 | 105 | 42 | 21 | 21 | 63 | 84 | ||||||||||||||||||
| EI-132 | 132 | 110 | 44 | 22 | 22 | 66 | 88 | 22 | 110 | 88 | 11 | 7 | |||||||||||||
| EI-133.2 | 133.2 | 111 | 44.4 | 22.2 | 22.2 | 66.6 | 88.8 | 88.8 | 111 | 7 | |||||||||||||||
| EI-144 | 144 | 124 | 40 | 26 | 26 | 72 | 98 | 98 | 118 | 98 | 8 | ||||||||||||||
| EI-150 | 150 | 125 | 50 | 25 | 25 | 75 | 100 | 100 | 125 | 100 | 12.5 | 8 | |||||||||||||
| EI-152.4 | 152.4 | 127 | 50.8 | 25.4 | 25.4 | 76.2 | 101.6 | 101.6 | 127 | 101.6 | |||||||||||||||
| EI-162 | 162 | 135 | 54 | 27 | 27 | 81 | 108 | 27 | 135 | 108 | 8 | ||||||||||||||
| EI-168 | 168 | 140 | 56 | 28 | 28 | 84 | 112 | 28 | 140 | 112 | 10 | ||||||||||||||
| EI-180 | 180 | 150 | 60 | 30 | 30 | 90 | 120 | 120 | 150 | 120 | 9 | ||||||||||||||
| EI-182 | 182 | 157 | 56 | 30 | 33 | 91 | 124 | 30 | 157 | 124 | 8 | ||||||||||||||
| EI-192 | 192 | 160 | 64 | 32 | 32 | 96 | 128 | 128 | 160 | 10 | |||||||||||||||
| EI-195 | 195 | 162.5 | 65 | 32.5 | 32.5 | 97.5 | 130 | 32.5 | 162.5 | 130 | 10 | ||||||||||||||
| EI-210 | 210 | 175 | 70 | 35 | 35 | 105 | 140 | 35 | 175 | 140 | 10 | ||||||||||||||
| EI-240 | 240 | 200 | 80 | 40 | 40 | 120 | 160 | 160 | 200 | 160 | 12 | ||||||||||||||
| |||||||||||||||||||||||||
| Note:Burr tolerance 0.02MM,Dimensional tolerance±0.01mm | |||||||||||||||||||||||||
| Date sheet (Three phase series Unite:mm) | |||||||||||||||||||
| TYPE | A | B | C(Long) | C(short) | D | E | Hole | NOTE | |||||||||||
| NO. | (Φ) | ||||||||||||||||||
| EI-16 | 80 | 16 | 48 | 40 | 16 | 16 | 4 | 8 | |||||||||||
| EI-20 | 100 | 20 | 60 | 50 | 20 | 20 | 4 | 8 | |||||||||||
| EI-22 | 110 | 22 | 66 | 55 | 22 | 22 | 4 | 8 | |||||||||||
| EI-25 | 125 | 25 | 75 | 62.5 | 25 | 25 | 6 | 5.5 | |||||||||||
| EI-28 | 140 | 28 | 84 | 70 | 28 | 28 | 4 | 8 | HIGH SPEED | ||||||||||
| EI-30 | 150 | 30 | 90 | 105 | 30 | 30 | 4 | 8 | HIGH SPEED | ||||||||||
| EI-32 | 160 | 32 | 80 | 80 | 32 | 32 | 4 | 7 | |||||||||||
| EI-35 | 175 | 35 | 105 | 87.5 | 35 | 35 | 4 | 8 | HIGH SPEED | ||||||||||
| EI-36 | 180 | 36 | 90 | 90 | 35 | 35 | 6 | 8 | |||||||||||
| EI-38 | 190 | 38 | 114 | 95 | 38 | 38 | 6 | 8 | HIGH SPEED | ||||||||||
| EI-40 | 200 | 40 | 120 | 100 | 40 | 40 | 6 | 10 | |||||||||||
| EI-44 | 220 | 44 | 132 | 110 | 44 | 44 | 6 | 8 | |||||||||||
| EI-45 | 225 | 45 | 135 | 112.5 | 45 | 45 | 4 | 11 | |||||||||||
| EI-50 | 250 | 50 | 150 | 125 | 50 | 50 | 6 | 11 | |||||||||||
| EI-56 | 280 | 56 | 168 | 140 | 56 | 56 | 4 | 8 | |||||||||||
| EI-60 | 300 | 60 | 180 | 150 | 60 | 60 | 6 | 14 | |||||||||||
| EI-70 | 350 | 70 | 210 | 175 | 70 | 70 | 4 | 13 | |||||||||||
| EI-80 | 400 | 80 | 240 | 200 | 80 | 80 | 4 | 14 | |||||||||||
| EI-90 | 450 | 90 | 270 | 225 | 90 | 90 | 4 | 14 | |||||||||||
| EI-100 | 500 | 100 | 300 | 250 | 100 | 100 | 4 | 14 | |||||||||||
| |||||||||||||||||||
| Note:Burr tolerance : 0.02mm,Dimensional tolerance : ± 0.1mm | |||||||||||||||||||
| Contact: | |||||||||||||||||||
| sandy(at)jycjdq.com | |||||||||||||||||||
| sandychan(at)163.com | |||||||||||||||||||
| Wechat:0086 159 9532 9060 | |||||||||||||||||||
| Whatsapp&Ding:0086 136 2152 3395 | |||||||||||||||||||
Packaging & Delivery
- Packaging Details:

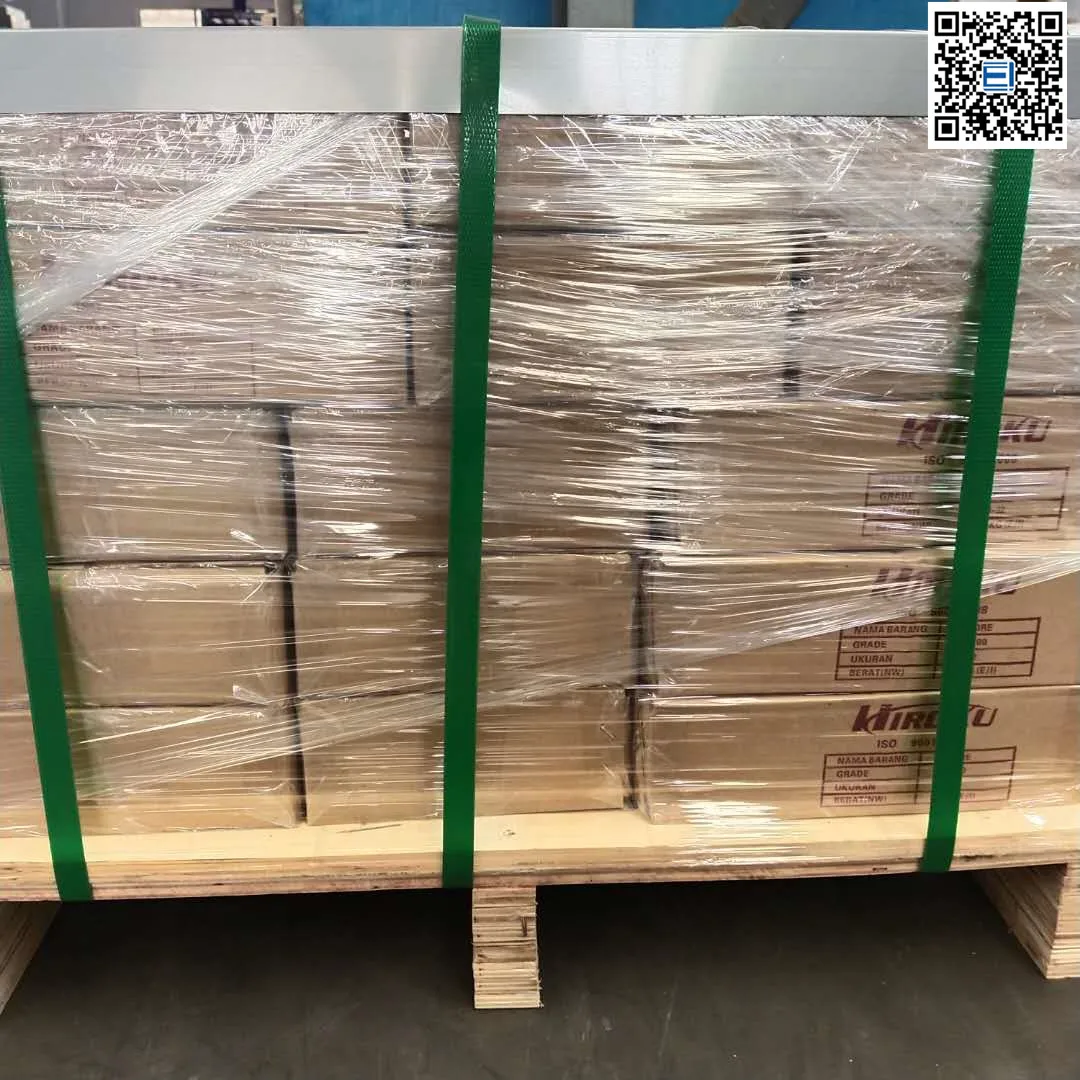

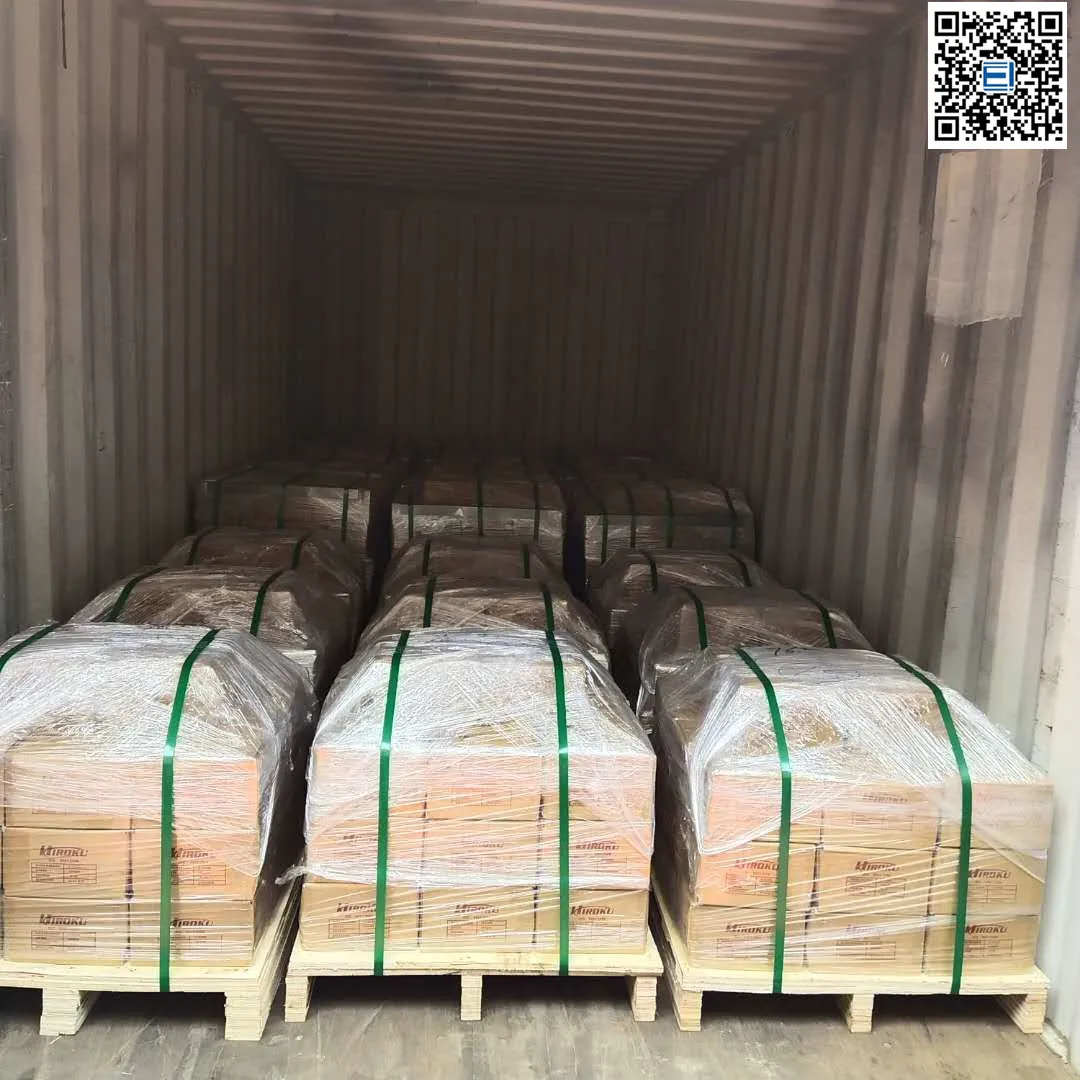

- 25 kgs / Carton; 21 pallets in one 20GP container,load from 25-27 tons.
- Port:shanghai
- Lead Time :
- 10 -15 days after confirm the order
Company Information:
Jiangyin Chuangjia Electrical Appliance co., ltd. was established in 2003, is a professional silicon steel sheet production and processing enterprise.
Relying on stamping, after more than 10 years of hard work and accumulation, the company has gradually formed a product supply structure with
EI lamination &electric motor core as the leading, electric power transformer and iron core developing together
In 1984,Jiangyin Wuxing Electrical Co., was established.
In 2003, jiangyin chuangjia Electrical Appliance co., ltd was renamed. Now the company covers an area of 25,000 square meters, building area of
20,000 square meters.It has more than 100 employees, including 16 engineers and 9 quality personnel.

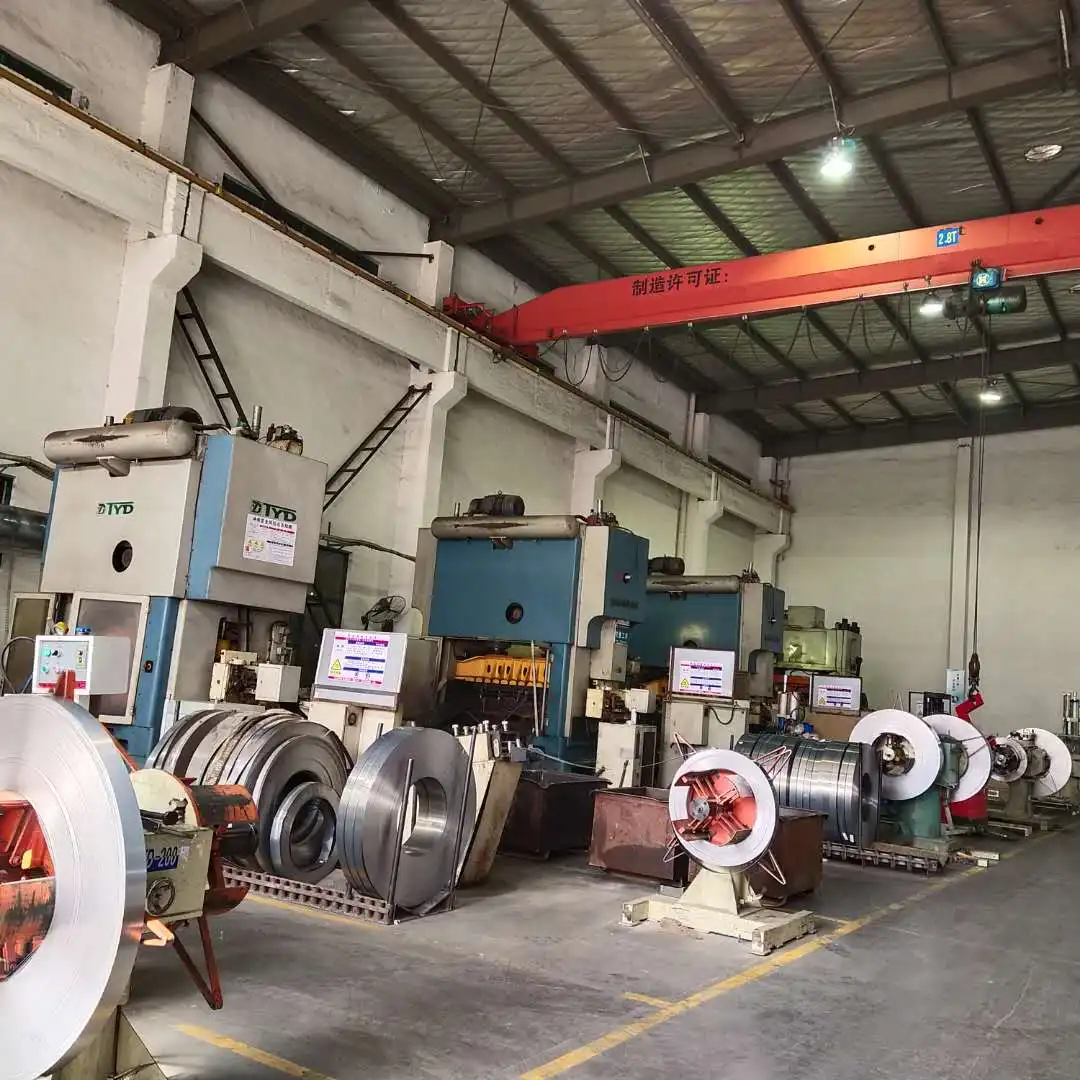

There are more than 70 presses and 300 sets of moulds, with an annual production capacity of 30,000 tons of silicon steel sheet .
At the same time of developing domestic business, we also expanding overseas business and our products has exported to Europe,
the United States, Japan, Latin America, southeast Asia, the Middle East and other countries.
We have got ISO9001 quality certificate and some other test reports .
Welcome customers and friends from all of the world to visit our factory any time!
Contact us:
Tel:+86 159 9532 9060 (wechat)
Email:sandy(at)jycjdq.com
FAQ:
1. Q: Can I get some samples?
A:Yes,sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Sample order needs 1-2 days. Formal order needs 7-14 days.
3. Q: What's your payment terms?
A: TT, LC, and DP.
4. Q: Do you have the prodcts in stock?
A:Yes,we will keep some general ones in stock.
5.Q: Can I mix different models in one container?
A: Yes, different models can be mixed up.
6.Q:Will you deliver the right products as I ordered? How can I trust you?
A: Sure,we could accept trade assurance on Alibaba, which will protect buyer's order.
