ZOOMLION HOWO SINOTRUK Truck Mounted Concrete Mixer ZOOMLION K6JB R
- Category: >>>
- Supplier: Achieve Innovations (Changsha) Co. Ltd.
Share on (1600069940489):
Product Overview
Description

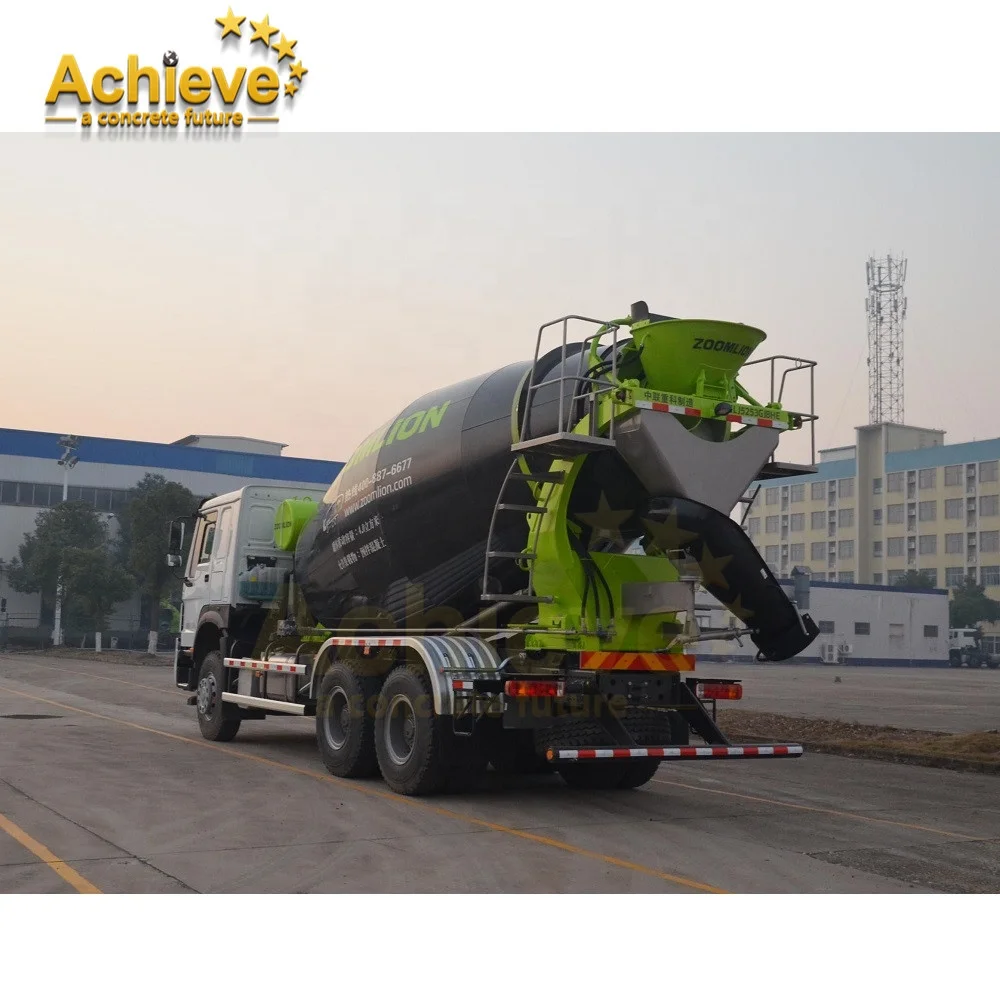

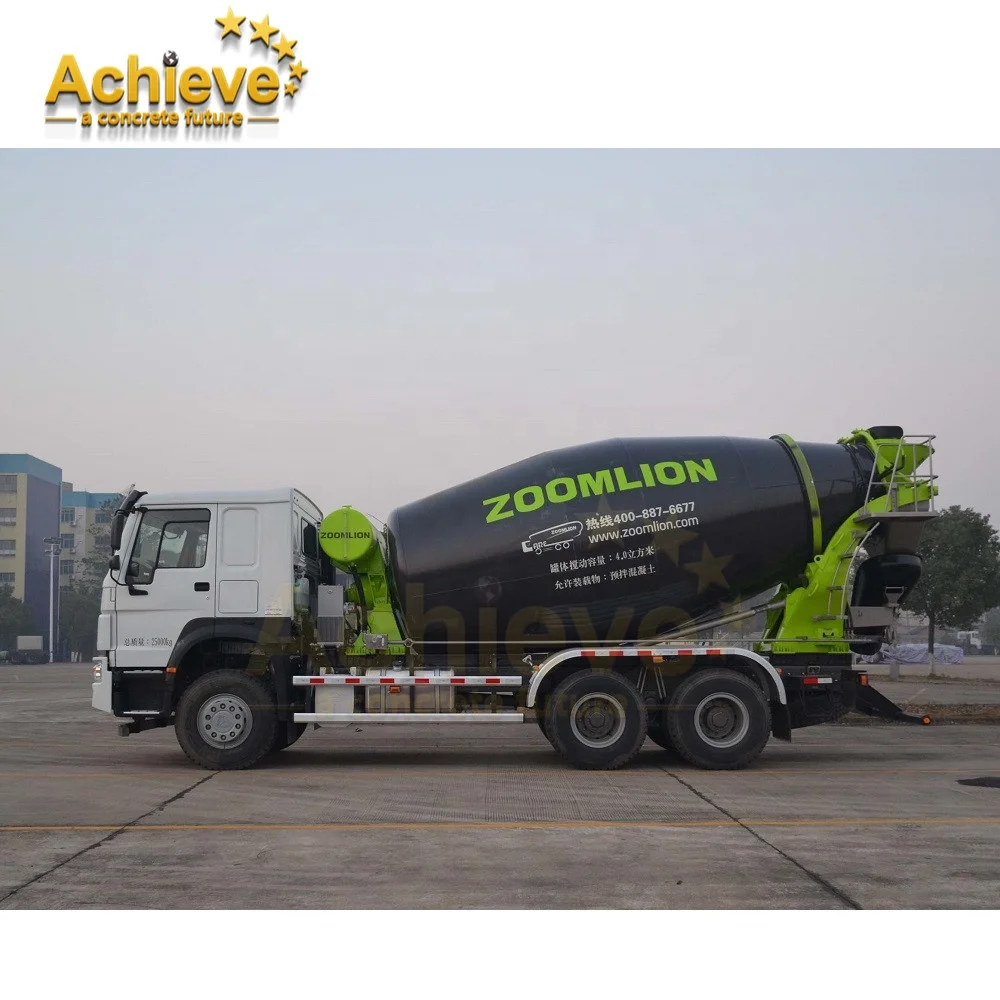

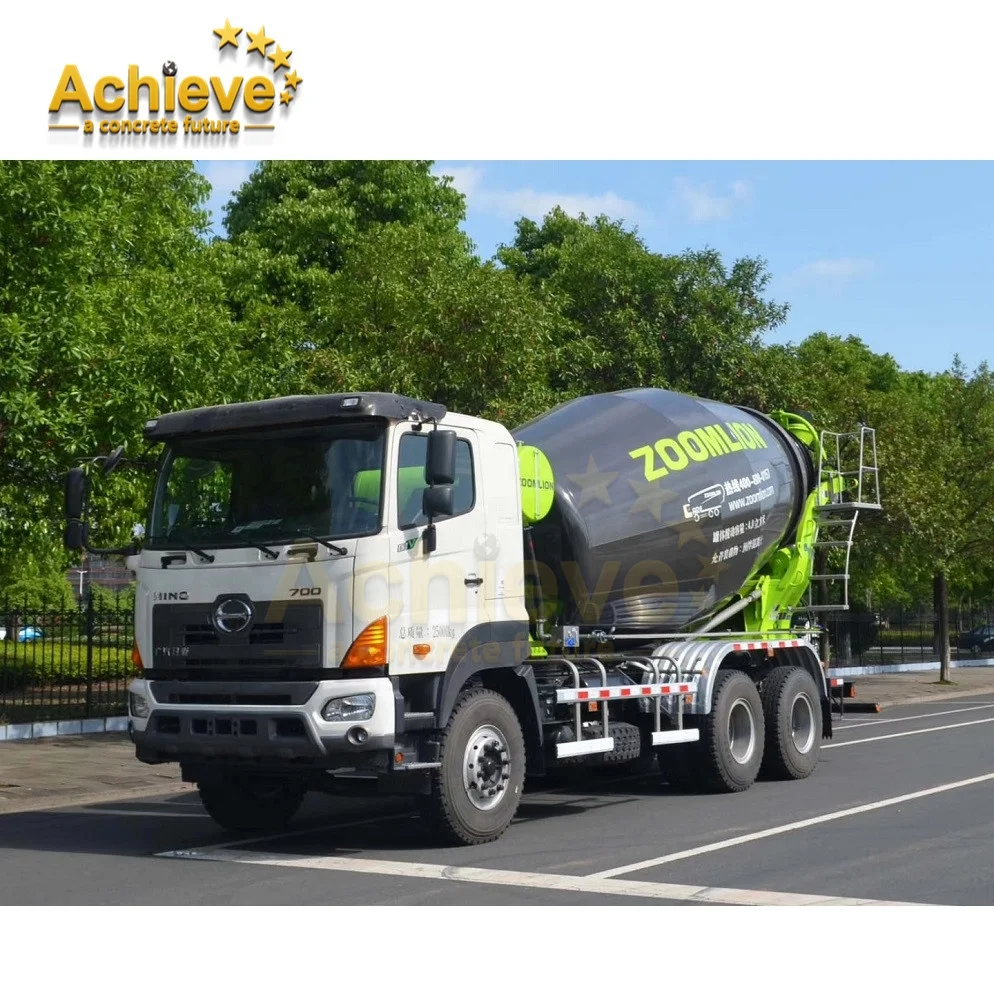

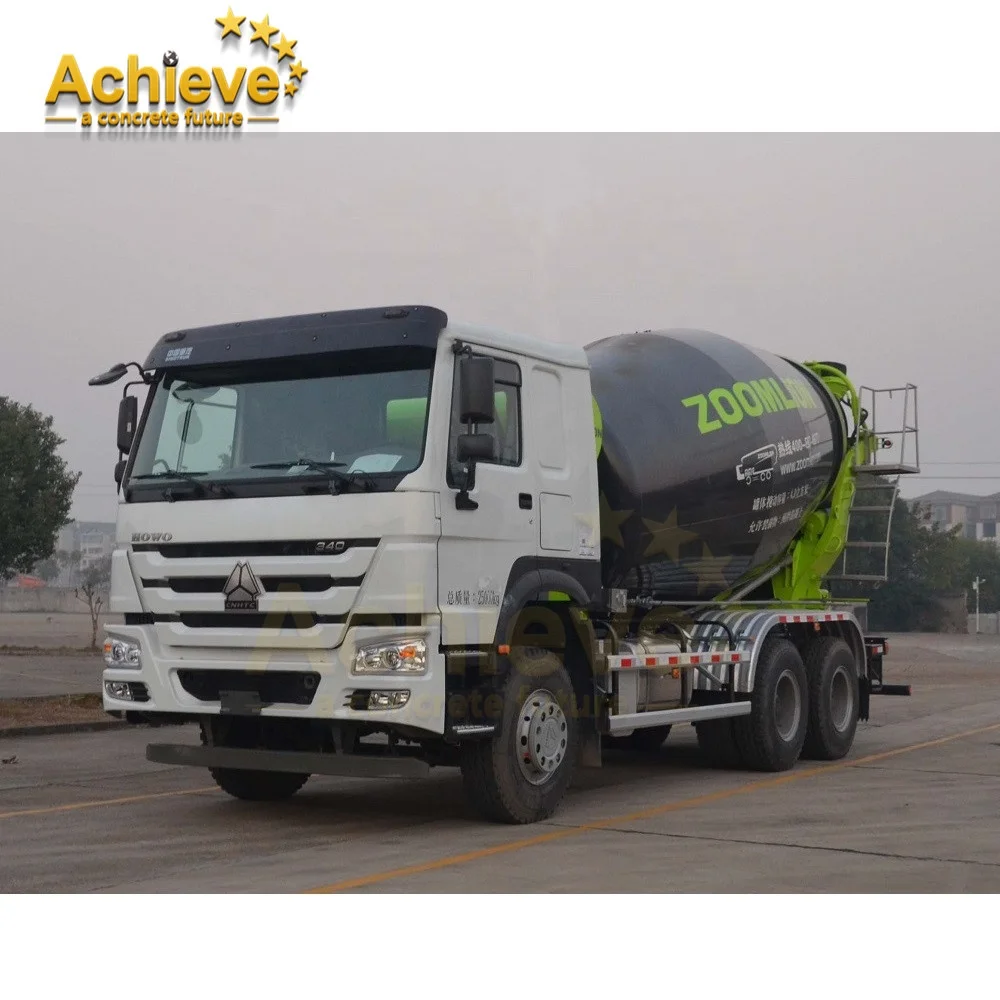

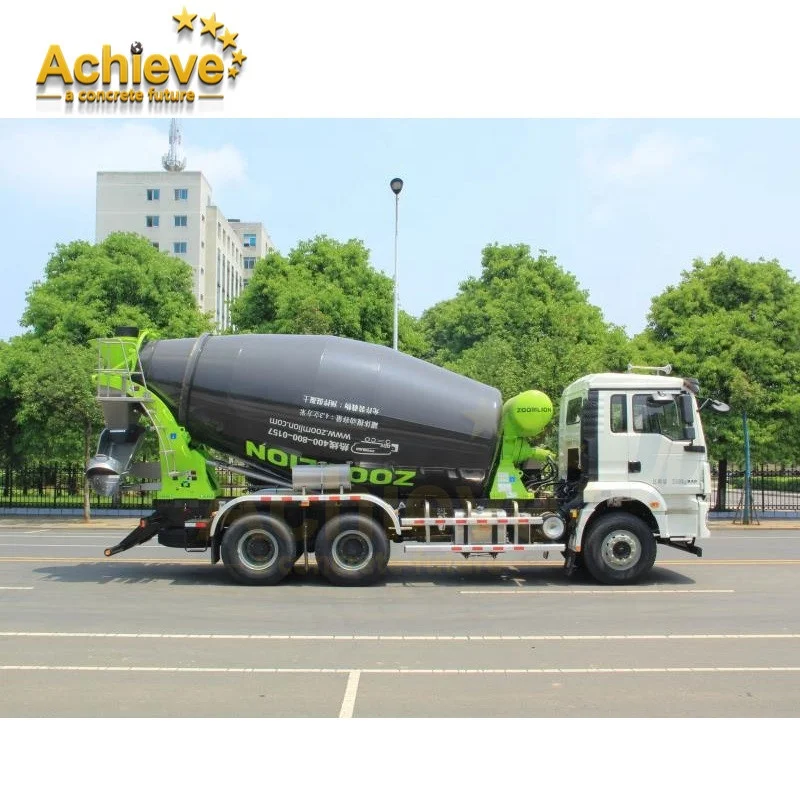

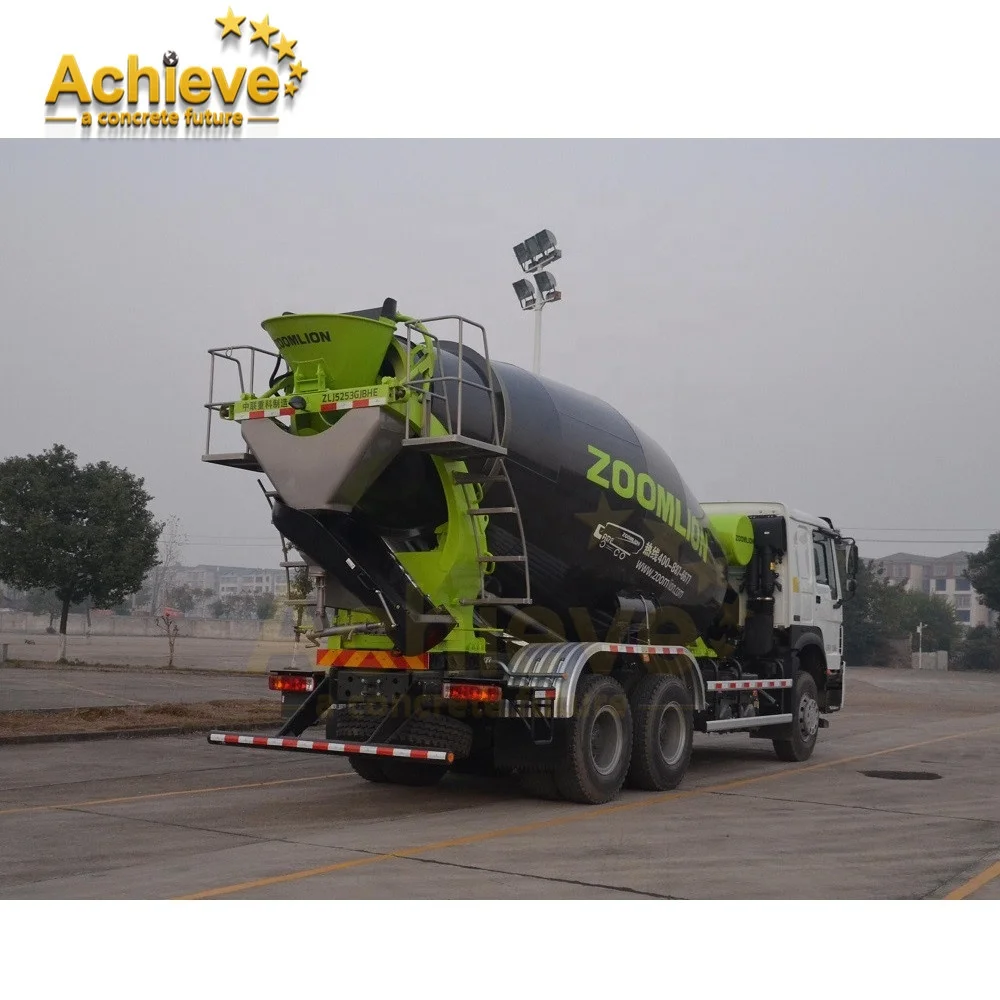

Zoomlion Concrete Mixer Machine 6m3 Mixer Truck (K6JB-R)
• Double Logarithmic Variable Pitch Helical Mixer Blade: which enables higher charing and discharging speed and even mixing, eliminates segregation of concrete and is suitable for the transportation of both dry and wet materials.
• New T-shape Blade technology. It is made of hard-wearing alloy steel, and thus protects the mixer blades from abrasion, extends the service life of the agitator drum, and enhances mixing performance.
• The geometric capacity of the agitator drum is very large and the filling rate is low, thus guaranteeing more mixing space. Thesmall inclined angle and low center of gravity help reducing the possibility of turning-over of the truck.
• Closed loop hydraulic system and constant hydraulic oil temperature controller. Key hydraulic accessories including: Hydraulic plunger pump, adjuster mechanism with servo, hydraulic motor, and planetary reducer, all of which are manufactured in world-known brands with stable and reliable performances.
• Pneumatic Water Supply System: The pressure is provided by the air tank on the chassis with pressure protection devices. The pressure is provided by the air tank on the chassis with pressure protection devices. The water inlet connector fits for both normal water pipe and fire fitting.
• Multi-outlet washing design of which the cleaning requirements are met with the three fixed pipes for washing the agitator drum, charging hopper and discharging hopper respectively, and another flexible water outlet.
• Three-point operation system: One in the cab to allow control of the agitator drum, to turn forward and reverse, and to perform the "feed", "discharging", "agitate" and "stop" functions. Two at the rear with one operation handle at each side to perform "charge", "accelerate", "discharge", "agitate" and "stop", all of which are interlocked.
• New T-shape Blade technology. It is made of hard-wearing alloy steel, and thus protects the mixer blades from abrasion, extends the service life of the agitator drum, and enhances mixing performance.
• The geometric capacity of the agitator drum is very large and the filling rate is low, thus guaranteeing more mixing space. Thesmall inclined angle and low center of gravity help reducing the possibility of turning-over of the truck.
• Closed loop hydraulic system and constant hydraulic oil temperature controller. Key hydraulic accessories including: Hydraulic plunger pump, adjuster mechanism with servo, hydraulic motor, and planetary reducer, all of which are manufactured in world-known brands with stable and reliable performances.
• Pneumatic Water Supply System: The pressure is provided by the air tank on the chassis with pressure protection devices. The pressure is provided by the air tank on the chassis with pressure protection devices. The water inlet connector fits for both normal water pipe and fire fitting.
• Multi-outlet washing design of which the cleaning requirements are met with the three fixed pipes for washing the agitator drum, charging hopper and discharging hopper respectively, and another flexible water outlet.
• Three-point operation system: One in the cab to allow control of the agitator drum, to turn forward and reverse, and to perform the "feed", "discharging", "agitate" and "stop" functions. Two at the rear with one operation handle at each side to perform "charge", "accelerate", "discharge", "agitate" and "stop", all of which are interlocked.
Truck Mixer 8JBJ-R
CIFA mixing drum Technology : The design of double logarithmic variable pitch mixing blade fully ensures the mixing uniformity and
ischarging speed.
"T-shaped" wear protection technology : improve the mixing performance and discharge capacity, and effectively prevent the
occurrence of radial cracks，The service life is increased by 20%.
Easy maintenance : Advanced easy-maintenance technologies, making maintenance time reduced by 50-75%.
Energy Saving : The fuel consumption is 6-8% lower than that of the industry.
The "abrasive" technology : the average life of feeding and discharging device is more than 30000 cubic meters.
ischarging speed.
"T-shaped" wear protection technology : improve the mixing performance and discharge capacity, and effectively prevent the
occurrence of radial cracks，The service life is increased by 20%.
Easy maintenance : Advanced easy-maintenance technologies, making maintenance time reduced by 50-75%.
Energy Saving : The fuel consumption is 6-8% lower than that of the industry.
The "abrasive" technology : the average life of feeding and discharging device is more than 30000 cubic meters.
Agitator Capacity
* 8 m³
Max. Rotation Speed
* 12-16 rpm
Power Rating
* 250/2200 kW/r/min
ZOOMLION K6JB-R | ||||||
Structure Parameter | Upper Structure Mass | kg | 4150 | |||
Dimensions(L×W×H) | mm | 5905×2500×2725 | ||||
P.T.O Type | Engine P.T.O | |||||
Water Supply Type | Air Pressure Type | |||||
Volume of Water Tank | L | 600 | ||||
Air Tank Joint | M22×1.5 | |||||
Drum Performance Parameter | Agitator Capacity | m3 | 6 | |||
Gradient of the Drum | o | 14 | ||||
Max Speed of the Drum | rpm | 12~16 | ||||
Charge Speed | m3/min | ≥4 | ||||
Discharge Speed | m3/min | ≥3 | ||||
Remnant Ratio of Discharging | % | ≤0.7 | ||||
Range of Slump mm | 50~210 | |||||
Hydraulic System | Pump | REXOTH Dextrorotatory A4VTG090 or others | ||||
Motor | REXOTH AA2FM80 or others | |||||
Gear Box | ZF P4300 or others | |||||
Hydraulic Circuit | Closed | |||||
→ A reliable supplier in the Concrete Machinery lndustry for Premium Quality China-made products
→ Specializing in Reconditioned Concrete Pumps & Batching Plants & Parts
→ A professional team with more than 15 years experience in Concrete Machinery lndustry
→ Qualified supplier of CEMEX and HANSON group
→ All team members are from ZOOMLION & SANY
→ Exported to 50+ countries
→ Specializing in Reconditioned Concrete Pumps & Batching Plants & Parts
→ A professional team with more than 15 years experience in Concrete Machinery lndustry
→ Qualified supplier of CEMEX and HANSON group
→ All team members are from ZOOMLION & SANY
→ Exported to 50+ countries
VR
Q1:Are you a manufacture or a trading company?
A1:We are a trading company since 2018 year.
Q2:What is your advantage? More than a decade,We have been focusing on concrete pump since.
A2:-Professionally and Highly remanufactured standard for used concrete pump machines.
-Providing competitive price for customer.
-Professional sales service availably.
Q3:What is your main products?
A3:Truck-mounted concrete pump, Concrete pump truck , Concrete line pump,Concrete mixer truck, and Concrete pump spare parts, Crane and Lubricate oil .we have the whole series products you need.
Q4:What kind terms of payment can be accepted?
Q5:What about the deliverv time?
A5:7-30 days after receving the deposit.
Q6:What about the warranty time?
A6:12 months after shipment or 2000 working hours.
Q7:What about the Minimum Order Quantitv?
A7:The MOQ is 1 pcs.
A1:We are a trading company since 2018 year.
Q2:What is your advantage? More than a decade,We have been focusing on concrete pump since.
A2:-Professionally and Highly remanufactured standard for used concrete pump machines.
-Providing competitive price for customer.
-Professional sales service availably.
Q3:What is your main products?
A3:Truck-mounted concrete pump, Concrete pump truck , Concrete line pump,Concrete mixer truck, and Concrete pump spare parts, Crane and Lubricate oil .we have the whole series products you need.
Q4:What kind terms of payment can be accepted?
A4:Normally we can work on T/T term or L/C term.
Q5:What about the deliverv time?
A5:7-30 days after receving the deposit.
Q6:What about the warranty time?
A6:12 months after shipment or 2000 working hours.
Q7:What about the Minimum Order Quantitv?
A7:The MOQ is 1 pcs.
