1080P Digital Wireless Camera System Reversing Aid Heavy Truck MDVR 256GB Quad Screen with 4PCS Camera System
- Category: Car Reversing Aid >>>
- Supplier: Shenzhen Xianghan Technology Co. Ltd.
Share on (1600069945154):
Product Overview
Description

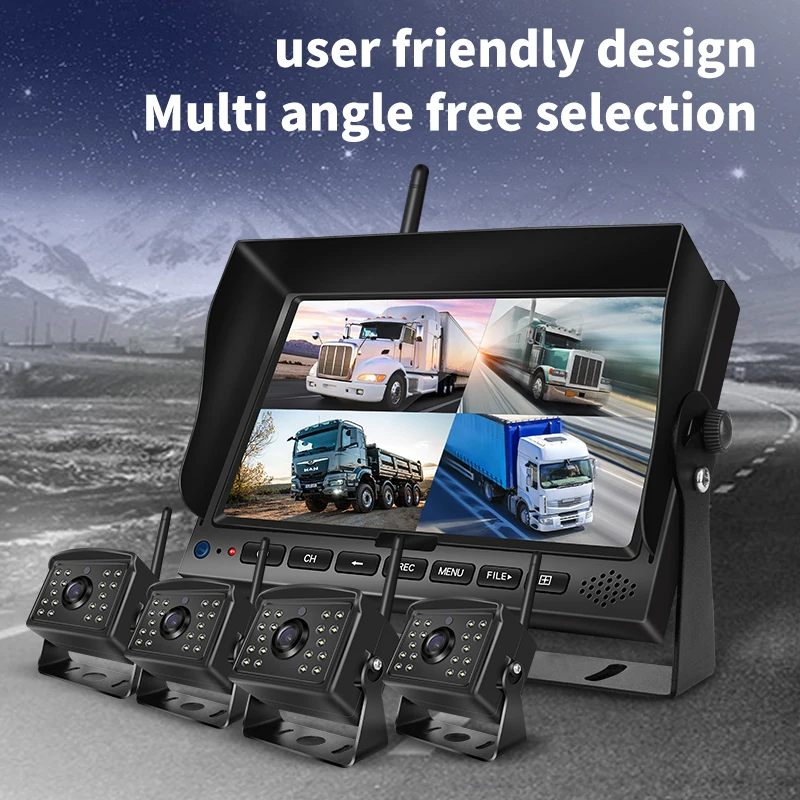

1080P Digital Wireless Camera System Reversing Aid System Heavy Truck MDVR Quad Screen with 4PCS Camera System
Product Description
Features:
1. 7inch LCD TFT monitor with 4 channels simultaneously real time live recording
2. 1080P Digital Wireless Signal transfer .
3. Cameras full-in glue , strong waterproof feacture
4. Cameras with IR Cut , No color difference for Day and Night Vision
5. Stable Signal Transfer for 1000M Distance
6. Support wide operating voltage range: 12-24V DC
7. IP67 waterproof design for working well in all adverse weather conditions
8 .Operating Temperature: -25℃~+65℃, for stable performance in low and high temperature
9 . System Kit: 1* 7inch wireless monitor, 4* wireless camera
Screen Specification :
| Screen Type | TFT-LCD |
| Screen size diagonal | 7 inch (16 : 9) IPS |
| Number of Pixels | 1080P , Digtal , Wireless |
| Screen backlight | LED |
| Brightness | 400cd/m2 |
| Viewing angle | 90-100 |
| Power supply | DC12V -24V |
| Power Consumption | MAX 250mA (12V) |
| Operating Frequency | 2.4GHz~2.4385GHz |
| Video Cooding | H.264 |
| Modulation Type | FSK/GFSK |
| Spread Spectrum | FHSS |
| RX Sensitivity | -89dBm |
| Delay | ≤200ms |
| Range | 1000m |
| TF-SD card: | Max.128G |
| System | PAL/NTSC/AUTO |
| Language Menus | Chinese/English |
| Image rotation | upper/lower/left/right |
| Operation Temperature | - 20 ~+70 ℃ |
| Storage temperature | - 30 ~+80 ℃ |
| Dimensions | 200(L)*120(W)*65mm(T) |
Camera Specification :
| Resolution | 1280*1080P |
| Frame Rate | 25fps/30fps |
| Video Format | H.264 |
| Operating Frequency | 2.4GHz~2.4385GHz |
| Output Power | 17dBm |
| Transmitting distance | 200m |
| Delay | ≤200ms |
| Sensitivity | 0 Lux (IR LED On) |
| Lens | 2.8mm |
| S/N Ratio | More than 44dB (AGC Off) |
| White Balance | AUTO |
| BLC | AUTO |
| Infrared LED | 18 LEDS |
| Power supply | DC12V |
| Power Consumption | MAX 300mA |
| Water Proof | IP67 |
| Operatiom Temprature | - 20 ~ 70 ℃ |
| Storage temperature | - 30 ~ 80 ℃ |
