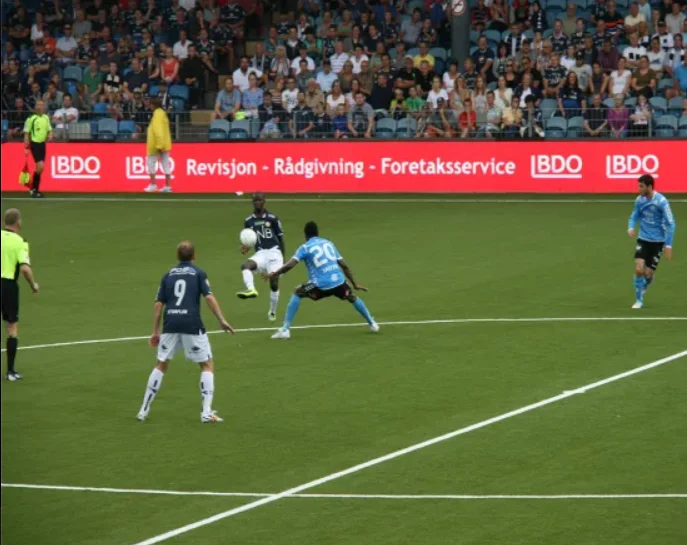

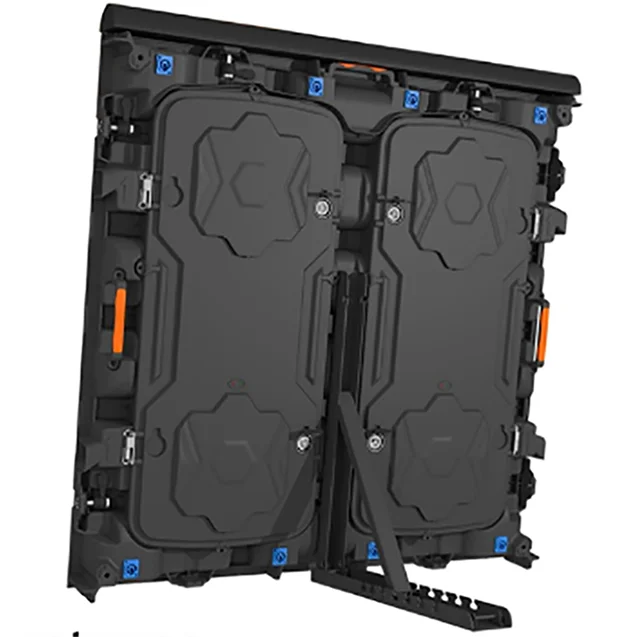

P6 P8 P10 960*960/768*1024 stadium fence led display/football perimeter led Panel/stadium electronic advertising
- Category: >>>
- Supplier: Shenzhen Huaxintong Photoelectric Technology Co. Ltd.
Share on (1600070212944):
Product Overview
Description
Related Products
Product Description
Parameters | P6 | P8 | P10 |
Pixel Pitch(mm) | 6mm | 8mm | 10mm |
Pixel Conguration | SMD 2727 | SMD 3535 | SMD 3535 |
Pixel Matrix per Panel(dots) | 32 x 32 dots | 32 x 16 dots | 32 x 16 dots |
Pixel Density(dots/m²) | 27,777 dots/m² | 15,625 dots/m² | 10,000 dots/m² |
Cabinet Size(mm) | 960 x 960 x 65mm | 1024 x 1024 x 65mm | 960 x 960 x 65mm |
Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
Panel Weight(kg/panel) | 5.6 kg/panel (12.3 lb/panel ) | 5.6 kg/panel (12.3 lb/panel ) | 5.6 kg/panel (12.3 lb/panel ) |
Color Depth(Bit) | 14 bit | 14 bit | 14 bit |
Refresh Rate(Hz) | ≥1920Hz | ≥1920Hz | ≥1920Hz |
Driver Method/scan | Scan 1/8 | Scan 1/4 | Scan 1/2 |
Brightness(nits) | 900nits, adjustable | 900nits, adjustable | 900nits, adjustable |
Horizontal Viewing Angle(°) | 160 ° | 160 ° | 160 ° |
Vertical Viewing Angle(°) | 160 ° | 160 ° | 160 ° |
AC Power Input(V) | AC110V~ 220V ±10% | AC110V~ 220V ±10% | AC110V~ 220V ±10% |
AC Power Frequency(Hz) | 50 ~ 60 Hz | 50 ~ 60 Hz | 50 ~ 60 Hz |
Max. Power(W/m²) | 550 W/m² | 550 W/m² | 550 W/m² |
Avg. Power(W/m²) | 180 W/m² | 180 W/m² | 180 W/m² |
Storage/Operating Humidity(RH ) | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH |
IP Rating(IP ) | IP68 / IP68 | IP68 / IP68 | IP68 / IP68 |
Lifetime Typical Value(Hrs) | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
Installation Type | Fix , Front installation | Fix , Front installation | Fix , Front installation |
Maintenance Method | Front & Rear serviceable | Front & Rear serviceable | Front & Rear serviceable |
Certications | TUV-CE,ET | TUV-CE,ET | TUV-CE,ET |
Packing&Shipping
Certifications

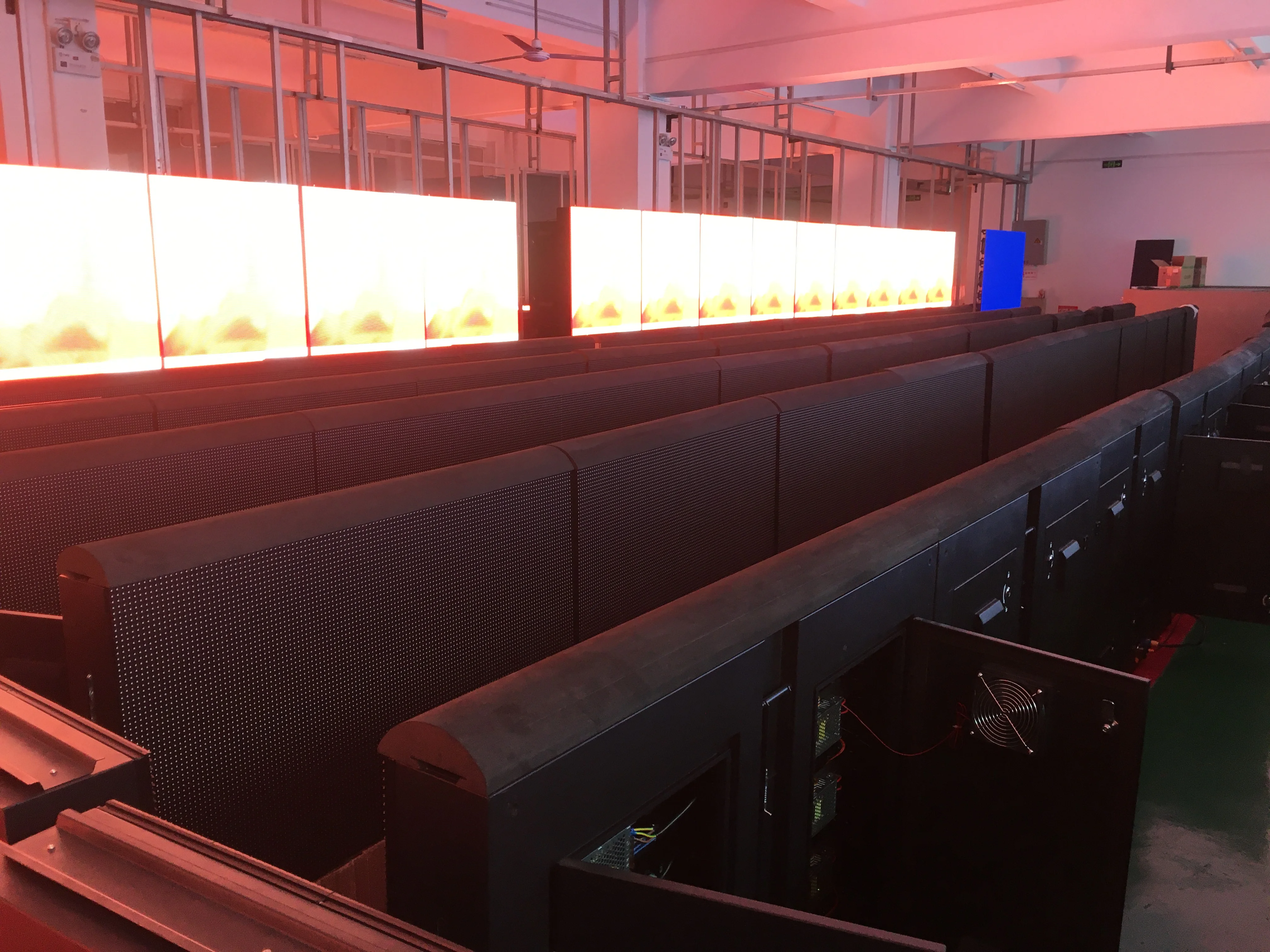

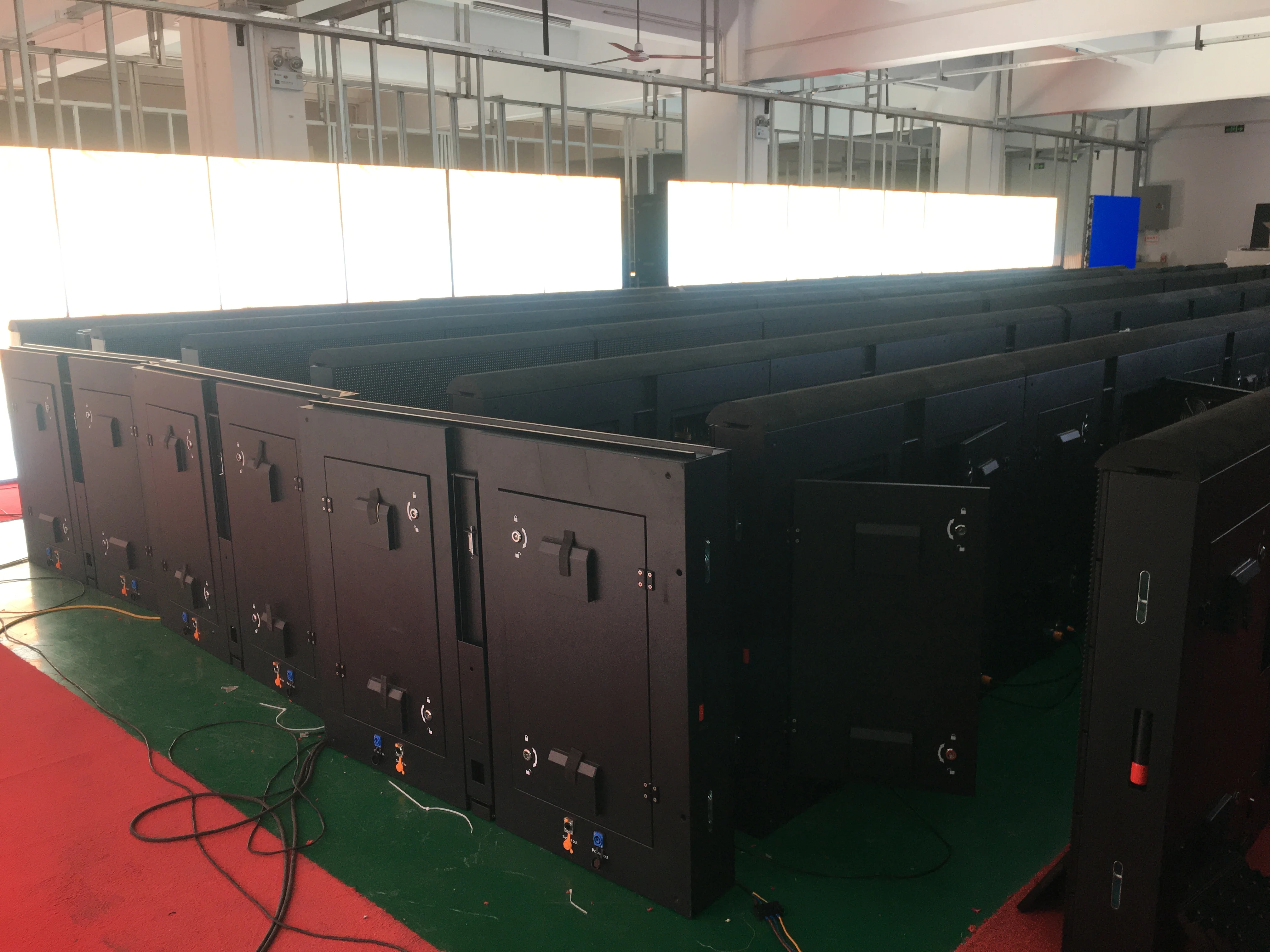

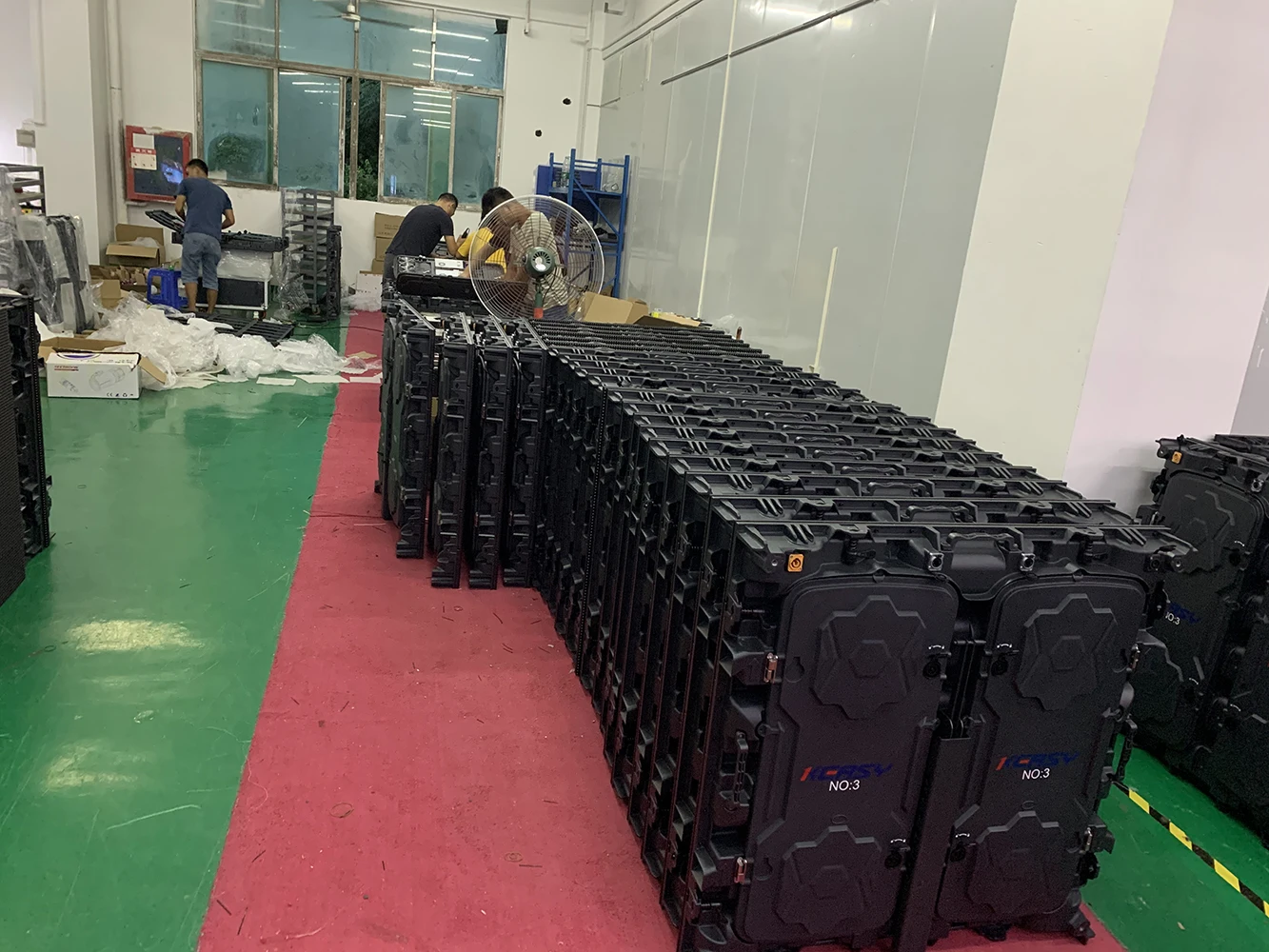

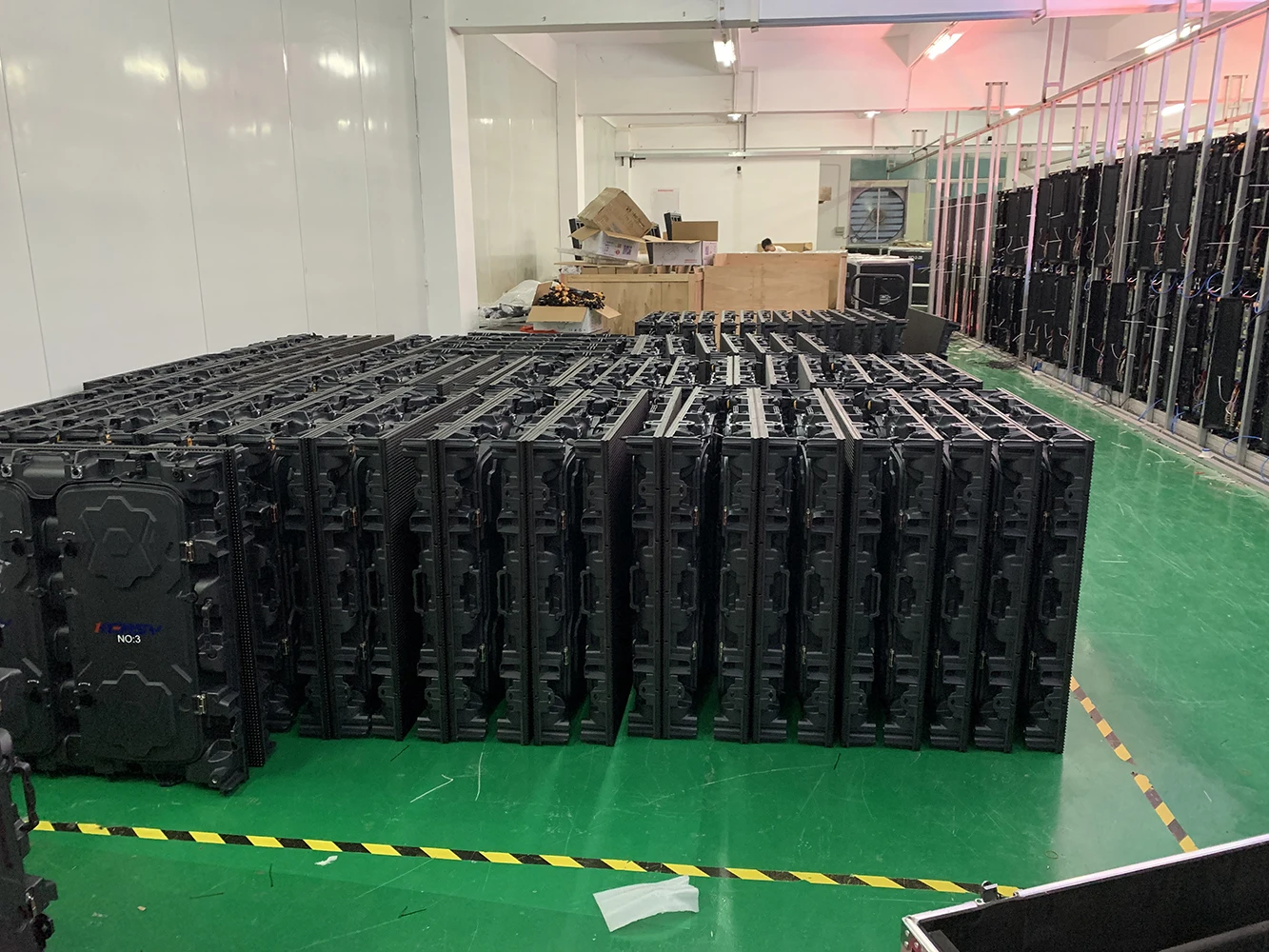

Our Factory
