MYCUT mini plotter mobile phone screen protector film cutting machine
- Category: >>>
- Supplier: Huansheng Intelligence (shenzhen) Co. Ltd.
Share on (1600070387271):
Product Overview
Description
Product Description

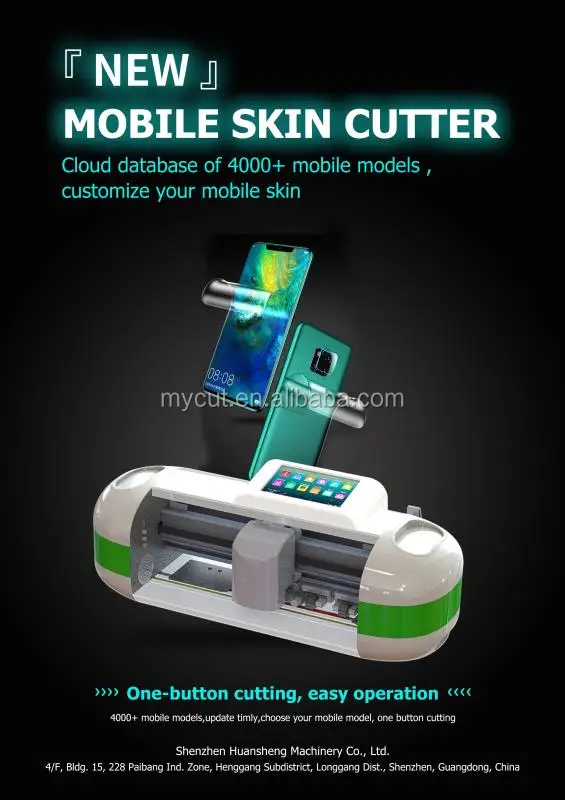

MYCUT mini plotter mobile phone screen protector film cutting machine
Main Features:
1. Integrated carriage head board and imported grit roller make it strong and high precision;

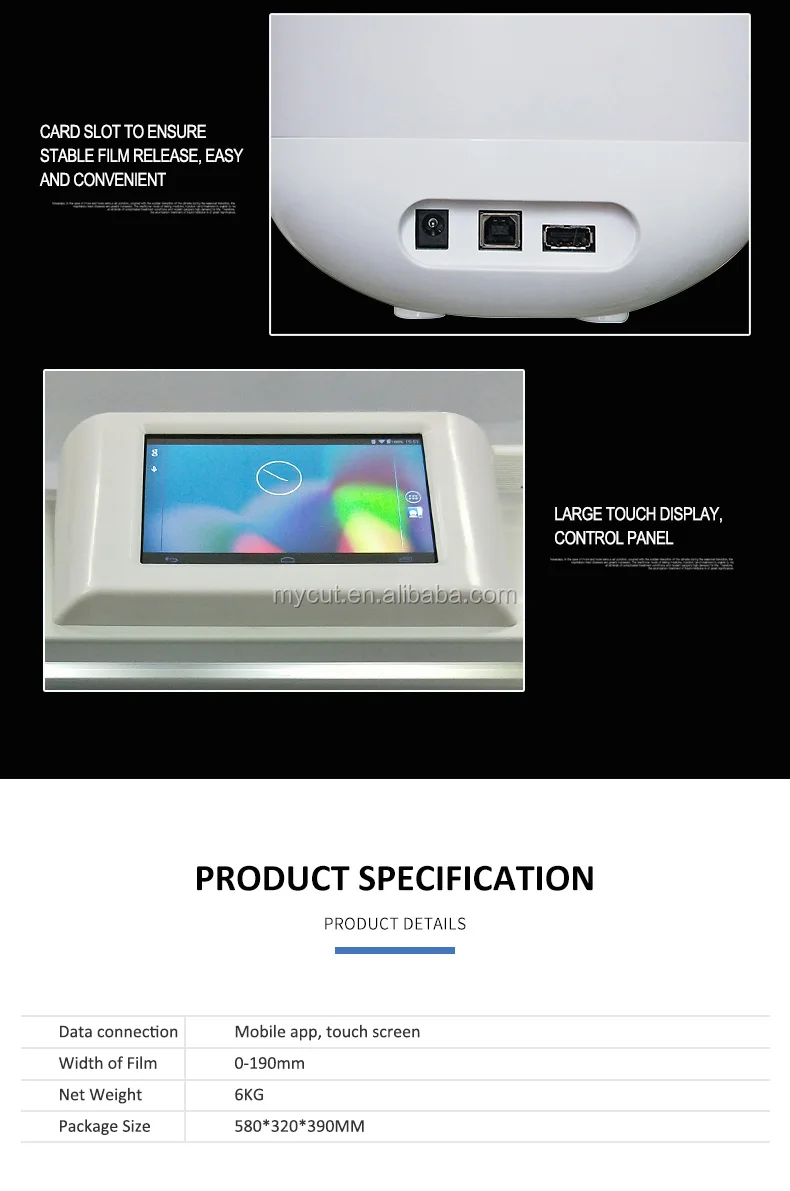

2. Touch screen provides easy operation;
3. High performance 32-bit processor, ARM Cortex-M3;
4. High accuracy machine structure allows to cut without distortion;
5. Optional MP3 function can listen to music freely;
6. Low noise:whisper quiet motor perfect for home&office use;
2. Touch screen provides easy operation;
3. High performance 32-bit processor, ARM Cortex-M3;
4. High accuracy machine structure allows to cut without distortion;
5. Optional MP3 function can listen to music freely;
6. Low noise:whisper quiet motor perfect for home&office use;
Model | MT180T screen protector cutting machine |
Main Board | High-performance & intelligent ARM 32 CPU; 256MB memory |
Driver | High speed stepper motor, micro-step driver |
Data Connection | APP, cloud operation |
Max Cutting Speed | 500mm/s |
Cutting Width | 0-190mm |
Cutting Force | 0-600g |
Repeatable Precision | 0.05mm |
Plotter Instruction | DM-PL/HP-GL Automatic Identification |
Power Supply | AC110V /220V±10%, 50Hz/60Hz |
Noise at Work | ≤50 DB |
External Dimension | 580*320*390mm |
Shipping Weight | 6KG |
Packaging & Shipping
Standard Accessories:
1*cutter,
1* power cable,
1* knife holder,
3* knives,
1* user manual
Standard Packing
With great quality Foam and Carton Packing
Make sure the machine won't be damaged during shipping
Delivery Info
within 7 days for order less than 100 units.
Within 15 days for order more than 100 units.
Our Services
1.One year free warranty, main parts are free charge when damaged during the guarantee period.
2.Free training course at our factory with professional engineers.
3.We provide the consumable parts at agent price when you need replacement
4.24 hours online service each day, free online technical support.
Company Information
Shenzhen Huansheng Machinery Co.,Ltd is a professional manufacturer of mini vynil cutter, cutting plotter, flatbed cutting machine, roll to roll cutting machine and other CNC equipment. Our factory comply with ISO9001: 2008 quality control as the production standards, insists to test every machine meticulously in the workshop. And our professional team offer customers with comprehensive and thoughtful service. For all our vinyl cutter,engraving machine and CNC equipment, we can guarantee strict test before delivery.
FAQ
1. Q: How long does it take to cut a screen protector?
A: About 30 seconds.
2. Q:How many screen protectors can be cut by one blade?
A:One blade can cut 450-500pcs, it depends on the size of screen.
3. Q:What makes the machine cut abnormal, or incomplete after put the screen protector into it?
A: please check if the screen protector is put well at the machine; Check if the pinch roller is pressed up; Check if the blade is installed right.
4. Q: There are saw teeth at the edge of the cut film, how to deal with?
A: (1) Power off,and remove the blade holder, check whether there is something at the knife needle
(2) Remove the knife needle, reinstall it, and adjust the scale of the knife backward by one gear, then cut again
(3)Change knife needle. (4)Slow down the cutting speed.
5. Q: The model I want cut don’t have, what to do?
A: 1. We have more than 3000 mobile models , can meet 95% of mobile phone models on the market.
2. At the same time, we will continue to collect mobile phone model data in the future.
3. As for the unavailable models, you can collect and report to us first, we will update them first, generally within 24 hours
6. Q:What should be paid attention to in the process of using the die cutting machine?
A: (1) After installing the blade, don't press the holder to prevent breaking the knife tip.
(2) After power on, wait for the carriage return to place before placing the film.
(3) The position of the pressure bar on pinch roller can be adjusted according to the thickness of the film.
