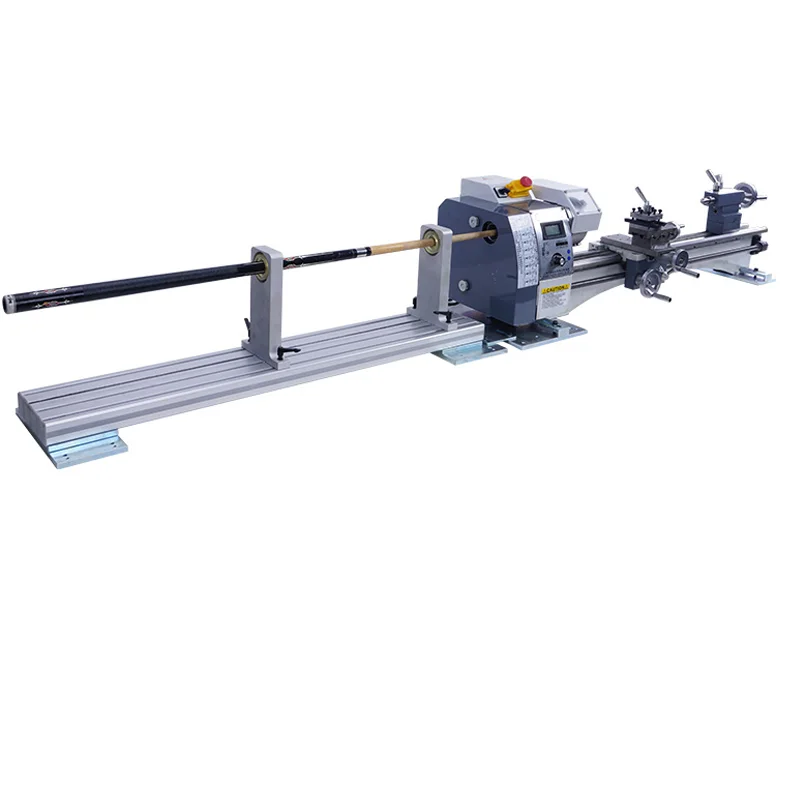

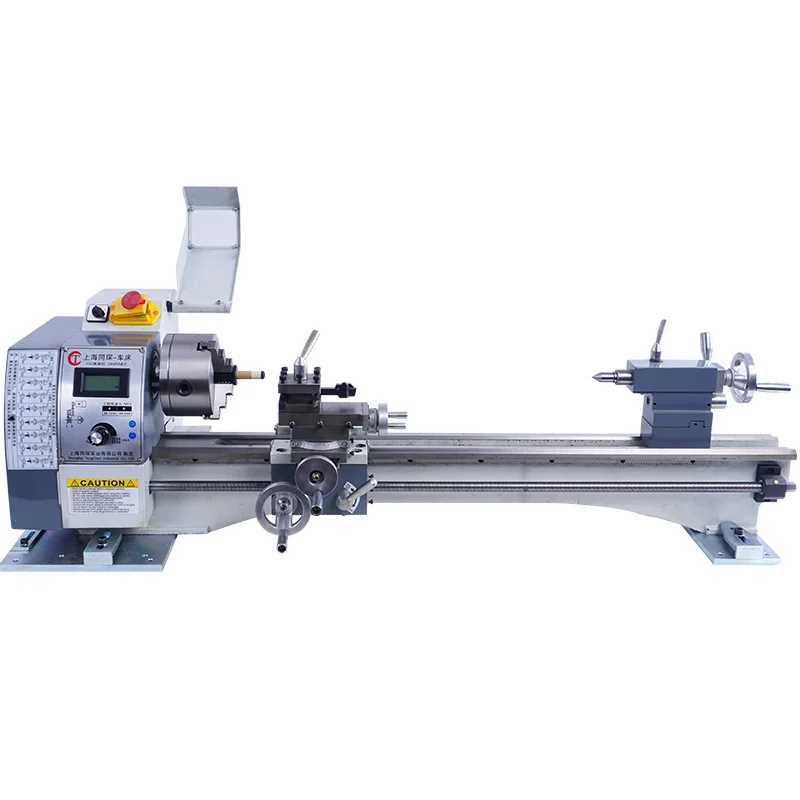

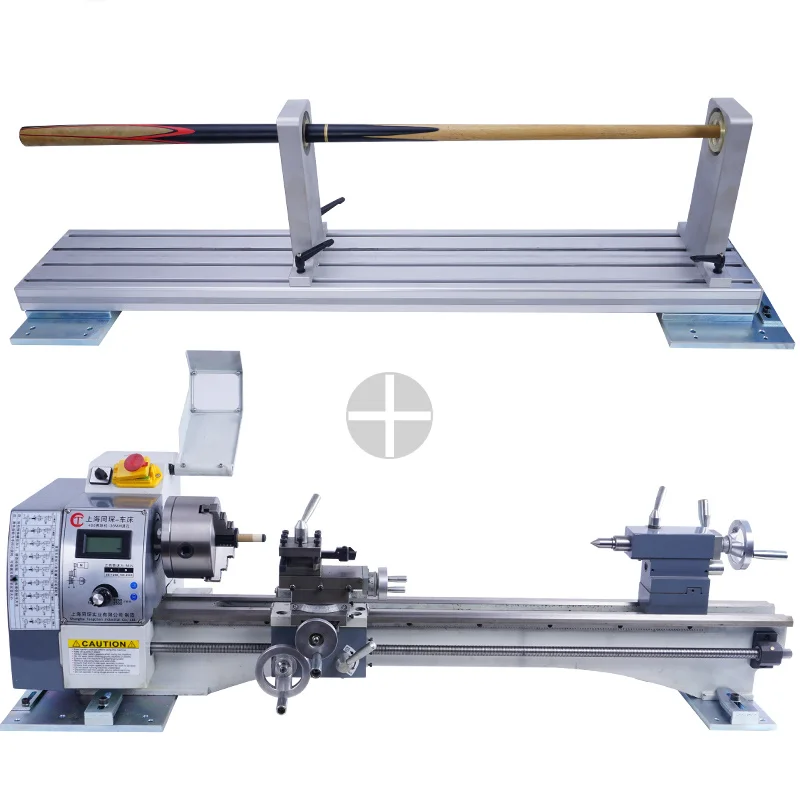

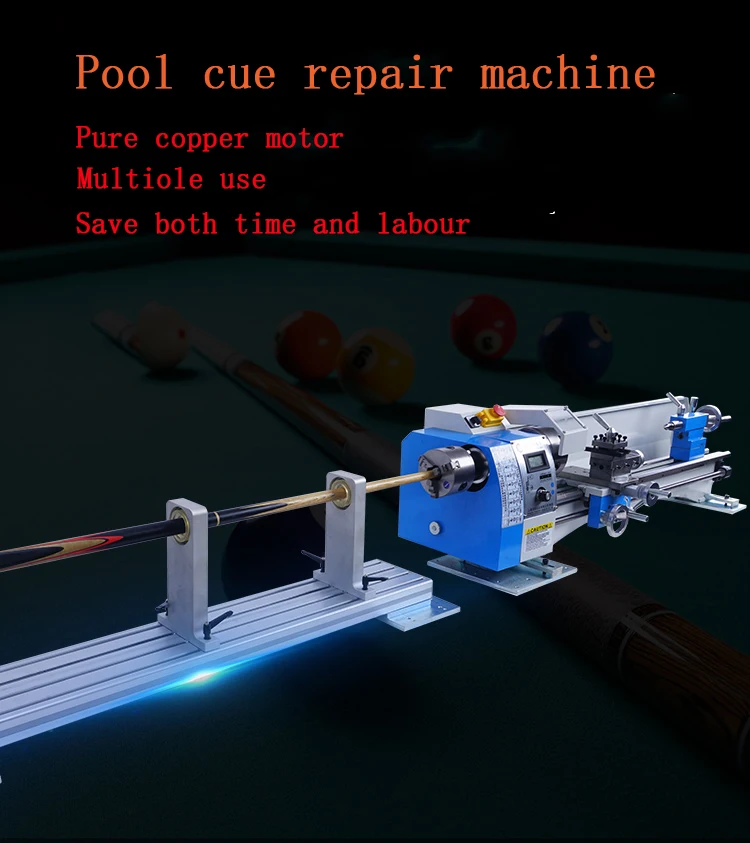

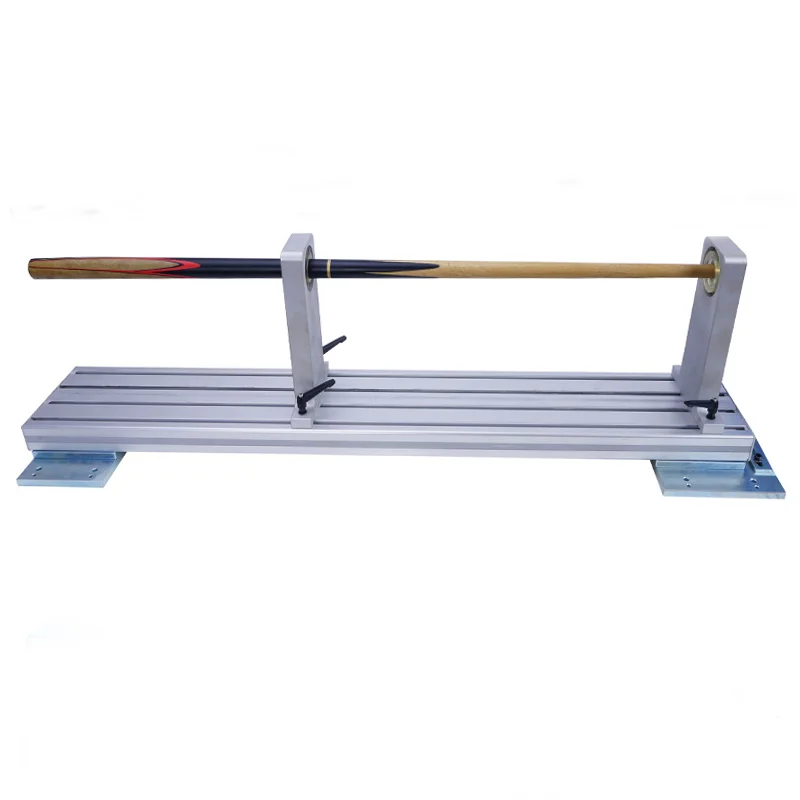

210 Horizontal Extension Aluminum Alloy Billiard Cue Repair Machine
- Category: >>>
- Supplier: Shanghai Tongchen Industrial Co. Ltd.
Share on (1600070533480):
Product Overview
Description
Product Description
Name | 210 Conventional version | 210 extension version | 210 Extended double front |
voltage | 220V 50Hz | 220V 50Hz | 220V 50Hz |
power | 750W | 750W | 750W |

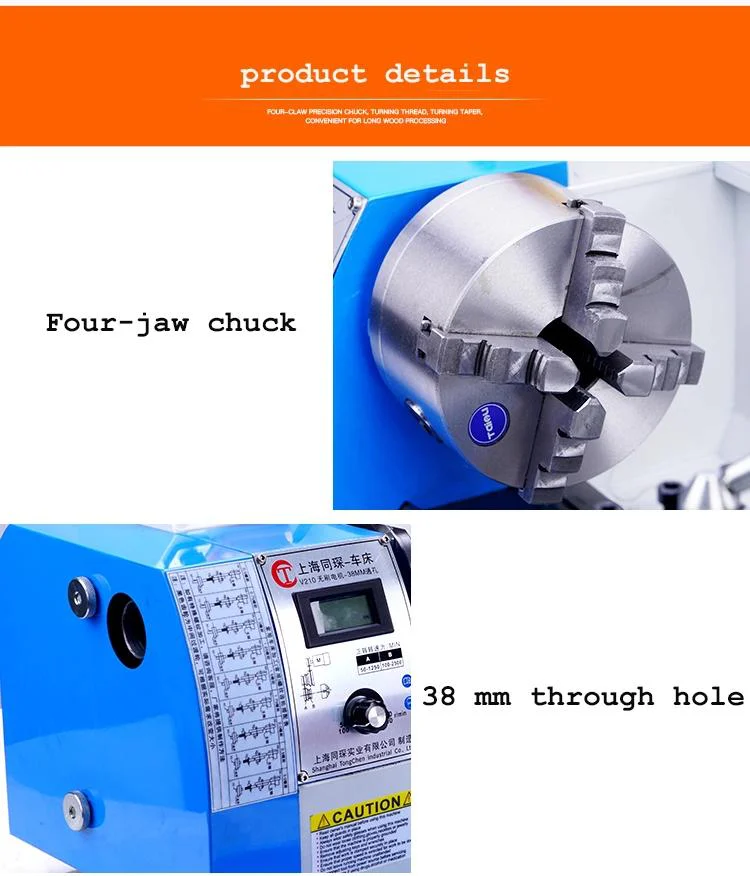

Spindle Through Hole | 38mm | 38mm | 38mm |
Spindle speed | 50-2500 rev/min | 50-2500 rev/min | 50-2500 rev/min |
Shift level | Infinitely variable speed | Infinitely variable speed | Infinitely variable speed |
Machine accuracy range | <10s | <10s | <10s |
Tool holder swing diameter | 100mm | 100mm | 100mm |
Bed turning diameter | 180mm | 180mm | 180mm |
Two tip distance | 400mm | 400mm | 400mm |
Spindle bore taper | Mohs 3 | Mohs 3 | Mohs 3 |
Tailstock shaft taper | Mohs 2 | Mohs 2 | Mohs 2 |
Chuck maximum clamping | 120mm | 120mm | 120mm |
125 chuck | 125 chuck | 125 chuck | |

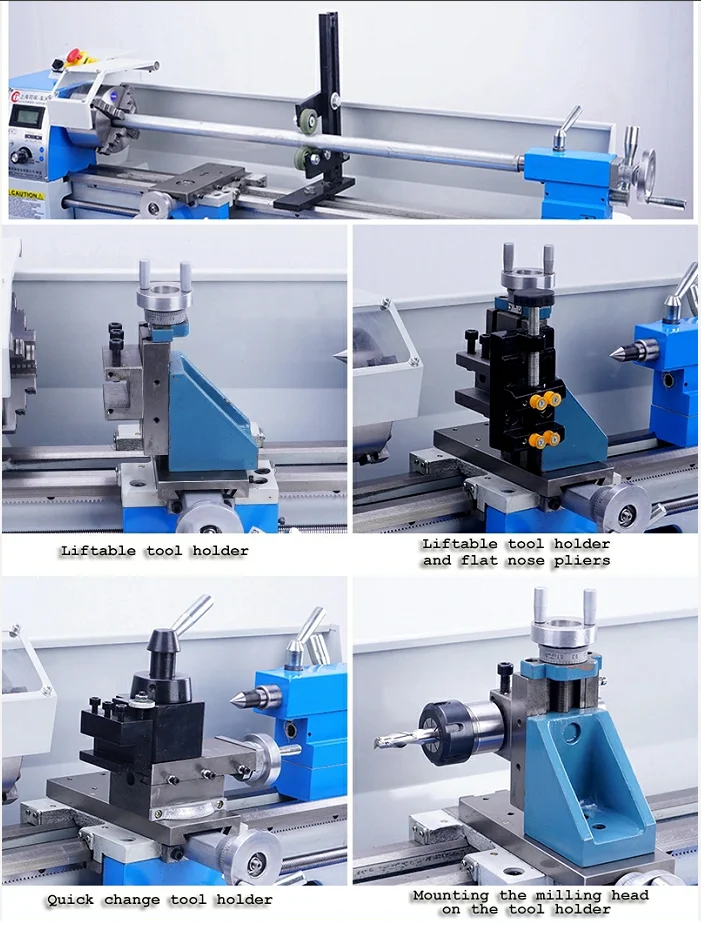

Tool holder station | 4 stations | 4 stations | 4 stations |
Tool holder maximum stroke | 55mm | 55mm | 55mm |
Middle tray travel | 75mm | 75mm | 75mm |
Large tray travel | 276mm | 276mm | 276mm |
Tailstock sleeve stroke | 60mm | 60mm | 60mm |
Automatic feed range | 0.1-0.2mm | 0.1-0.2mm | 0.1-0.2mm |
Lathe length | 800mm | 1200mm | 1300mm |
Lathe width | 390mm | 390mm | 390mm |
Lathe height | 370mm | 370mm | 370mm |
Lathe gross weight | 75kg | 82kg | 90kg |

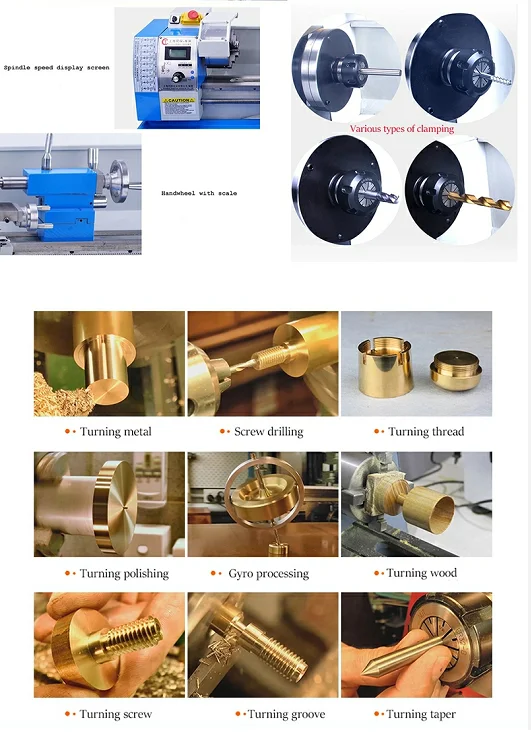

Detailed Images
FAQ
1.what is the shipping date?
After the formal order is established, we will ship within 15 days
2.How long is the product warranty?
Motor warranty for one year
After the formal order is established, we will ship within 15 days
2.How long is the product warranty?
Motor warranty for one year
