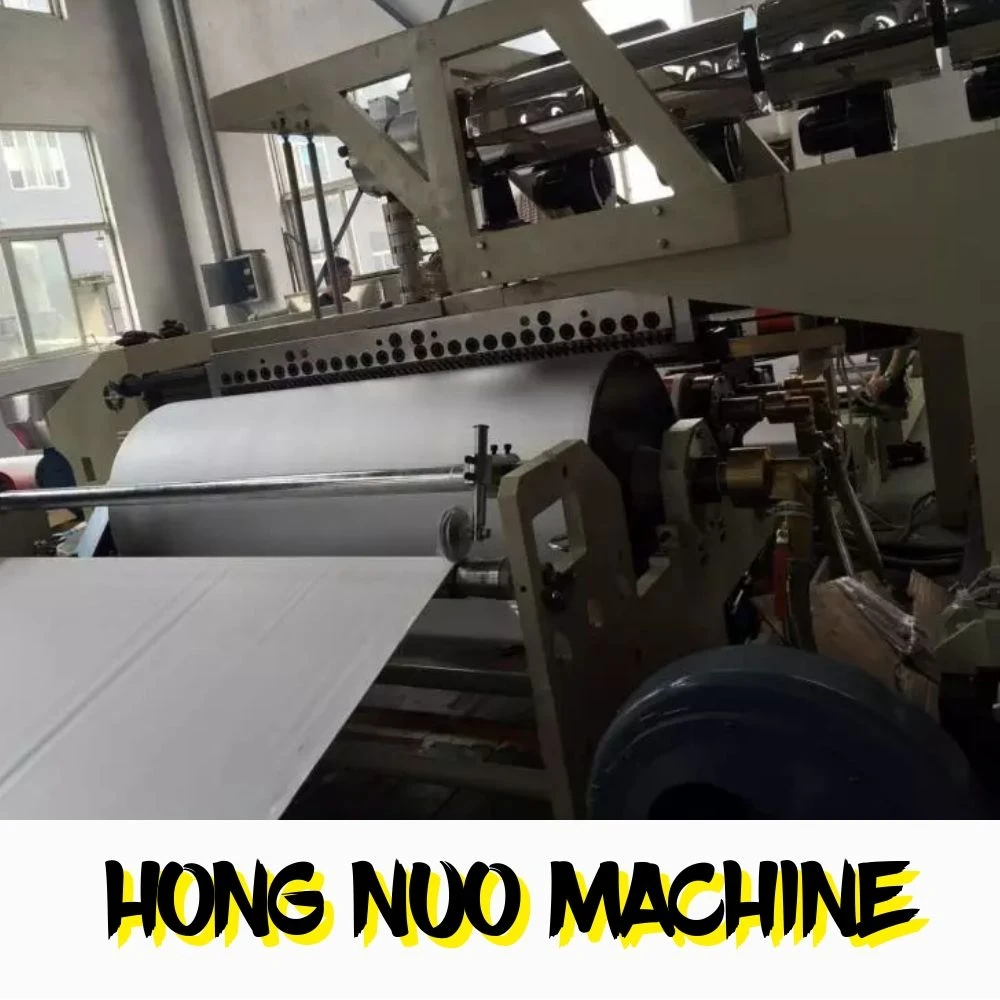

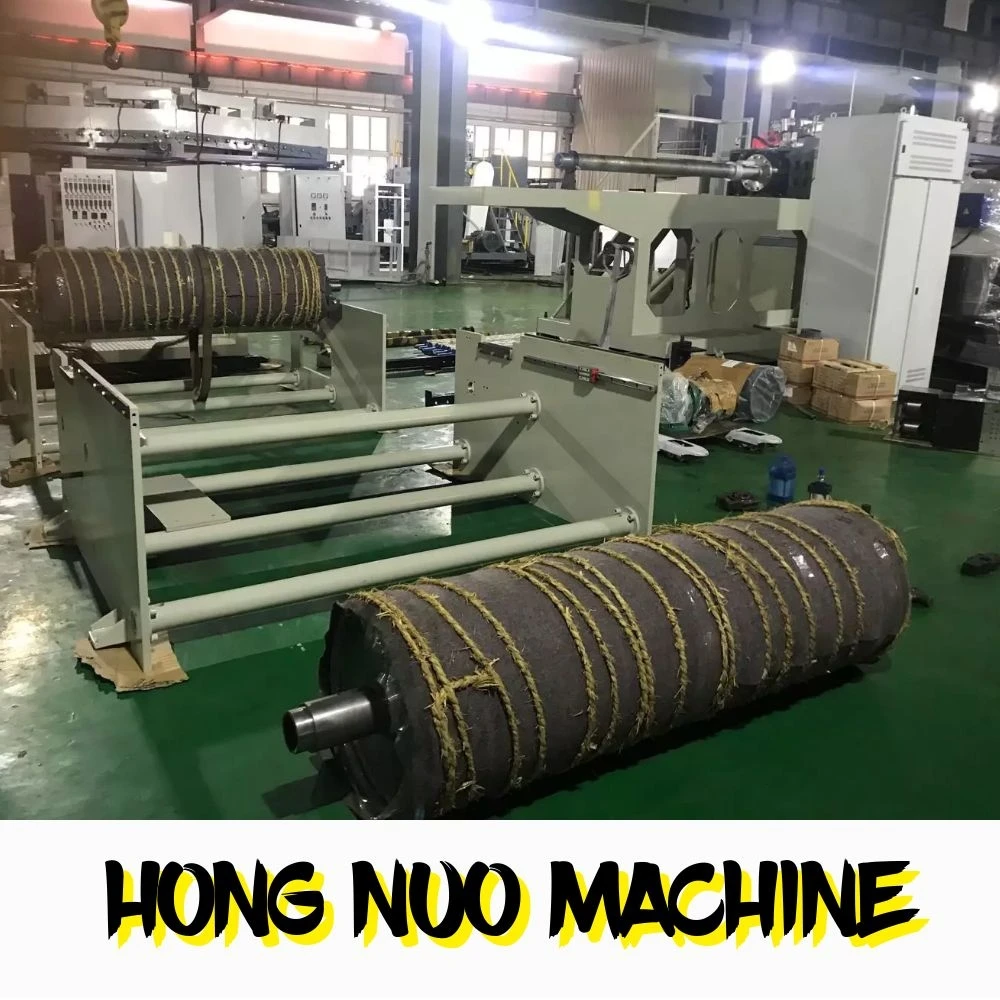

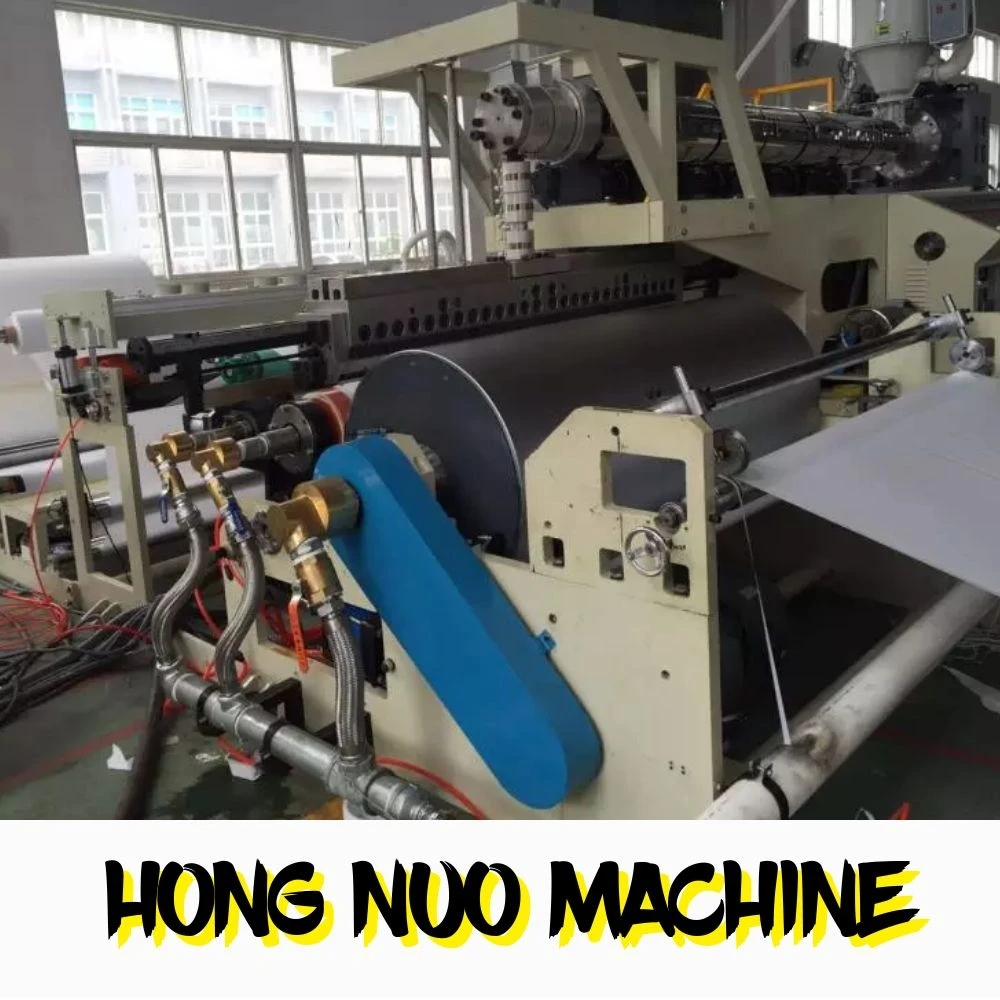

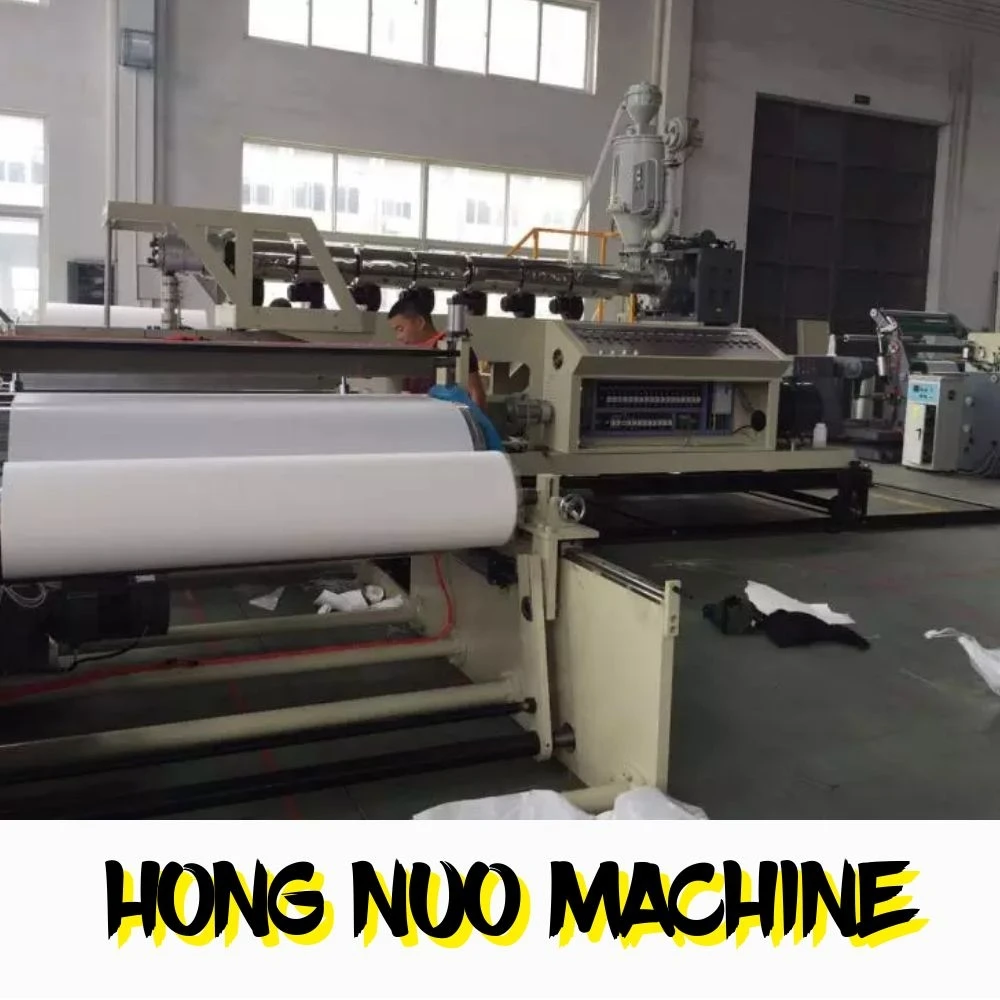

non woven and BOPP laminator machine
non-woven and BOPP laminator machine
non-woven and BOPP laminator machine
non-woven and BOPP laminator machine
non-woven and BOPP laminator machine
non-woven and BOPP laminator machine
non-woven and BOPP laminator machine

non woven and BOPP laminator machine

Share on (1600070728596):


Price:RUB 4,013,663.40 - RUB 5,946,168.00

Quantity:


Product Overview

Description

NONWOVEN LAMINATING COMPOUNDING MACHINE

Machine brief description

Using Lamination Grade material as LDPE and PP, this machine can laminate not only on Non-Woven and Woven Fabric, but also can do lamination work on Paper base product.

Highlight

  1. Machine can do stable coating at speed 80-120M/Min.
  2. Automatic Tension and EPC, Reduce Labor cost.
  3. Special Custermized Options, allow clients to modify what is needed.

Product parameters

Model BJLM1300/80 BJLM1600/90
Screw Dia φ80 mm φ90 mm
L/D 33:1 33:1
Coating Width 600-1200mm 900-1500mm
Coating Thickness 0.01-0.10 mm 0.01-0.10 mm
Designed Line Speed 120 m/min 120 m/min
Max Extrusion 150kg/h 180kg/h
Main Motor 30 kw 37 kw
Total Power 77kw 98kw
Main Un-Winder ≤φ1200 mm ≤φ1200 mm
2nd Un-Winder ≤φ500 mm ≤φ500 mm
Winder ≤φ1200 mm ≤φ1200 mm
Weight 6000kg 7000kg
Overal Demension 7400×7000×3200 mm 7400×7500×3200 mm
Power Supply 380V/3P/4L/50Hz 380V/3P/4L/50Hz

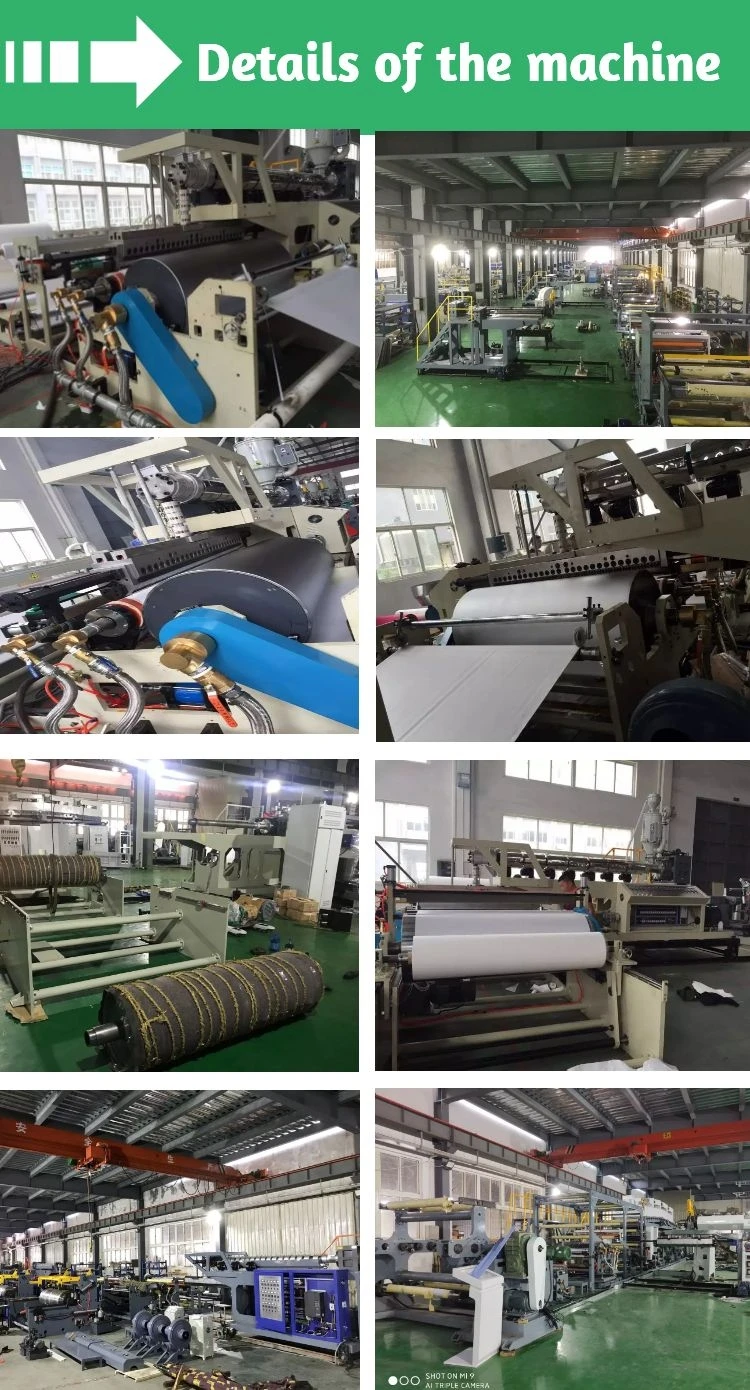

Machine details
