stepper motor portable peristaltic pump for laboratory l

Product Overview

Description

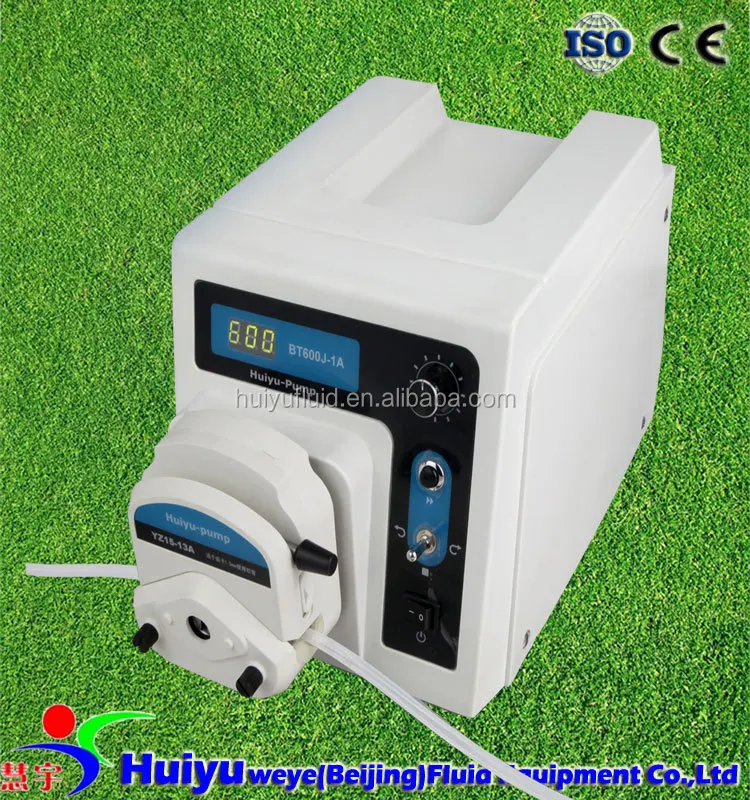

  Beijing Huiyu 2280ml liquid Peristaltic Filling Pump

Technical parameter
   Speed: 1 to 600 rpm, reversible
    Speed resolution: 1 rpm
    Speed control: rotary encoder switch, acceptable external control and communication control
    Display: 3-digit LED displays current speed
    Analog interface: Start/stop and cw/ccw control, 0 to 5 V, 0 to 10 V, 4 to 20 mA and 0 to 10 KHz speed control
    Communication interface: RS485
    Memory function: Storing the running parameters automatically
    Prime button for fast filling and emptying
    Dimensions (L×W×H): 285×207×180 (mm)
    Power supply: AC 90V-260V/100W
    Operating condition: Temperature 0 to 40℃ Relative humidity < 80%
    IP rating: IP 31
    Drive weight: 3.8 kg

Technical Data Sheet

Pump head	Pump head model	Available tubing	flow rate range (ml/min)
	YZ15-l3A	13#, 14#, 19#, 16#, 25#, 17#, 18#  wall thickness:1.5mm	0.07-2200ml/min
	YZ25-l3A	15#, 24#  wall thickness:2.5mm	1.7-1600ml/min
	BZ25-lA	24#  wall thickness:2.5mm	2.9-1600ml/min
