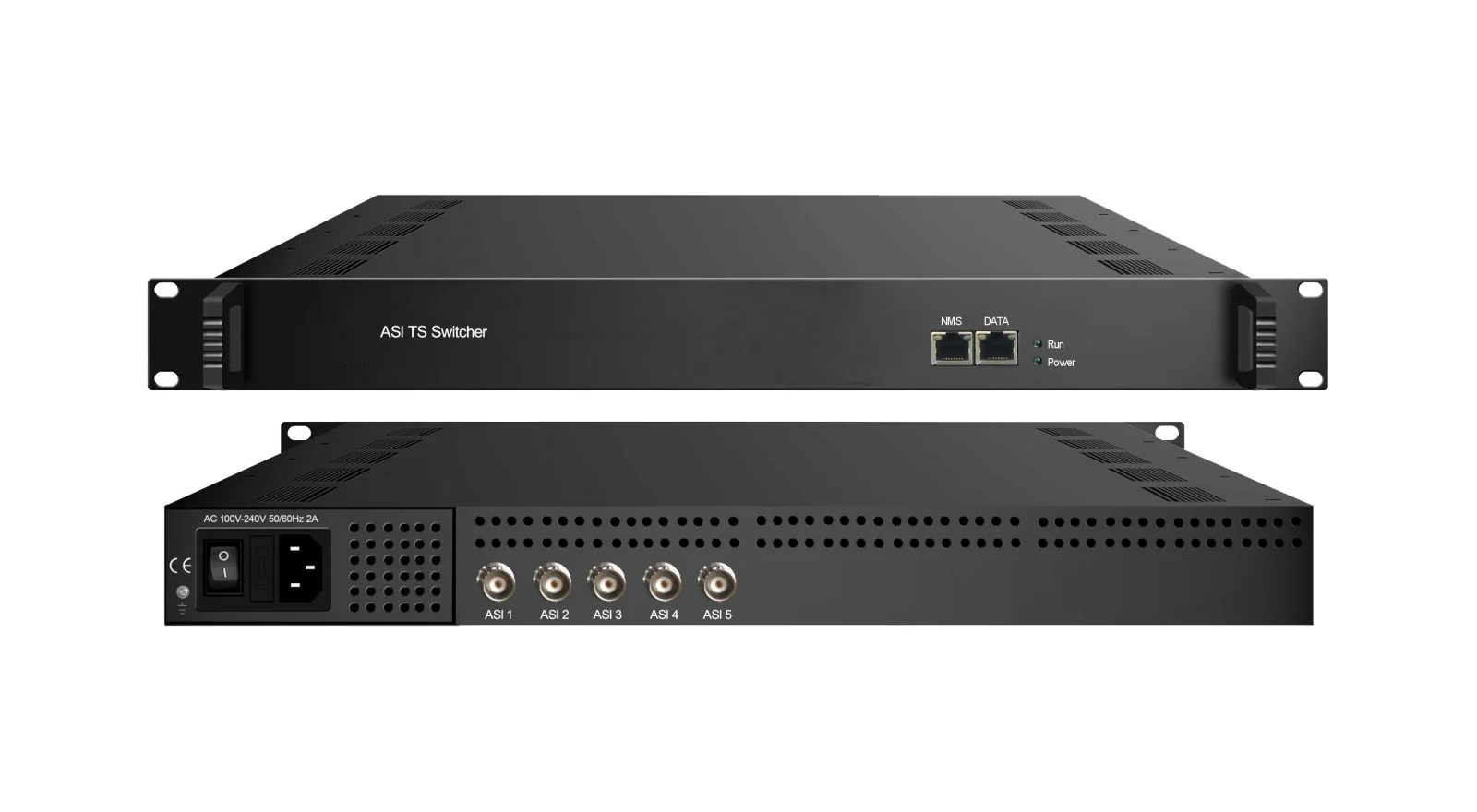

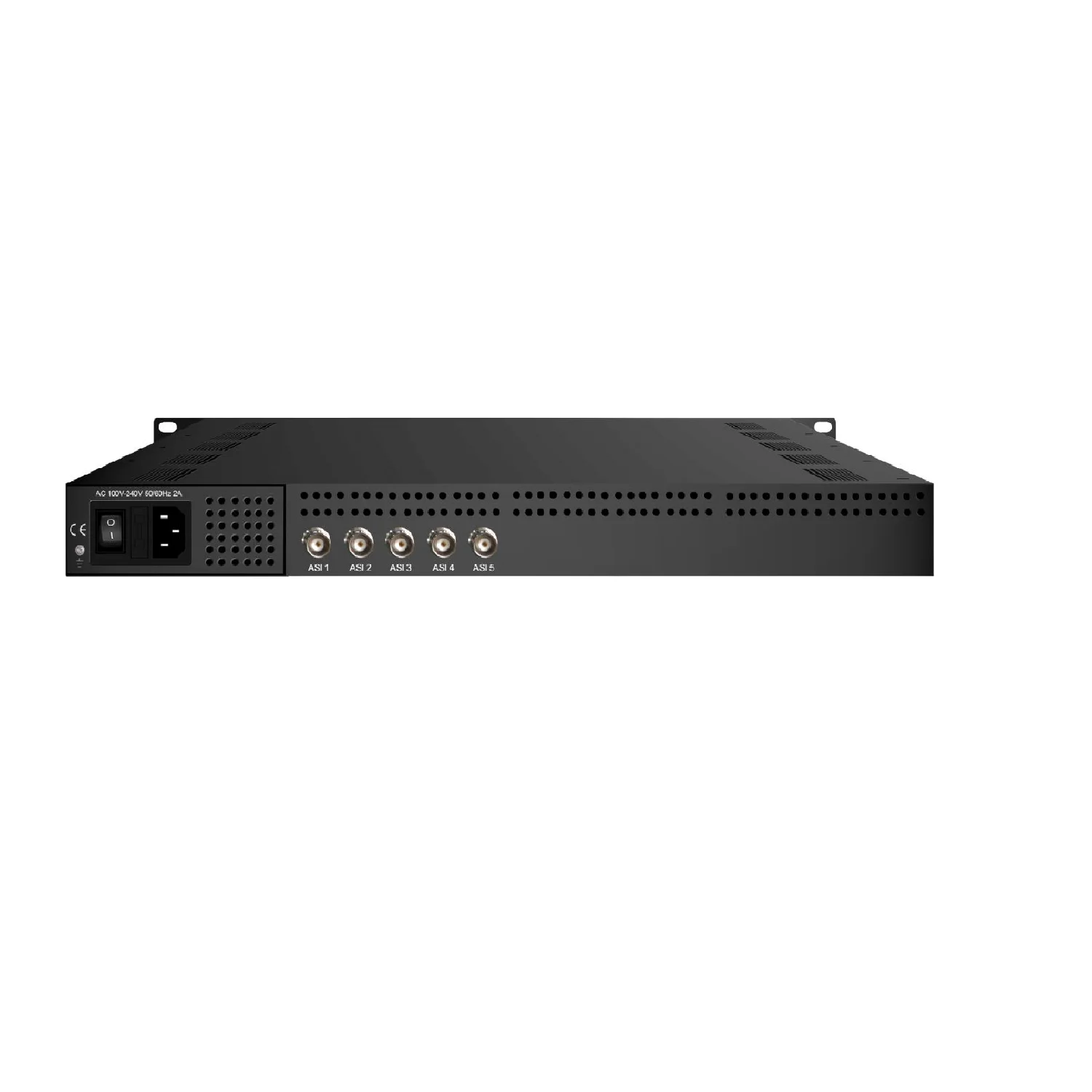

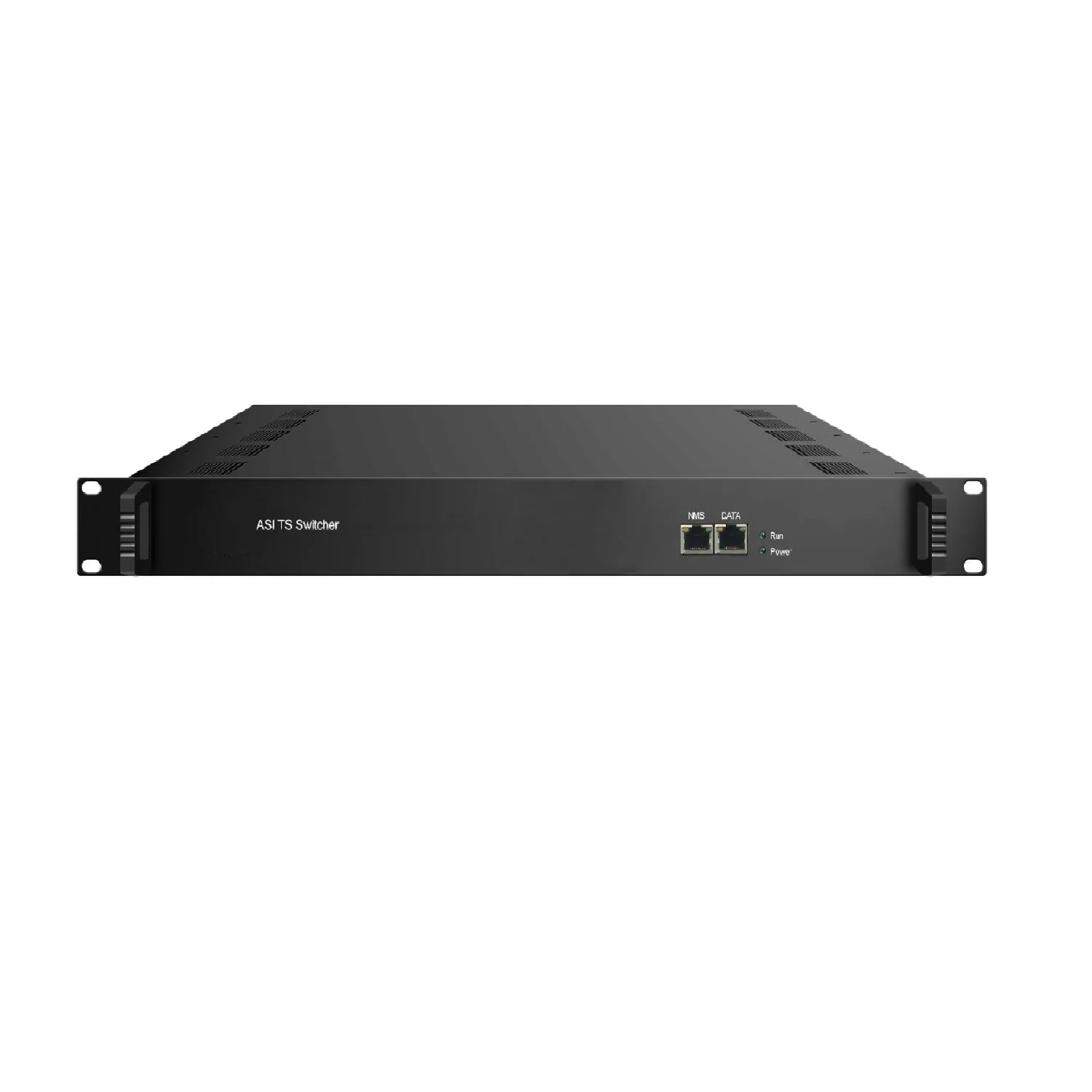

Jiexiang HD 1080P MPEG4 ASI to IP/ASI TS Splitter

Name: Jiexiang HD 1080P MPEG4 ASI to IP/ASI TS Splitter
SKU: 1600070848495
Price: $1,400.00 - $1,500.00 USD
Availability: InStock

Price:$1,400.00 - $1,500.00

Quantity:

Jiexiang HD 1080P MPEG4 ASI to IP/ASI TS Splitter

Skype: live:jiexiang02 to contact Jaylyn

Key Features

* 3 ASI input: ASI 3 is main stream, ASI 2 is secondary stream (backup 1), ASI 1 is third stream (back up 2).

* 2 ASI output: ASI 4 output bypass, ASI 5 loop out ASI 3

* Support manually and automatically switching

* Support channel mode and program mode switching

* Support to switch back to the main stream manually or automatically once the main stream recovers

* Support 188 format TS packet

* Support monitor program status (bitrate, continuous counting, synchronization status)

* Support web-server management (WEB)

Specifications

Input	3 ASI input: ASI 3 is main stream, ASI 2 is secondary stream (backup 1), ASI 1 is third stream (back up 2)
Output	2 ASI output: ASI 4 output bypass, ASI 5 loop out ASI 3
Interface	BNC interface
TS Package Format	188
ASI in/out bitrate	1~210Mbps
System	language	English/Chinese
	Remote Control	web-server management (WEB)
	Upgrade	Web upgrade
General	Size	482mmx410mmx44mm
	Temprature	0~45℃ (working); -20~80 (Storage)
	Power Supply	110VAC±10%, 50/60Hz 220VAC±10%, 50/60Hz
	Consumption	15W
