IP 68 Factory Price DC 12/24V to DC 5V 40A Power Converters 200W WS 1224T0540

Product Overview

Description

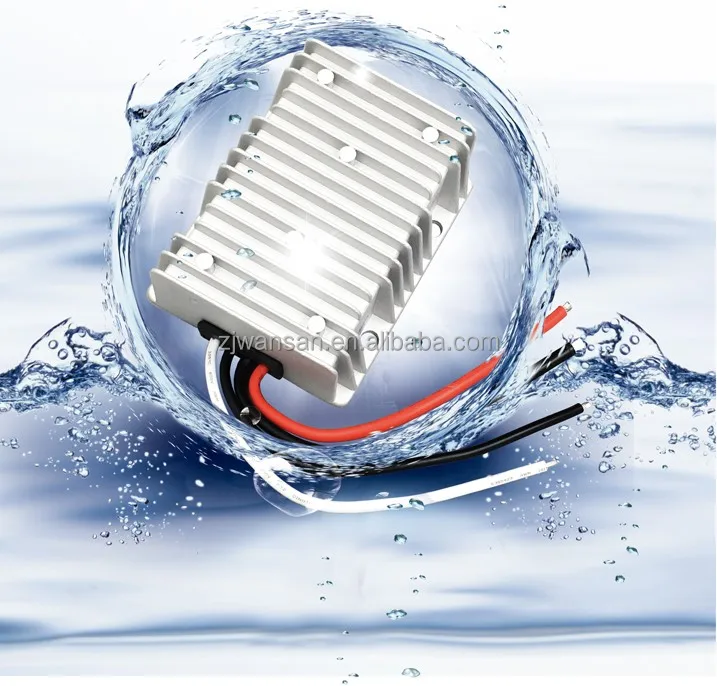

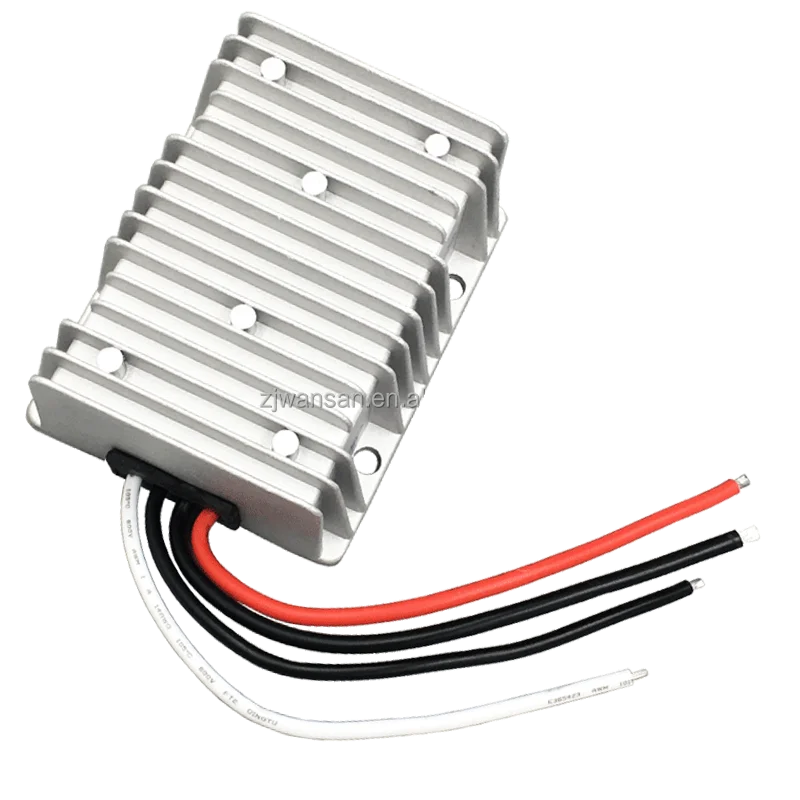

 DC 12/24V to DC 5V 40A Power Converters 200W



Features



1. 100% full power & stable current output



2. 100% Imported components



3. Wide input voltage from 10-36Vdc



4. 100% waterproof & anti-shock protection, Ultra compact size, light weight



5. Industry grade DC 12/24V to DC5V step-up/down converter



6. Waterproof level: IP68



7. Aluminum shell, epoxy potting, Cooling by free air convection.



8.Protections: Over-current, Over-voltage, Over-temperature, Over-load and short-circfuit, Auto-recovery.



9.   Non-Isolated Module



     10.1-year warranty, lifetime up to 100,000 hours.

Specifications

Model	WS-1224T0540
Input rated voltage	12/24V DC
Input voltage range	10-36V DC
Efficiency	95% (half load) ; 92% (full load)
Output voltage	5V DC
Output current	40 Amps
Output rated power	200 Watts
Output peak power	125%
Voltage regulation	< 1%
Load regulation	< 2%
Ripple (full load test)	< 100mV
No-load current	< 40mA
Working Temperature	-40°c ~ +80°c
Waterproof rating	IP 68
Protections	Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage
Machine size	100*80*39mm
Package size	126*91*46mm
N. Weight	470g
W. Weight	500g
Cooling way	Free air convection
Other	White box packing

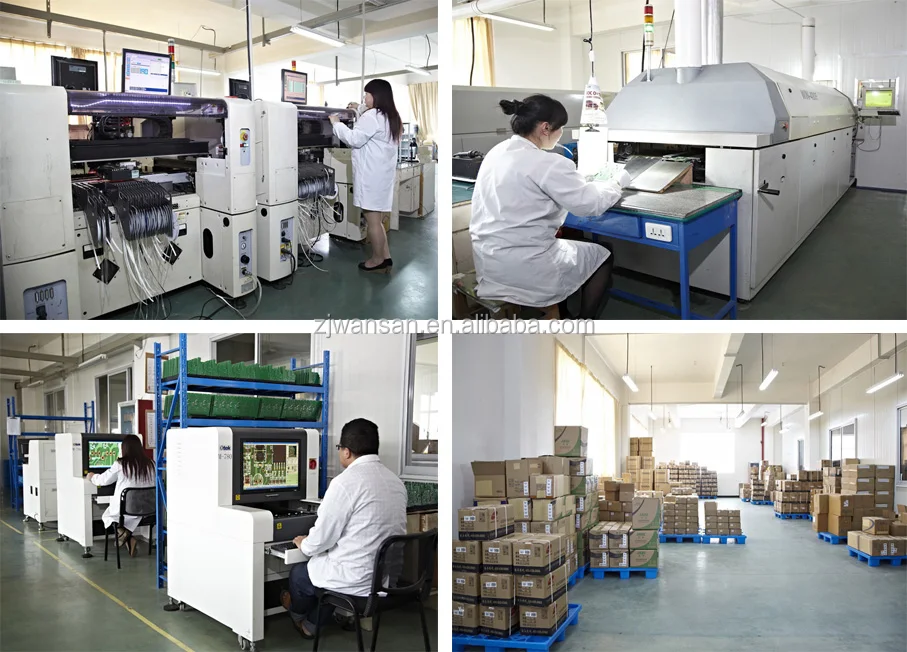

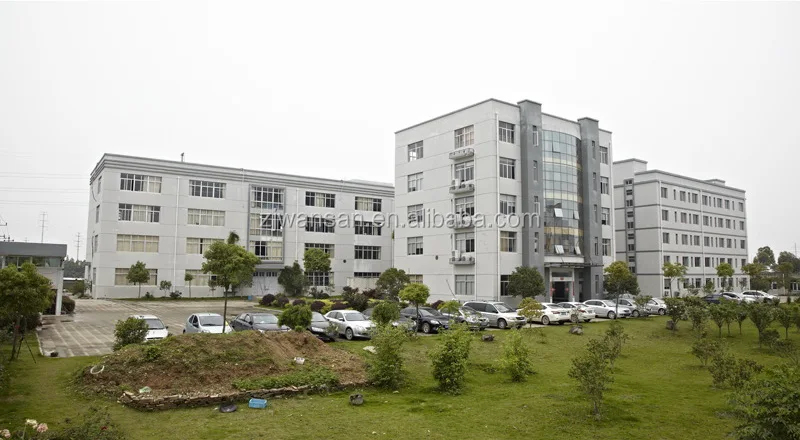

COMPANY INFORMATION





FAQ:

1. Are you a manufacturer?

100% yes, if you have a chance, you can visit our factory anytime.

2. Do you have any MOQ limit?

One piece is possible, you can buy one sample for testing first.

3. What about the lead-time?

Normally 1-2 working days after receive the payment.

4. How to pay for the sample fee?

Please send the payment to our PayPal account or from alibaba directly.

5. How do you ship the goods?

We often ship by DHL, UPS, FedEx or TNT, it usually takes 3-5 days to arrive.

6. Do you offer guarantee for the products?

Yes, we offer 1-year warranty for all DC DC converters.

7. I cannot find the suitable model, can I ask for a special model I need?

Sure. We are professional DC DC converter designer and manufacturer in China, please advising the detail specification you need, we will make it according to your request.
