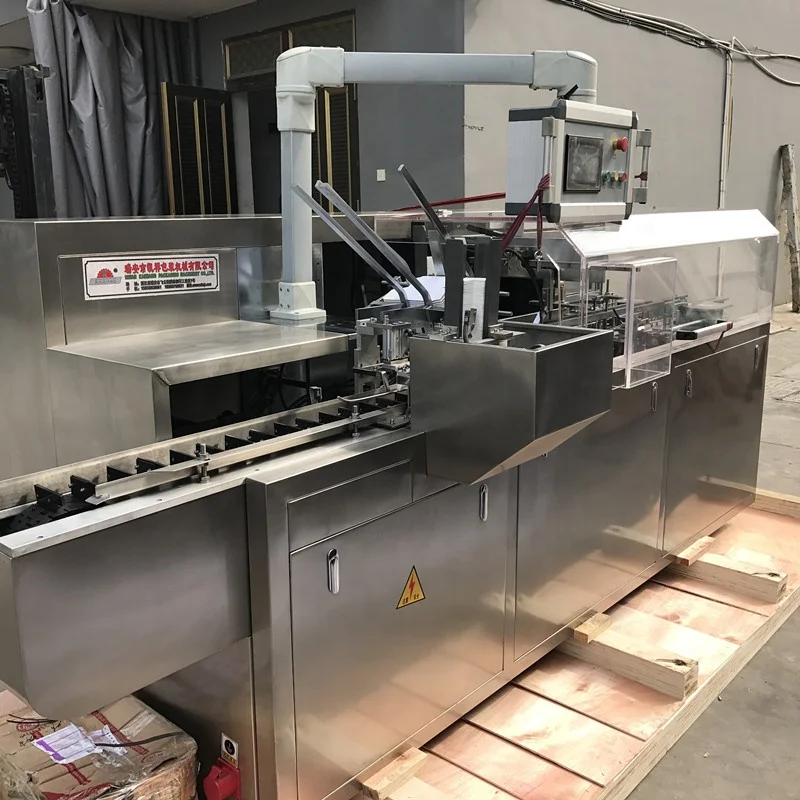

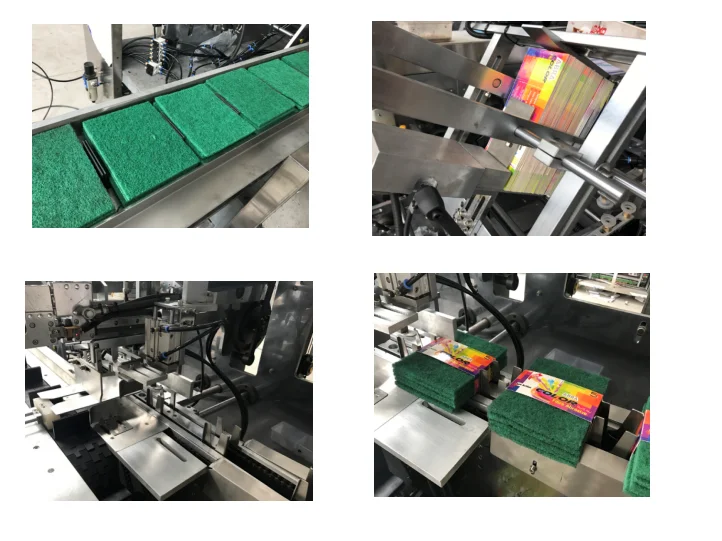

Automatic sponge packing machine with paper cover

Product Overview

Description



 KXZ-130B High Speed Automatic Cartoning Machine  for packing food suitable for packing all kinds of product into carton box. Can connect to other machines to be whole line.





Specification

Model: KXZ-200B

Place of origin: China

Technical specifications



Packing speed	30-80 cartons/min
Size of package	L(70-350)mm×W(80-200)mm×H(20-90)mm(Special size can be customized)
Cardboard requirements for packages	250-450g/m²(up to the size of package)
Motor power	1.5kw
Power supply	380V 50HZ or 220V 50HZ
Maximum noise	80dB
Minimum Air pressure	0.6Mpa
Air consumption	120-160L/min
Overall dimension	L4200mm×W1350mm×H1900mm
Weight	1500Kg





 Standard features

Touch Screen HMI controls

PLC programme

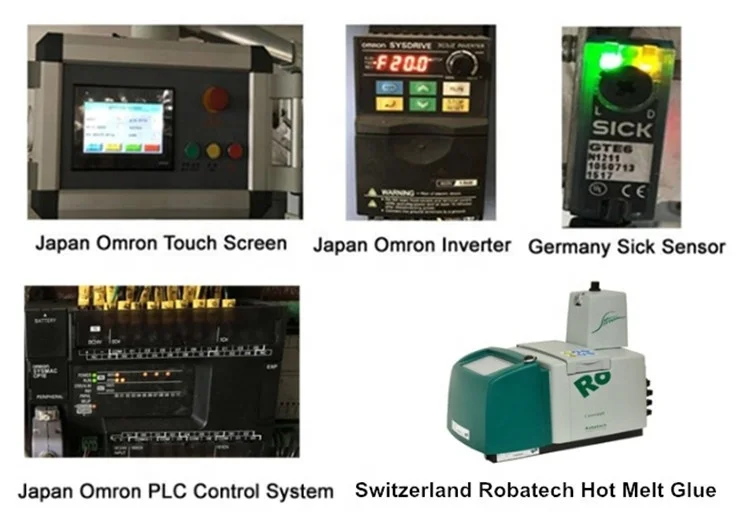

Japan Omron electric parts (inverter, PLC,touch screen)

Germany sick photocell

Spain meler hot melt glue

Vacuum assisted pre-break

various size are available in machine within machine size range

(connect our machine with your present machine to be whole automatic line)

without product, carton will be not sucked down

Auto display trouble, alarm and count finished product

Overload protection

Double suck system, more steady



 Optional features

auto conveyor

hot melt glue (can be american nordson, dynatec, spain meler, switzerland robatech)

other brand like SIMENS (inverter, PLC, touch screen)

Print batch number or date on carton box

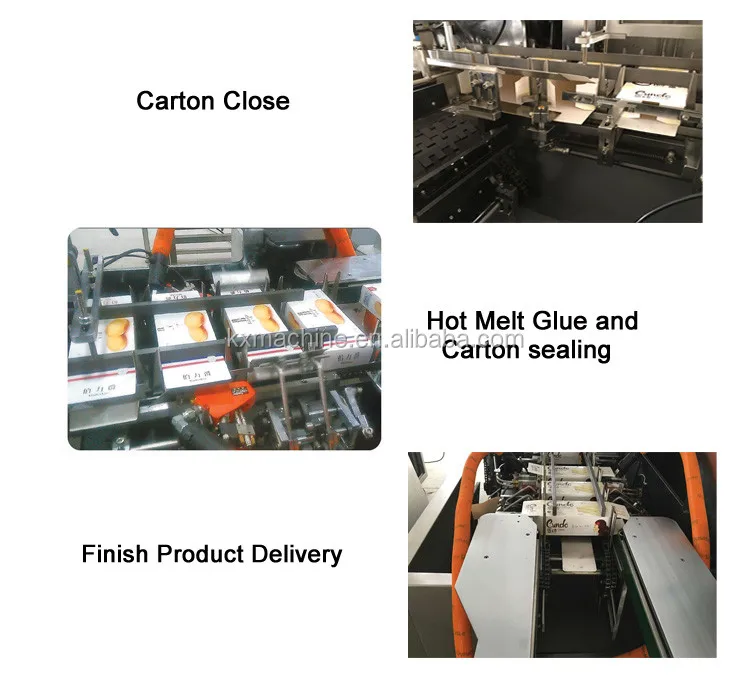

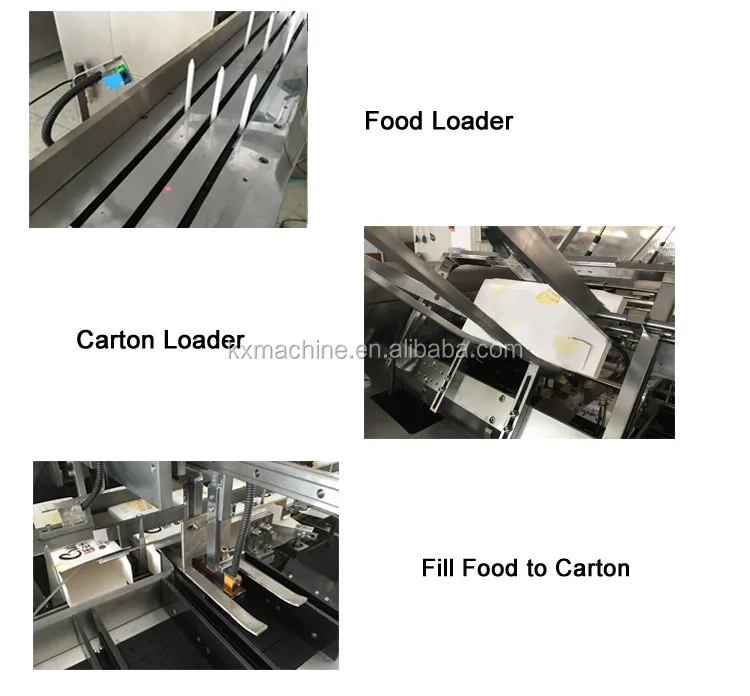

Machine Parts:






Application industry

• Stationery packaging: pen, chalk, crayon, stapler, playing cards, ink paste, building blocks, etc.


• Pharmaceutical packaging: oral liquid, medicine bottle, vial, bagged granule, antipyretic patch, etc.


• Food packaging: ice cream, wafer roll, biscuits, chocolate, pastries, bagged coffee, tea bags, etc.


• Daily necessities packaging: toothpaste, cosmetics, perfume, facial mask, antipyretic patch, condoms, pregnancy test paper, mosquito-repellent incense, etc.


• Fragile items packaging: bearings, bulbs, switches, sockets, electric relay, chargers, etc.


• Auto parts packaging: spark plugs, filters, piston rings, automotive bulbs, automotive appliances, valves and so on.


• Tissue paper packaging: napkin, tampon, pads, cotton pads, etc.



Main parts list:

Item	Name	Model and specification	Origin	QTY
1.	PLC	CPIE-N30DT-D	Japan Omron	1
2.	PLC Extended Module	CPIE-C1F11		1
3.	Touch Screen	NB7W-TWOOB		1
4.	Inverter	3G3JZ-A4015		1
5.	Photoelectric Sensor	SICK 121	SICK	4
6.	Motor	CH-1500-10S 1.5KW	Taiwan CPG	1
7.	Index Drive	0S83-4L-180	Zhejiang	1
8.	Button	XB2	France Schneider	3
9.	Emergency Stop	ZB2 BC4D		1
10.	5 relay		Zhejiang	1
11.	8 transistor			1
12.	Solenoid Valve	4V210-08	AirTAC	2
13.	Air Filter/Regulator/	BFR-2000		1
14.	Proximity switch	TL-Q5MC1	Japan Omron	2
15.	Sucking disc	VF-30	Korea	2
16.	Vacuum Generator	ABM20-C	SMC	1
17.	AC contactor	LC1E3210M5N	France Schneider	1
18.	Switching power supply	PMC-24V 050V	DELTA	1
19.	Air switch	3P32A 1P10A	France Schneider	Each1
20.	Encoder	B-ZSP3806E2C	Japan Omron	1
21.	Cover	Stainless Steel	Shanghai	1 SET

FAQ:

1. How long will your engineer reach our factory?
Within one week after machine arrival your factory.
2. How many days will you finish installing ?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 80USD one day per person.
4. How long is your machine's warranty period?
All our machines have one year guarantee, starting from finished installation.
5. How could we do after one year warranty period?
We also can do service for you, but you need pay salary for our technician 80USD/day.
6. How could we do if the parts broken within warranty?
 We would express the free replacement parts during the warranty date.
7. Does your engineer understand English?
 Our engineer understand a little English. All our engineers have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
8. Can you help us find any engineer in our location?
 Of course, we will check and inform you as soon as possible.
9. How do we solve the machine problem after your engineer leaving?
 Generally speaking, there will be no problem after finish installing. In case you have any problem, you can contact with our sales at any time. Our engineer will take a solution video according your description.
10. How many worker do we need running those machines?
Usually two or three people is ok. If it is manual feeding, more people are needed, mainly according to your production capacity.
