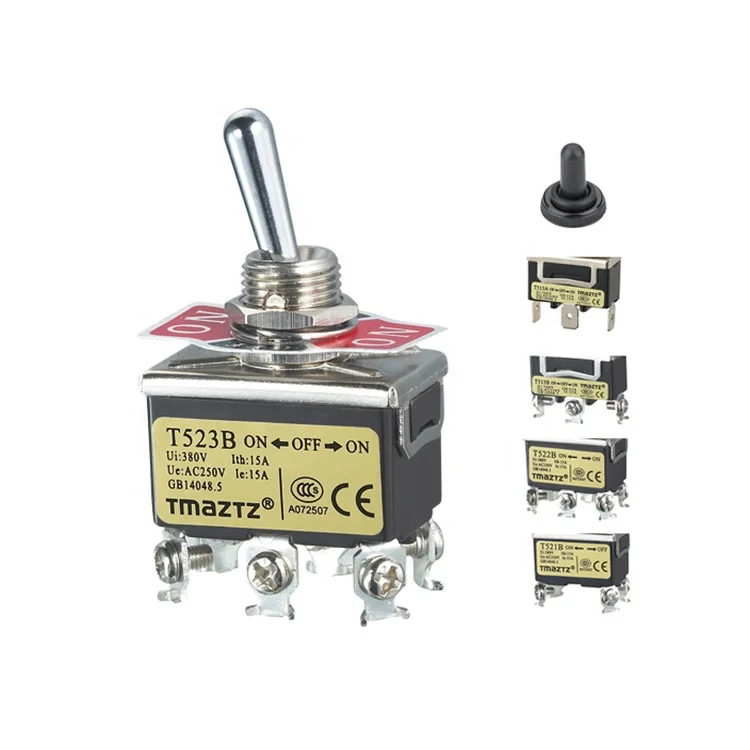

DPDT 6P ON OFF ON 15A miniature toggle switch 1322 T523B (Spring return model selectable)
- Category: >>>
- Supplier: Yueqing Yongde Electric Co. Ltd.
Share on (1600071035375):
Product Overview
Description
Product Overviews
Product Show

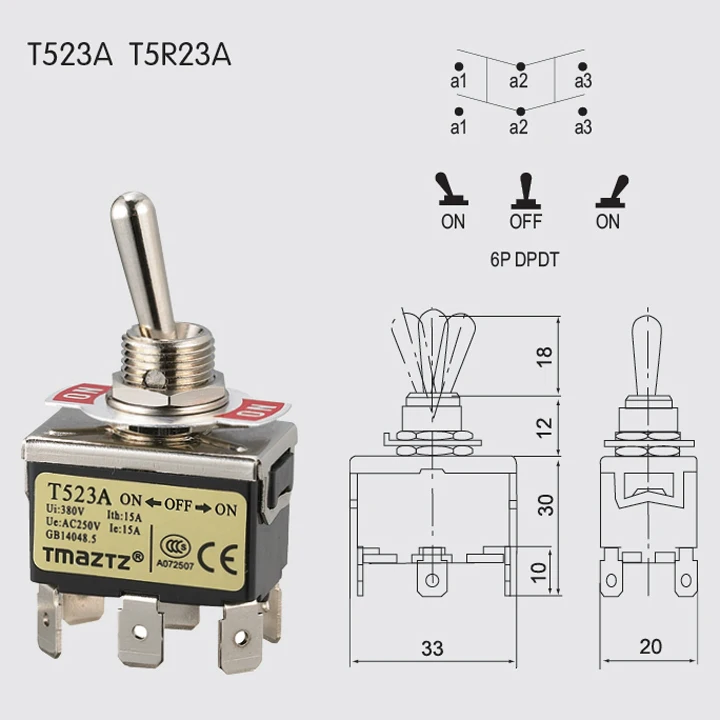

DRAWING AND SPECIFIC
| Model No. | T523B / T523A toggle switch |
| Name | Toggle switch |
| Type | 15A 250VAC stay put type |
| Contact | Double pole Double throw ON-OFF-ON (DPDT) |
| Terminal | Tab terminal, screw teminal and solder terminal |
| Life | Mechanical:5000,000times/min; Electrical:1000,000times/min |
Insulation resistance | 100mΩ min.(at 500VDC) |
| Dielectric strength | 2000VAC,50/60HZ for 1 minute |
| Weight | About 22 to 58g |
| Vibration | 10-55HZ,1.5mm double amplitude |
| humidity | 85% RH max |
