Product Overview

Description

elaine

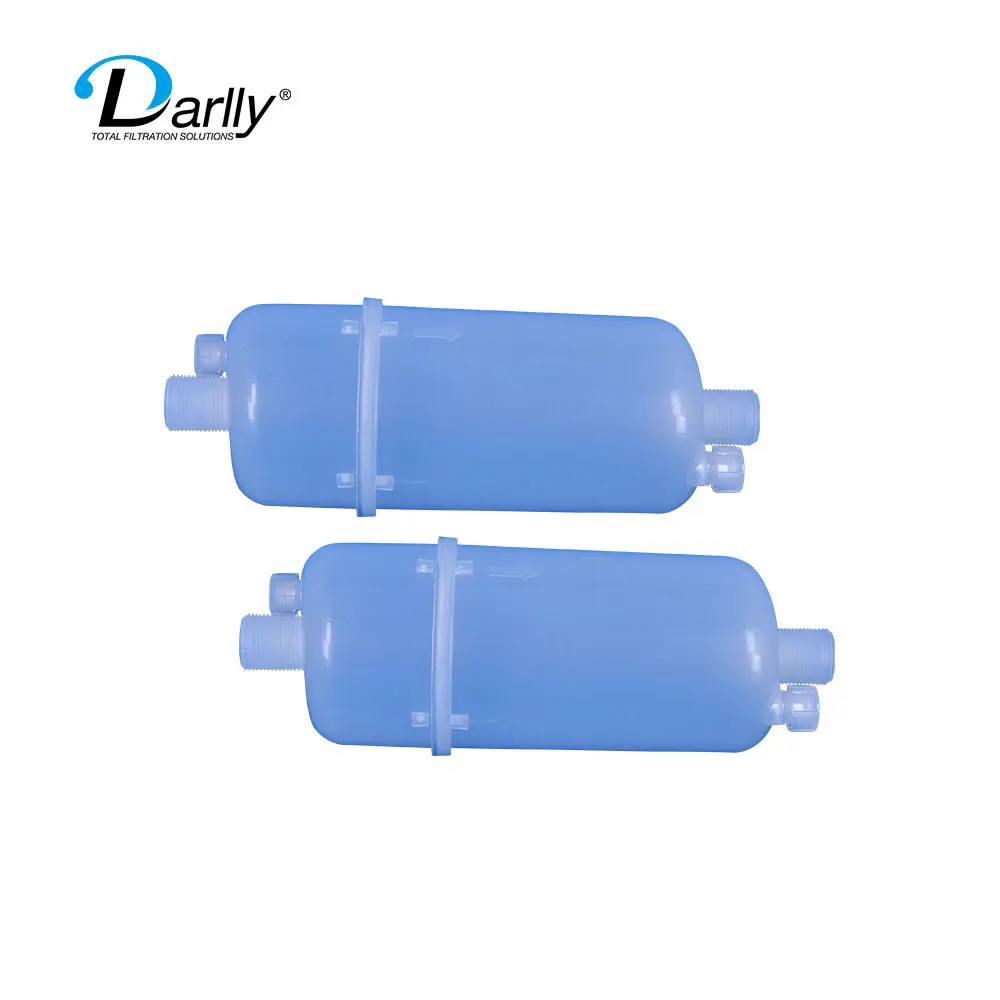

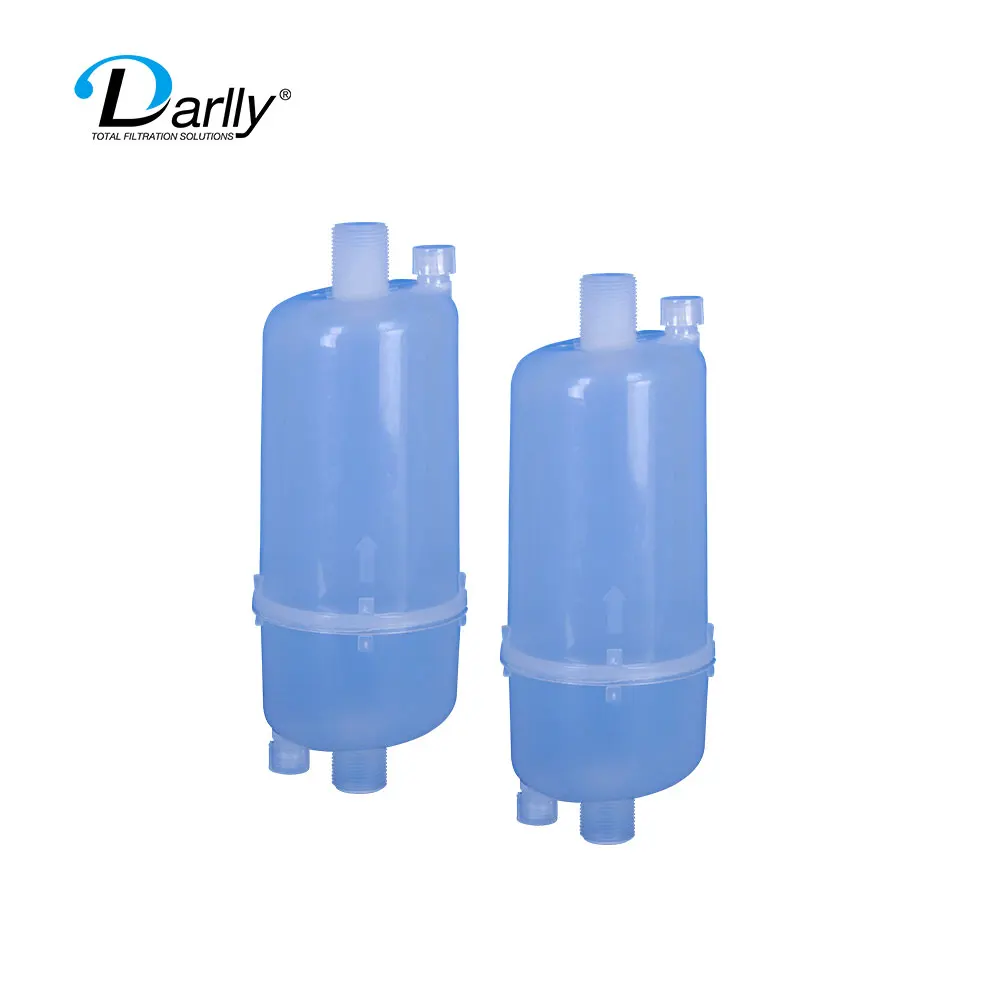

 Capsule Filter

Product Description

Blueflo™ Capsule Filters are ready-to-use units for critical applications and small volume flows of gases and liquids.

All filter units consist of a durable polypropylene housing and are available in various filter media and pore sizes.

The housing units are thermal welded and all capsule filters have many connection options.

They are manufactured in a clean room environment and are processes in double sealed packaging to avoid any possible contamination.



Features

• Many kinds of filter media and removal rating


• Made in the clean environment and always keep clean situation


• Absolutly bio-safety and non-toxic


• Have many kinds of capsule size.Accroding to flow rate and flow speed to choose the correct filter,because different capsule length have his own effective filtration area





Specifications

Constructions

of

Constructions

Filter media PP,PES,PTFE,Nylon6,GF
 Support Polypropylene (PP)
Housing  Polypropylene (PP) , ABS
Sealing Thermally Welded
Inlet/Outlet NPT/SWAGELOK/Hose Barb/Luer Lock
Sealing technology Thermally Welded

Removal

Rating

PP 0.1µm,0.22µm,0.45µm,1µm,3µm,5µm,10µm,20µm,30µm,50µm
PES 0.1µm,0.22µm,0.45µm,0.65µm,0.8µm,1.2µm
PTFE(Liquid) 0.1µm,0.22µm,0.45µm
PTFE(Gas) 0.01µm,0.02µm
Nylon6 0.1µm,0.2µm,0.45µm,0.65µm,1µm
Glass Fiber 0.45µm,1µm,3µm,5µm,10µm,20µm
Performance Max. Operating Temperature 80℃
 Max. Operating DP  2 Bar - 6 Bar @ 20 ℃
Filter Area 0.16  -  2950 cm²
Shell blasting pressure ≥10 Bar @ 20 ℃



Application



• Pharmaceutics
• Food and beverage
• Chemical
• Microelectronics
• Cosmetics
• Ink



 740_78740_74740_80

 Capsule_01Capsule_03



 Capsule_02

Company Information

Factory-1



Founded in 1996, Darlly becomes a famous high-tech company focusing on developing manufacturing and marketing of the filter cartridges. Besides headquarters in Hangzhou, there are Darlly US and Darlly Europe for marketing of important markets. We have the markets share all over the world. Most of the products are sold to North America, Europe, Southeast Asia, Middle East, Taiwan and all the areas in China.



Factory-2



Our filter cartridges are widely used in BioPharmaceuticals, Microelectronics, Food and Beverage, Power generation, Petrochemical, Metal processing, Drinking Water treatment, Swimming pool and spa water treatment, Mechnical manufacturing, Automotive, etc.markets.



Factory-3



Darlly has a professional technical team and perfect quality guarantee system, this ensure that each cartridge conform to the technical and safety requirements.
