HD PVT PVA PAC Adapter IP lts Coax Power HD 8MP UTP CAT5 Passive Male DC PV 4K CCTV BNC to RJ45 5MP 4MP 3MP CVI TVI Video Balun
- Category: >>>
- Supplier: Shenzhen Clir Technology Limited
Share on (1600071192425):
Product Overview
Description
Product Description
Specification
Model | B205L |
Frequency response | DC to 80Mhz |
Attenuatio | 0.5dB type |
CMRR | 60dB |
Surge protection | 1000V Max |
Connectors | Male BNC and Screw terminal blocks |
Impedance | BNC: 75 ohms |
Terminal | 100ohms |
Working Temperature | 10°C to +70°C |
Storage Temperature | -30°C to + 70° |
Humidity | 0 to 95% |
Category Type | Cat5e/6 suggeste |
Transient Immunity | per AN SI/IEE E 587 C62.41 |
Materia | ABS Plastic |
Package | 250pair/carton, 40*36*25cm 13kg/carton |
Package Dimension | 8.8 x 5.7 x 2 inches |
Features
【1080P HD Video Balun】: Full-motion CCTV video at distance up to 350m-600m when used with any passive transceiver. Up to 300m for 960H/1080P AHD Cameras, up to 300m for 720P/1080P for HDTVI Cameras in DVR support.
【Tool-Less Installation】:No need to strip the wires, this 1080P AHD/HD-CVI/TVI/CVBS Passive HD Video Balun Transmitter adopted newest “Press Fit” screw free installation method, tool-less, installs in seconds, save your time, makes the installation work more convenient!
【1000V Max Surge Protection】: This 1080P hd video balun has 1000V max surge protection. Built-in transient suppression protection, lasts for over 10000 hours/417 days. In addition, a specification which has detailed installation steps make the procession of installation simple and convenient was attached.
【Widely Application】: Compatible with HD-CVI, HD-TVI, HD-AHD, CVBS, NTSC, PAL, and SECAM video formats. 60 db cross talk and noise immunity. Push-terminal channel passive HD transceiver, male BNC allows connection directly to TVI/CVI/AHD or camera system, gold plated BNC better transmission quality long distance HD transmitter. No power required!
【Tool-Less Installation】:No need to strip the wires, this 1080P AHD/HD-CVI/TVI/CVBS Passive HD Video Balun Transmitter adopted newest “Press Fit” screw free installation method, tool-less, installs in seconds, save your time, makes the installation work more convenient!
【1000V Max Surge Protection】: This 1080P hd video balun has 1000V max surge protection. Built-in transient suppression protection, lasts for over 10000 hours/417 days. In addition, a specification which has detailed installation steps make the procession of installation simple and convenient was attached.
【Widely Application】: Compatible with HD-CVI, HD-TVI, HD-AHD, CVBS, NTSC, PAL, and SECAM video formats. 60 db cross talk and noise immunity. Push-terminal channel passive HD transceiver, male BNC allows connection directly to TVI/CVI/AHD or camera system, gold plated BNC better transmission quality long distance HD transmitter. No power required!
Packing & Delivery

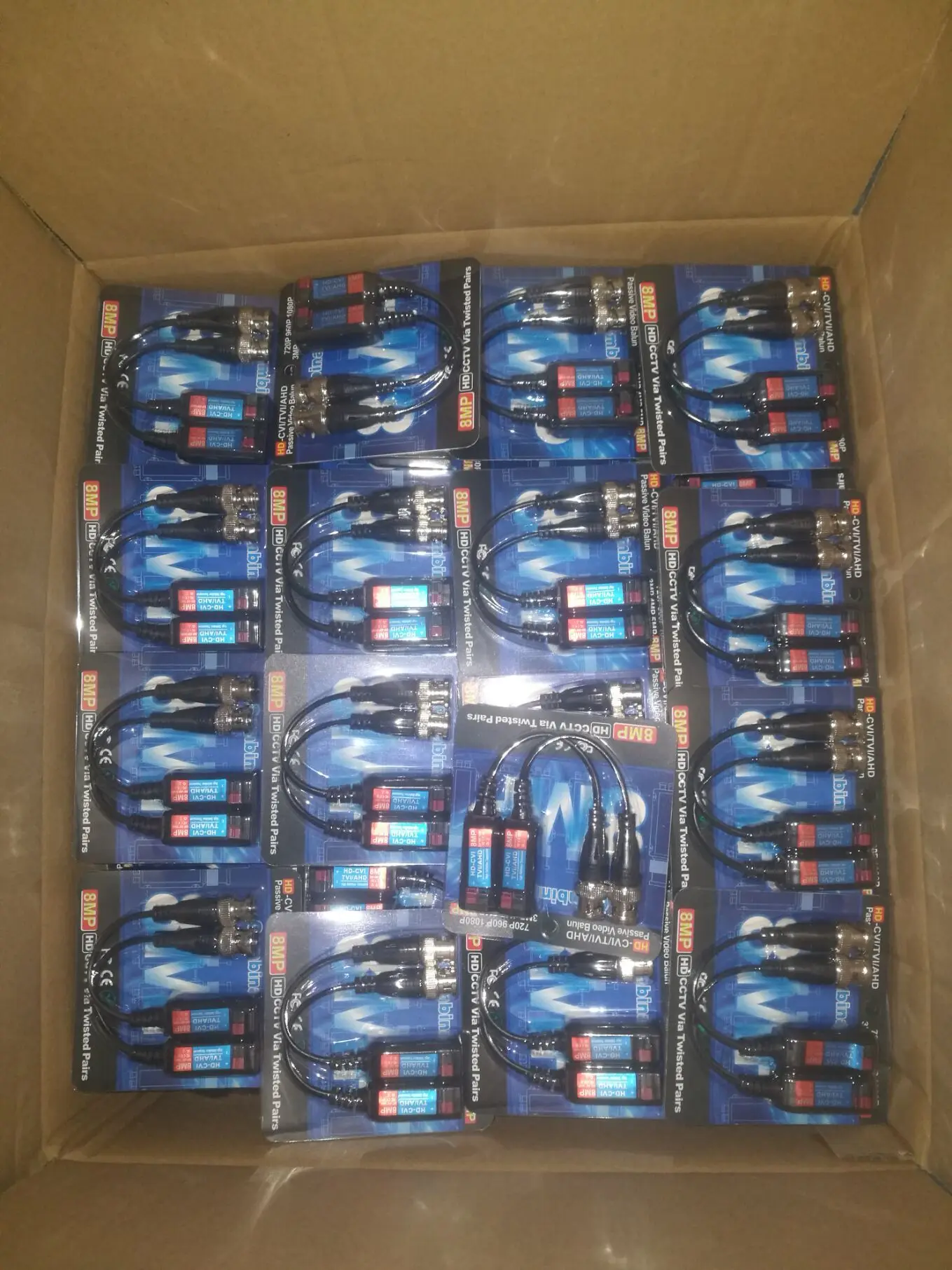

250pair/carton. Lead time about 1-2 weeks less than 10000pair. 1-4 weeks less than 100000pair.
Company Profie
Headquartered in Shenzhen, CLIR TECHNOLOGY LIMITED is an industry leading designer, developer and manufacturer of enterprise-level BNC Connectors, Video Baluns, Cables, CCTV Power Supplys, CCTV camera housing and bracket. The company produces the most advanced and respected offering of CCTV Accessories based on its owned patented algorithms. Being a true manufacturer from board level design to hardware and software development, CLIR is able to control every aspect of the process from end-to-end.
