FU8.5L 6A ceramic fuse tube 6A cylindrical types 8.5*31.5mm 500v porcelain fuse with Double Cap
- Category: Fuses >>>
- Supplier: Wenzhou,Laiwo,Electrical,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Cylindrical Caps Fuse（Fuse-Link）
This product conforms with IEC60269,VDE0636 and GB13539 standards.
This series of fuse is suitable for AC 50Hz, rated voltage to 690V, rated current to 125A. It is mainly used as overload and
short circuit protection (gG / gL) of electrical circuits, and can also be derived as short circuit protection (aR) for
semiconductor devices and their complete sets and Motor short circuit protection (aM). The variable cross-section melt made of
pure copper / silver flakes (wire) is encapsulated in a melt tube made of high-strength porcelain or epoxy glass cloth tube. The
melt tube is filled with chemically treated high-purity quartz sand as an arc extinguishing medium. This series of fuse-links have
an inserted structure and can be installed in WS18, RT14, RT18, RT19 and other corresponding size fuse bases according to size.
short circuit protection (gG / gL) of electrical circuits, and can also be derived as short circuit protection (aR) for
semiconductor devices and their complete sets and Motor short circuit protection (aM). The variable cross-section melt made of
pure copper / silver flakes (wire) is encapsulated in a melt tube made of high-strength porcelain or epoxy glass cloth tube. The
melt tube is filled with chemically treated high-purity quartz sand as an arc extinguishing medium. This series of fuse-links have
an inserted structure and can be installed in WS18, RT14, RT18, RT19 and other corresponding size fuse bases according to size.
Part No. | Description | Function Class | Rated Voltage (v) | Breaking Capacity(KA) | Weight(g) |
FU8.5-2A | 2A 8.5*23 Fuse | gL/gG | 230/690 | 10-100 | 3.9 |
FU8.5-4A | 4A 8.5*23 Fuse | gL/gG | 230/690 | 10-100 | 3.9 |
FU8.5-6A | 6A 8.5*23 Fuse | gL/gG | 230/690 | 10-100 | 3.9 |
FU8.5-8A | 8A 8.5*23 Fuse | gL/gG | 230/690 | 10-100 | 3.9 |
FU8.5-10A | 10A 8.5*23 Fuse | gL/gG | 230/690 | 10-100 | 3.9 |
FU8.5-16A | 16A 8.5*23 Fuse | gL/gG | 230/690 | 10-100 | 3.9 |
FU8.5L-2A | 2A 8.5*31.5 Fuse | gL/gG | 230/690 | 10-100 | 4.4 |
FU8.5L-4A | 4A 8.5*31.5 Fuse | gL/gG | 230/690 | 10-100 | 4.4 |
FU8.5L-6A | 6A 8.5*31.5 Fuse | gL/gG | 230/690 | 10-100 | 4.4 |
FU8.5L-8A | 8A 8.5*31.5 Fuse | gL/gG | 230/690 | 10-100 | 4.4 |
FU8.5L-10A | 10A 8.5*31.5 Fuse | gL/gG | 230/690 | 10-100 | 4.4 |
FU8.5L-16A | 16A 8.5*31.5 Fuse | gL/gG | 230/690 | 10-100 | 4.4 |
FU8.5L-20A | 20A 8.5*31.5 Fuse | gL/gG | 230/690 | 10-100 | 4.4 |
FU8.5L-25A | 25A 8.5*31.5 Fuse | gL/gG | 230/690 | 10-100 | 4.4 |
FU10.3-2A | 2A 10.3*25.8 Fuse | gL/gG | 230/690 | 10-100 | 5.9 |
FU10.3-4A | 4A 10.3*25.8 Fuse | gL/gG | 230/690 | 10-100 | 5.9 |
FU10.3-6A | 6A 10.3*25.8 Fuse | gL/gG | 230/690 | 10-100 | 5.9 |
FU10.3-8A | 8A 10.3*25.8 Fuse | gL/gG | 230/690 | 10-100 | 5.9 |
FU10.3-10A | 10A 10.3*25.8 Fuse | gL/gG | 230/690 | 10-100 | 5.9 |
FU10.3-16A | 16A 10.3*25.8 Fuse | gL/gG | 230/690 | 10-100 | 5.9 |
FU10.3-20A | 20A 10.3*25.8 Fuse | gL/gG | 230/690 | 10-100 | 5.9 |
FU10.3M-2A | 2A 10.3*31.5 Fuse | gL/gG | 230/690 | 10-100 | 7 |
FU10.3M-4A | 4A 10.3*31.5 Fuse | gL/gG | 230/690 | 10-100 | 7 |
FU10.3M-6A | 6A 10.3*31.5 Fuse | gL/gG | 230/690 | 10-100 | 7 |
FU10.3M-8A | 8A 10.3*31.5 Fuse | gL/gG | 230/690 | 10-100 | 7 |
FU10.3M-10A | 10A 10.3*31.5 Fuse | gL/gG | 230/690 | 10-100 | 7 |
FU10.3M-16A | 16A 10.3*31.5 Fuse | gL/gG | 230/690 | 10-100 | 7 |
FU10.3M-20A | 20A 10.3*31.5 Fuse | gL/gG | 230/690 | 10-100 | 7 |
FU10.3M-25A | 20A 10.3*31.5 Fuse | gL/gG | 230/690 | 10-100 | 7 |
FU10.3M-32A | 32A 10.3*31.5 Fuse | gL/gG | 230/690 | 10-100 | 7 |

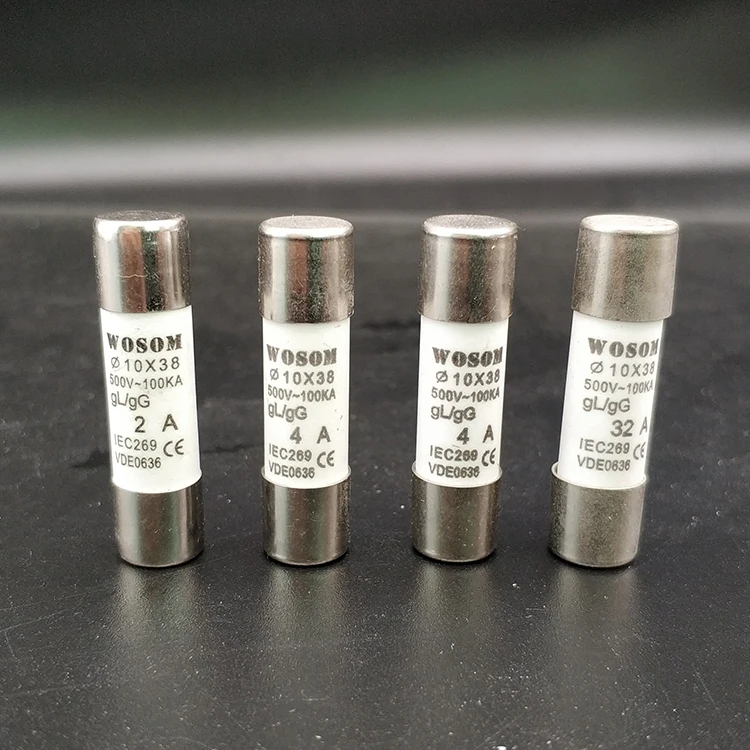

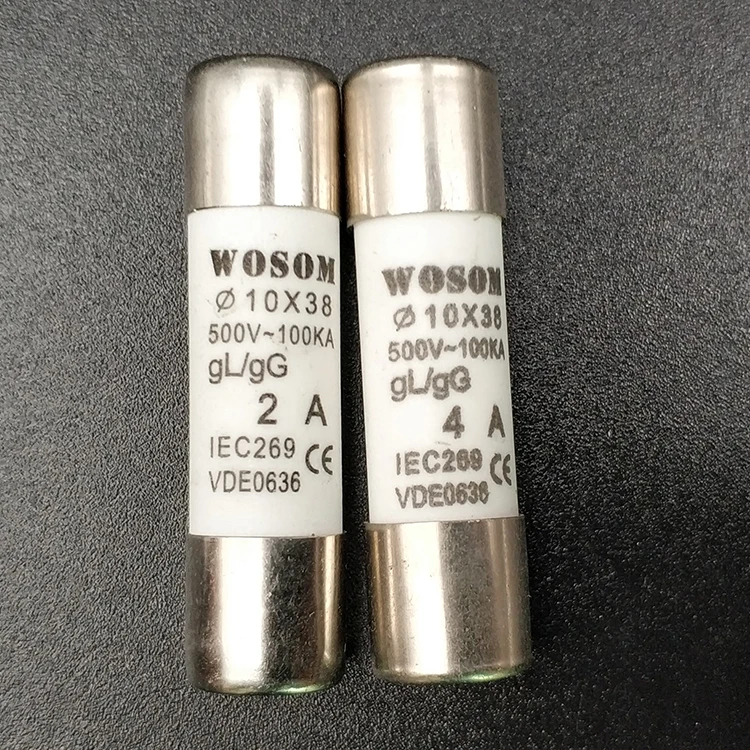

FU10.3L-2A | 2A 10.3*38 Fuse | gL/gG | 230/690 | 10-100 | 7.7 |
FU10.3L-4A | 4A 10.3*38 Fuse | gL/gG | 230/690 | 10-100 | 7.7 |
FU10.3L-6A | 6A 10.3*38 Fuse | gL/gG | 230/690 | 10-100 | 7.7 |
FU10.3L-8A | 8A 10.3*38 Fuse | gL/gG | 230/690 | 10-100 | 7.7 |
FU10.3L-10A | 10A 10.3*38 Fuse | gL/gG | 230/690 | 10-100 | 7.7 |
FU10.3L-16A | 16A 10.3*38 Fuse | gL/gG | 230/690 | 10-100 | 7.7 |
FU10.3L-20A | 20A 10.3*38 Fuse | gL/gG | 230/690 | 10-100 | 7.7 |
FU10.3L-25A | 20A 10.3*38 Fuse | gL/gG | 230/690 | 10-100 | 7.7 |
FU10.3L-32A | 32A 10.3*38 Fuse | gL/gG | 230/690 | 10-100 | 7.7 |

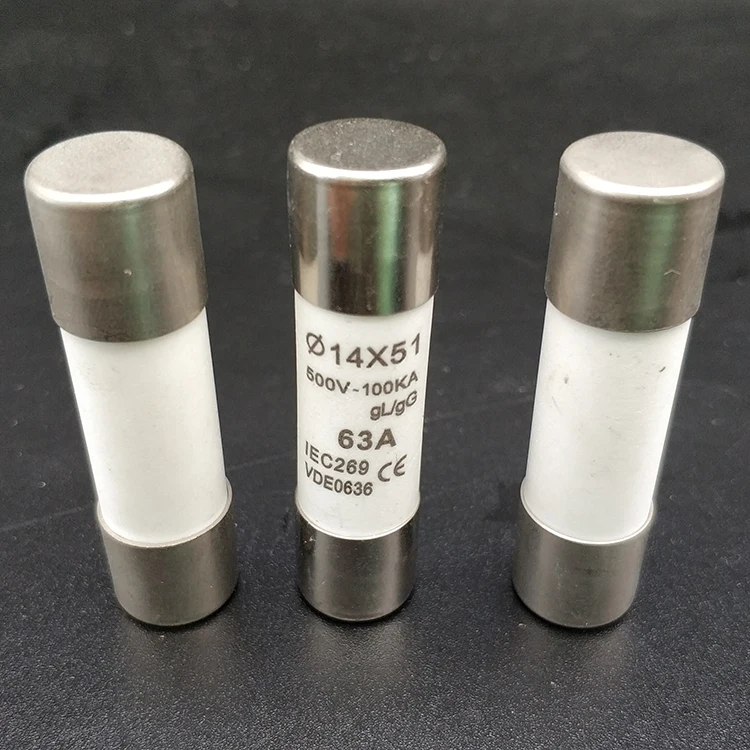

FU14-10A | 10A 14*51 Fuse | gL/gG | 230/690 | 10-100 | 20.5 |
FU14-16A | 16A 14*51 Fuse | gL/gG | 230/690 | 10-100 | 20.5 |
FU14-20A | 20A 14*51 Fuse | gL/gG | 230/690 | 10-100 | 20.5 |
FU14-25A | 25A 14*51 Fuse | gL/gG | 230/690 | 10-100 | 20.5 |
FU14-32A | 32A 14*51 Fuse | gL/gG | 230/690 | 10-100 | 20.5 |
FU14-40A | 40A 14*51 Fuse | gL/gG | 230/690 | 10-100 | 20.5 |
FU14-50A | 50A 14*51 Fuse | gL/gG | 230/690 | 10-100 | 20.5 |
FU14-63A | 63A 14*51 Fuse | gL/gG | 230/690 | 10-100 | 20.5 |
FU22-25A | 25A 22*58 Fuse | gL/gG | 230/690 | 10-100 | 58 |
FU22-32A | 32A 22*58 Fuse | gL/gG | 230/690 | 10-100 | 58 |
FU22-40A | 40A 22*58 Fuse | gL/gG | 230/690 | 10-100 | 58 |
FU22-50A | 50A 22*58 Fuse | gL/gG | 230/690 | 10-100 | 58 |
FU22-63A | 63A 22*58 Fuse | gL/gG | 230/690 | 10-100 | 58 |
FU22-80A | 80A 22*58 Fuse | gL/gG | 230/690 | 10-100 | 58 |
FU22-100A | 100A 22*58 Fuse | gL/gG | 230/690 | 10-100 | 58 |
FU22-125A | 125A 22*58 Fuse | gL/gG | 230/690 | 10-100 | 58 |
FU30-25A | 25A 30*57 Fuse | gL/gG | 230/690 | 10-100 | 75 |
FU30-32A | 32A 30*57 Fuse | gL/gG | 230/690 | 10-100 | 75 |
FU30-40A | 40A 30*57 Fuse | gL/gG | 230/690 | 10-100 | 75 |
FU30-50A | 50A 30*57 Fuse | gL/gG | 230/690 | 10-100 | 75 |
FU30-63A | 63A 30*57 Fuse | gL/gG | 230/690 | 10-100 | 75 |
FU30-80A | 80A 30*57 Fuse | gL/gG | 230/690 | 10-100 | 75 |
FU30-100A | 100A 30*57 Fuse | gL/gG | 230/690 | 10-100 | 75 |
FU30-125A | 125A 30*57 Fuse | gL/gG | 230/690 | 10-100 | 75 |
