Pressure rice husk biomass sawdust briquette making machine charcoal coal ball pressing machine
- Category: >>>
- Supplier: Zhengzhou Meida Machine Co. Ltd
Share on (1600071582829):
Product Overview
Description
Pressure rice husk biomass sawdust briquette making machine charcoal coal ball press machine
Different pressure rollers, different shapes
The briquette briquetting machine is a ball-making equipment, which can continuously send various powder materials to the roller pressing area through the pre-pressing device, and press the powder into balls under the pressure of the roller pressing area. It has reasonable structure, smooth operation and low energy consumption.
Product Description

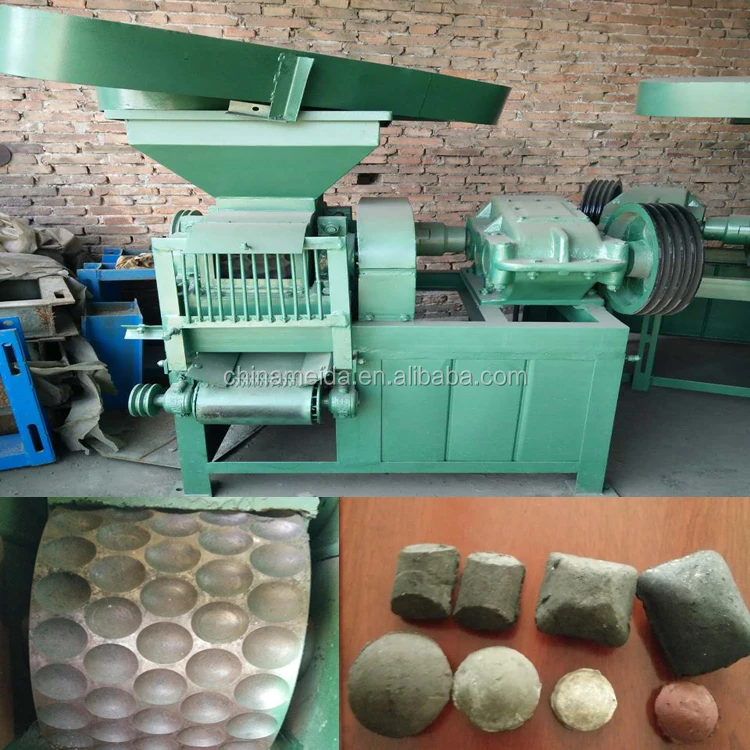

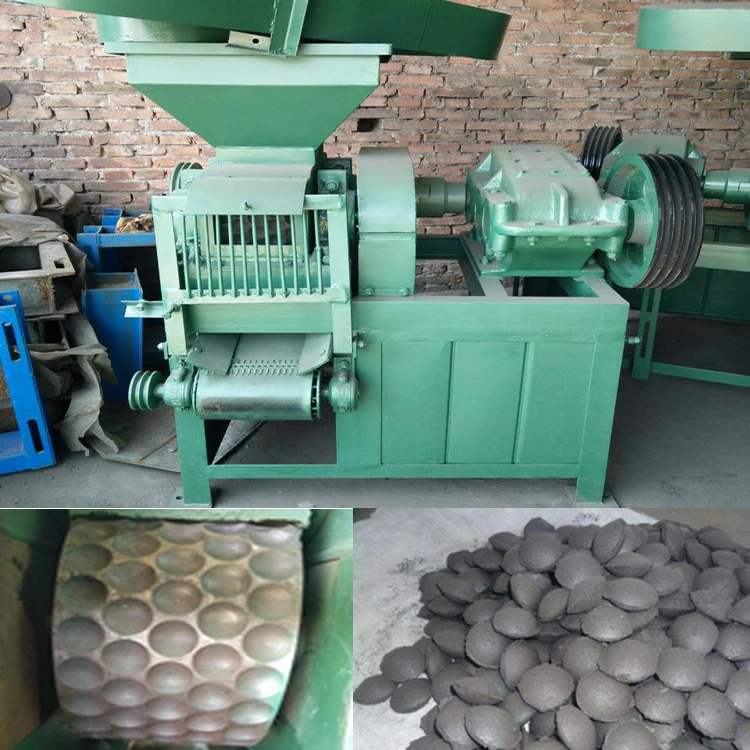

1.charcoal coal biomass briquette machine making ball press machine
Structural composition of briquette press:
1. In the feeding part, the material evenly enters the counter roller.
2. Transmission part: motor-triangle belt-reducer-open gear-roll.
3. The forming part, the main part is the roller. Adjust pressure according to ball density
| Model | 290 | 360 | 360B |
| Capacity | 2-3t/h | 3-4t/h | 5-6t/h |
| Roller width | 200mm | 250mm | 250mm |
| Roller diameter | 290mm | 360mm | 360mm |
| Power | 5-7.5kw | 7.5-11kw | 7.5-11kw |
| Rotary speed | 18r/min | 18r/min | 18r/min |
| Roller material | Wear-resistant alloy | Wear-resistant alloy | Wear-resistant alloy |

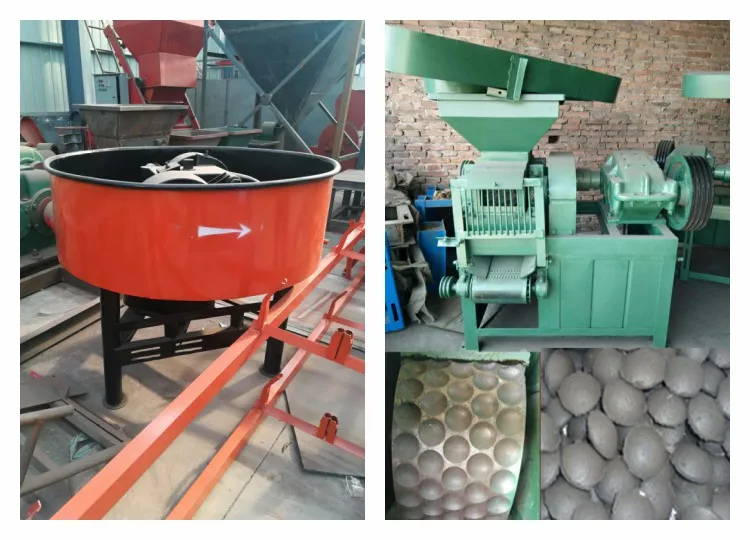

Wheel mill mixer
| Capacity | 1-2 t/h |
| Power | 5.5 kw |
| Weight | 550 kg |
| Diameter | 1300 mm |
| Roller diameter | 430 mm |

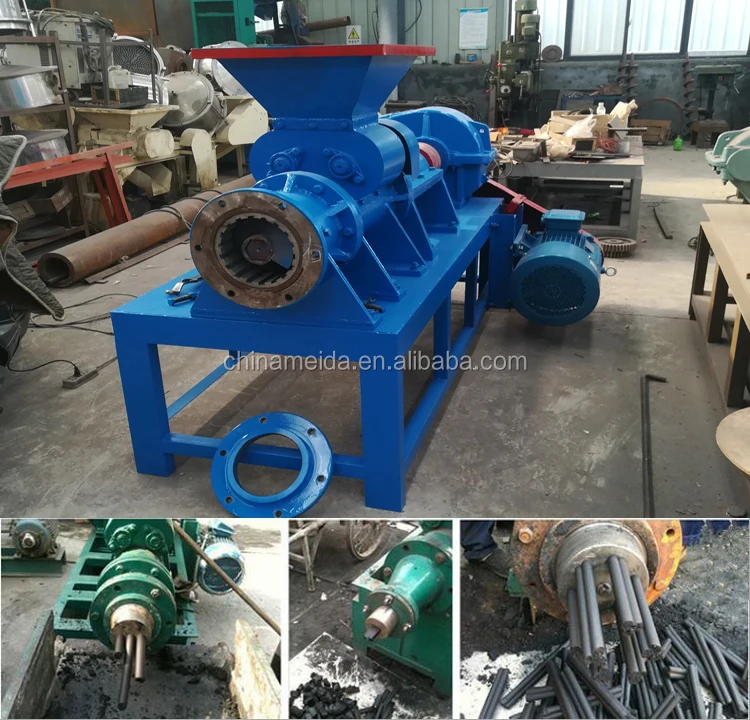

2.Coal stick briquette extruder charcoal pressing machine
Pressure rice husk biomass sawdust briquette making machine charcoal coal ball press
machine Main Features of the machine
1. This machine can make coal and charcoal powder into sticks.
2. The shape of the sticks can be made by customers’ requirements.
3. The final product made by this machine is no pollution or smoke.
4. It is suitable for charcoal powder, wood charcoal powder, coconut shell charcoal powder, rice husk
charcoal powder, charcoal dust, coal powder.
5. Material required size: <3mm
6. The shape and size of stick can be made as required, such as round, hexagon, cinquefoil, and other
shapes, in the stick center, it can be made with a hole or not.
7. For the length, the automatic cutter is available.
Pressure rice husk biomass sawdust briquette making machine charcoal coal ball press machine
Different models of coal briquette make machine
Model Style | 140 | 180 | 300 | 450 |
Capacity | 1-2 t/h | 2-3 t/h | 3-5 t/h | 8-12 t/h |
Power | 11 kw | 22 kw | 90 kw | 220 kw |
Diameter of briquette | 18-80mm ( buyer need tell us what diameter you need ) | |||
Speed | 60 rpm | 60 rpm | 132 rpm | 132 rpm |
Spiral impeller diameter | 120 mm | 160 mm | 270 mm | 420 mm |
Size | 1.9*1.1*1.17m | 2.2*1.37*1.44m | 3.6*1.4*1.45m | 5.13*1.52*1.5m |
Raw materials size | <3mm | |||
Raw materials moisture | 12-14% | |||
Pressure rice husk biomass sawdust briquette making machine charcoal coal ball press machine
charcoal briquette making machine
Pressure rice husk biomass sawdust briquette making machine charcoal coal ball press machine
3.Coconut shell/Wood/Rice Husk/ Sawdust - Biomass Charcoal Briquette Making Machine

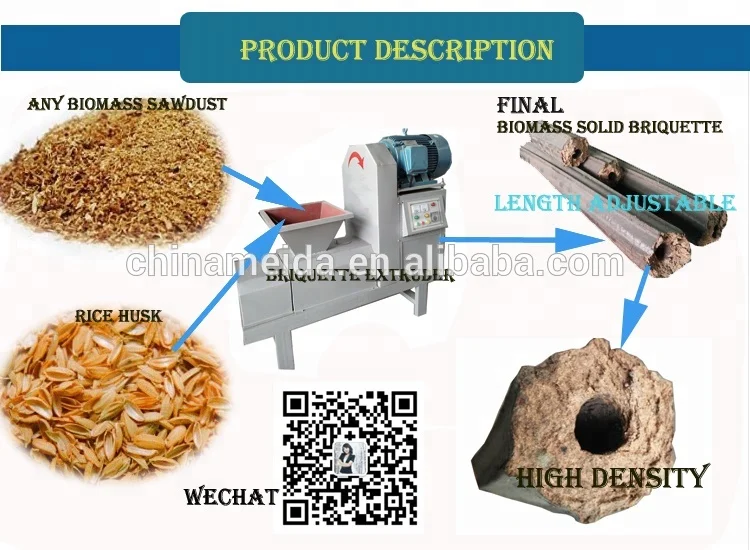

Basic Introduction of biomass charcoal briquette press machine
Work Principle: this machine is used for change agriculture or forestry waste into solid fuel under the high temperature & high pressure
1 raw materials : | sawdust made from wood, peanut, coconut shell, straw , plant stalk; leaf,corn straw,wheat straw ... |
2 raw materials moisture: | 8-12% |
3 final biomass briquette density | 900-1400kg/m |
4 final briquette length : | the machine with a automatic cutter, any length can be make |
5 final briquette shape : | hexagon or square shape |
6 final briquette size : | diameter 50mm & inside hole 15mm |
7 spare parts | spare parts include mould, heating ring, oil seal, propeller, welding rod, temperature controlled meter. |
Big Output Solution
Pressure rice husk biomass sawdust briquette making machine charcoal coal ball press machine

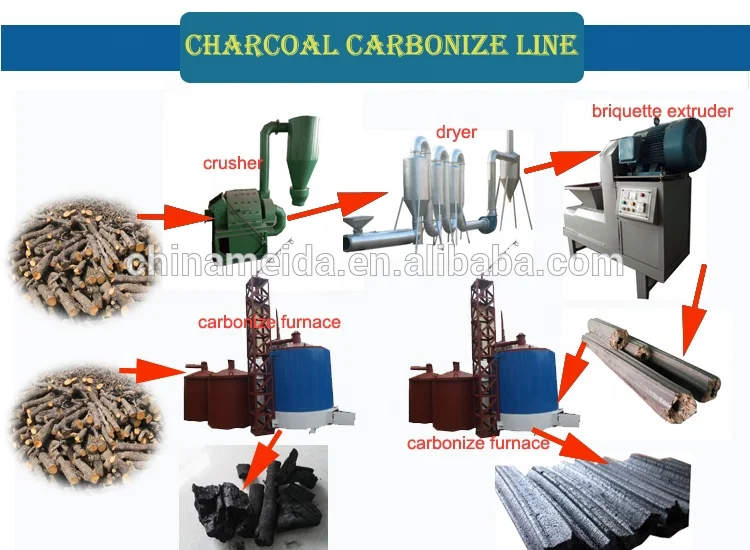

Complete biomass briquette charcoal production line
Charcoal Making Process crusher - dryer - briquette extruder - carbonize furnace
- for crusher : this need crush the raw materials into size 3-5mm
- for dryer : use dryer to get moisture 8-12%
- for briquette extruder : change different mold can get different shape and size briquette, and machine can be adjusted to get any length briquette
- carbonize furnace : usually 2.5-3tons raw materials can get 1 ton final charcoal
Raw materials : Almost all type of Agro-Forestry waste can be used, including: wood chips, maize stalks, soybean stalks, broomcorn stalks, cotton stalks, rape stalks, peanut plants, sunflower stalks, bamboo saw dust, bagasse agro-forestry wastes, such as sawdust, wood chips, branches, crop stalks, sugarcane residue, coffee husk, paddy straw, sunflower stalk, cotton stalks, bamboo dust, palm husk, soybeans husk, tea waste, etc.
Continuous horizontal rotary carbonization machine
Raw materials | Any Carbon-containing organic materials can be as raw materials , such as sawdust, rice hulls, sawdust, bamboo, palm shells, peanut shells, coconut shells, stalks, stalks, etc.( raw materials size < 15mm ) . |
Main Feature | 1 The sustainability of production. 2 closed quenching 3 controllable adjustable carbonization temperature. 4 High heat transfer and high wear resistance composites form a highly efficient carbonization chamber. 5 All gas return to the furnace for combustion without exhaust pollution |
Related Products

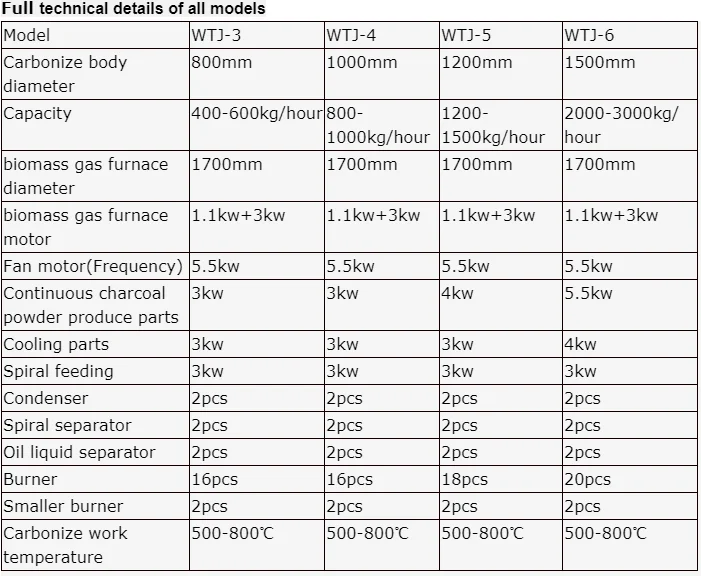

Different Models of charcoal carbonization stove/furnace/kiln
Continuous horizontal rotary carbonization machine
Pressure rice husk biomass sawdust briquette making machine charcoal coal ball press machine
