Heavy Duty Ceiling Mount Industrial Desert Evaporative Water Air Cooler Electric Portable Room AC 220V PP Plastic Long Life 3KW
- Category: >>>
- Supplier: Dongguan Minxin Industry Co. Ltd.
Share on (1600071840949):
Product Overview
Description
Product Description
Air flow volumns of Heavy Duty Ceiling Mount Industrial Desert Evaporative Air Cooler for 30,000m³/h, which helps to create an environment with comfortable temperature and humidity.
Contact us now for the best price
Heavy Duty Ceiling Mount Industrial Desert Evaporative Air Cooler Technical Details
Item No. | YiHoo-30 |
Voltage / Frequency | 220V/50Hz |
Airflow | 30000(m³/h) |
Fan type | Axial |
Fan Speed Stages | 12 |
Power | 3KW |
Dimensions | 1260x1260x1200mm |
Net weight | 85kg |
Water storage capacity | 50L |
Evaporation Capacity | 40(L/H) |
Applicable Space | 200㎡ |
Materials | Tough and Rigid PP |
Water Cooling System inside the Water Air Cooler

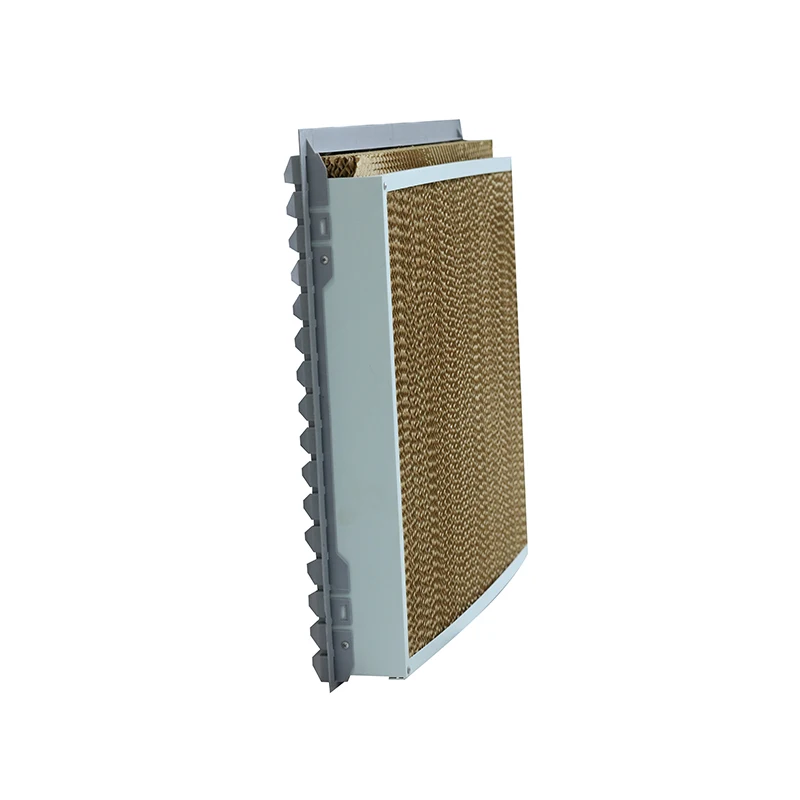

The water air cooler uses a fan to draw in the hot air, and passes over water-moistened pads, the water-moistened cooling pads immediately cools the air, then the evaporative cooler releases this cool moisturized air into the space
Great Cooling Effect
The air coolers can help to cool the air temperature down by 5~10 centigrade.
Multifunction LED Touch Screen Control Panel
Can be customized in multiple languages.
High Quality Water Air Cooler Accessories
The wate air cooler parts and accessories shipped along with the air coolers
Motor
Brand: Chinese motor and Siemens motor
Protection Grade: IP55
Isulation Class: F grade
Advantage: Pure copper wired, with strong output power, high efficiency, energy saving,and could be customized.
Each motor is individually tested for 100% quality control
Brand: Chinese motor and Siemens motor
Protection Grade: IP55
Isulation Class: F grade
Advantage: Pure copper wired, with strong output power, high efficiency, energy saving,and could be customized.
Each motor is individually tested for 100% quality control
Blade
Material:430 stainless steel, 304 stainless steel or galvanized is optional, thickness 1.2mm Diameter: 1270mm
Advantage: Large air flow and automatic closed resistance to deformation, pressure,rust and corrosion , no pest or rain
Material:430 stainless steel, 304 stainless steel or galvanized is optional, thickness 1.2mm Diameter: 1270mm
Advantage: Large air flow and automatic closed resistance to deformation, pressure,rust and corrosion , no pest or rain
Water Pump | Water Outlet | Air Cooler Motor | Fan Blade |
Double filtration water pump, it filters the impurities for smoother water flow | outlets automatically, cleans the water tank for better air quality | Fully copper motor, quiet and durable | High airflow, strong airvent at a long distance |
Air Cooler Options
Upward Airvent Air Cooler
Downward Airvent Air Cooler
Side Airvent Air Cooler
Single Airvent Double Airvent 4 Airvent
8 All-Around Airvent
Size Information
Item No. | YiHoo-P18/P25 | YiHoo-18 | YiHoo-25 | YiHoo-30 | YiHoo-120/80 |
Voltage / Frequency | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
Airflow | 18000/25000(m³ /h) | 18000(m³ /h) | 25000(m³ /h) | 30000(m³ /h) | 12000/8000 (m³/h) |
Fan type | Axial | Axial | Axial | Axial | Axial |
Fan Speed Stages | 12 | 12 | 12 | 12 | 12 |
Power | 1.1/1.5KW | 1.1KW | 1.5KW | 3KW | 0.29KW |
Dimensions | 1100x1100x940mm | 1100x1100x940mm | 1150x1150x1160mm | 1260x1260x1200mm | 1540x935x480mm |
Net weight | 60/65kg | 60kg | 80kg | 85kg | 43kg |
Water storage capacity | 200L | 30L | 40L | 50L | 120L |
Evaporation Capacity | 25( L /H) | 25( L /H) | 35( L /H) | 40( L /H) | 15(L/H) |
Type | Portable | Wall Mount / Ceiling Mount | Wall Mount / Ceiling Mount | Wall Mount / Ceiling Mount | Portable |
Applicable Space | 100㎡ | 100㎡ | 150㎡ | 200㎡ | 100 to 120㎡ |
Materials | Tough and Rigid PP | Tough and Rigid PP | Tough and Rigid PP | Tough and Rigid PP | Tough and Rigid PP |
Why Chose Us
Long Standing History
10 years' OEM experience of industrial air coolers, over 200 skilled employees.
Well Equipped
Equipped with over 100 automatic machines and 10 production lines, lower product cost for our customers
Fully Customizable
Full customization on voltage, materials, dimensions, design and private labeling to meet your unique request.
Most Complete Cooler Sizes
10 years' OEM experience of industrial air coolers. Air coolers have wall mount and portable ,airflow ranges from 18000 m3/h to 30000 m3/h
Fast Delivery
Highest production capacity in China, our daily output is 3,000pcs. Most of our customer can be delivered within 7 days, some can be delivered some day or 3 days
Complete Product Line
95% of the air cooler parts are produced in our own facility, we handle from coil sliding and folding, laser welding, die casting and stamping, motor cooper coil winding, CNC machining and assembly to ensure high precision of each part and higher performance of the air coolers
Company Introduction
MINXIN INDUSTRIAL is well known for its most complete production line for industrial exhaust fans, evaporative air conditioners, and mobile air coolers.
Our Services & Strength
Minxin Industrial was founded in 2015, since then Minxin has been specialized in manufacturing industrial exhaust fans and evaporative air coolers of all sizes, such as:
1. Minxin Belt drive ventilating exhaust fans
2. Minxin Direct drive ventilating exhaust fans
3. Yihoo Water-cooling evaporative air conditioner
4. Yihoo Mobile evaporative air cooler
1. Minxin Belt drive ventilating exhaust fans
2. Minxin Direct drive ventilating exhaust fans
3. Yihoo Water-cooling evaporative air conditioner
4. Yihoo Mobile evaporative air cooler
Our Production Lines
Supporting 120 employees, our 20,000 square meter factory is top-notch, Minxin Industrial equipped itself with all the production equipment processes in house for better control of the quality and delivery time:
1. Steel coil sliding and cutting line, steel pipe cutting line
2. Aluminum Die Cast Tooling & Casting
3. Plastic Molding & Injection workshop
4. Metal Stamping & Laser Cutting
5. Motor Copper Coil Winding Line
6. Motor Assembly Workshop
7. Exhaust Fan Assembly Workshop
8. Water Air Cooler Assembly Workshop
1. Steel coil sliding and cutting line, steel pipe cutting line
2. Aluminum Die Cast Tooling & Casting
3. Plastic Molding & Injection workshop
4. Metal Stamping & Laser Cutting
5. Motor Copper Coil Winding Line
6. Motor Assembly Workshop
7. Exhaust Fan Assembly Workshop
8. Water Air Cooler Assembly Workshop
Air Cooler Assembly Workshop
Air Cooler Warehouse
FAQ
Welcome send us inquiry,we'll give you best price for 40ft container for unassembly.
If you'll come to China recently, welcome visit our factory in Dongguang near Guangzhou or Shenzhen.
