hot selling machine bill selling new Type Stainless Steel Alcohol Recovery Distillation Column
- Category: >>>
- Supplier: Shanghai Greawoo Machinery Equipment Co. Ltd.
Share on (1600071879377):
Product Overview
Description
Product Description

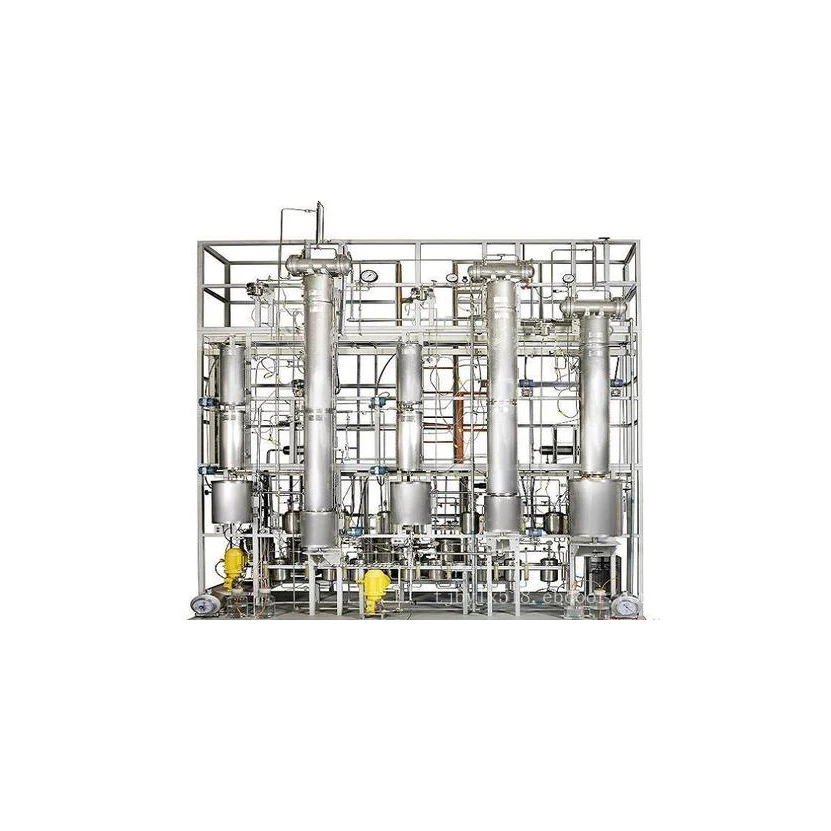

The complete set Alcohol Distillation column include distillation pot, distillation column, condenser, cooler, buffer tank and
high-level storage tank, which is applicable to pharmacy, food, light industry and chemical engineering for the alcohol recovery. The parts of this equipment that touch with raw materials are all made of stainless steel SS304 or SS316, so the equipment has good corrosion-resistant performance, save energy, protect environment, reduce production cost and increase efficiency. This device can distill thin alcohol with 30-50 degree to 90-95 degree.The residual liquid has low discharge alcohol content, which is in accordance with environment protection requirement.
high-level storage tank, which is applicable to pharmacy, food, light industry and chemical engineering for the alcohol recovery. The parts of this equipment that touch with raw materials are all made of stainless steel SS304 or SS316, so the equipment has good corrosion-resistant performance, save energy, protect environment, reduce production cost and increase efficiency. This device can distill thin alcohol with 30-50 degree to 90-95 degree.The residual liquid has low discharge alcohol content, which is in accordance with environment protection requirement.
Alcohol equipment , Differential pressure,Fuel ethanol equipment, Dehydration alcohol ethanol equipment, Distillation columns
1. it is a turn key whole set equipment,simple equipment, less worker,less area,less cost.
2. can produce 1000L-1000000L 95.5%-99.9% alcohol(ethanol) per day.
3. can use corn, wheat, cassava, molasses, rice, potato, date, beetroot , sugar cane, brown sugar ect which contains starch or sugar material.
2. can produce 1000L-1000000L 95.5%-99.9% alcohol(ethanol) per day.
3. can use corn, wheat, cassava, molasses, rice, potato, date, beetroot , sugar cane, brown sugar ect which contains starch or sugar material.
SPECIFICATIONS
Nominal Diameter: 300 to 1600mm
Designed Pressure: Max. 0.6Mpa
Working Temperature: -20 to 200 Deg.C
Thickness of Lined Glass:0.8 to 2.0mm
Spark Test for Lining-glass:20KV after glass-ling, and 10KV before shipment
Temperature Resistance:Chilling shock: 110 Deg.C, Thermal shock: 120 Deg.C
Standard: HG/T3127-2009 Or Against customized standard
Nominal Diameter: 300 to 1600mm
Designed Pressure: Max. 0.6Mpa
Working Temperature: -20 to 200 Deg.C
Thickness of Lined Glass:0.8 to 2.0mm
Spark Test for Lining-glass:20KV after glass-ling, and 10KV before shipment
Temperature Resistance:Chilling shock: 110 Deg.C, Thermal shock: 120 Deg.C
Standard: HG/T3127-2009 Or Against customized standard
Double-Mash-Column Three-Effect Distillation Process
This process applies to the production of general-grade alcohol& fuel ethanol, and it was awarded Chinese national patent, it is the onlysuccessfulapplicationof double mash column & three-effect in the world,which produces general-grade alcohol.This process is composed by mash column, rectification column and composite column. The composite column functions as mash column and rectification column.The key of this process is the heating methods: the steam heats one column directly and transfers the heat to other 2 columns to achieve three-effect thermal coupling and energy-saving effects.The advantage of this process is energy-saving;it saves over 40% steam
This process applies to the production of general-grade alcohol& fuel ethanol, and it was awarded Chinese national patent, it is the onlysuccessfulapplicationof double mash column & three-effect in the world,which produces general-grade alcohol.This process is composed by mash column, rectification column and composite column. The composite column functions as mash column and rectification column.The key of this process is the heating methods: the steam heats one column directly and transfers the heat to other 2 columns to achieve three-effect thermal coupling and energy-saving effects.The advantage of this process is energy-saving;it saves over 40% steam
Specification
model | GW-200 | GW-300 | GW-400 | GW-500 | JS-600 | JS-800 JS1000 | |||||
evaporate room volume (L) | 900 | 1100 | 1600 | 2000 | 2500 | 3200 3800 | |||||
height of tower (mm) | 5500 | 7000 | 7000 | 7500 | 7500 | 7500 8000 | |||||
recovery ability(kg/h) | 45-60 | 90-100 | 150-160 | 280-300 | 420-450 | 600-630 950-1000 | |||||
condensation area (m2) | 4.0 | 9 | 16 | 25 | 36 | 56 60 | |||||
cool area (m2) | 1 | 1.6 | 3 | 3 | 3 | 4.5 5 | |||||
filler | Stainless steel net | ||||||||||
recovery degree | >90% | ||||||||||
steam pressure(MPa) | 0.1 | ||||||||||
weight(kg) | 900 | 1500 | 2350 | 3400 | 4500 | 6800 7800 | |||||
height of installation (m) | 9.5 | 11.1 | 11.7 | 12.6 | 12.6 | 13.8 | |||||
Dimension (m) | 2.9*1.55 *9.5 | 3.3*1.64 *11.1 | 4.59*1.85 *11.7 | 4.8*2.15 *12.6 | 5*2.2 *12.6 | 5.5*2.0 *13.8 | |||||
