manual hydraulic rock separator splitter for breaking granite
- Category: Mining Machinery >>>
- Supplier: Jining,Luheng,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Factory directly hydraulic portable diesel rock splitting machine
hydraulic rock stone splitting machine,also known as splitting machine,split stone machine,mountain machine,etc..according to the power station type can be divided into:electric type rock splitter,diesel rock splitter,gasoline type rock splitter,four kinds of air motor.
hydraulic rock stone splitting machine,also known as splitting machine,split stone machine,mountain machine,etc..according to the power station type can be divided into:electric type rock splitter,diesel rock splitter,gasoline type rock splitter,four kinds of air motor.
According to split gun materiall can be divided into :steel split gun and aluminum split gun.The main components of the concrete components(cement pavement,machine tool foundation,bridge and housing components)local and all demolition operations;natural stone mining(metal mine,non-metallic mineral).
hydraulic rock stone splitting machine is particularly suitable for the second division of large rock,is a completely replace the blasting and hand disassembly,of the ideal equipment.
Product Paramenters
Specification for cylinder or gun of rock splitter machine | ||||||||
Model/Data Name | HW90-250 | HW90-350 | HW90-450 | |||||
piston diameter | 90mm | 90mm | 90mm | |||||
drilling diameter | Φ42mm | Φ45mm | Φ50mm | |||||
Max. drilling depth | 500mm | 600mm | 700mm | |||||
wedge length | 250mm | 350mm | 450mm | |||||
Crack width(mm) | 12-14 | 12-14 | 12-14 | |||||
Split time | 20-40s | 20-40s | 8-15s | |||||
Split force | 800T | 1000T | 1200T | |||||
weight | 31kgs | 33kgs | 35kgs | |||||
hydraulic pump station of rock stone splitting machine specification | ||||||||
Engine | Eletric motor | Gaoline engine /diesel engine | ||||||
motor power | 4KW | 5.5KW/7.5KW | 6Hp | 8Hp/18Hp | ||||
working pressure(Mpa) | 55-60 | 63MPA | 55-60 | 63MPA | ||||
working flow(L/min) | 2-13 | 2-13 | 2-13 | 2-13 | ||||
configurable splitting machine number | 1-5 | 2-7/2-10 | 1-3 | 3-8/3-18 | ||||
Detailed Images
Our Advantages
Advantage for portable diesel rock splitting machine
1) Powerful( Max:1200T ), it can split the stone or concrete easily.
2) High efficiency,it can split the stone in 5-10seconds.3) Long-life, the wedges stands wear and tear;
4) Dust free and near silent operation,Light weight and Easy handling

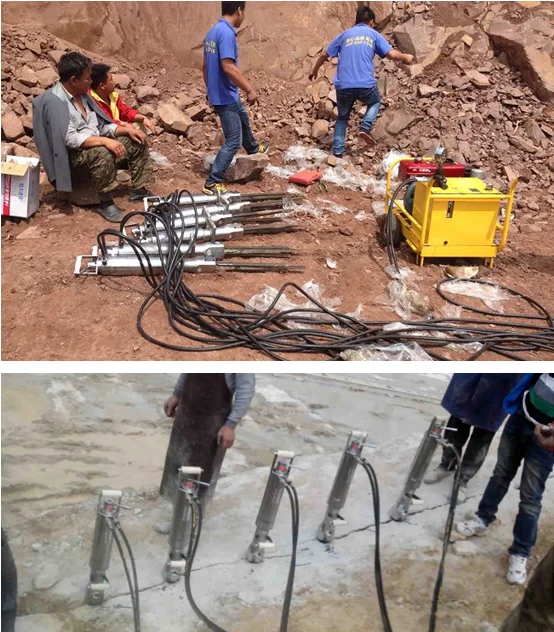

5) Now it is widely used in mineral mining(cave mining) , civil engineering construction and demolition. It is also an indispensable tool in construction, river dredging, salvation etc.)

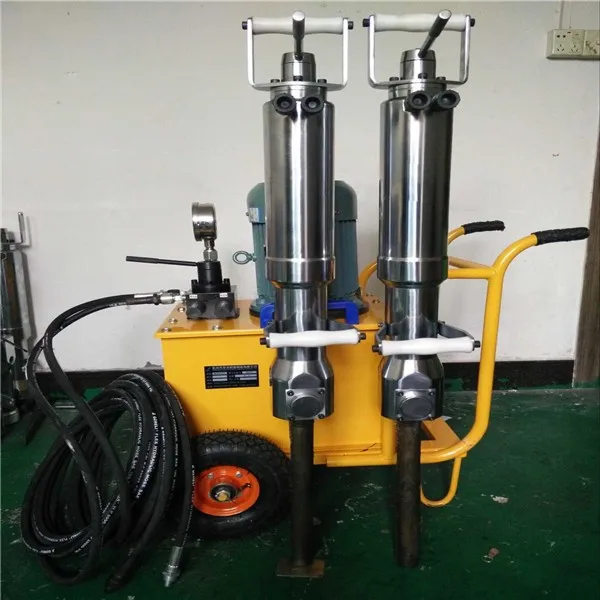

Machine with accessories:
1.Pump recersing valve
2.Pressure gauge
3.Engine: electric motor- 4KW/5.5KW/7.5KW diesel- 6HP/8HP/18HP
4.High/low pressure oil pipe
5.Moving cart
6.Wedge reversing valve
7.Quick coupling
8. Hand Knob
9.Side wedge
10.Central wedge
3.Engine: electric motor- 4KW/5.5KW/7.5KW diesel- 6HP/8HP/18HP
4.High/low pressure oil pipe
5.Moving cart
6.Wedge reversing valve
7.Quick coupling
8. Hand Knob
9.Side wedge
10.Central wedge
11.Pumping station
Rock splitter machine packing as follows:
What's the hardness that the hydraulic rock splitter can split?
1.Marble, hardness around 5 level; 2.Basalt, hardness around 7 level;
3.Granite, hardness around 7 level; 4.Siliceous rocks, hardness around 6 level;
5.Shale, hardness around 5 level; 6.Quartzite, hardness around 8 level.
1.Marble, hardness around 5 level; 2.Basalt, hardness around 7 level;
3.Granite, hardness around 7 level; 4.Siliceous rocks, hardness around 6 level;
5.Shale, hardness around 5 level; 6.Quartzite, hardness around 8 level.
Application
Factory directly hydraulic portable diesel rock splitting machine

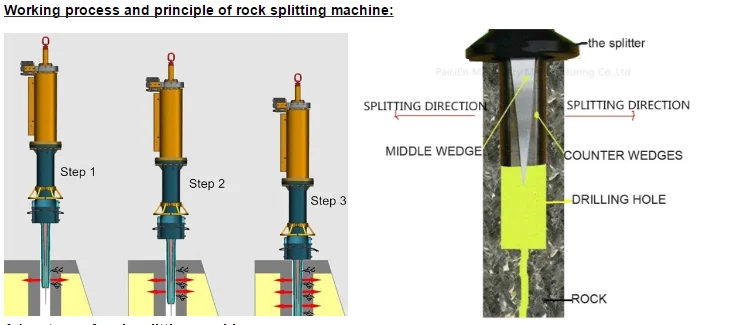

Hydraulic rock splitting machine working principle ：The hydraulic rock splitting machine firmly controls the brittleness of the rock and concrete and uses the wedge mechanism to develop and produce a large splitting force to the outside in the smallest hole. It is mainly used to mine quarrying blocks.
Company Profile
Jining Luheng Machinery Equipment Co.,Ltd.
Jining Luheng Machinery Equipment Co.,Ltd. is the professional manufacturer of rock splitter. With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. main clients are around Southeast Asia,Mid East and South America. Welcome visit our factory and sent inquiry to us.
Jining Luheng Machinery Equipment Co.,Ltd. is the professional manufacturer of rock splitter. With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. main clients are around Southeast Asia,Mid East and South America. Welcome visit our factory and sent inquiry to us.
FAQ
Q1.What is the main function of rock splitter machine?
Ans.: It has different models used for all kinds of works.
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.
Q3. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q5. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories
broken can be changed for a new one.And we provide videos for machine install and operation.
Q6. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q7. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q8.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.
Q9: How do you make our business long-term and good relationship?
Ans.: 1. We keep good quality and competitive price to ensure our customers benefits; 2. We respect every customer as our friend
and we sincerely do business and make friends with them,
no matter where they come from.
Q10.Do you have any certificates for your machine?
Ans.: All of our produ c ts coming with the certificates of CE, ISO9001.
For more information, welcome to click here
Ans.: It has different models used for all kinds of works.
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.
Q3. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q5. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories
broken can be changed for a new one.And we provide videos for machine install and operation.
Q6. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q7. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q8.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.
Q9: How do you make our business long-term and good relationship?
Ans.: 1. We keep good quality and competitive price to ensure our customers benefits; 2. We respect every customer as our friend
and we sincerely do business and make friends with them,
no matter where they come from.
Q10.Do you have any certificates for your machine?
Ans.: All of our produ c ts coming with the certificates of CE, ISO9001.
For more information, welcome to click here
