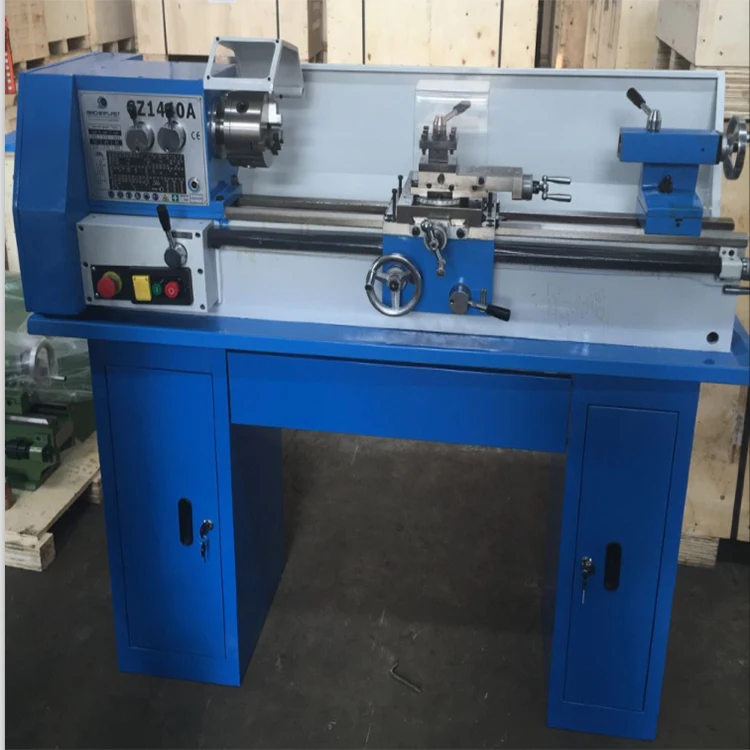

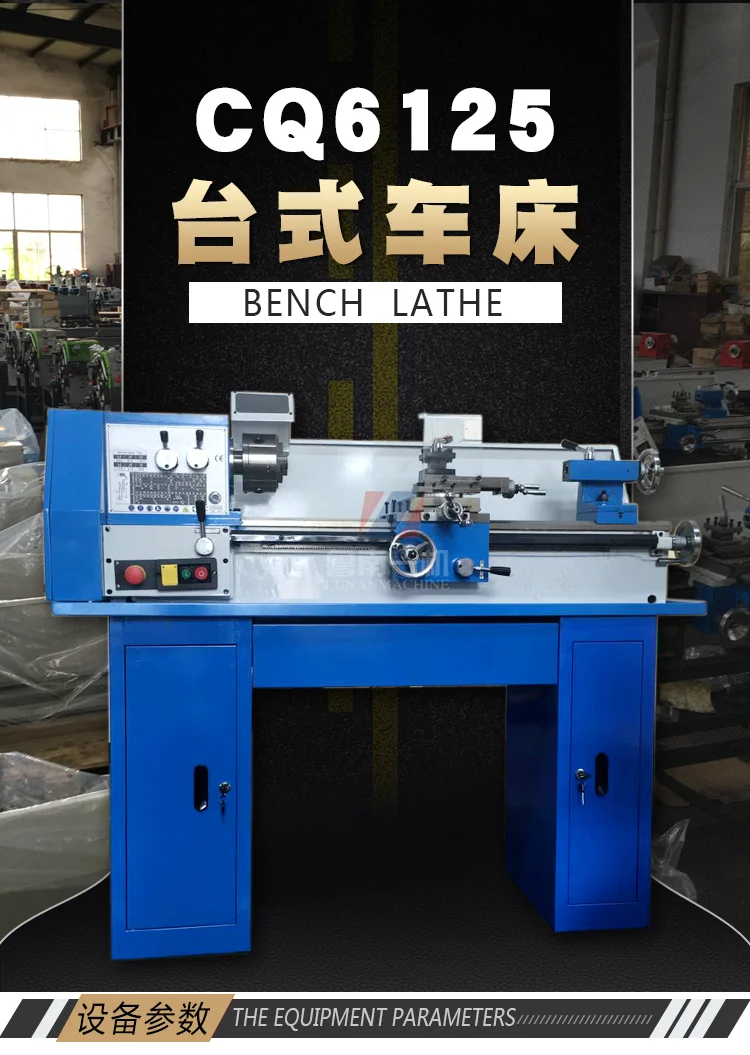

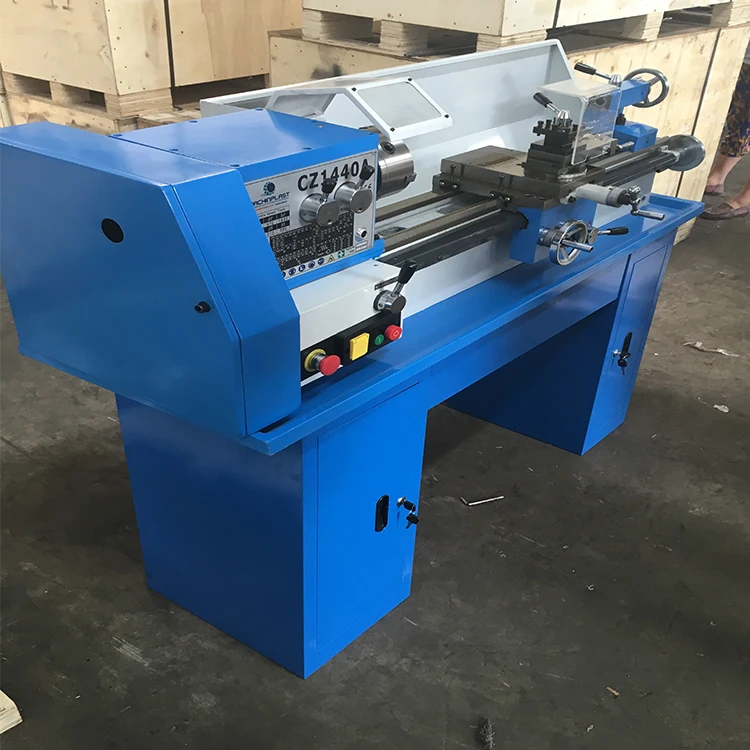

CQ6125 Low Price Mini Used Table Metal Manual Lathe Machine Price

Max.swing over bed

mm

250

Max.processing length

mm

500

Max.swing over cross slide

mm

150

Spindle hole diameter

mm

26

Taper of spindle

mm

No.4

Spindle

mm

80—1600r.p.m

The maximum horizontal stroke of cutter

mm

130

The knife frame maximum longitudinal travel

mm

75

Processing metric thread number

15

Processing range of metric threads

mm

0.25-2.5

Processing inch thread number

9

Processing range of inch threads

TPI

12-96

Longitudinal feed spindle turret at every turn

mm

0.03-0.275

The transverse feed amount per turn spindle turret

mm

0.015-0.137

Tail-stock sleeve travel

mm

60

Taper of tail-stock sleeve

mm

No.3

Electric machinery

w

750W/380V/50HZ
