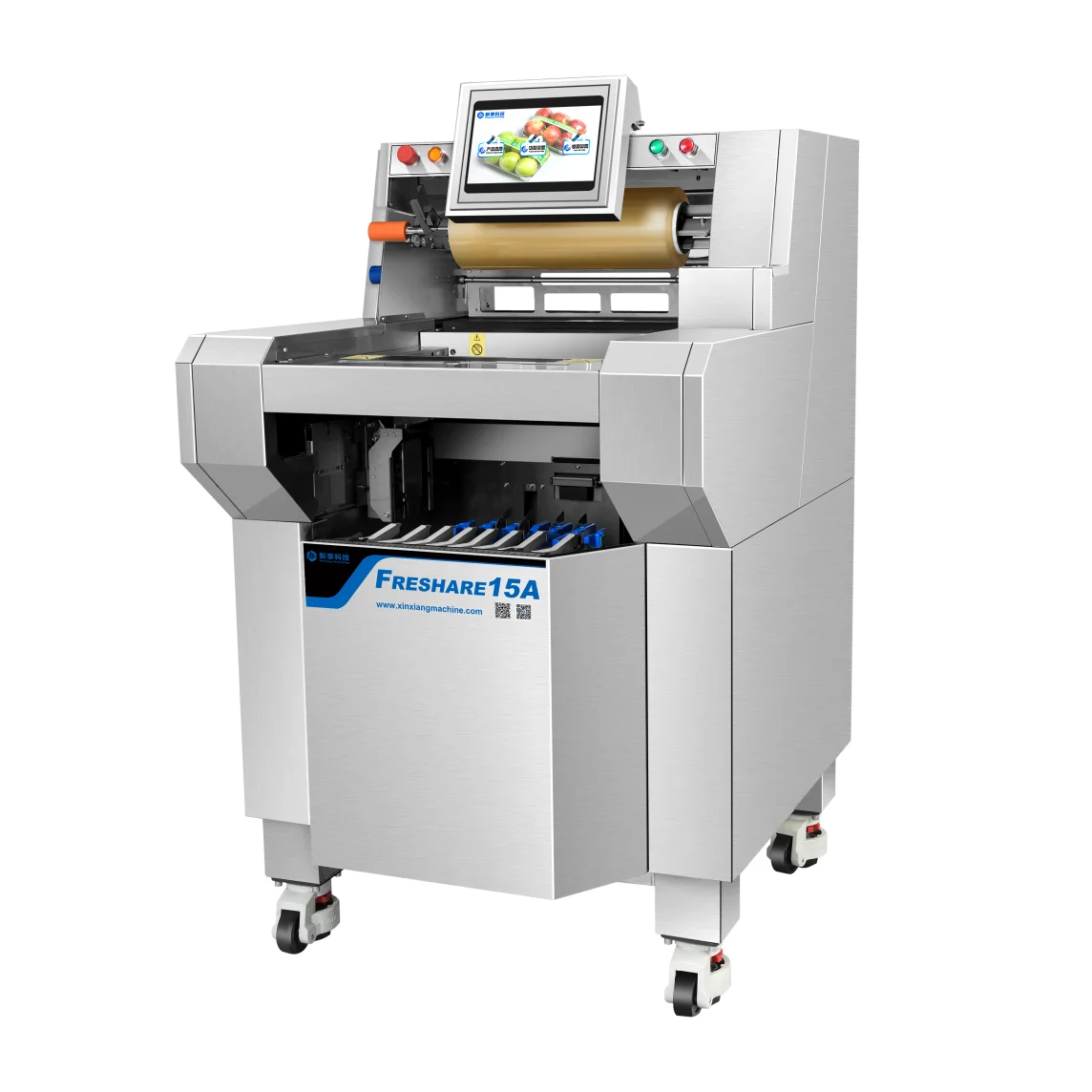

stretch film shrink wrap packaging machine for fruit& vegetable
1. Technical parameter
Basics
model
Freshare15A
type
Semi-automatic stretch film wrapper
Dimensions(Length* width *height)
840*888*1415mm
Configuration
Display
10.2-inch TFT color touch screen (screen ratio 16:9))
Display resolution
1024*699
Power Supply
220v/110v
Power Consumption
1860W
cylinder
SMC CORPORATION
Electric appliance
Schneider
PLC
Panasonic
Weighing component
TOLEDO/ other
Label printing
Zebra/other
Frame material
304 stainless steel
Working parameters
Packing speed
15/min 15 packs / min
Package length
80~350mm
Package width
80~230mm
Package height
10~150mm
Package weight
150g~3kg
Film width
350~500mm
2. stretch film shrink wrap packaging machine for fruit& vegetable Operation process

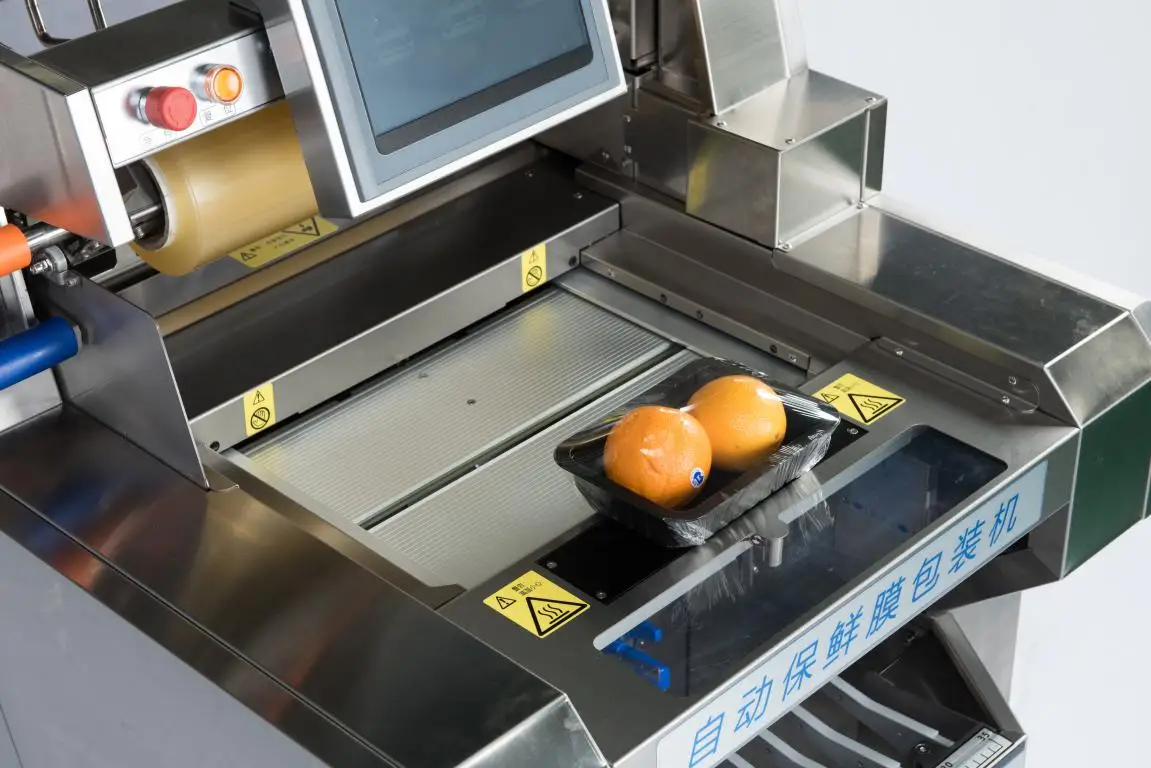

A. Semi-automatic packaging machine operation process:
1. Select the appropriate packaging data (pre-set storage)

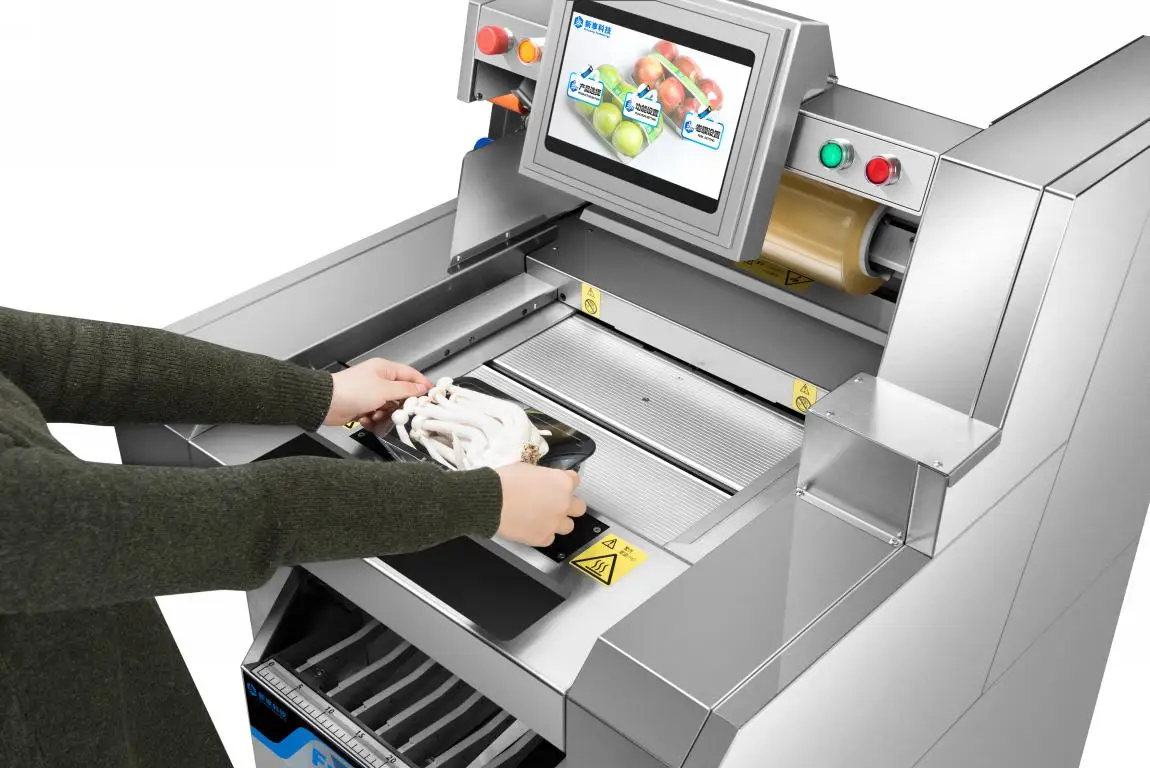

2. Place the package in the tray position and the machine will automatically weigh
3. Remove the packaged product and gently press the heating plate
4. Paste the printed label onto the packaged item manually(if label printing is optional)

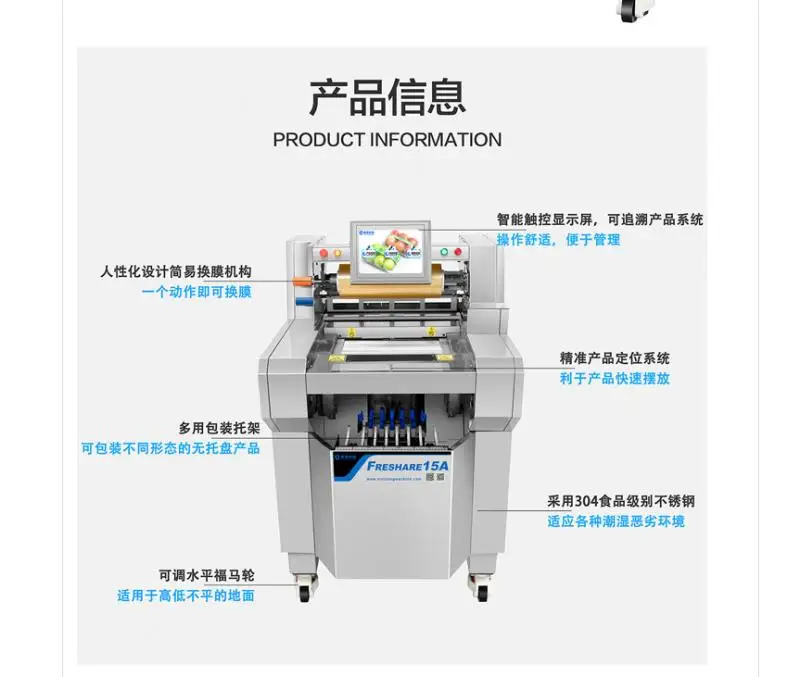

3. stretch film shrink wrap packaging machine for fruit& vegetable Features
Available with or without tray
The occupied space is small, just plug it in and you can use it.
It can be connected to the conveyor line and the front and rear processes are semi-automatically connected (we can provide all the matching products of the conveyor line).
Low noise production
Continuous or intermittent production
Applicable to all common machine film (PVC, PE, PO), which can save costs
