Автоматическое выравнивание UV LED коллимированный блоки выдержки (внутренний/наружный слой)
- Category: Electronics Production Machinery >>>
- Supplier: Guangdong,KST,Optical,Co.,LTD
Share on:
Product Overview
Description
Product Description
Auto-Alignment UV-LED Collimated Exposure Units(for Inner/Outer layer)
Model | KST-SA7262-WX |
Circuit Board size | Min:10"*12" Max:24"*28'' |
Line Resolution | 2mil/2.5mil |
Energy Uniformity | ≥88% |
Exposure time | 100% energy＜8s |
Adjustable | Time and energy can be adjust |
PCB thickness | 0.1mm-3.2mm |
Semi-Automatic Outer layer exposure machine
Features:
1. high speed,high precision and high stability.
2. Line resolution reach 50um.
3. And can produce 2-2.5pcs per minute.
4.Double sides expose and film automatic alignment by camera.
LED Light source
1. LED light source, energy saving, lowest cost and power consumption, no replacement consume during three years.
2. KST own design LED lght source,easy maintain and replace.
3. Long service life, ＞20,000 hours, and maintain for three years.
Detailed Images

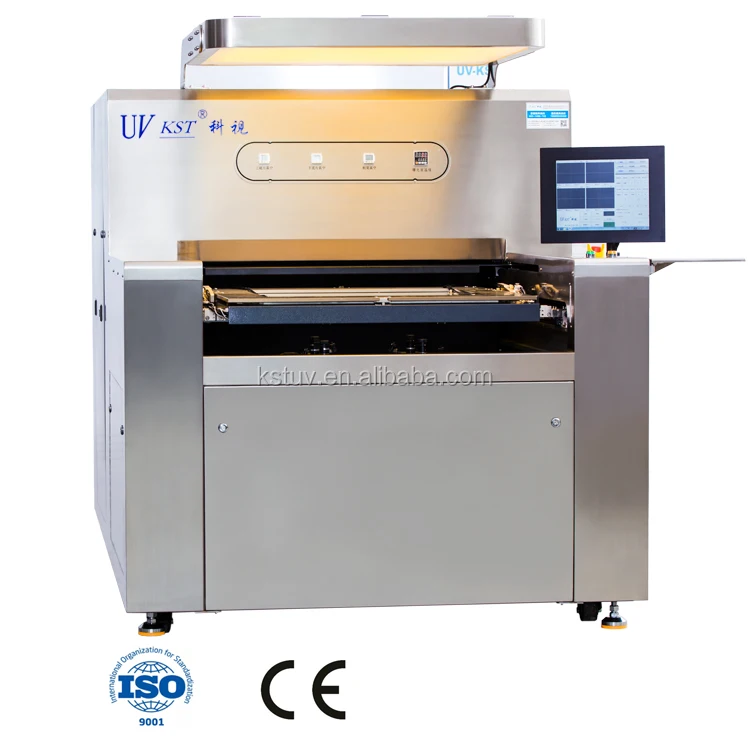

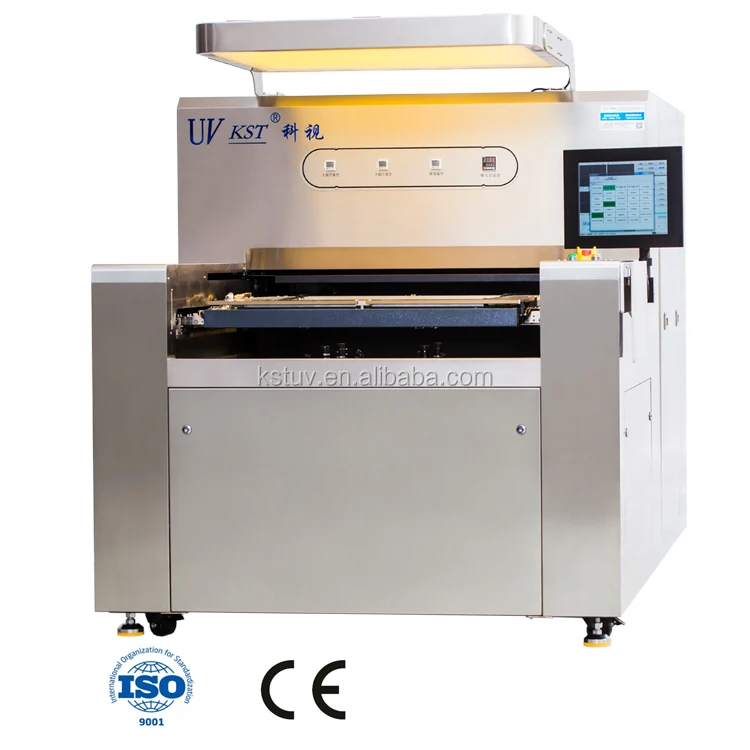

Semi-Automatic PCB outer layer exposure machine which can produce inner layer and outer layer.

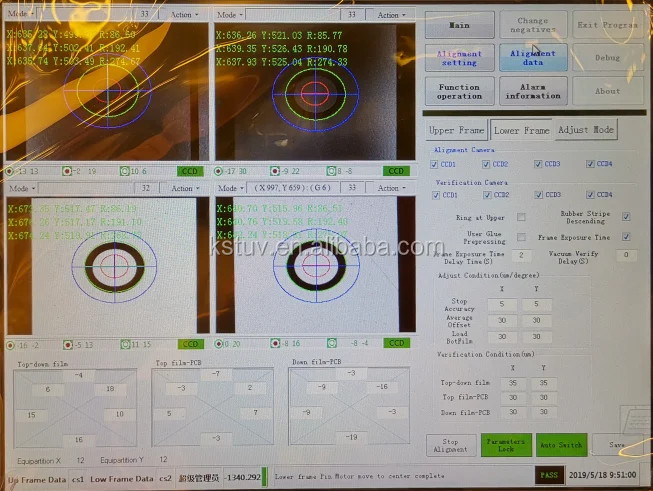

The film and panel automatic align by cameras.
So that the line space and line resolution can reach 50um/2 mil.
