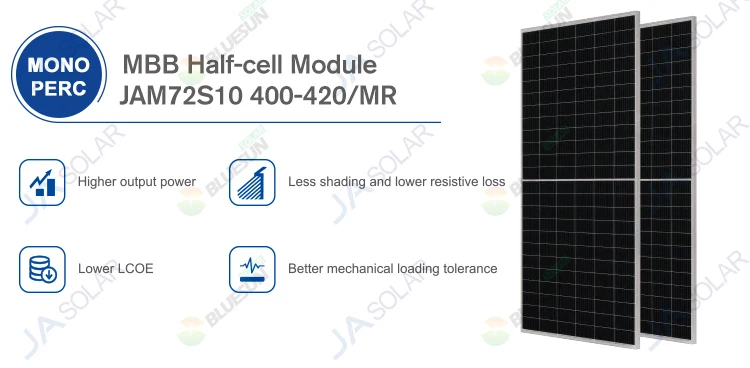

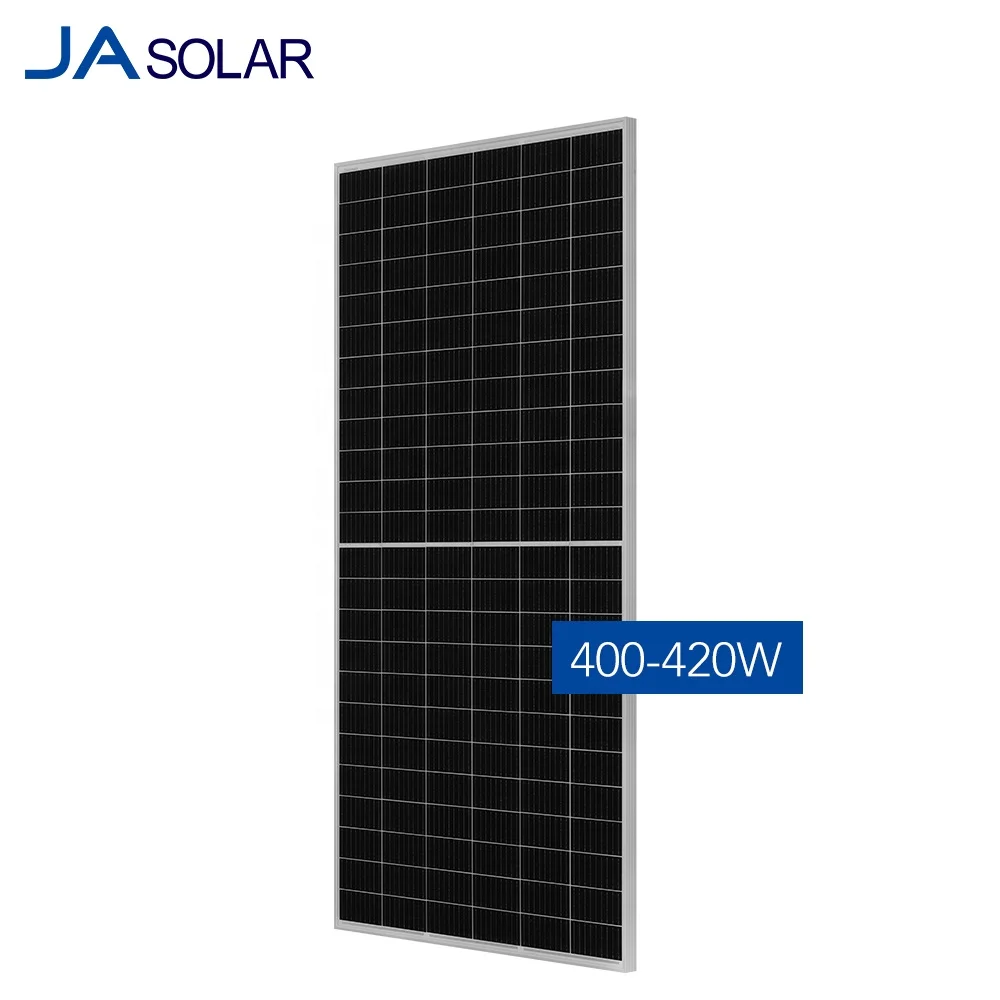

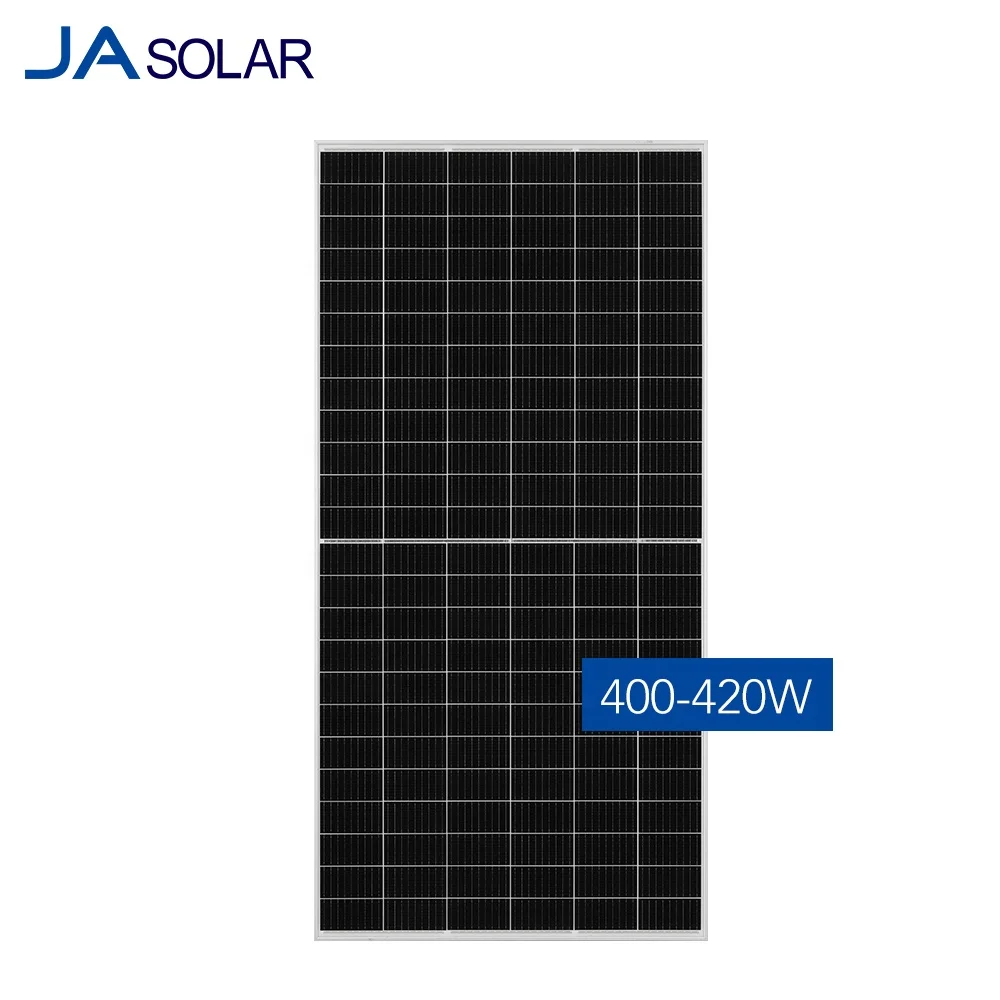

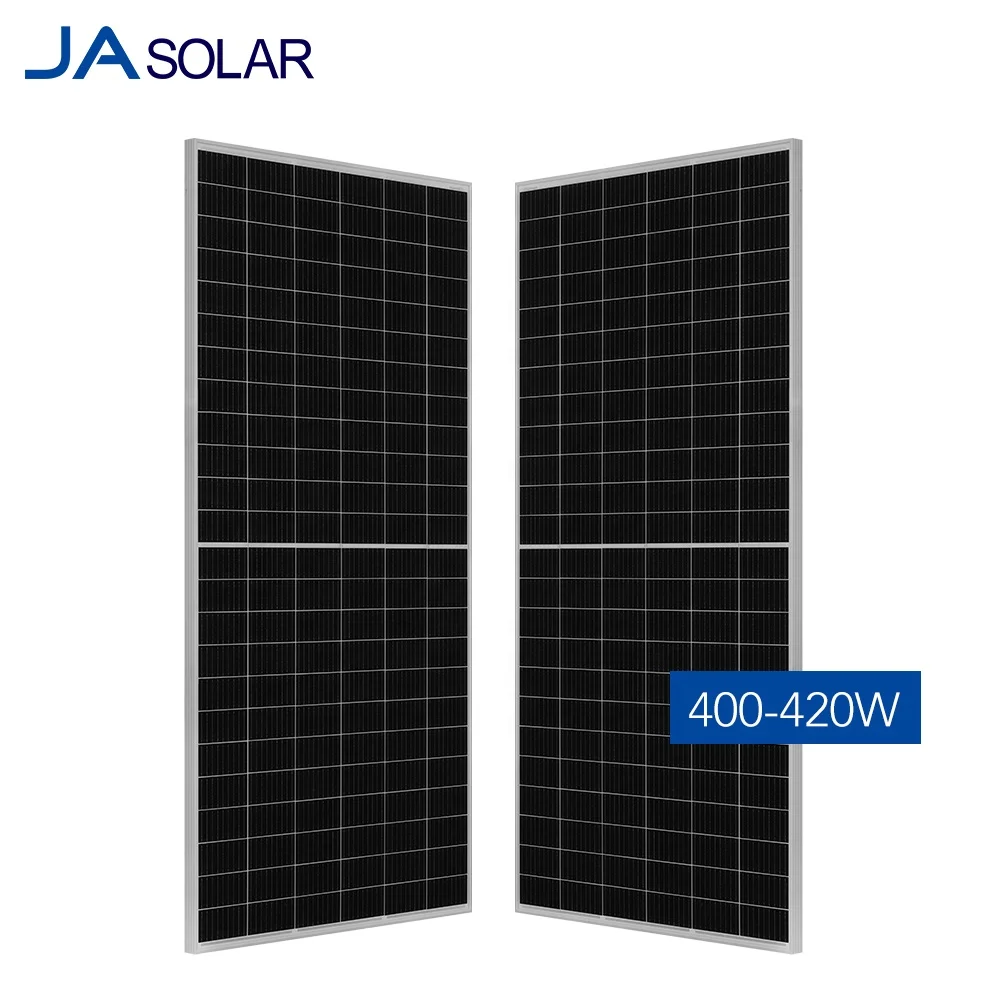

ja solar panel 410w mono PERC half cell 410watt 420w paneles solares ja pv modules for solar power system
- Category: >>>
- Supplier: Bluesun Outdoor Energy Co. Ltd.Bluesun Ltd.
Share on (1600072954787):
Product Overview
Description
Why Buy JA Via Bluesun
Products Description
ELECTRICAL PARAMETERS | ||||||||||||
TYPE | JAM72S10 -400/MR | JAM72S10 -405/MR | JAM72S10 -410/MR | |||||||||
Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT | ||||||
Rated Maximum Power(Pmax) [W] | 400 | 302 | 405 | 306 | 410 | 310 | ||||||
Open Circuit Voltage(Voc) [V] | 49.58 | 46.41 | 49.86 | 46.66 | 50.12 | 46.91 | ||||||
Maximum Power Voltage(Vmp) [V] | 41.33 | 38.65 | 41.60 | 38.90 | 41.88 | 39.16 | ||||||
Short Circuit Current(lsc) [A] | 10.33 | 8.25 | 10.39 | 8.31 | 10.45 | 8.36 | ||||||
Maximum Power Current(lmp) [A] | 9.68 | 7.81 | 9.74 | 7.87 | 9.79 | 7.92 | ||||||
Module Efficiency [%] | 19.9 | 20.2 | 20.4 | |||||||||
Power Tolerance | 0~+5W | |||||||||||
Temperature Coefficient of Isc(α-jsc) | +0.044%/°C | |||||||||||
Temperature Coefficient of Voc(β_Voc) | -0.272%/°C | |||||||||||
Temperature Coefficient of Pmax(γ_Pmp) | -0.350%/°C | |||||||||||
STC | Irradiance 1000W/m², cell temperature 25°C, AM1.5G | |||||||||||
NOCT | Irradiance 800W/m², ambient temperature 20°C, wind speed 1m/s, AM1.5G | |||||||||||
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types. | ||||||||||||
Our JA Solar Team

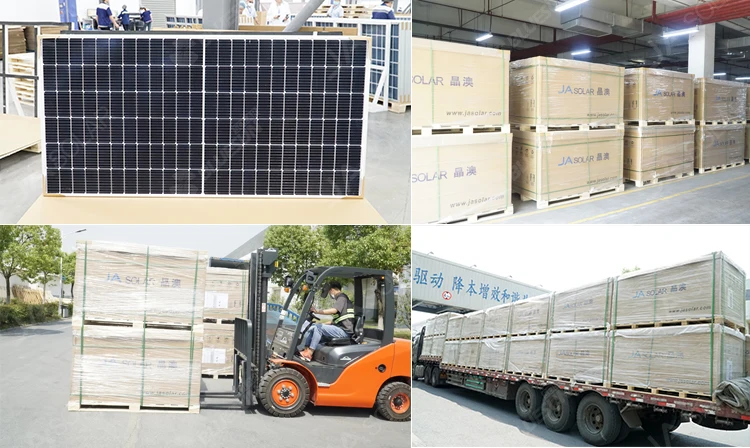

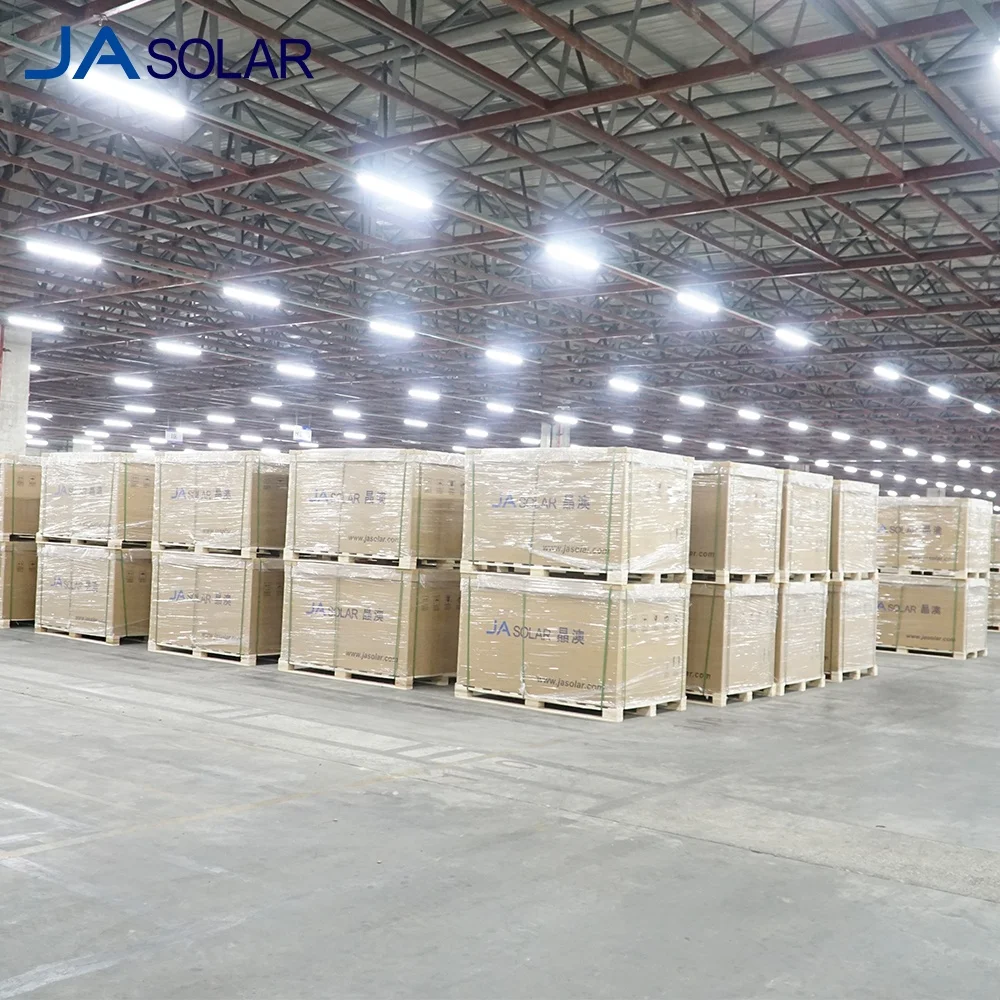

Packing
Model | JAM60D10/JAM60D20 | JAM72D10/JAM72D20 | JAM60S10/JAM60S20 | JAM72S10/JAM72S20 |
Pcs/Pallet | 30 | 30 | 30 | 30 |
Pcs/20'GP | 180 | 150 | 180 | 150 |
Pcs/40'HQ | 720 | 600 | 720 | 660 |
Payment
Payment Term | T/T | EXW | |||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
Paypal | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
