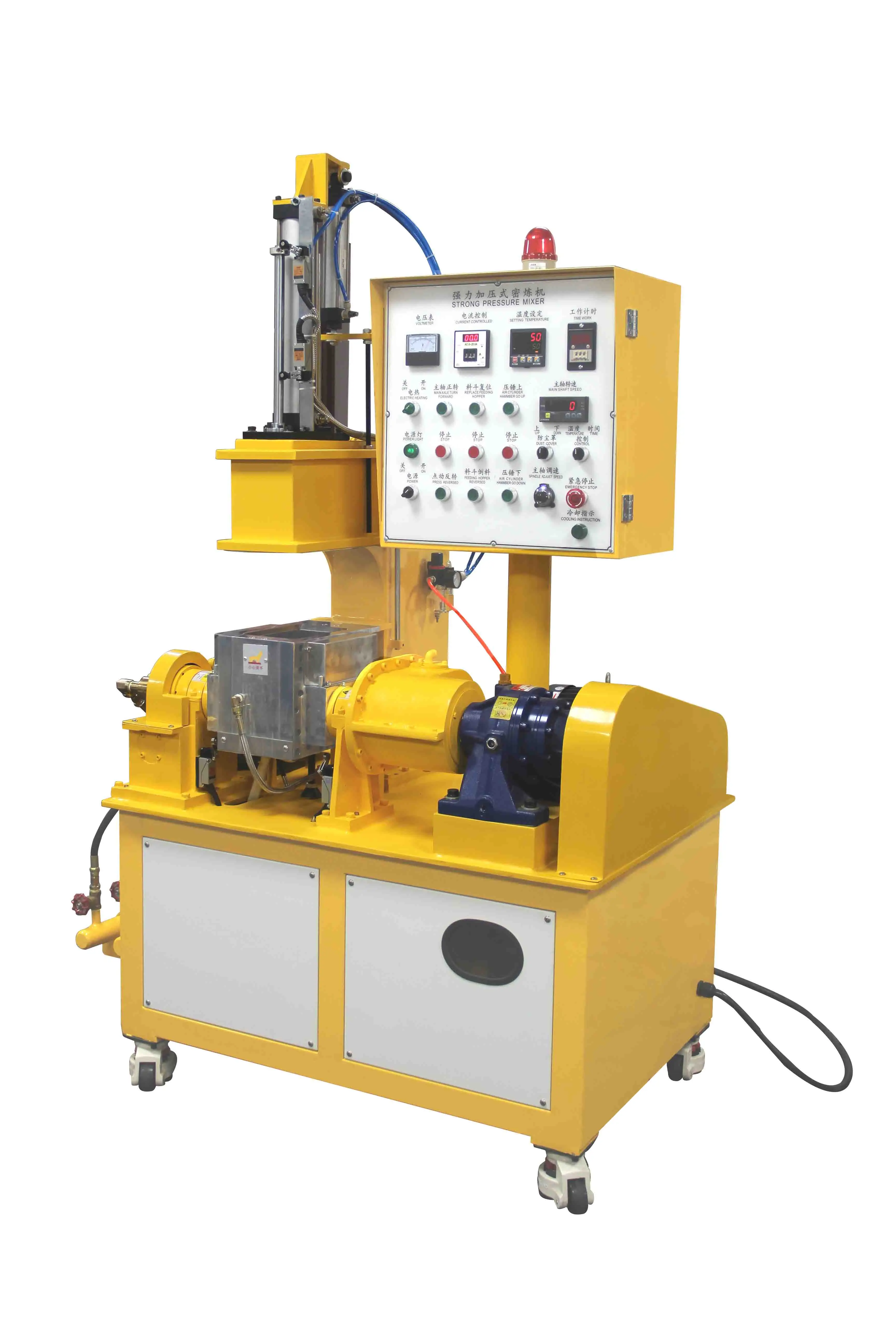

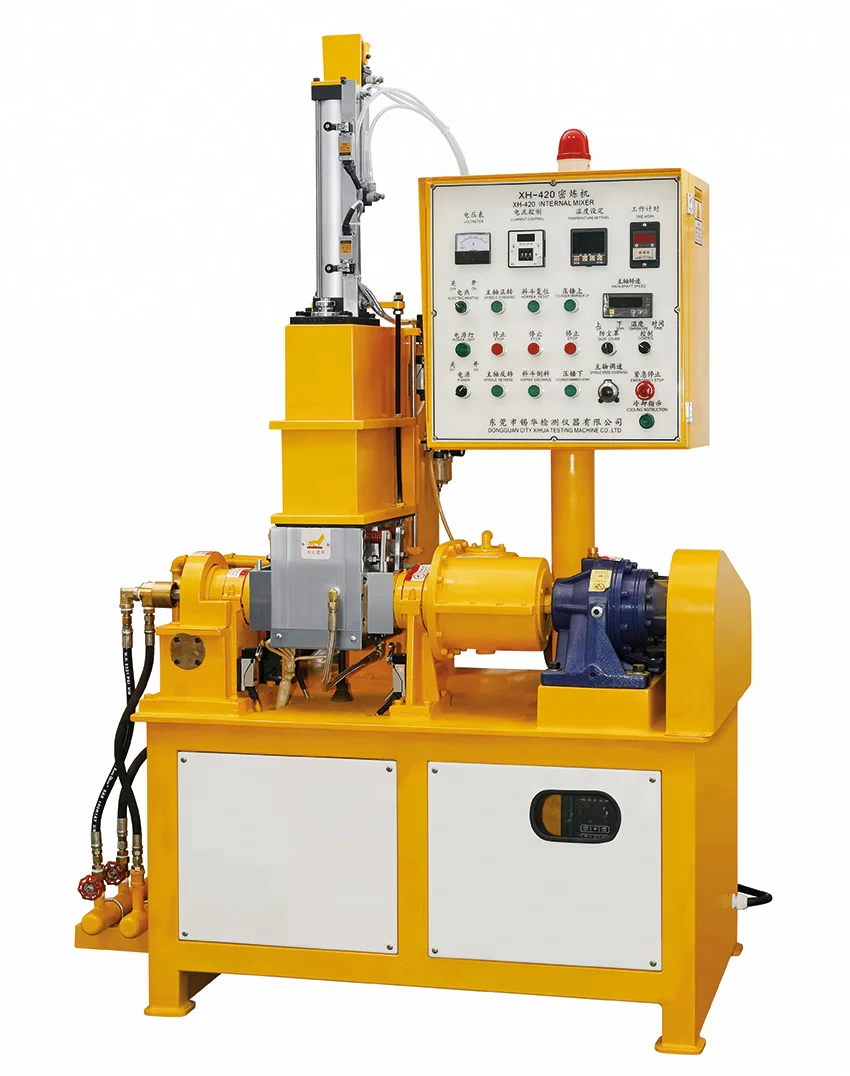

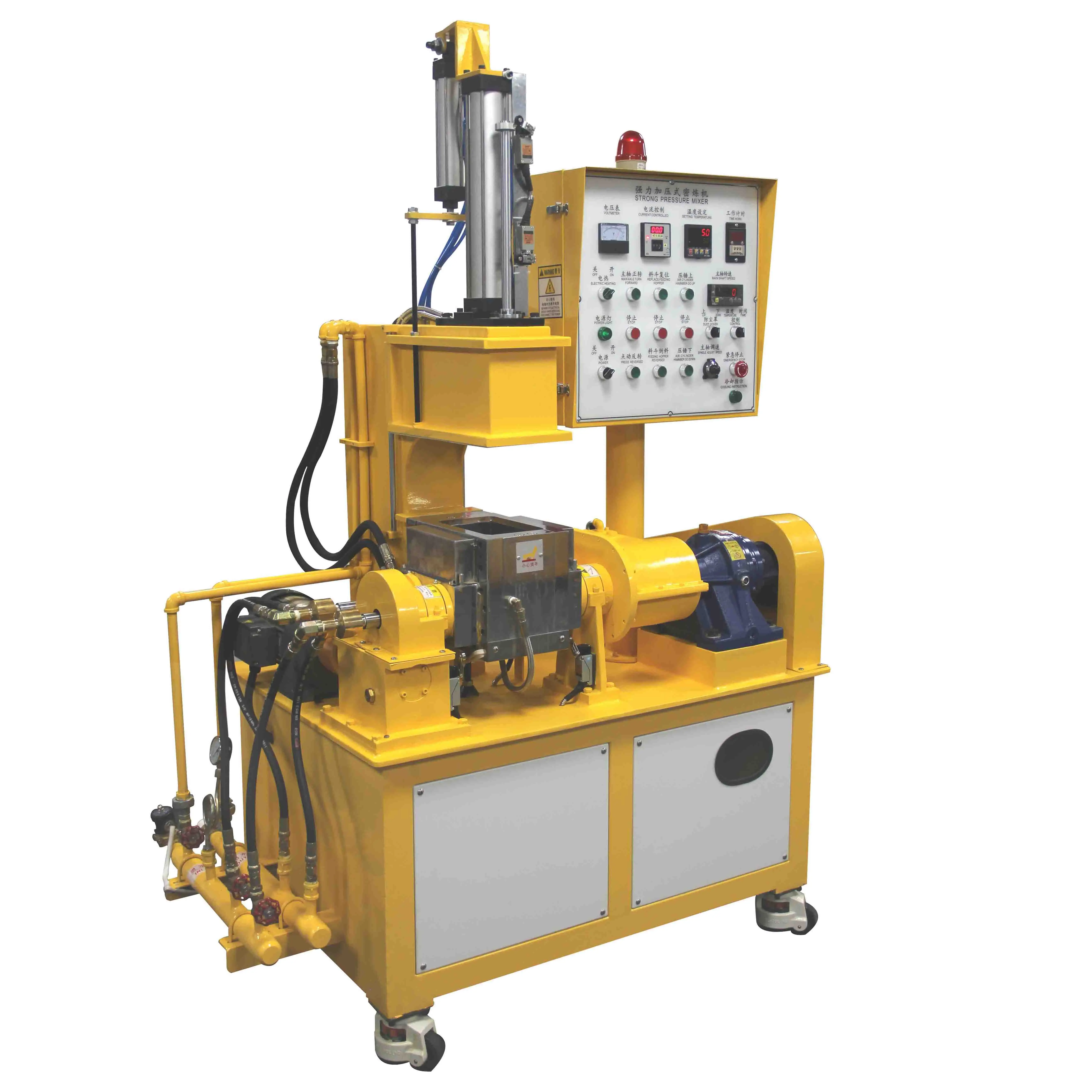

lab rubber kneader mixers for chemical testing

This machine is suitable for stiring,kneading and dispersion of all kinds of chemical raw materials,such as plastic ,rubber, synthetic rubber hot melt adhesive, etc.And then put the formula into the production line.This machine is equipped with PLC man-machine interface,temperature control module,and heat conduction oil heating cooling system.Make it easy to operate,fast heating and cooling.With this machine,you can do many different experiments of all kinds of material in a short time.

Technical   Parameters
Mixing Capacity	1L, 3L, 5L, 10L (can be customized)
Control mode	Key control, PLC control (optional)
Rotor speed(front/back)	40/31r/m(speed adjustable) 35/28 r/min (speed adjustable)
Cylinder diameter of top peg	80mm
Compressed air pressure	0.5~0.8MPa
Flip motor	0.75 kw
Heating mode	oil heating or electrical heating
Temperature	room tempe ~300°C
High temp oil pump	0.75KW-350°C wheelcoupled(lift:20m, flow:3/H)
Power of main motor	5.5 KW
Rotate speed of motor	1440rpm
Title angle of Mixing chamber	110°
Power	3Ø, AC380V, 20A

Our Service

* Inquiry and consulting support.
* Sample testing support.
* Training how to install the machine, training how to use the machine.

Dongguan Xihua Machinery Technology Co.,Ltd.
WhatsApp: +86 15625539168
Wechat: +86 156255391698
Website: www.lab-xh.com

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	(W)1550*(D)1020*(H)2150MM
Weight	850kg
Packaging Details	wooden box
